Passive Pressure Display Digital Pressure Gauges For Machinery Manufacturing
Product Details
| Model: | Y | Material: | Stainless Steel /Brass Material |
|---|---|---|---|
| Accuracy: | 1.6% | Display: | Pointer Pressure Gauge |
| Range: | -100-10kpa~100Mpa | Dial Diameter: | 40mm/50mm/63mm/100mm/150mm |
| Power: | NO | Thread: | G1/4 M20*1.5 G1/2 AND So On |
| Highlight |
Display Digital Pressure Gauges,Passive Pressure Display Digital Pressure Gauges,Machinery Manufacturing Digital Pressure Gauges |
||
Product Description

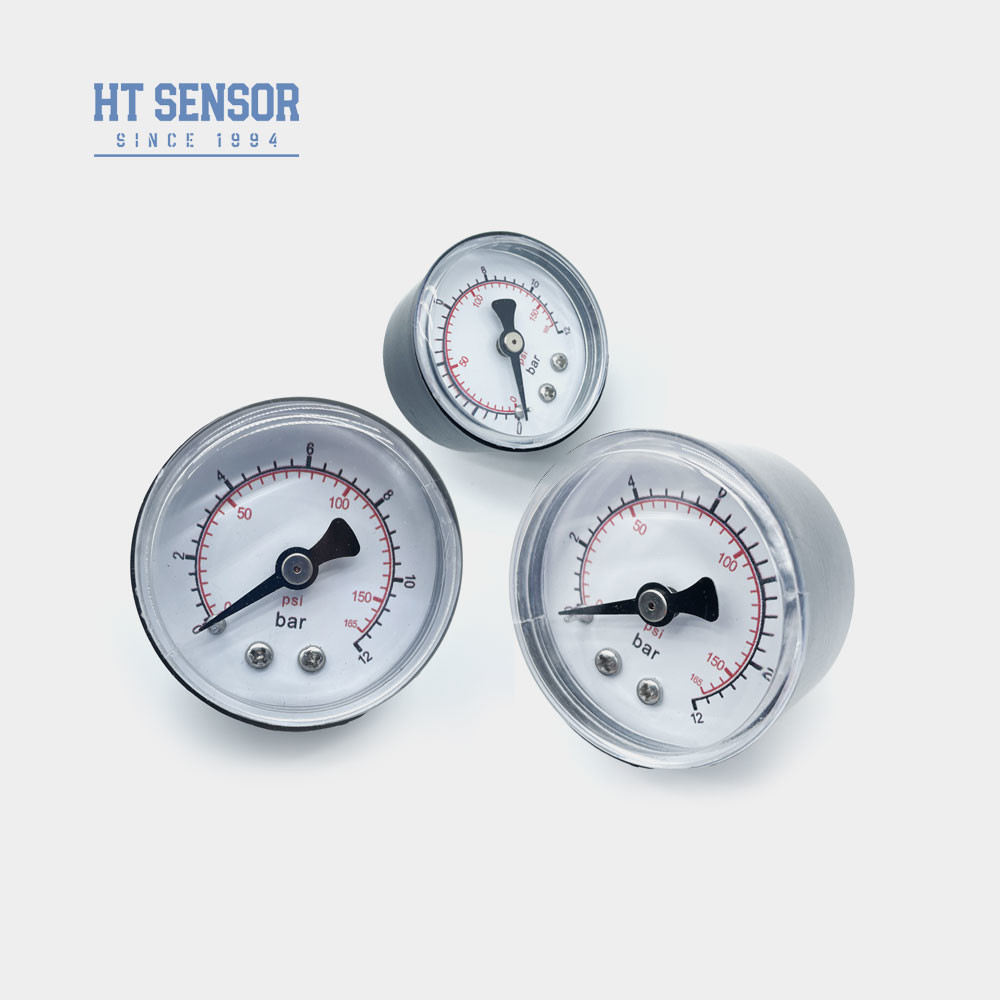

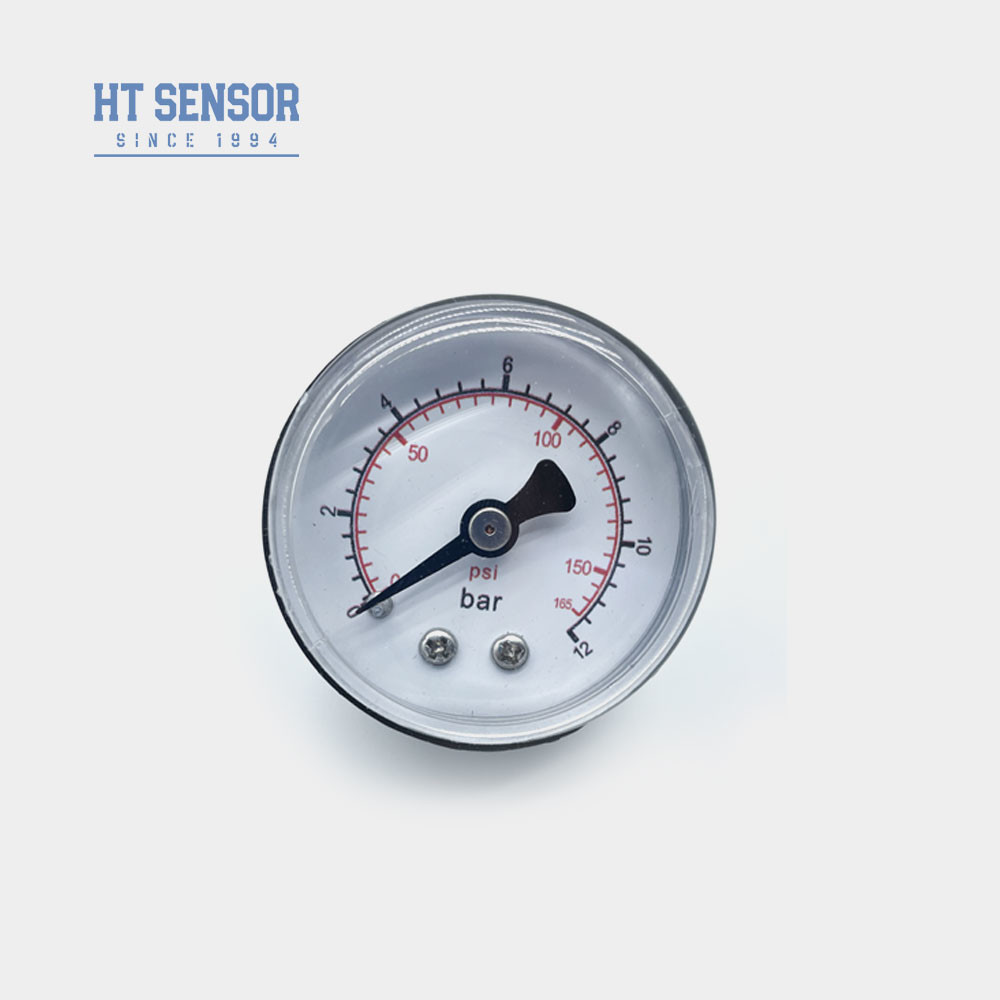

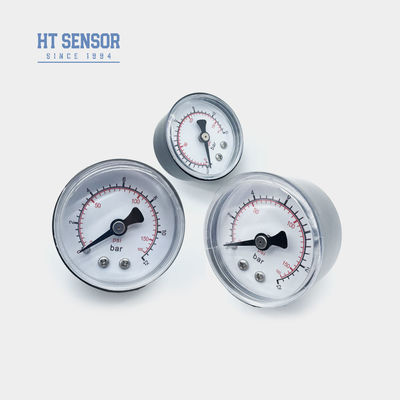

Passive Pressure Display Digital Pressure Gauges for Machinery Manufacturing
Description of pressure gauge:
The general pressure gauge series is applicable for measuring liquids, gases, or steam that are non-explosive, non-crystallizing, non-solidifying, and have no corrosive effect on copper and copper alloys. The installation modes of pressure include: radial direct installation, radial belt front side installation, radial belt rear installation, axial installation, axial belt front installation, axial belt rear installation, clamp type installation, screw mounting, and flange mounting. Products are extensively utilized in industries such as steelmaking, petrochemical, machinery manufacturing, complete sets of automation, supporting services, glass ceramics, plastic rubber, pharmaceuticals, light industry textile, food, water treatment, thermal power, and nuclear industries.
Specification of pressure gauge:
| Dia: | 40mm/50mm/63mm/100mm/150mm |
| Pressure Range: | -1Bar-0-1000Bar(15000Psi) |
| Accuracy: | ±1.6% |
| Operating temperature: | -40°C to +60°C |
| Case: | Stainless steel |
| Bezel: | Stainless steel |
| Bourdon tube: | Copper alloy or Stainless steel |
| <100Bar: C-Type | |
| ≥100Bar: Helical Type | |
| Liquid: | Glycerin or Silicone |
| Connection: | Brass or Stainless steel |
| Mounting method | Bottom Mount, Rear Mount |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8",1/4", 3/8",1/2"; |
| BSP/NPT etc. |
| Ordering tips |
- When choosing a product, please make sure that the measured medium is compatible with the contacting parts of the product.
- To guarantee reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a gradual and uniform pressure application to the positive and negative pressure chambers of the transmitter.
- During installation, it is preferable to position the pressure interfaces at both ends horizontally to minimize the influence of the installation location on the product.
- For special requirements such as intense vibration, instantaneous impact force, strong electromagnetic interference, or radio frequency interference, please notify our company and specify these requirements in the order.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
