19mm 1.5mA 100mv Diffused Silicon Pressure Sensor Piezoresistive Pressure Transducer
Product Details
| Material: | 316L | Min Range: | -100kpa |
|---|---|---|---|
| Max Range: | 60MPa | Supply: | 1.5mA |
| Output: | 100mv+-30mv | Selectable: | Four-color Silicone Wire Or Gold-plated Pin |
| Model: | HT19 | High: | 12mm |
| Oil: | Diffusion Silicon | Thread: | No |
| Highlight |
Diffused Silicon Pressure Sensor,1.5mA Silicon Pressure Sensor,19mm Piezoresistive Pressure Transducer |
||
Product Description

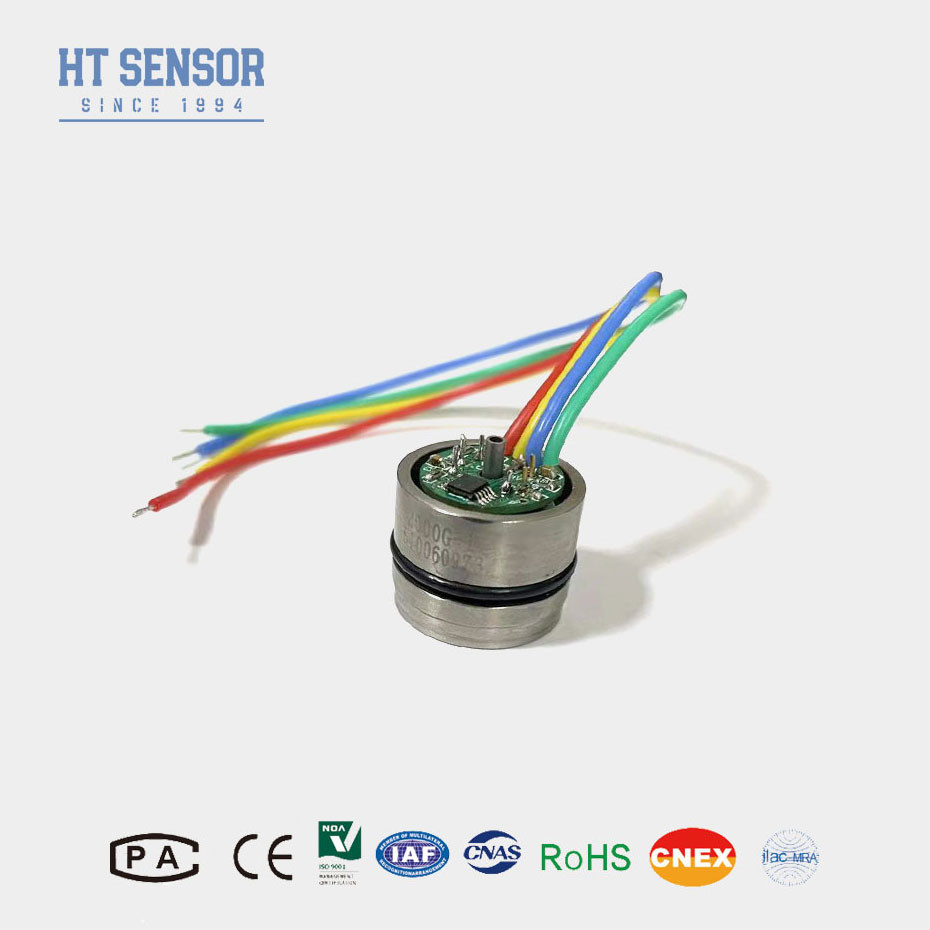

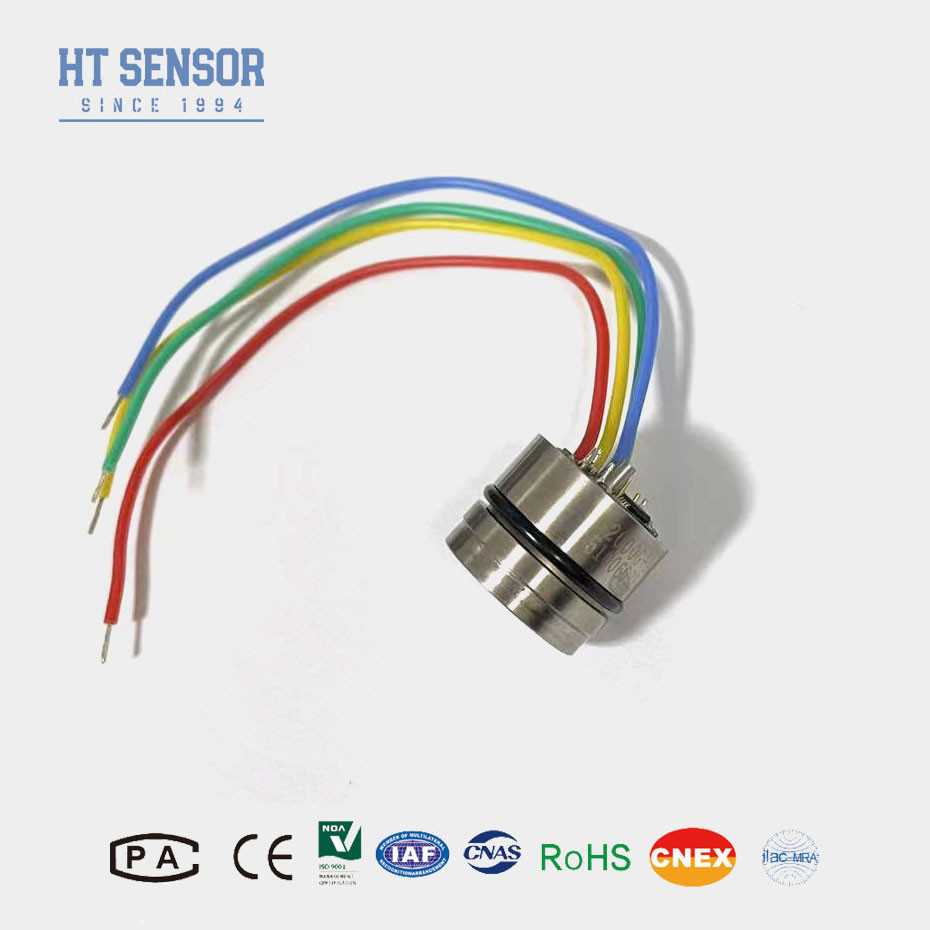

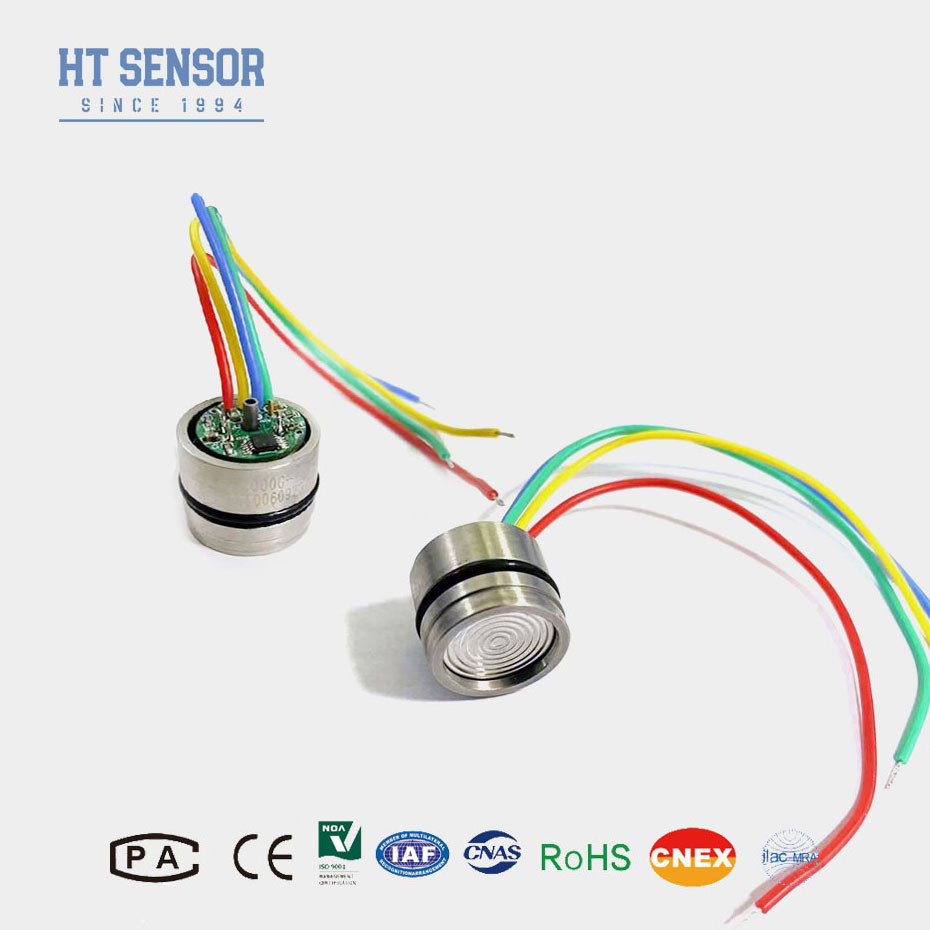

19mm Diffused Silicon Pressure Sensor Piezoresistive Pressure Sensor
Introduction of silicon pressure sensor:
HT19 piezoresistive silicon pressure sensor, the main component is a high stability diffuse silicon sensing element. The sensing package utilizes silicone oil to transfer pressure from a 316L stainless steel diaphragm to the sensing element. They feature a variety of pressure connections to allow use in a wide range of OEM (Original Equipment Manufacturer) equipment.pressure sensor for use in a wide variety of pressure sensing
applications where corrosive liquids or gases are monitored.
Product Features of silicon pressure sensor:
• Small size
• Reliable semiconductor technology
• Calibrated and temperature compensated
• Absolute and gage pressures
• Vacuum compatible, isolated sensors
• Low cost
Applications of silicon pressure sensor:
2.Process control systems
3.Industrial automation and flow control
4. Pressure calibrators
Electrical Data of silicon Pressure sensor
Supply:1.5mADC Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
Performance Specification of silicon Pressure sensor
| Parameters |
Range:0~10KPa,20KPa, 35 KPa,100 KPa,200 KPa,350 KPa, 700 KPa, 1MPa, 2MPa,3.5 MPa,7 MPa,10 MPa,20 MPa,40 MPa,60 MPa,100 MPa |
|||
| Typical | Max. | Units | ||
| Pressure Non-linearity |
±0.15 |
±0.3 | %F.S | |
| Pressure Repeatability and Hysteresis | 0.02 | 0.05 | %F.S | |
| Zero Output | 0±1 | 0±2 | mV | |
| Span Output | ≤20KPa | 50±10 | 50±30 | mV |
| ≥35 KPa | 100±10 | 100±30 | mV | |
| Temperature Error-Zero | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S | |
| Temperature Error-Span | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S | |
| Proof Pressure | 3X Rated range or 120MPa, whichever is less | ------- | ||
| Operating Temperature Range | -20~80 | ℃ | ||
| Compensated Temperature Range | 0~70, 0~50(Range≤20KPa) | ℃ | ||
| Storage Temperature Range | -40~125 | ℃ | ||
Note :Above parameter under condition:Supply: 1.5mA Temperature: 25℃
