HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor with Selectable Four-Color Silicone Wire

HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor with Selectable Four-Color Silicone Wire
HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor with Selectable Four-Color Silicone Wire
HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor with Selectable Four-Color Silicone Wire HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor with Selectable Four-Color Silicone Wire HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor with Selectable Four-Color Silicone Wire
Basic Information
Place of Origin: Baoji，China
Brand Name: HT sensor
Certification: RoHs,ISO9001
Model Number: HT26
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Get Best Price Contact Now
Detail Information
Material: 316L Min Range: -100kpa
Max Range: 60MPa Supply: 1.5mA
Output: 100mv+-30mv Selectable: Four-color Silicone Wire Or Gold-plated Pin
Model: HT26 High: 11.2mm
Oil: Diffusion Silicon Thread: No
Highlight:

1.5mA Silicon Piezoresistive Pressure Sensor

,

100mv Silicon Piezoresistive Pressure Sensor

Product Description

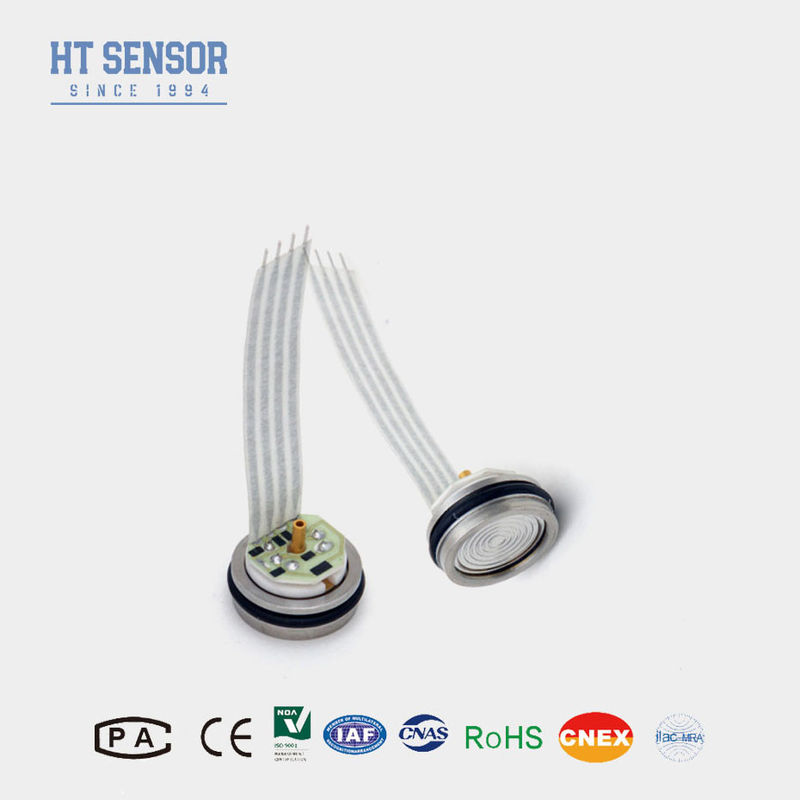

            HT26  Diffused Silicon Pressure Sensor Piezoresistive Pressure Sensor

Introduction of silicon pressure sensor:
    The core of the HT26 silicon piezoresistive pressure sensor is a highly stable diffused silicon element. It is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The HT26 compensated is offered in a weldable package or with avariety of threaded fittings such as 1/4 and 1/8NPT, 1/4BSP as well as custom process fittings.

Product Features of silicon pressure sensor:

1.Small profile
2.Employing thick-film circuits for temperature compensation and zero-point
correction
3. Outstanding reliability, repeatability, and stability
4. Height of 7mm, customizable

Applications of silicon pressure sensor:

1.Water and Wastewater Treatment: Monitoring levels in tanks, wells, and reservoirs.
2.Chemical Processing: Measuring levels of various chemicals in storage tanks.
3.Industrial Tanks: Suitable for fuel, oil, and other liquid level monitoring.



Electrical Data of silicon Pressure sensor

Supply:1.5mADC                                            Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ                      Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel


Performance Specification of silicon Pressure sensor

Parameters

Range:0~10KPa,20KPa, 35 KPa,100 KPa,200 KPa,350 KPa, 700 KPa, 1MPa, 2MPa,3.5 MPa,7 MPa,10 MPa,20 MPa,40 MPa,60 MPa,100 MPa
Typical Max. Units
Pressure Non-linearity

±0.15

 ±0.3 %F.S
Pressure Repeatability and Hysteresis 0.02 0.05 %F.S
Zero Output 0±1 0±2 mV
Span Output ≤20KPa 50±10 50±30 mV
≥35 KPa 100±10 100±30 mV
Temperature Error-Zero ≤20KPa ±1 ±2 %F.S
≥35 KPa ±0.5 ±1 %F.S
Temperature Error-Span ≤20KPa ±1 ±2 %F.S
≥35 KPa ±0.5 ±1 %F.S
Proof Pressure 3X Rated range or 120MPa, whichever is less -------
Operating Temperature Range -20~80 ℃
Compensated Temperature Range 0~70, 0~50(Range≤20KPa) ℃
Storage Temperature Range -40~125 ℃

Note :Above parameter under condition:Supply: 1.5mA Temperature: 25℃
HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor with Selectable Four-Color Silicone Wire 0
Electrical connection and compensation
HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor with Selectable Four-Color Silicone Wire 1
HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor with Selectable Four-Color Silicone Wire 2
