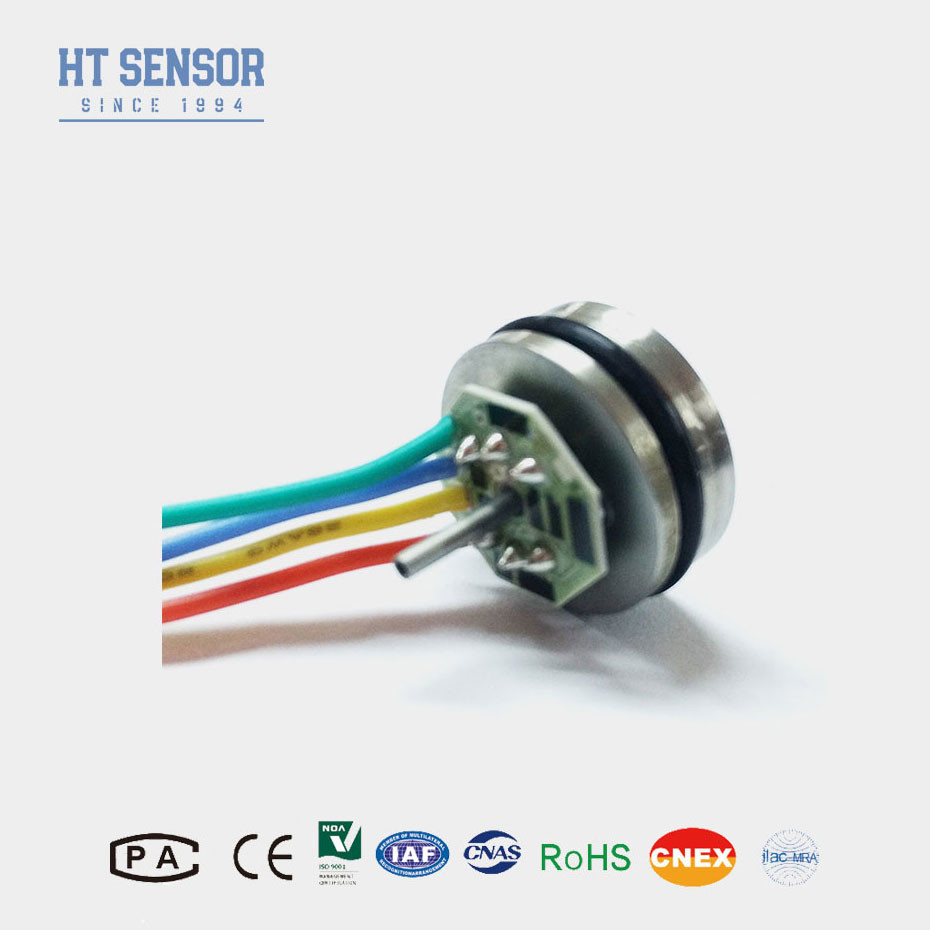

HT26 Diffused Silicon Pressure Sensor Piezoresistive Pressure Sensor
Introduction of silicon pressure sensor:
HT26 is A high-sensitivity piezoresistive silicon chip is built in as the pressure-sensing element. Pressure is transmitted via an oil filling. The upstream separating diaphragm completely isolates the pressure chip from the medium to be measured. it easy to install.
Product Features of silicon pressure sensor:
1.Utilizing advanced technology and 316L stainless steel housing, along with materials such as titanium and Hastelloy for the diaphragm
2.Employing thick-film circuits for temperature compensation and zero-point
correction
3. Outstanding reliability, repeatability, and stability
4. Height of 7mm, customizable
Applications of silicon pressure sensor:
1. Suitable for measuring non-corrosive gas and liquid pressure with 316Lstainless steel compatibility
2. Applied in various industrial process sites, including petroleum, chemical, metallurgy, power, and hydrology
3. Used in marine and aviation industries
4. Suitable for hydraulic and pneumatic control systems
Electrical Data of silicon Pressure sensor
Supply:10VDC Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
Performance Specification of silicon Pressure sensor
| Performance Parameters: | ||||||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000KPa | ||||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | |||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS | |||||
| Typ | Max | Unit | ||||
| Linearity | ±0.15 | ±0.3 | %F.S | |||
| Repeatability | 0.05 | 0.1 | %F.S | |||
| Hysteresis | 0.05 | 0.1 | %F.S | |||
| Zero Offset Output | 0±1 | 0±2 | mV | |||
| Full Scale Output | ≤20KPa | 50±1 | 50±2 | mV | ||
| ≥35kPa | 100±1 | 100±2 | mV | |||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2.5 | %F.S | ||
| ≥35kPa | ±0.8 | ±1.5 | %F.S | |||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.8 | ±1.5 | %F.S | |||
| Compensated Temp. | ≤20KPa | 0～50 | ℃ | |||
| ≥35kPa | 0～70 | ℃ | ||||
| Operating Temperature | -20～80 | ℃ | ||||
| Storage Temperature | -40～125 | ℃ | ||||
| Allowable Overload | 3 times the full scale | |||||
| Burst Pressure | 5X the full scale | |||||
| Long-term Stability | 0.2 % | F.S/Year | ||||
| Diaphragm Material | 316L | |||||
| Insulation Resistance | ≥200MΩ 100VDC | |||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |||||
| Shock | 100g,11ms | |||||
| Response Time | ≤1ms | |||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | |||||
| Filling Medium | Silicon Oil | |||||
| Weight | ～25g | |||||
| The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25℃ | ||||||
FQA:
1.Q: What are the features of your pressure sensor?
A: High precision, durability, and excellent performance.
2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensors per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners
6.Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
