HT-IQ Silicon Pressure Sensor For Liquid Test With 50.4mm Clamp Connection

HT-IQ  Piezoresistive Silicon Pressure Sensor

Introduction of flush silicon pressure sensor:

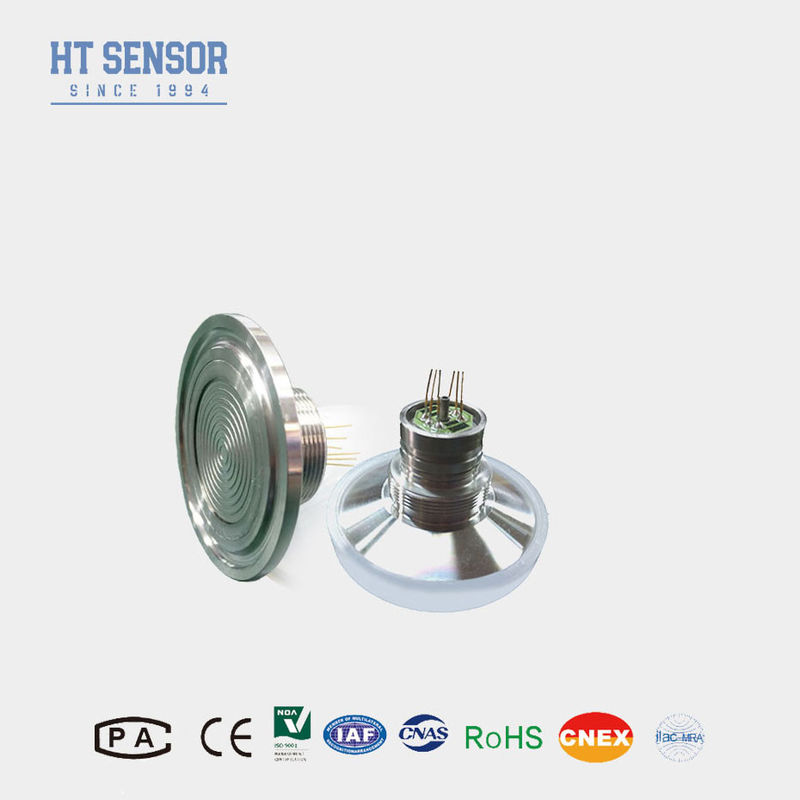

HT - IQ pressure sensor is a flush diffusion silicon diaphragm pressure sensor. Clamp pressure sensor with disposable silicone oil filling technology. media compatible,piezoresistive silicon pressure sensor packaged in a 316L stainlesssteel housing. Can be configured for o-ring
mounting or threaded process fittings and is designed for OEM applications where compatibility with corrosive media is required




HT-IQ Silicon Flush Pressure Sensor Flush Diaphragm Pressure Transducer 50.4mm 0HT-IQ Silicon Flush Pressure Sensor Flush Diaphragm Pressure Transducer 50.4mm 1

Product  Features of flush silicon pressure sensor:
  1. Advanced technology and 316L stainless steel housing packaging
  2. 2.Temperature compensation and zero point correction through thick film
  3. circuit Outstanding reliability, repeatability, and stability
  4. High-temperature flush diaphragm structure for easy cleaning
Electrical performance of flush silicon pressure sensor:
  1. Power Supply:        ≤2mA DC (Typical 1.5mA DC)
  2. Input Impedance  :     2.5KΩ~6KΩ
  3. Output Impedance:     2.5KΩ~6KΩ
  4. Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.
Performance Parameters of flush diffused silicon pressure sensor:
Measurement Range Gauge(G) 35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS
  Typ Max Unit
NonLinearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~220g
The parameters are tested under the following conditions:  1.5mA @25°C


Outline Construction
Dimension

HT diffused silicon oil-filled pressure sensor





Electrical connection and compensation
HT diffused silicon oil-filled pressure sensor

Selection Examples
HT diffused silicon oil-filled pressure sensor
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
     required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when      placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into          the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
