BPHT24 Flush Diaphragm Pressure Sensor for Environmental Protection and Chemical Industry Transmitter
Product Details
| Model NO.: | BPHT24 | Range: | 0-10kpa~035mpa |
|---|---|---|---|
| Power: | 5Vdc / 12-32Vdc（24VDC） | Output: | 0.5-4.5VDC /4-20mA And So On |
| Connect: | M20*1.5 G1/2 1/2NPT | Type: | Flush Diaphragm Pressure Sensor |
| Measuring Medium: | Liquid,gas ,Beverage Glue And So On | Accuracy Grade: | 0.5%FS |
| Material: | Stainless Steel | Customization: | OEM And ODM |
| Highlight |
Chemical Industry Flush Diaphragm Pressure Sensor,BPHT24 Flush Diaphragm Pressure Sensor,Environmental Protection Flush Diaphragm Pressure Sensor |
||
Product Description

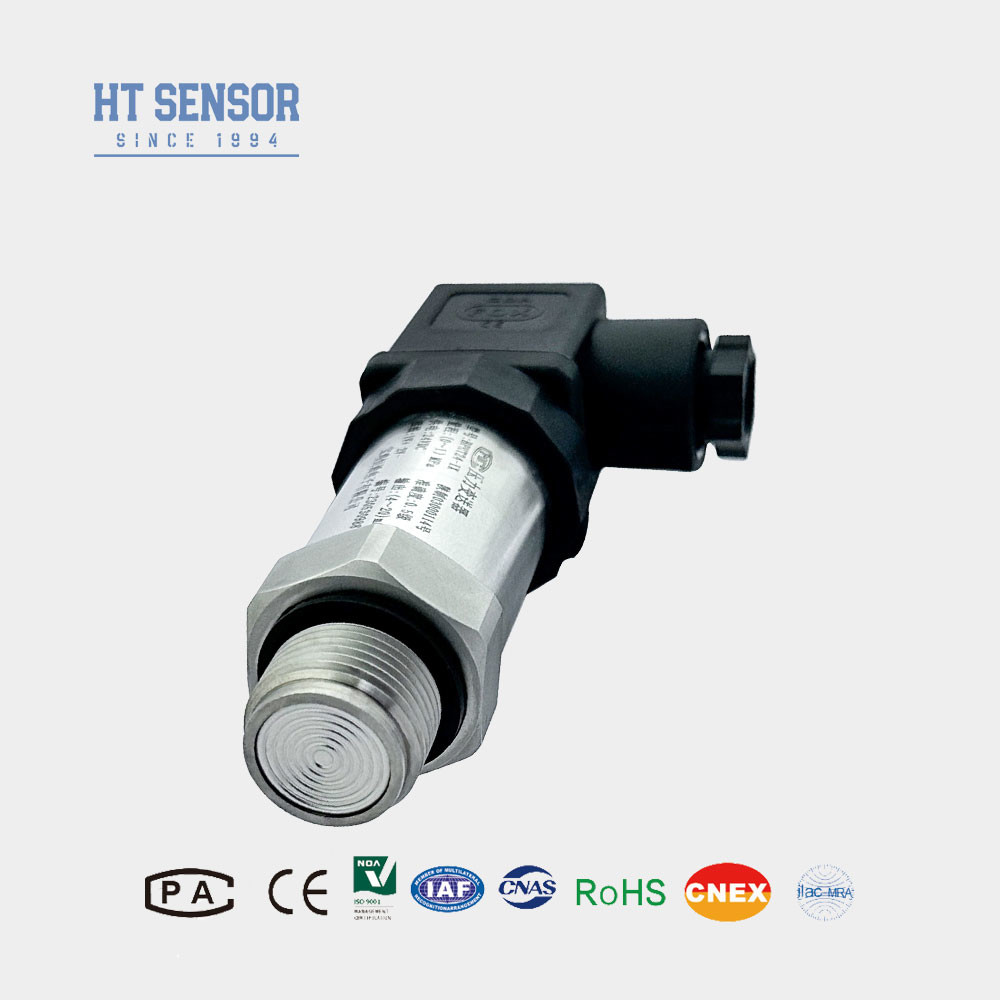

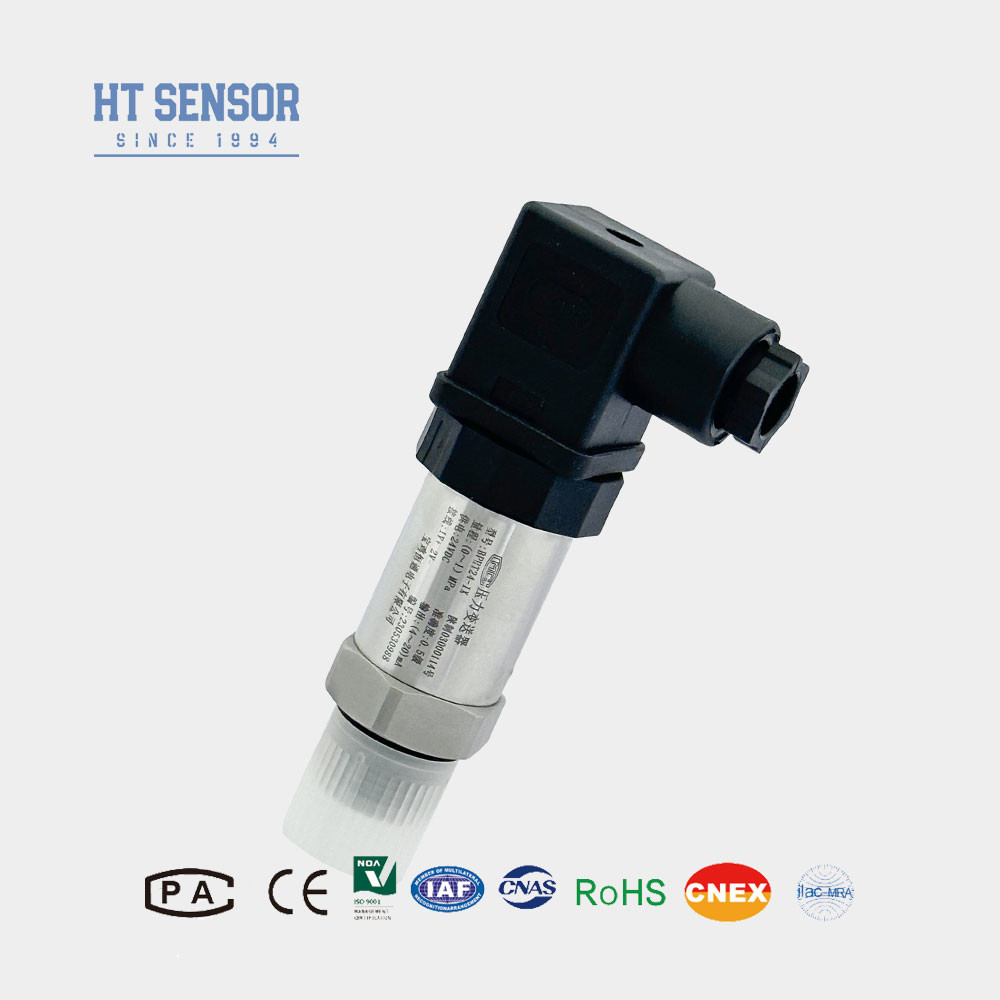

BPHT24 Flush Diaphragm Pressure Sensor for Environmental Protection and Chemical Industry
BPHT24 Flush Diaphragm Pressure Sensor
Introduction of flush diaphragm pressure sensor transmitter:
BPHT24 Measurement Element and Housing: The BPHT24 pressure sensor transmitter adopts the HT series plate diaphragm silicon insulated oil core as the signal measurement element. All the components are housed in a stainless steel enclosure, which converts the sensor signal into the standard output current or voltage required by the customer.
Product Features of flush diaphragm pressure sensor transmitter:
1. Various pressure interface options.
2. Designed for hygienic applications to prevent medium scaling.
3. High accuracy with a fully stainless steel structure.
4. Easy to clean.
Applications of flush diaphragm pressure sensor transmitter:
1. Suitable for measuring non-corrosive gases and liquids with 316L.
2. Ideal for environmental protection and chemical industries.
3. Used in the marine and aviation industries.
4. Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
| Performance Parameters of flush diaphragm pressure sensor transmiter | |
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include a digital display.
3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site and ensure that the product and the power supply are reliably grounded.
5.The cable does not come with default cable attached. If you require cable, there are three materials to choose from. If no specific instructions are given, polyethylene cable materials will be used by default.If different cable materials are required, please indicate in your order form.
6.In case of special requirements such as strong vibration, instantaneous impact,strong electromagnetic or radio frequency interference ,please inform us and indicate in your order.
| Order Guide of flush diaphragm pressure sensor transmitter | ||||||||
| BPHT24 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IX | Display Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| T | High-temperature resistant Pressure Transmitter | |||||||
| Measurement Range | 0~35Kpa…~20MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
