10kpa High Accuracy Flush Diaphragm Pressure Sensor For Marine And Aviation Industries Transmitter
Product Details
| Model NO.: | BPHT24 | Range: | 0-10kpa~035mpa |
|---|---|---|---|
| Power: | 12-32Vdc（24VDC）/3-6.5VDC | Output: | 4-20mA And So On/0.2-2.2vdc And So On |
| Connect: | M20*1.5 G1/2 Or 1/2NPT | Type: | Flush Diaphragm Pressure Transmitter Sensor |
| Measuring Medium: | Liquid Beverage Glue And So On | Accuracy Grade: | 0.5%FS |
| Material: | Stainless Steel | Customization: | OEM And ODM |
| Highlight |
10kpa Flush Diaphragm Pressure Sensor,Marine Industries Flush Diaphragm Pressure Sensor,Aviation Industries Flush Diaphragm Pressure Sensor |
||
Product Description
10kpa High Accuracy Flush Diaphragm Pressure Sensor for Marine and Aviation Industries

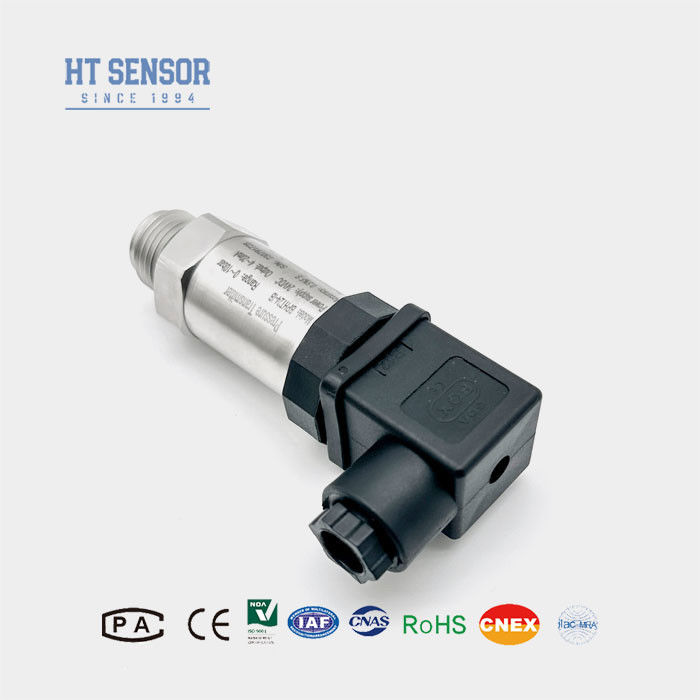

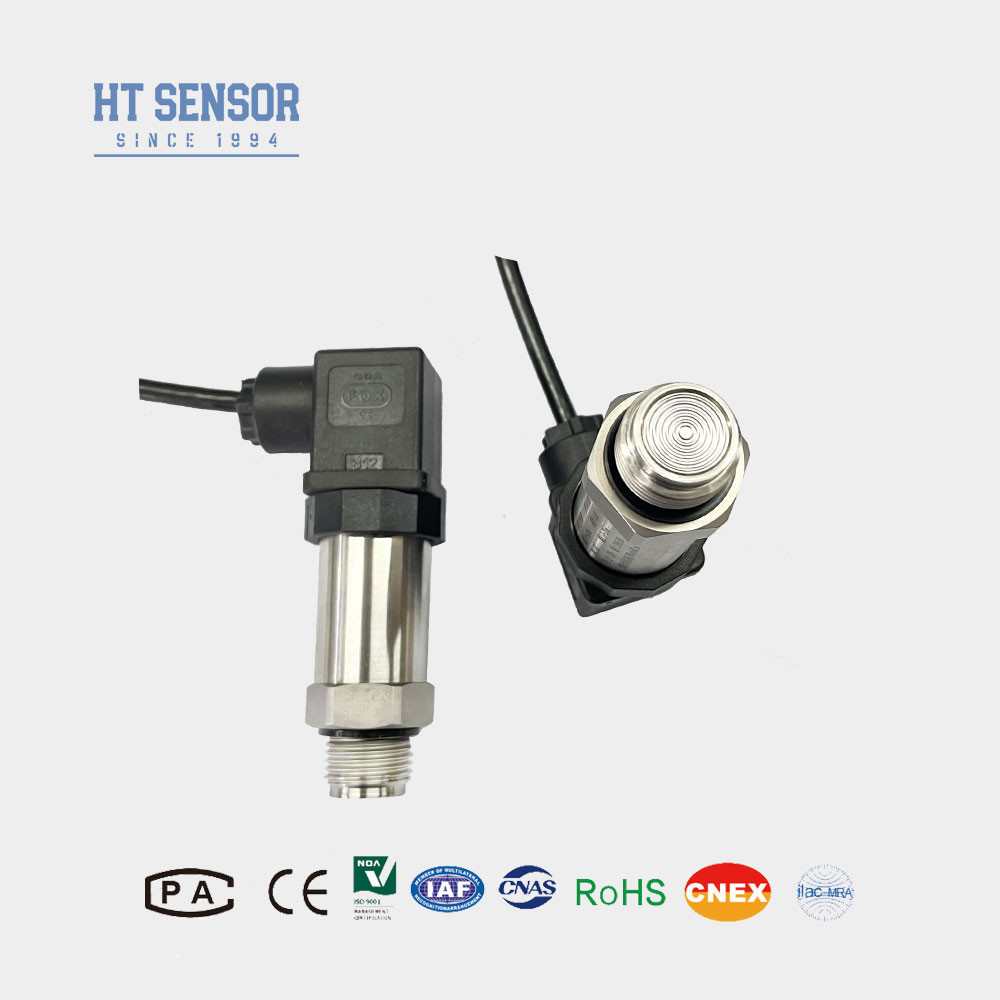

BPHT24 Flush Diaphragm Pressure Sensor
Introduction of flush diaphragm pressure sensor transmitter:
BPHT24 flush diaphragm pressure sensor transmitter Core Technology and Reliability: The diffused silicon front type adopts an imported diffused silicon core system and utilizes tuning and digital compensation technology. This ensures reliable product performance and stable output from the sensor.
Product Features of flush diaphragm pressure sensor transmitter:
1. Various pressure interface options.
2. Designed for hygienic applications to prevent medium scaling.
3. High accuracy with a fully stainless steel structure.
4. Easy to clean.
| Performance Parameters of flush diaphragm pressure sensor transmiter | |
| Measurement Range | 0~10Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
- When selecting a product, please ensure that the medium being measured is compatible with the wetted parts of the product.
- When placing an order, please note that explosion-proof products do not include a digital display as standard.
- When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should be at least 20VDC.
- To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are properly grounded.
- The product does not include a default attached cable. If a cable is required, there are three material options available - polyethylene is the default material used if no specific instructions are provided. If a different cable material is needed, please indicate this in your order form.
- For special requirements such as strong vibration, instantaneous impact, or strong electromagnetic/radio frequency interference, please inform us and specify these details in your order.
| Order Guide of flush diaphragm pressure sensor transmitter | ||||||||
| BPHT24 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IX | Display Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| T | High-temperature resistant Pressure Transmitter | |||||||
| Measurement Range | 0~35Kpa…~20MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
