| Model NO.: | HT20V | Wiring Type: | Four-Wire |
|---|---|---|---|
| Measuring Medium: | Gas And Liquid | Customized: | Customized |
| Power: | 10VDC | Transport Package: | Carton |
| Type: | Differential Piezoresistive Pressure Sensor | Output Signal Type: | Analog Type |
| Material: | Stainless Steel | Customization: | Available | Customized Request |
| High Light: | 100mv Pressure Sensor,10VDC Pressure Sensor,Piezoresistive Pressure Sensor |
||

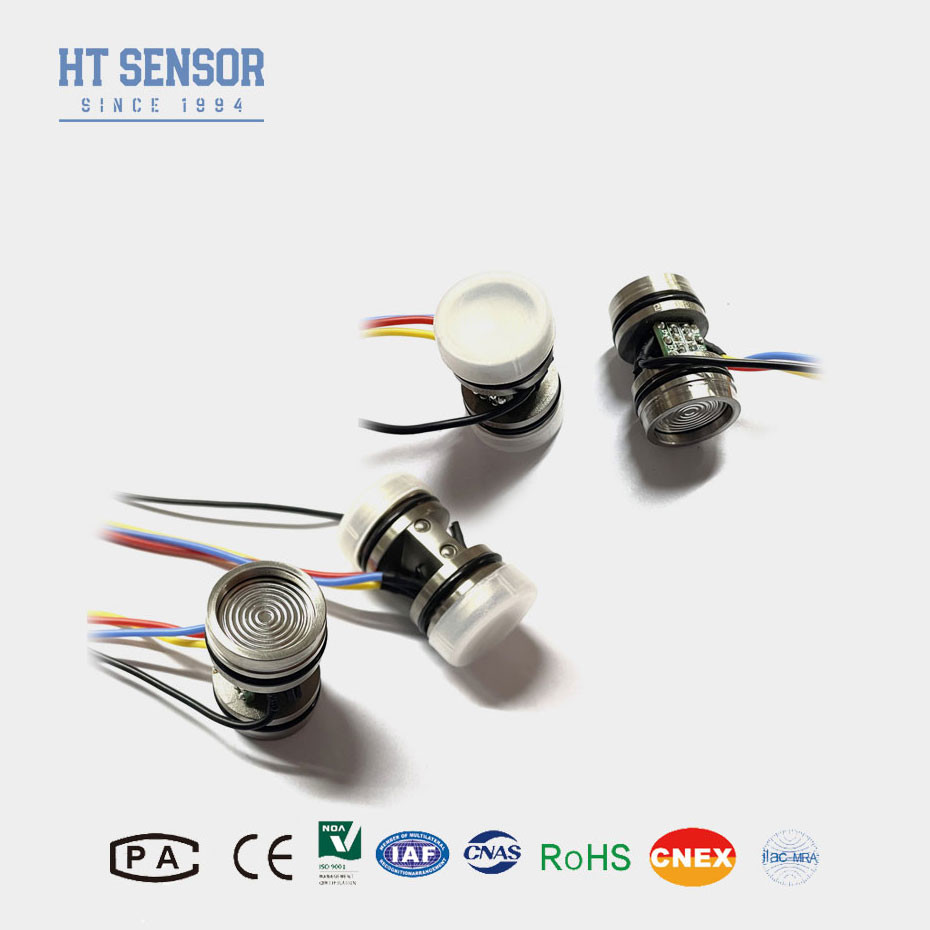

Product Features of differential diffused silicon pressure sensor:
1. High Accuracy: Provides precise differential pressure measurements.
2. Excellent Stability: Maintains performance over long periods.
3.Wide Measurement Range: Capable of measuring small to large differential pressures.
4. Temperature Compensation: Ensures accurate readings across a wide temperature range.
| Performance Parameters of differential diffused silicon pressure sensor: | ||||
| Measurement Range | 10KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | |||
| Typ | Max | Unit | ||
| Linearity | ±0.15 | ±0.3 | %F.S | |
| Repeatability | 0.05 | 0.1 | %F.S | |
| Hysteresis | 0.05 | 0.1 | %F.S | |
| Zero Offset Output | 0±1 | 0±2 | mV | |
| Full Scale Output | ≤20KPa | 50±1 | 50±2 | mV |
| ≥35kPa | 100±1 | 100±2 | mV | |
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2.5 | %F.S |
| ≥35kPa | ±0.8 | ±1.5 | %F.S | |
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35kPa | ±0.8 | ±1.5 | %F.S | |
| Compensated Temp. | ≤20KPa | 0~50 | ºC | |
| ≥35kPa | 0~70 | ºC | ||
| Operating Temperature | -20~80 | ºC | ||
| Storage Temperature | -40~125 | ºC | ||
| Allowable Overload | Take the smaller value between 3 times the full scale or 4MPa | |||
| Burst Pressure | 5X the full scale | |||
| Long-term Stability | 0.2 % | F.S/Year | ||
| Diaphragm Material | 316L | |||
| Insulation Resistance | ≥200MΩ 100VDC | |||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |||
| Shock | 100g,11ms | |||
| Response Time | ≤1ms | |||
| O-ring Seal | Nitrile rubber or Fluoro rubber | |||
| Filling Medium | Silicon Oil | |||
| Weight | ~45g | |||
| The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC | ||||
| Outline Construction of differential diffused silicon pressure sensor | |
| Dimension |  |
| Notes:The outgoing end is the positive terminal. If there are any changes in the wire colors, please refer to the label attached to the sensor for accurate information | |
| Electrical connection and compensation of differential diffused silicon pressure sensor |
 |
