Flush Diaphragm Pressure Sensor Transmitter For High Temperature Pressure Applications Sensor
Product Details
| Model NO.: | BP93420-IIIQT1 | Power Supply: | 12-32VDC |
|---|---|---|---|
| Ouptut: | 4-20mA+ Display | Pressure Type: | Gauge Pressure, Absolute , Sealed Pressure |
| Range: | 0-35kpa~3.5Mpa | Structure Type: | Flush Diaphragm Pressure Sensor Transmitter |
| Measuring Medium: | Liquid,gas ,Beverage Glue And So On | Accuracy Grade: | 0.5% |
| IP Rating: | IP65 | Customization: | Available |
| Highlight |
High temperature Flush Diaphragm Pressure Sensor,High temperature Pressure Sensor Transmitter,Flush Diaphragm Pressure Sensor Transmitter |
||
Product Description

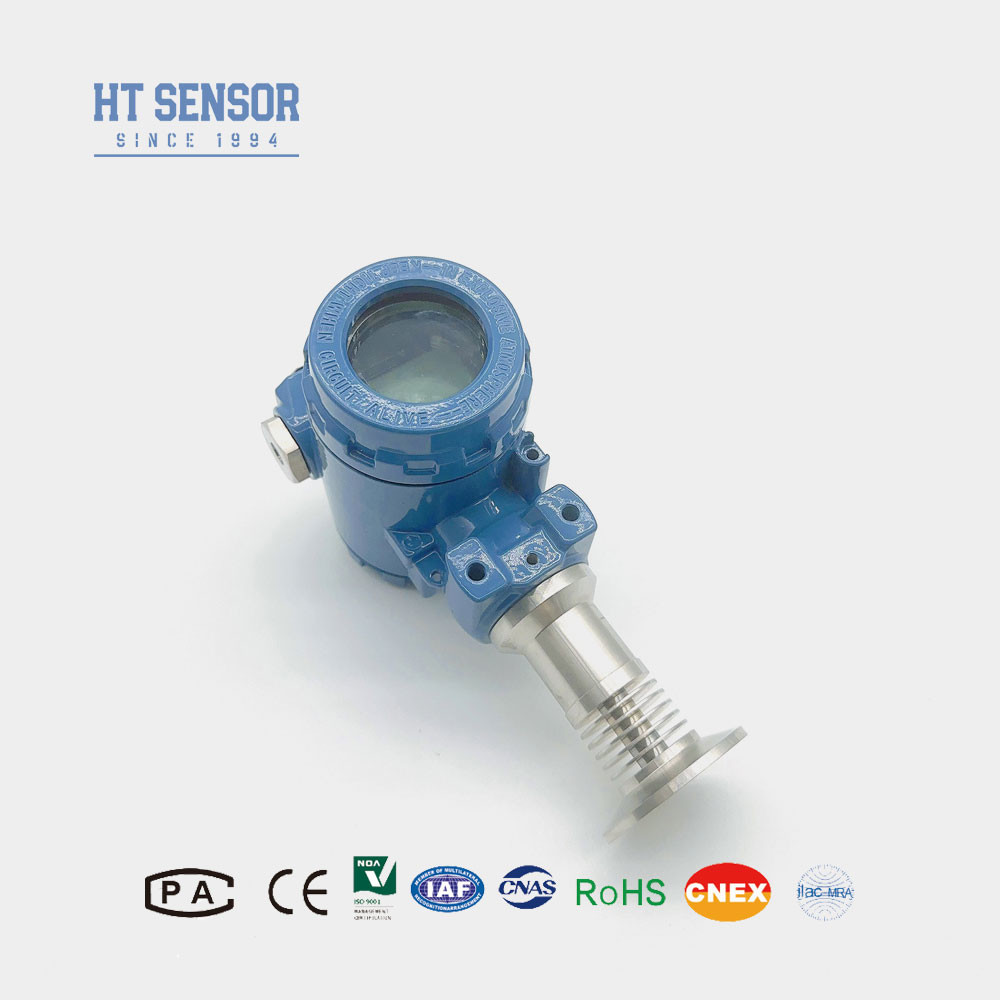

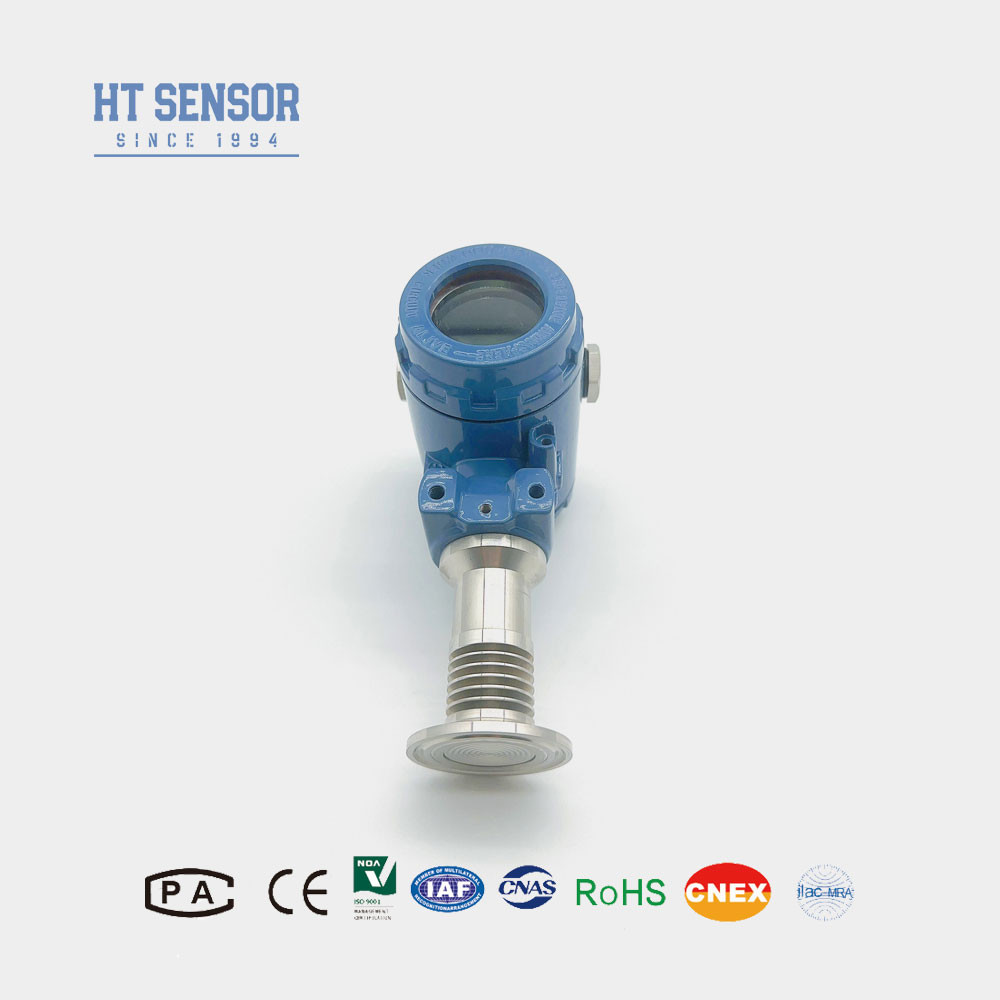

Flush Diaphragm Pressure Sensor Transmitter for High temperature Pressure Applications
BP93420-IIIQT1 Pressure Transmitter
Introduction of flush diaphragm pressure sensor:
- The BP93420-IIIQT1 flush-diaphragm pressure sensor transmitter is an analog pressure transmitter with the following key features:
- 1. Flat Membrane Structure: The transmitter's flush-diaphragm design increases the contact area with the measured medium, enhancing its performance.
- 2. Wide Temperature Range: The transmitter is designed to operate within a wide temperature range, allowing it to adapt to diverse environmental conditions.
- 3. Overload Capacity: The transmitter has a high overload capacity, enabling it to withstand pressure spikes and surges without compromising its functionality.
- 4. Strong Corrosion Resistance: The materials and construction of the transmitter provide robust corrosion resistance, making it suitable for use in various harsh environments.
- 5. Versatile Application: With these features, the BP93420-IIIQT1 series of pressure transmitters can be applied in a wide range of industries and applications that require reliable pressure measurement under challenging conditions.
- 6.This optimization highlights the key advantages of the BP93420-IIIQT1 pressure sensor transmitter, emphasizing its suitability for use in diverse and demanding environments.
| Performance Parameters of Flush Diaphragm Pressure Sensor | |
| Measurement Range of Flush Diaphragm Pressure Sensor | -100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤0.1%FS |
| Hysteresis | ≤0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3kg |
Applications of flush diaphragm pressure sensor:
- 1. Suitable for measurement of non-corrosive gases and liquids with 316L.
- 2. Used for aseptic processing in medical, biopharmaceutical, food hygiene and other industries.
- 3. Used in the paper and chemical industries, as well as in sewage level and beverage tank pressure measurement, suitable for hydraulic and pneumatic control systems.
| Output Signal of flush diaphragm pressure sensor | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips of flush diaphragm pressure sensor |
- 1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
- 2. When placing an order, please note that explosion-proof products do not include digital display heads.
- 3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be less than 20VDC.
- 4. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
- 5. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.
| Order Guide of flush diaphragm pressure sensor | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
FAQ of flush diaphragm pressure sensor:
1. Q: What are the features of your flush diaphragm pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
