| Modle: | BP93420D-II | Range: | 0-20kpa~2Mpa |
|---|---|---|---|
| Power: | 5VDC 24VDC(12-32VDC) | Output: | 0.5-4.5V 4-20mA RS485 And So On |
| Material: | Stainless Steel | Thread: | Male And Female Can Be OEM |
| Pressure Type: | Differential Pressure Sensor Transmitter | Protection Class: | IP65 |
| Test Medium: | Air Oil And Water | Connector: | Big DIN |
| High Light: | Diffused Silicon Piezoresistive Differential Pressure Transmitter,Dwyer Differential Pressure sensor,Dwyer Differential Pressure Transmitter |
||

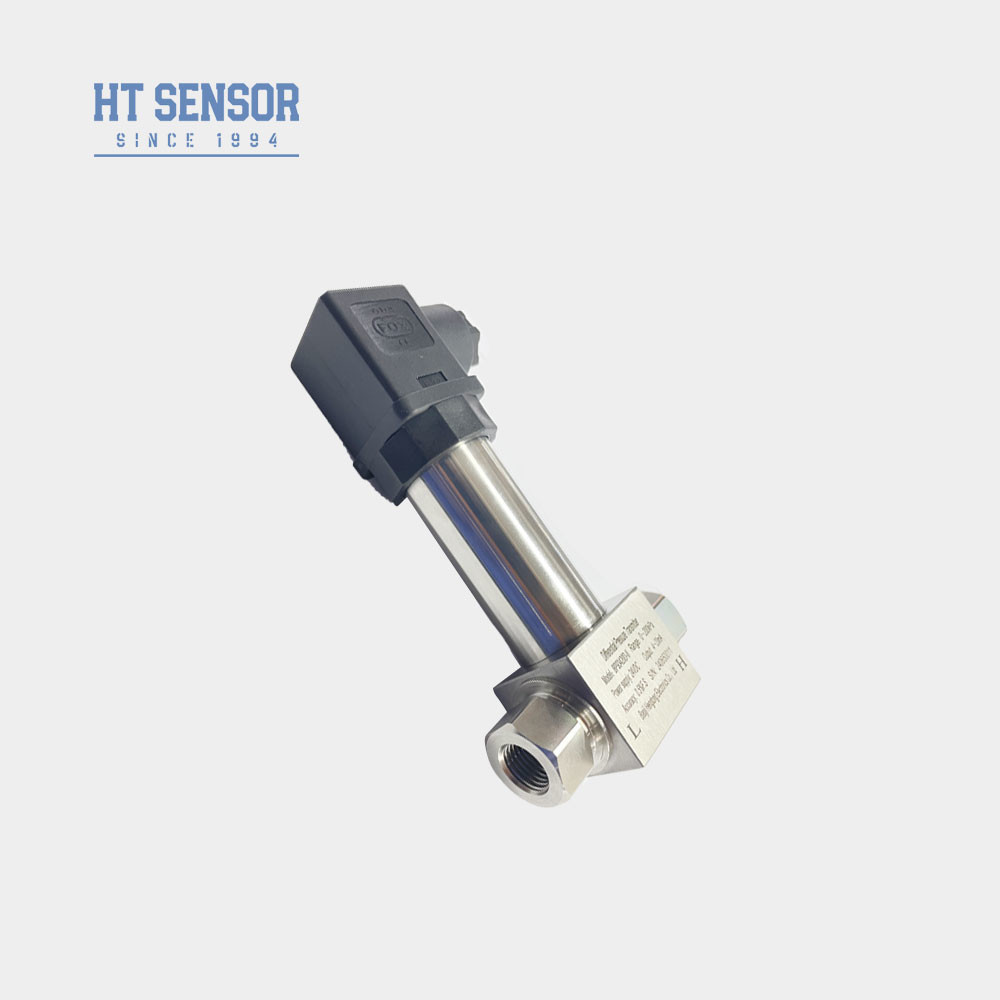

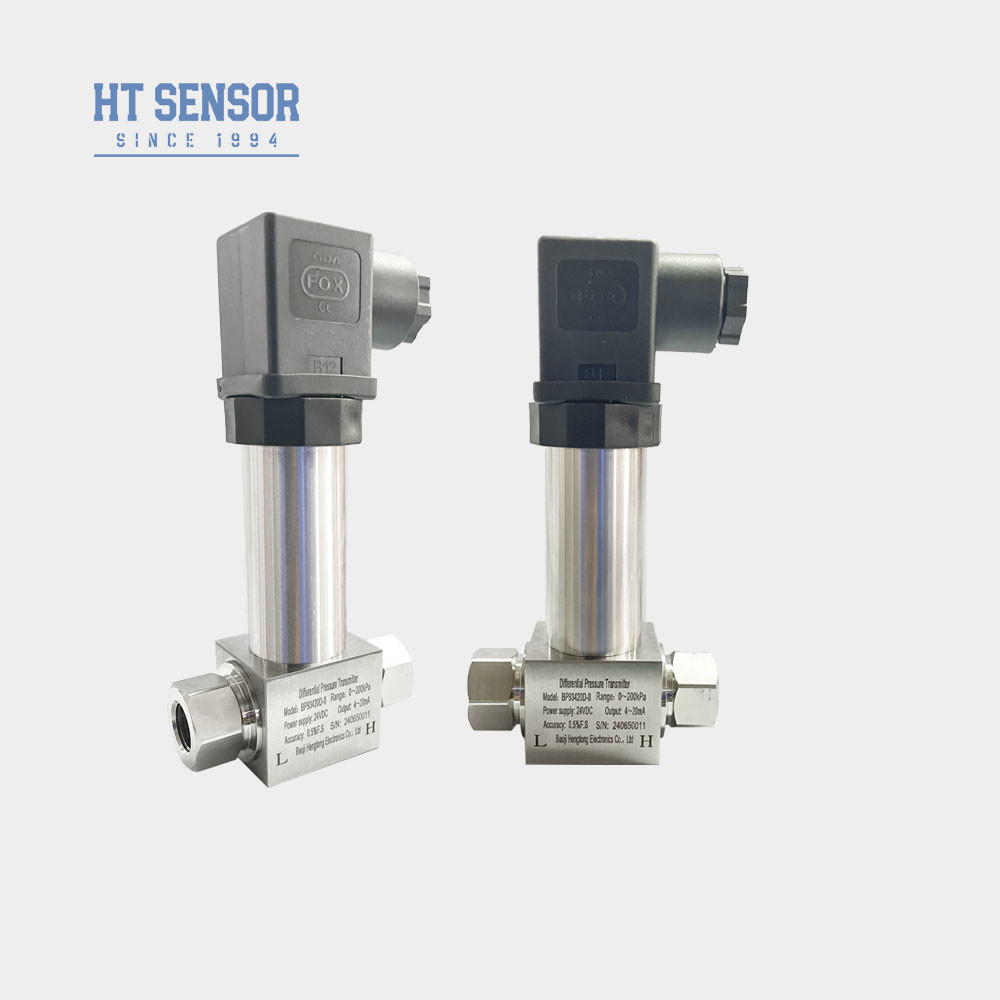

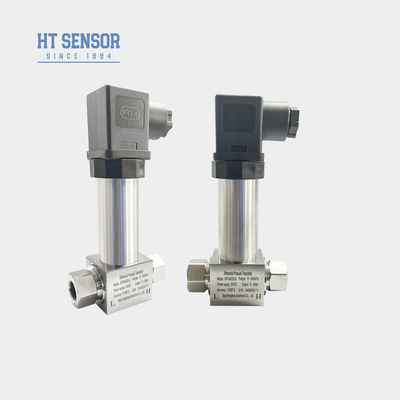

Differential Pressure Transmitter With Diffused Silicon Piezoresistive Dwyer Differential Pressure Sensor
BP93420DII Differential Pressure Transmitter
Introduction of differential pressure transmitter:
The BP93420DII differential pressure transmitter employs a diffused silicon piezoresistive sensor. The pressure differential of gas and liquid is measured and outputted, which can be displayed. It is applicable to the measurement of pressure differential of various gases and liquids in pipelines within industries such as petroleum, chemical, electric power, hydrology, etc.
Product Features of differential pressure transmitter:
Applications of differential pressure transmitter::
| Performance Parameters of differential pressure transmitter: | |
|---|---|
| Measurement Range | 0-10KPa……~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature | 0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -40℃~100℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4～20mA | 12～30VDC | 2/3/4 wire |
| 0～10/20mA |
3 wire |
|
| 0/1～5V | ||
| 0.5～4.5V | 5VDC |
| Ordering tips of differential pressure transmitter: |
1. When selecting the product, please ensure that the test medium is compatible with the contact parts of the product (stainless steel 304 or 316L).
2. In order to ensure reliable operation, it is recommended to install three valve tubes between the measuring point and the transmitter to ensure that the pressure of the positive and negative pressure chamber of the transmitter is slow and uniform. If the overload of a single end is serious, the sensor will be damaged.
3. When installing, the pressure interfaces at both ends should be placed horizontally to minimize the impact of the installation position on the product.
4. In case of special requirements such as strong vibration, instantaneous shock, strong electromagnetic interference or radio frequency interference, please inform us and indicate in the order.
5.When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
| Order Guide of differential pressure transmitter: | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa……~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
