Differential Pressure Transmitter For Gas And Liquid Pipeline Pressure Measurement Sensor Transmitter
Product Details
| Modle: | BP93420D-II | Range: | 0-10kpa~2Mpa |
|---|---|---|---|
| Power: | 24VDC（12-32VDC）5VDC（3-6.5Vdc） | Output: | 4-20mA RS485 0.2-2.2Vdc |
| Material: | Stainless Steel | Thread: | Male And Female All Can Be |
| Pressure Type: | Differential Pressure Transmitter Sensor | Protection Class: | IP65 |
| Test Medium: | Air Oil Water And So On | Connector: | Big DIN |
| Highlight |
Liquid Pipeline Pressure Measurement Sensor,Differential Pressure Transmitter,Gas Pipeline Pressure Measurement Sensor |
||
Product Description
Differential Pressure Transmitter For Gas And Liquid Pipeline Measurement Sensor Pressure

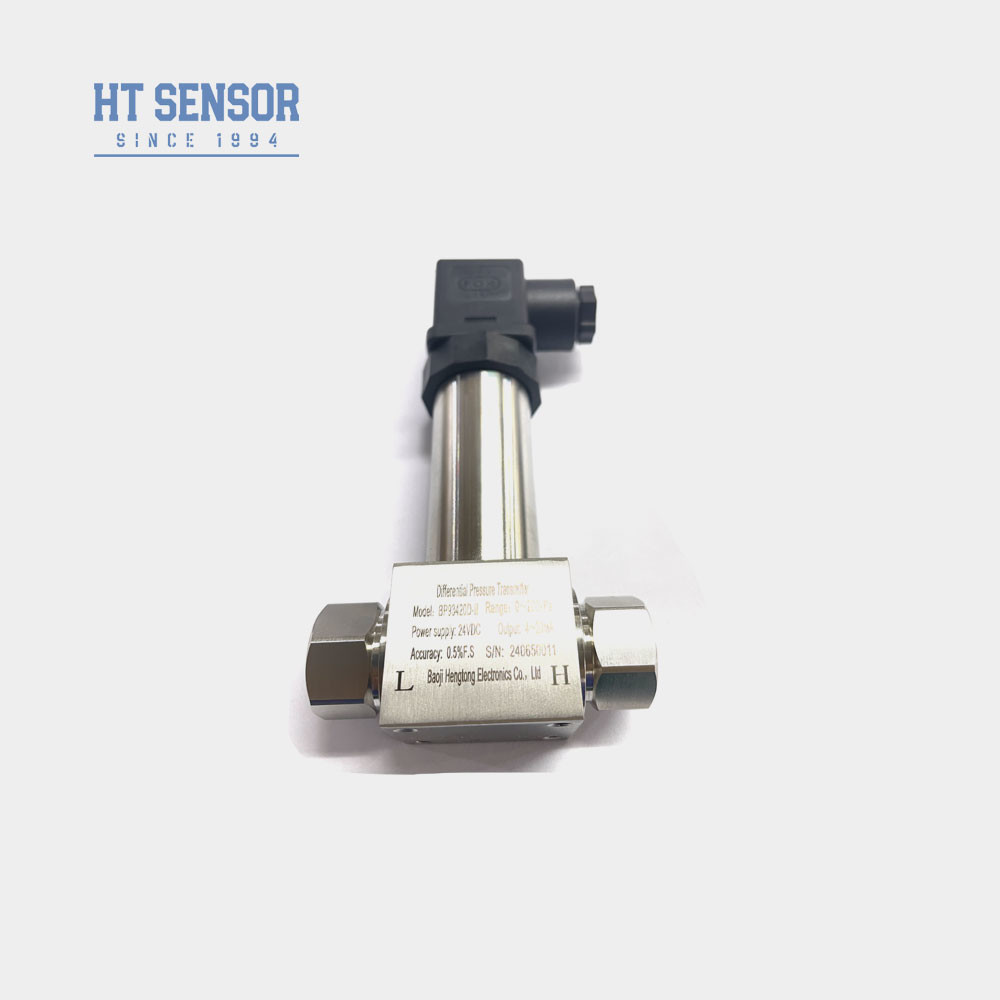

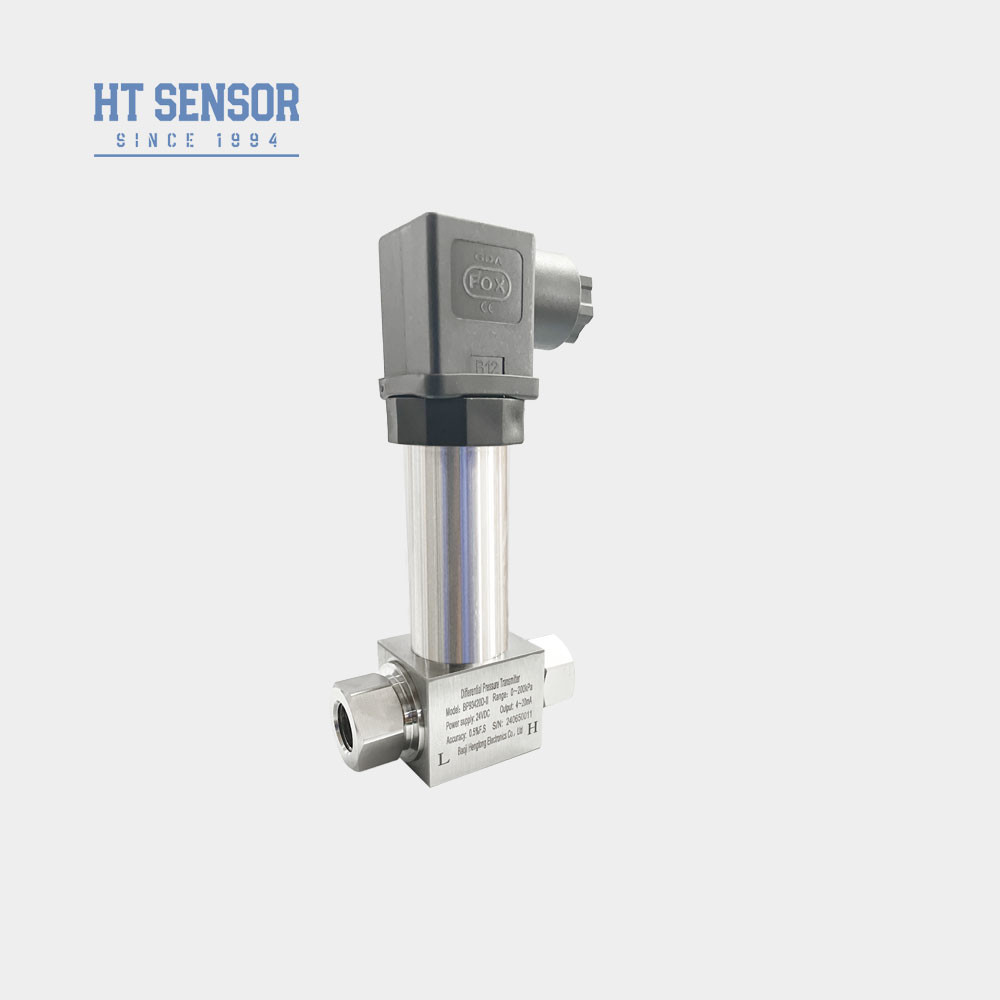

BP93420DII Differential Pressure Transmitter
Introduction of differential pressure transmitter:
BP93420DII differential pressure transmitter uses diffused silicon piezoresistive sensor. Measure and output the pneumatic hydraulic difference, such as the difference in liquid pressure in two pipes, and amplify the standard signal required by the customer and increase the field display. It is widely used in the pressure difference measurement of various gases and liquids in pipelines in petroleum, chemical, electric power, hydrology and other industries.
Product Features of differential pressure transmitter:
1. The transducer adopts stainless steel structure design, compact structure, convenient installation.
2. After strict temperature compensation and aging screening, to ensure stable and reliable performance.
3. The electrical interface can be external or directly connected.
Applications of differential pressure transmitter:
- 1. It is suitable for differential pressure measurement of various gases or liquids in pipelines of petroleum, chemical, electric power, hydrology and other industries.
- 2. Used for process control in industrial field.
- 3. The piping and furnace differential pressure measurement
| Performance Parameters of differential pressure transmitter: | |
| Measurement Range | 0-10KPa……~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature | 0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -40℃~100℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4～20mA | 12～30VDC | 2/3/4 wire |
| 0～10/20mA |
3 wire |
|
| 0/1～5V | ||
| 0.5～4.5V | 5VDC |
| Ordering tips of differential pressure transmitter: |
Attention:
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display.
3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
5. Cables don't come with default cables. If you need cables, there are three materials to choose from.If not specified, polyethylene cable material is used by default.If different cable materials are required, please indicate in the order.
6. In case of strong vibration, instantaneous impact, strong electromagnetic or radio frequency interference and other special requirements, please inform and indicate in the order.
| Order Guide of differential pressure transmitter: | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa……~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
