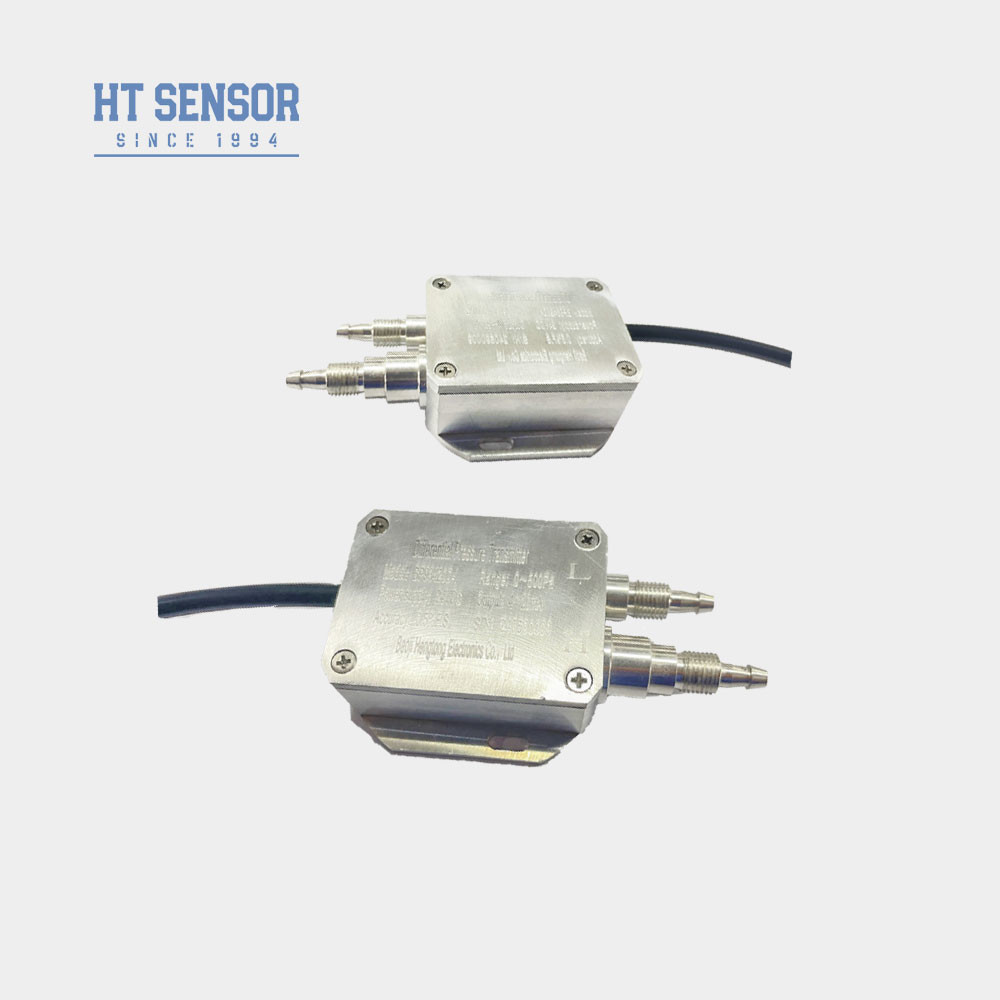

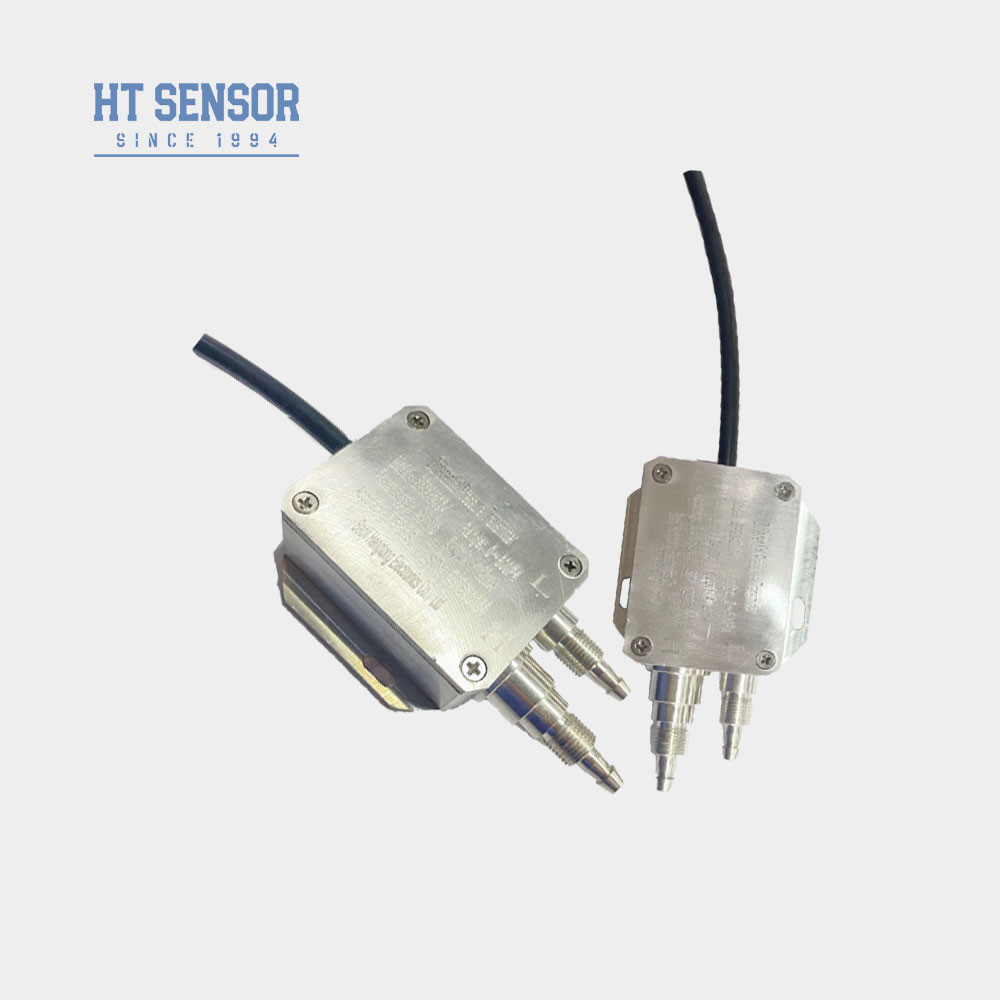

Portable Aluminum Alloy Housing Gas Differential Pressure Transmitter Air Sensor
Product Details
| Model NO.: | BP93420D-I | Power: | 12-36VDC |
|---|---|---|---|
| OUTPUT: | 4-20mA And So On | Specification: | Aluminium Alloy Shell. |
| HS Code: | 9026201090 | Type: | Differential Pressure Transmitter Sensor |
| Measuring Medium: | Gas AND AIR | Accuracy Grade: | 1.0%F.S. |
| Pressure Range: | 500PA~200kpa | Customization: | OEM And ODM |
| Highlight |
Aluminum Alloy Differential Pressure Transmitter,Portable Differential Pressure Transmitter,Gas Differential Pressure Transmitter |
||
Product Description
Product Description
Portable Aluminum Alloy Housing Gas Differential Pressure Transmitter Sensor
Introduction of differential pressure transmitter :
The BP93420DI is a differential pressure transmitter that utilizes the piezoresistive effect of semiconductor silicon material to convert differential pressure into an electrical signal. It is mainly used for measuring small differential pressures of non-corrosive dry gases, suitable for applications in industries such as boiler air supply, underground ventilation in the power and mining industries, and pressure automatic detection in ultra-clean workshops for process control.
| Performance Parameters OF Differential Pressure Transmitter | |
| Measurement Range | 0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa |
| Pressure Type | Differential Pressure |
| Static pressure | 2 times of the rated range |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.5% (Typical) ±1% (Maximum) |
| Zero Point Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Full Scale Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Compensation Temperature | 0-50ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Housing Material | Aluminum alloy,Plastic |
| Relative humidity | 0-80% |
| Pressure connection | φ6 .φ8 air nozzle or customizable |
| Protection Rating | IP65 |
| Cable material | Polyethylene |
| Weight | about 0.2kg |
Product Features of differential pressure transmitter :
- Choice of aluminum or plastic casing design
- Lightweight and easy to install
- Undergone rigorous high and low-temperature testing to ensure wide temperature range usability
- High accuracy
Applications of differential pressure transmitter :
- Suitable for applications in boiler and mining industries
- Brewing and power industries
- Designed for detecting small differential pressures of non-corrosive gases
NOTE:
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site, and ensure that the product and the power supply are reliably grounded.
3. The default cable is 0.5 meters.If you need additional cables, or require different cable materials, please indicate in the order form.
4. In case of strong vibration, instantaneous impact, strong electromagnetic or radio frequency interference and other special requirements, please inform and indicate in the order.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
