Digital Pressure Gauge with 9V Battery Supply for Petroleum and Chemical Industry Sensor
Product Details
| Model: | BPZ2007 | Material: | Stainless Steel + Black Plastic Display |
|---|---|---|---|
| Accuracy: | 0.5% | Diaphragm Material: | 316L |
| Range: | 0-10kpa~60Mpa | Output: | LCD Display |
| Power: | 9V Battery | Thread: | G1/4 Or OEM |
| Highlight |
Petroleum Chemical Industry Digital Pressure Gauge,9V Battery Supply Digital Pressure Gauge,9V Battery Supply Pressure Gauge |
||
Product Description

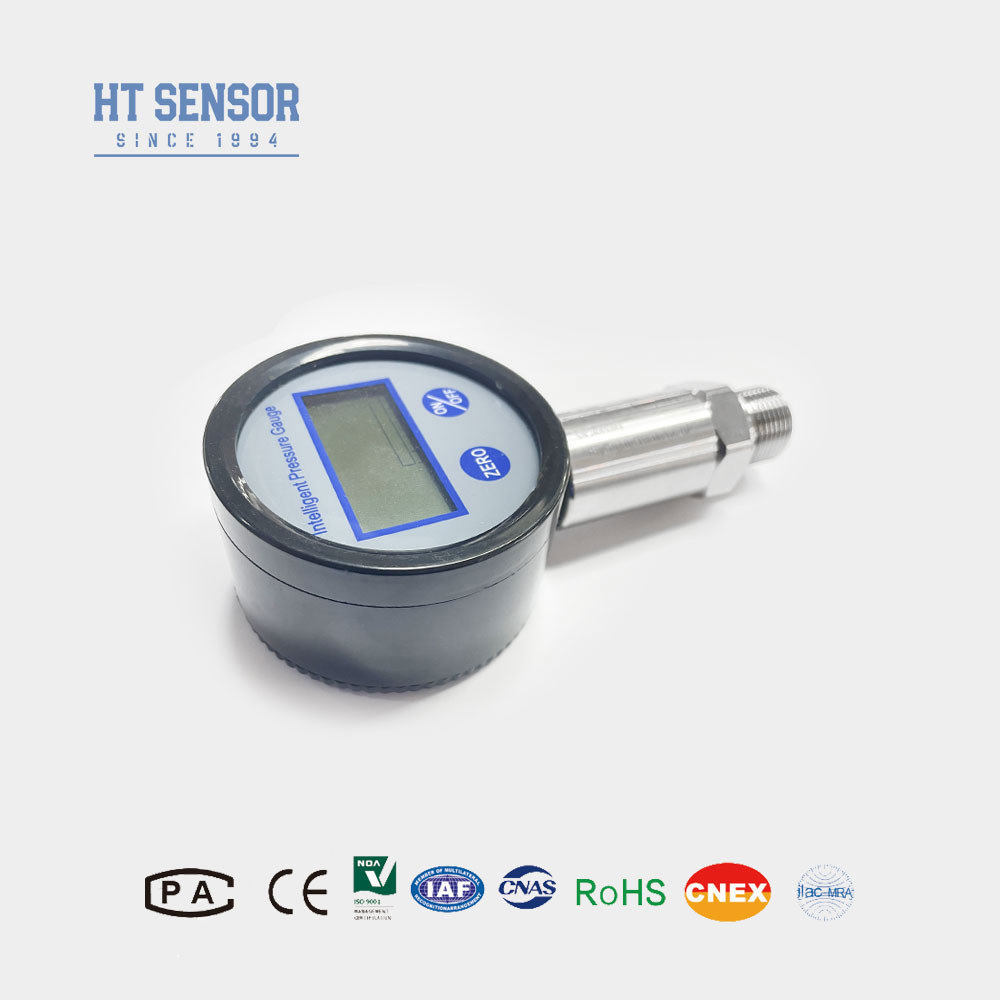

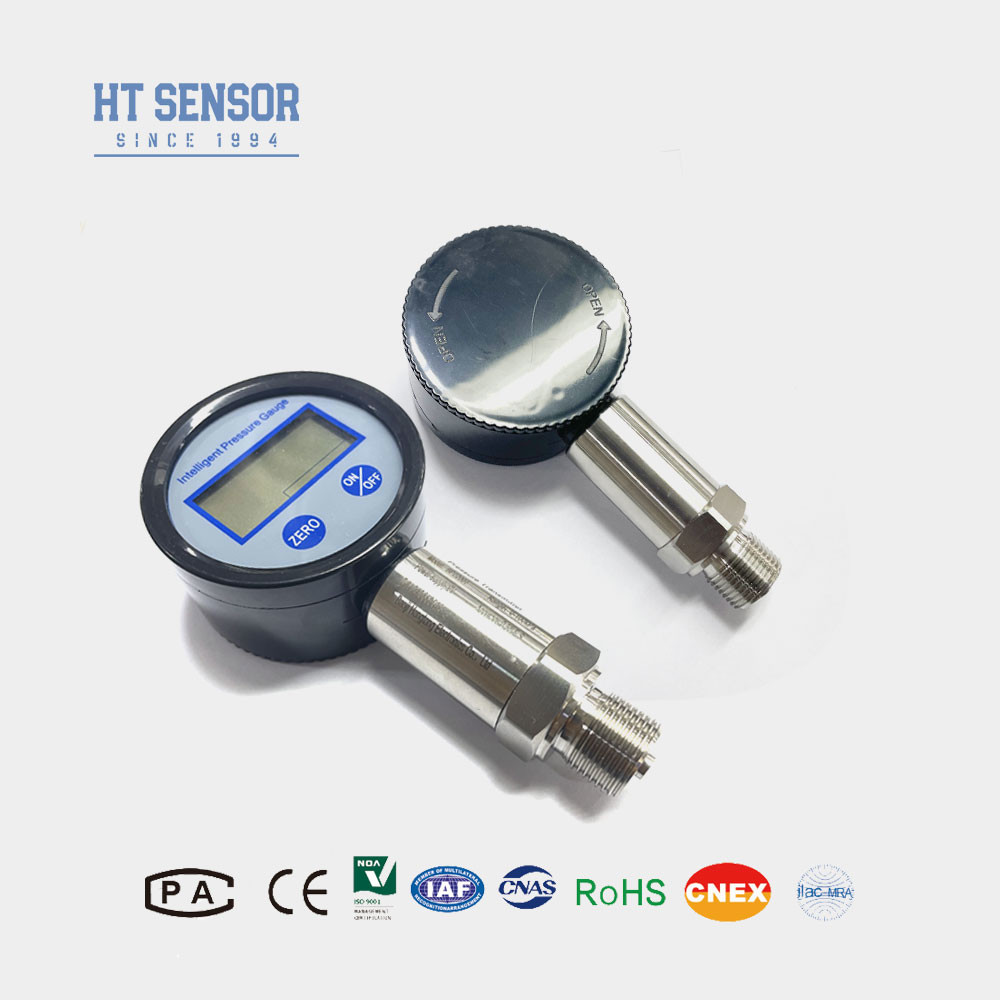

Digital Pressure Gauge with 9V Battery Supply for Petroleum and Chemical Industry
digital pressure gauge
Description of digital pressure gauge:
BPZ2007 digital pressure gauge use HT series piezoresistive silicon pressure sensor as signal measure element. It utilizes ASICdesign and stainless steel isolate diaphragm. It has high accuracy, good stablility, long life. They use the large LCD digital display, 18mm(0.71＂) high ,eliminates the guesswork that occurs when taking readings with an analog dial gauge. Zeroing the display is done with the push of a button. The auto-off function will display the pressure readings for 1-15 minutes (optional) before the unit automatically shuts off, prolonging battery life.
Feature of digital pressure gauge:
- ² Accuracy: 0.25%FS
- ² Operating Temperature Range: 0 to 50℃
- ² Proof Pressure: 200%FS
- ² Burst Pressure: 300%FS
- ² Pressure Connection: 1/4-18NPT male
- ² Battery: 9V alkaline(included)
- ² Over static pressure≤5X rated range or 4Mpa (which is lower)
- ² Battery Life: 2 years in power-saving mode
- ² Case Dimensions: 67mm Dia.
- ² Case Material: ABS
- ² Wetted Parts: 316L stainless steel
- ² Media Compatibility: All corrosive media compatible with 316L SS
Application of digital pressure gauge:
- Liquid, gases which compatible with 316LSS
- Used to petroleum,,chemical industry, power plant, water supply of town, Hydrologic exploration fields.
Specification of digital pressure gauge:
| Range | BPZ2007:-0.1~0．．．~60MPa | BPZ2008:0~1．．．~2MPa |
| Proof pressure | 1.5X rated pressure or 110Mpa,whichever is less |
Over static pressure≤5X rated pressure or 4MPa, Whichever is less |
| Accuracy | ±0.25%(Typic) ±0.5%(Max.) | |
| Long stability | ±0.2%F.S/year | |
| Operating Temperature | -1℃~49℃ | |
| Supply | 9V | |
| Battery life | 2 years in power-saving mode | |
| Housing dimension | 67×116mm | |
| Housing material | ABS,stainless steel 1Cr18Ni9Ti | |
| Diaphragm material | 316L | |
| Pressure port | 1/4～18NPT | |
| Ordering tips |
- When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
- To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
- During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
- The 9V alkaline battery is not included in the product package. Please purchase it separately
- For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order
| Order Guide | ||||||||
| BPZ200X | Pressure Transmitter gauge | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter gauge | |||||||
| Measurement Range | 0-10KPa……~4MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 9VDC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
