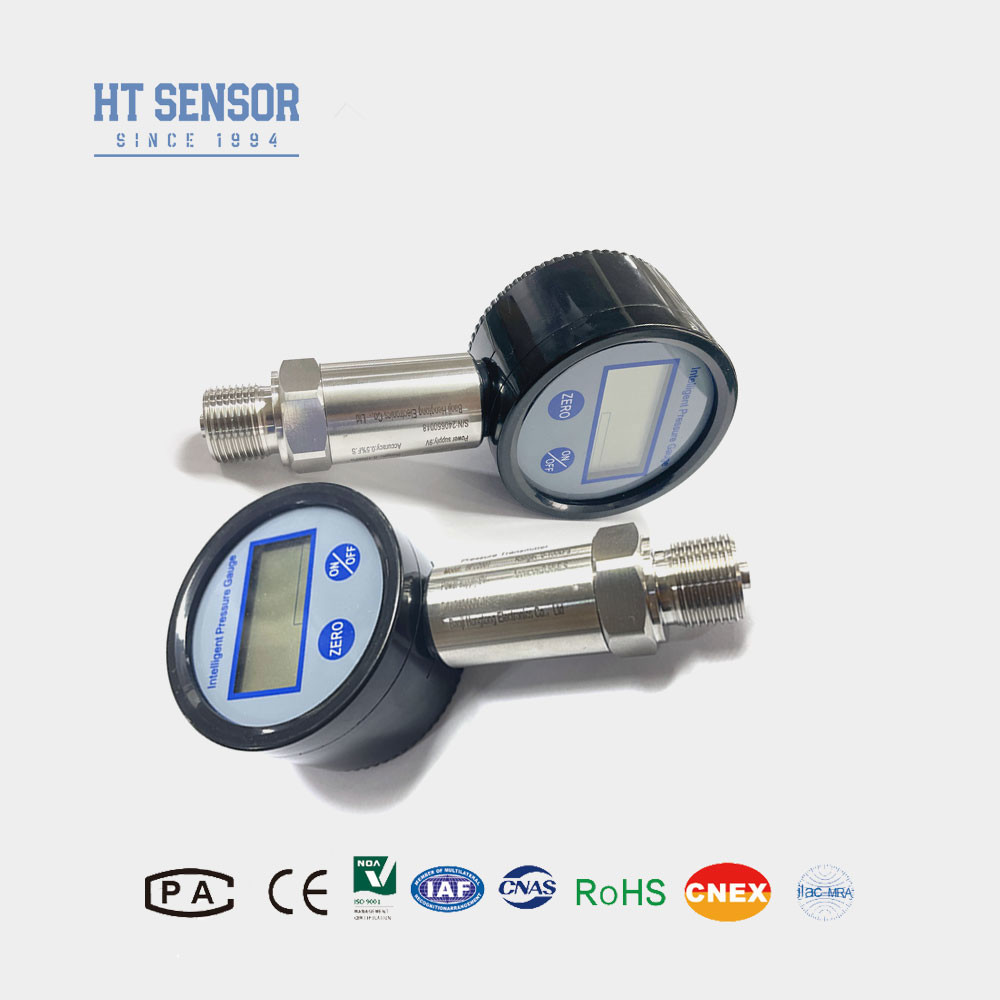

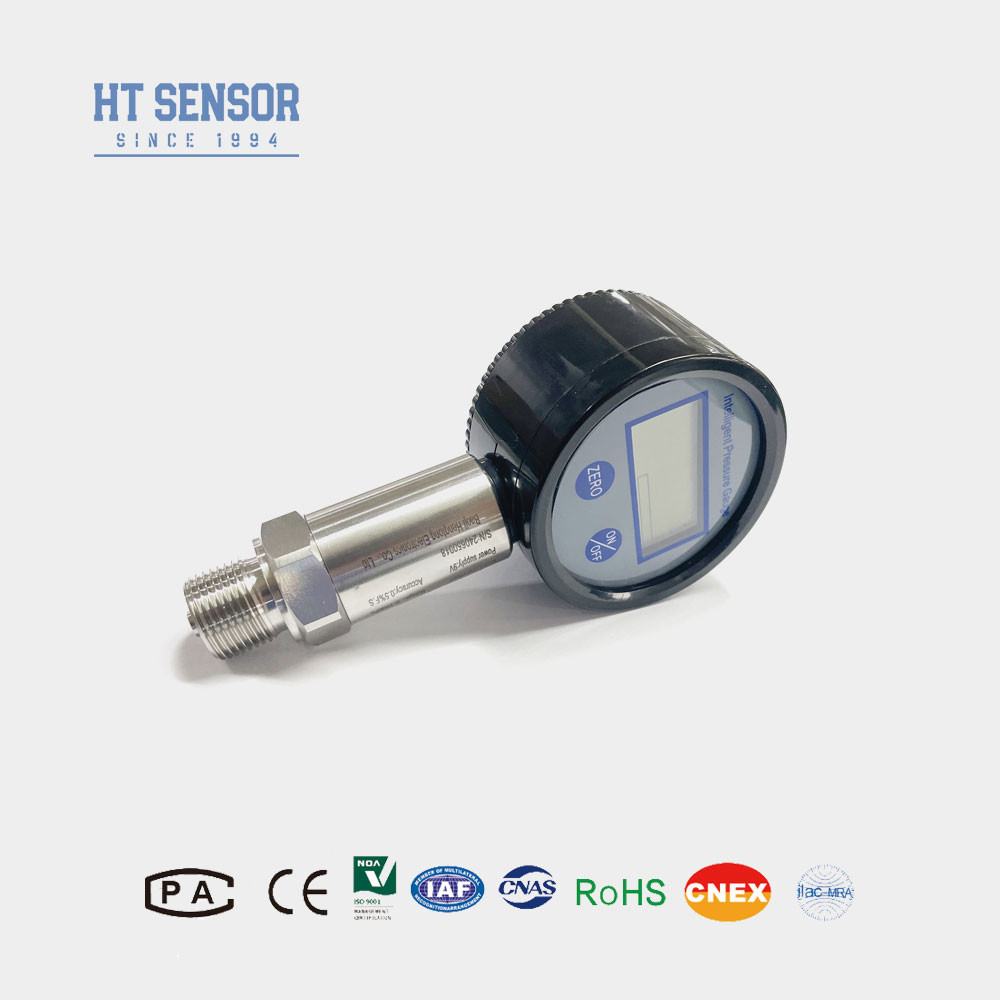

Digital Pressure Gauge For Petroleum And Chemical Industry With 5Bit LCD Display
digital pressure gauge
Description of digital pressure gauge:
BPZ2007 digital pressure gauge use HT series piezoresistive silicon pressure sensor as signal measure element. It utilizes ASIC design and stainless steel isolate diaphragm. It has high accuracy, good stablility, long life. They use the large LCD digital display, 18mm(0.71＂) high ,eliminates the guesswork that occurs when taking readings with an analog dial gauge. Zeroing the display is done with the push of a button. The auto-off function will display the pressure readings for 1-15 minutes (optional) before the unit automatically shuts off, prolonging battery life.
Feature of digital pressure gauge:
- ² Accuracy: 0.25%FS
- ² Operating Temperature Range: 0 to 50℃
- ² Proof Pressure: 200%FS
- ² Burst Pressure: 300%FS
- ² Pressure Connection: 1/4-18NPT male
- ² Battery: 9V alkaline(included)
- ² Over static pressure≤5X rated range or 4Mpa (which is lower)
- ² Battery Life: 2 years in power-saving mode
- ² Case Dimensions: 67mm Dia.
- ² Case Material: ABS
- ² Wetted Parts: 316L stainless steel
- ² Media Compatibility: All corrosive media compatible with 316L SS
Application of digital pressure gauge:
- Liquid, gases which compatible with 316LSS
- Used to petroleum,,chemical industry, power plant, water supply of town, Hydrologic exploration fields.
Specification of digital pressure gauge:
| Range |
BPZ2007:-0.1~0．．．~60MPa |
BPZ2008:0~1．．．~2MPa |
| Proof pressure |
1.5X rated pressure or 110Mpa,whichever is less |
Over static pressure≤5X rated pressure or 4MPa,
Whichever is less
|
| Accuracy |
±0.25%(Typic) ±0.5%(Max.) |
| Long stability |
±0.2%F.S/year |
| Operating Temperature |
-1℃~49℃ |
| Supply |
9V |
| Battery life |
2 years in power-saving mode |
| Housing dimension |
67×116mm |
| Housing material |
ABS,stainless steel 1Cr18Ni9Ti |
| Diaphragm material |
316L |
| Pressure port |
1/4～18NPT |
- 1. When choosing products, please make sure that contact with the product of measured medium components compatibility.
- 2. For differential pressure measurements, to ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter to ensure slow and even pressure in the positive and negative pressure chambers of the transmitter.
- 3. During installation, the pressure interfaces at both ends should be placed horizontally to reduce the influence of the installation position on the product.
- 4. In order to ensure the safety of air transportation, 9V alkaline batteries are not included in the product packaging.Please buy it separately.
- 5. In case of strong vibration, instant impact force, strong electromagnetic interference or radio frequency interference and other special requirements, please inform our company and indicate in the order.
| Order Guide |
| BPZ200X |
Pressure Transmitter gauge |
| |
Code |
Outline Construction |
| DII |
Differential Pressure Transmitter gauge |
| |
Measurement Range |
0-10KPa……~4MPa |
| |
Code |
Power Supply |
| D1 |
9VDC |
| |
|
Code |
Pressure Connection |
| J1 |
M20×1.5 Male |
| J2 |
G1/2 Male |
| J3 |
G1/4 Male |
| J4 |
1/2 NPT Male |
| J5 |
Other |
| |
|
Code |
Pressure Type |
| D |
Differential Pressure |
FAQ:
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
