BPZ2007 Black Plastic Box Digital Pressure Gauge with 9V Battery Supply and Long Life
Product Details
| Model: | BPZ2007 | Material: | Stainless Steel + Black Plastic |
|---|---|---|---|
| Accuracy: | 0.5% | Display: | 5 Bit LCD Display |
| Range: | 0-10kpa~60Mpa | Output: | LCD Display |
| Power: | 9V Battery | Thread: | G1/2 Or OEM |
| Highlight |
Long Life Digital Pressure Gauge,9V Battery Supply Digital Pressure Gauge,Black Plastic Box Digital Pressure Gauge |
||
Product Description

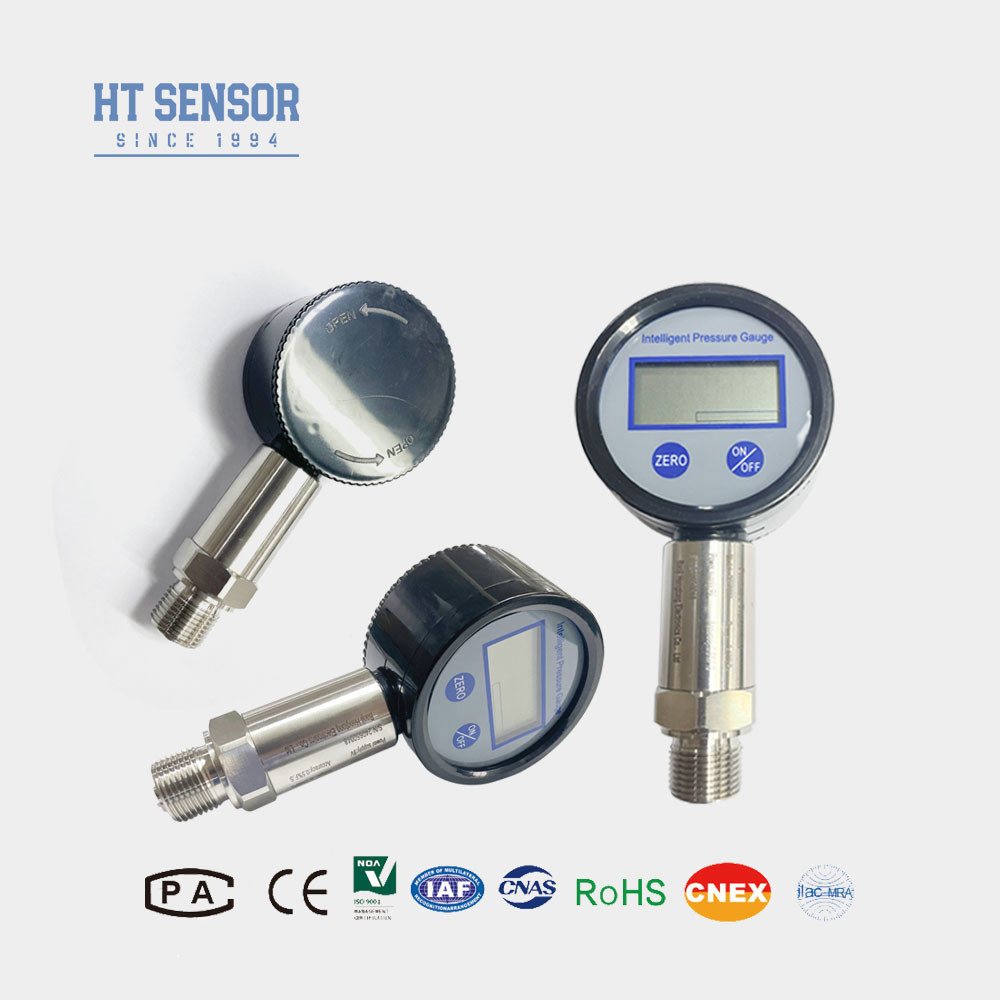

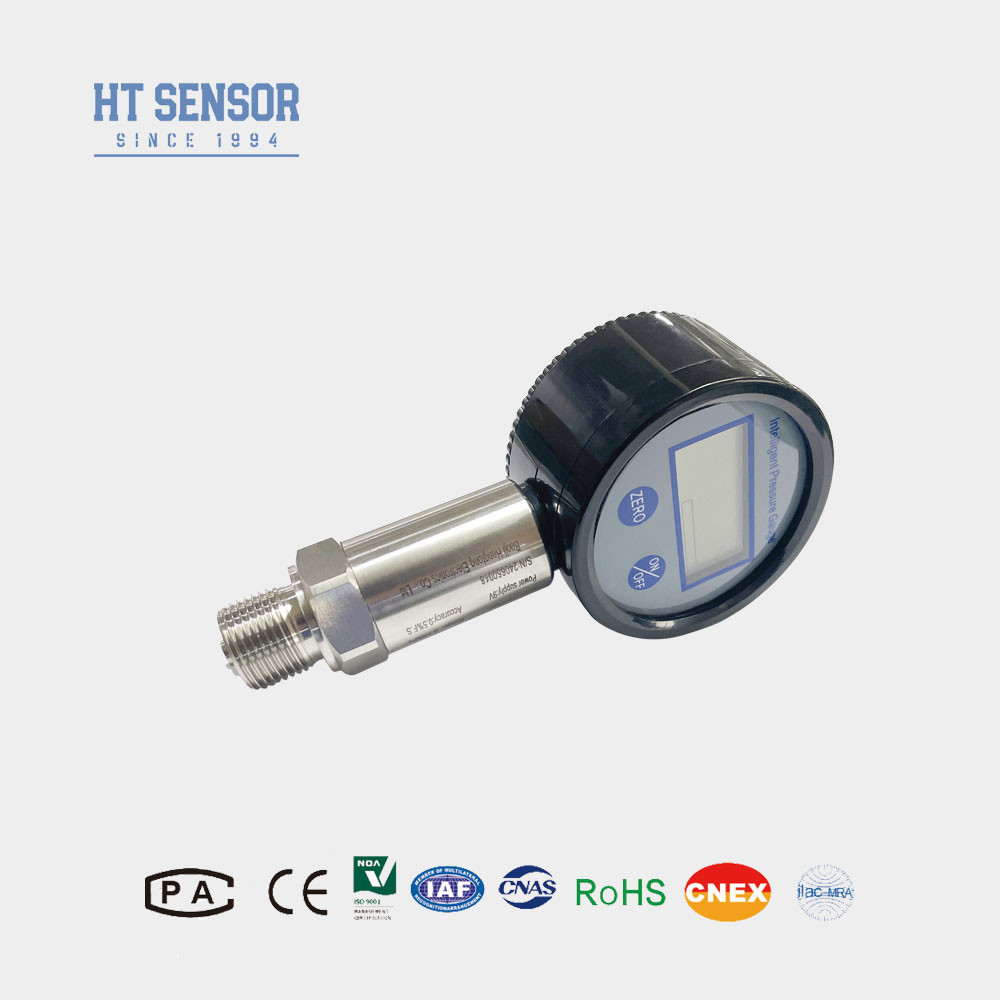

BPZ2007 Black Plastic Box Digital Pressure Gauge with 9V Battery Supply and Long Life
digital pressure gauge
Description of digital pressure gauge:
The BPZ2007 digital pressure gauge employs an HT series piezoresistive silicon pressure sensor as its signal measurement element, featuring ASIC design and a stainless steel isolated diaphragm for high accuracy, stability, and longevity. Its large LCD digital display (18mm/0.71") eliminates guesswork associated with analog dial gauges while allowing easy zeroing at the push of a button. Additionally, it includes an optional auto-off function to preserve battery life by displaying pressure readings for 1-15 minutes before shutting down automatically.
Feature of digital pressure gauge:
- ² Accuracy: 0.25%FS
- ² Operating Temperature Range: 0 to 50℃
- ² Proof Pressure: 200%FS
- ² Burst Pressure: 300%FS
- ² Pressure Connection: 1/4-18NPT male
- ² Battery: 9V alkaline(included)
- ² Over static pressure≤5X rated range or 4Mpa (which is lower)
- ² Battery Life: 2 years in power-saving mode
- ² Case Dimensions: 67mm Dia.
- ² Case Material: ABS
- ² Wetted Parts: 316L stainless steel
- ² Media Compatibility: All corrosive media compatible with 316L SS
Application of digital pressure gauge:
- Liquid, gases which compatible with 316LSS
- Used to petroleum,,chemical industry, power plant, water supply of town, Hydrologic exploration fields.
Specification of digital pressure gauge:
| Range | BPZ2007:-0.1~0．．．~60MPa | BPZ2008:0~1．．．~2MPa |
| Proof pressure | 1.5X rated pressure or 110Mpa,whichever is less |
Over static pressure≤5X rated pressure or 4MPa, Whichever is less |
| Accuracy | ±0.25%(Typic) ±0.5%(Max.) | |
| Long stability | ±0.2%F.S/year | |
| Operating Temperature | -1℃~49℃ | |
| Supply | 9V | |
| Battery life | 2 years in power-saving mode | |
| Housing dimension | 67×116mm | |
| Housing material | ABS,stainless steel 1Cr18Ni9Ti | |
| Diaphragm material | 316L | |
| Pressure port | 1/4～18NPT | |
| Ordering tips |
- 1. When selecting a product, please ensure that the medium under test is compatible with the contact parts of the product.
- 2. For differential pressure measurements, to ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter to ensure slow and uniform pressure in the positive and negative pressure chambers of the transmitter.
- 3. During installation, the pressure interface at both ends should be placed horizontally to reduce the influence of installation position on the product.
- 4. In order to ensure the safety of air transportation, 9V alkaline battery is not included in the product packaging. Please purchase separately.
- 5. In case of special requirements such as strong vibration, instant impact, strong electromagnetic interference or radio frequency interference, please inform us and indicate in the order.
| Order Guide | ||||||||
| BPZ200X | Pressure Transmitter gauge | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter gauge | |||||||
| Measurement Range | 0-10KPa……~4MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 9VDC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
