BPZK04 Electronic Pressure Switch And Accurate Pressure Measurement And Control Swicth
Product Details
| Model: | BPZK04 | Power Supply: | 18-32VDC |
|---|---|---|---|
| Output: | 4-20mA 3wire With 2 Switch | Protection: | IP65 |
| Diaphragm: | 316L Stainless Steel | Transport Package: | Carton |
| Specification: | 0-10kpa~40mpa | Origin: | Baoji，China. |
| Number Of Switch: | Double Control Switch | Long-Term Stability: | ±0.2-0.3%F.S/year |
| Highlight |
Control Electronic Pressure Switch,BPZK04 Electronic Pressure Switch,Accurate Electronic Pressure Switch |
||
Product Description

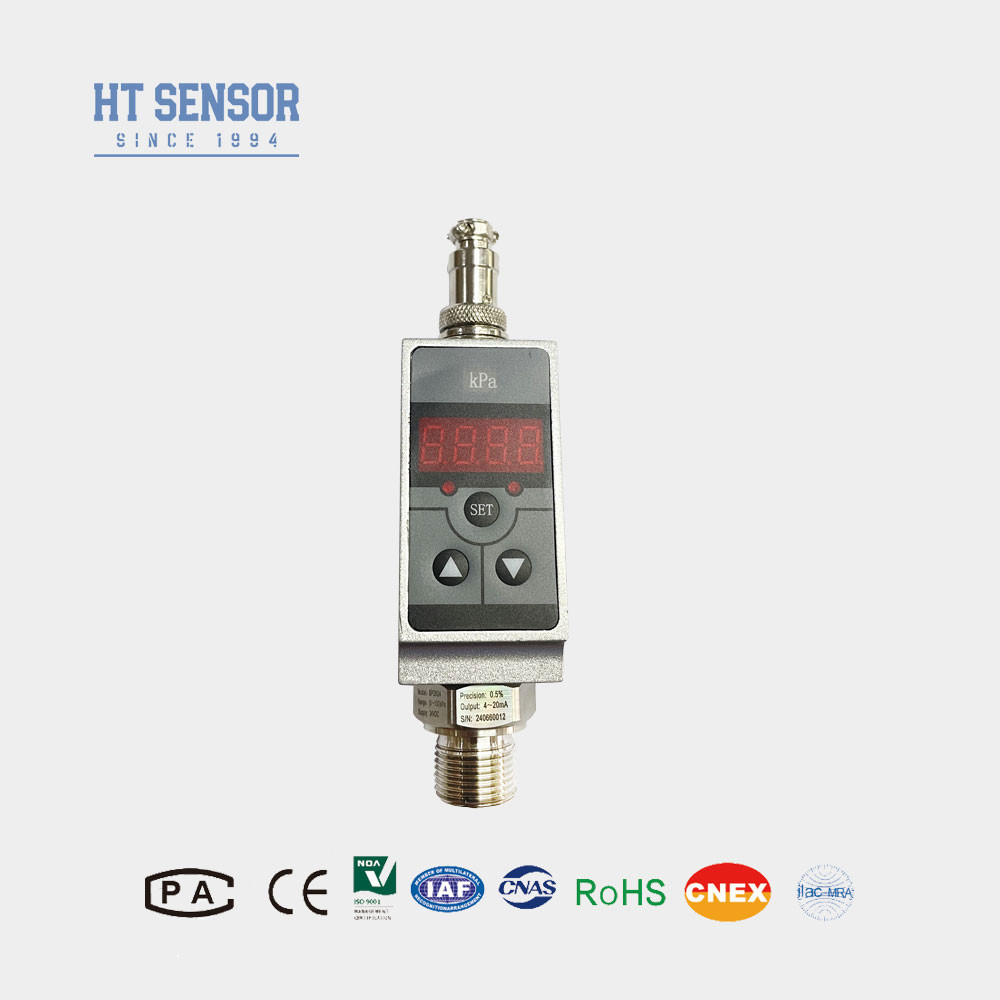

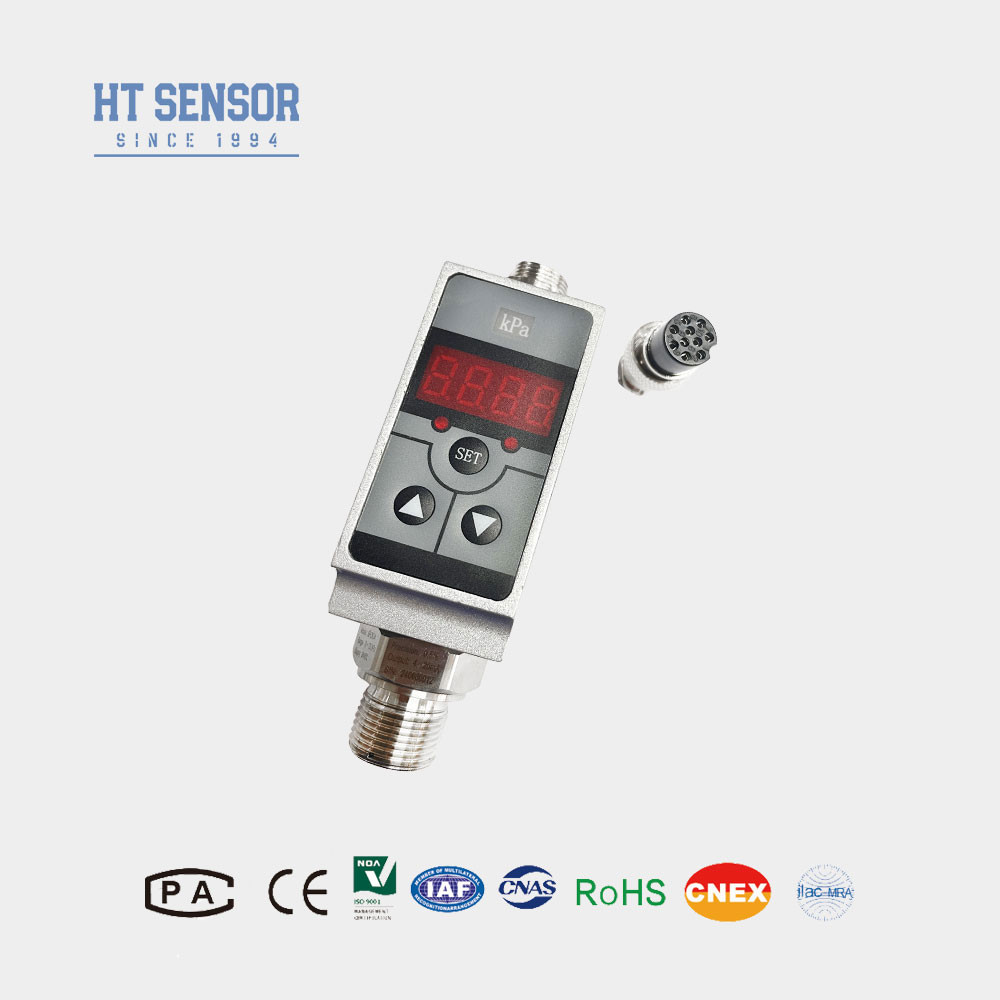

BPZK04 Electronic Pressure Switch and Accurate Pressure Measurement and ControlBPZK04 Electronic Pressure Switch
Introduction of electronic pressure switch :
Product Features of electronic pressure switch:
Crafted with a stainless steel structure and versatile pressure port options, this device features a high-brightness LED pressure display. It supports both 24V DC and 24V AC power inputs, and can be configured with up to two relay outputs. Customizable relay setpoints and operating modes enable precise and reliable control, supported by high measurement accuracy.
Applications of electronic pressure switch:
This product is designed for measuring and controlling the pressure or differential pressure of fluid media. It is widely used in automatic control systems across industries such as hydropower, metallurgy, and chemical processing.
| Performance Parameters of Electronic Pressure Switch | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…60MPa |
| 0-10KPa~2MPa(Differential Pressure) | |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-2 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~0.4kg |
| Ordering tips of Electronic Pressure Switch |
- When selecting a product, please ensure its materials are compatible with the measured medium.
- Upon ordering, please specify the measurement range, power supply requirements, and control setpoints (which are adjustable and can also be customized by the customer).
- The stainless steel diaphragm pressure switch offers a measurement range from 0–10 kPa up to 40 MPa.
- For differential pressure measurement applications, ensure the selected differential pressure range is suitably related to the allowable overpressure and maximum pressure ratings of both the high and low pressure chambers to meet specific site requirements. To ensure safe and reliable operation, installation of a three-valve manifold between the measurement point and the transmitter is recommended.
- To guarantee operational reliability, it is advised to install lightning protection devices on-site and ensure reliable grounding of both the product and power supply. Should there be any special operating conditions such as strong vibration, sudden impact forces, or strong electromagnetic/RF interference, please inform our company at the time of ordering.
| FQA |
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
