BPZK04 Electronic Pressure Switch The Ultimate Tool for Pressure Measurement and Control Switch
Product Details
| Model NO.: | BPZK04 | Power Supply: | 18-32VDC（24VDC） |
|---|---|---|---|
| Output: | 4-20mA 3wire | Protection: | IP65 |
| Diaphragm: | SS316L | Transport Package: | Carton |
| Specification: | 0-10kpa~60mpa | Origin: | Boaji，China |
| Number Of Switch: | Double Control Switch | Long-Term Stability: | ±0.3%F.S/year |
| Highlight |
BPZK04 Electronic Pressure Switch,Pressure Measurement Electronic Pressure Switch,Ultimate Electronic Pressure Switch |
||
Product Description
BPZK04 Electronic Pressure Switch The Ultimate Tool for Pressure Measurement and Control

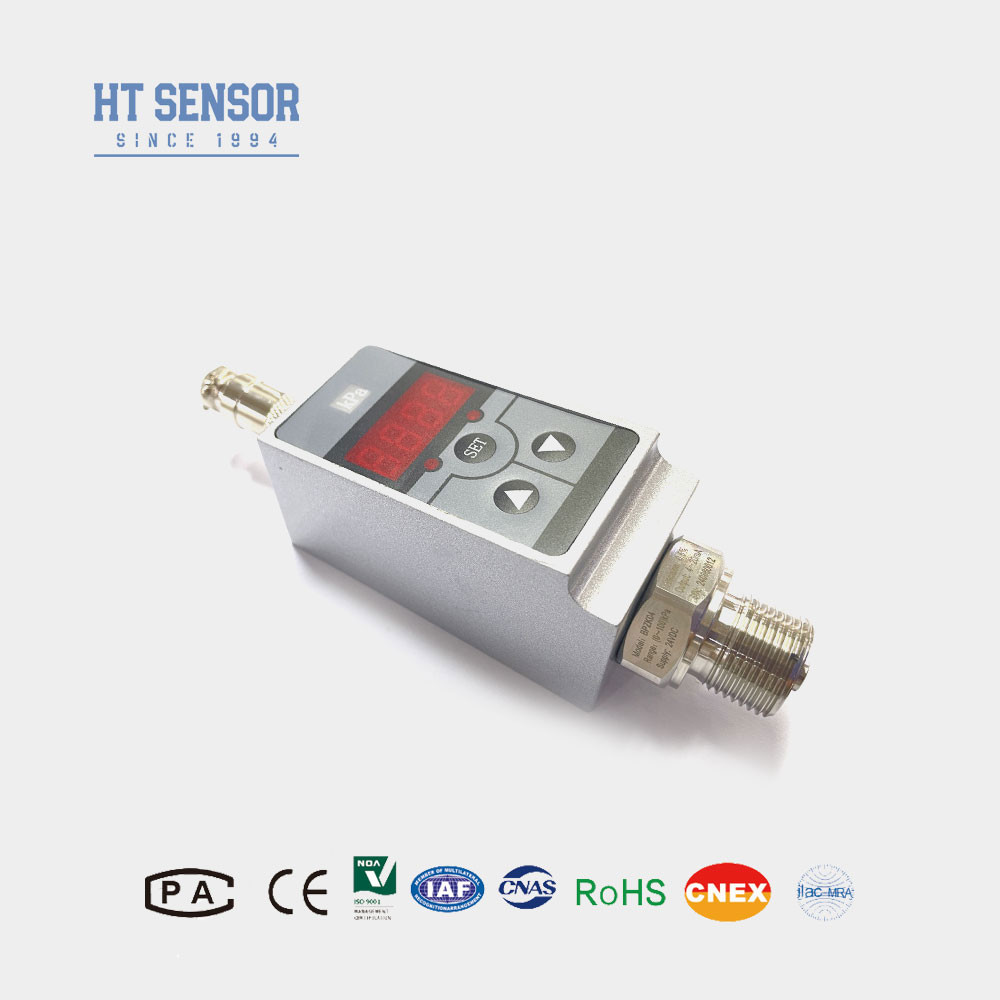

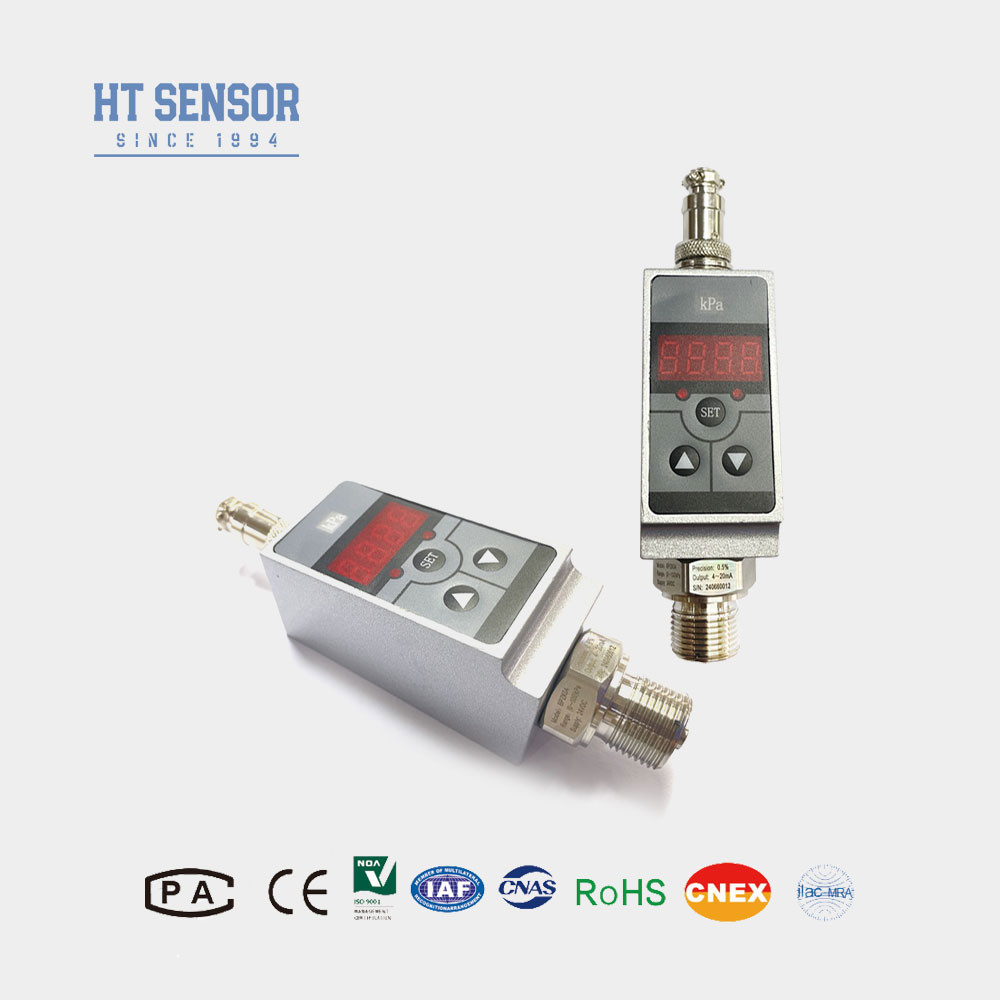

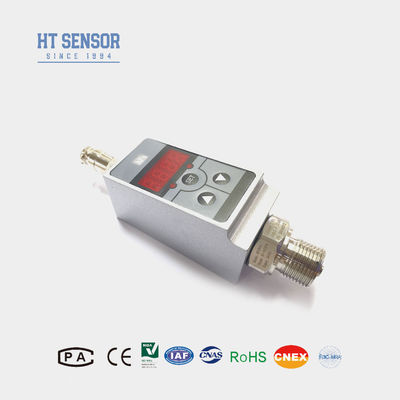

BPZK04 Electronic Pressure Switch
Introduction of electronic pressure switch :
Product Features of electronic pressure switch:
- Stainless steel structural design with versatile pressure interface options.
- with high-brightness LED pressure display.
- Powered 24VDC or 24VAC.
- Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
- High accuracy.
Applications of electronic pressure switch:
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.
| Performance Parameters of Electronic Pressure Switch | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| 0-10KPa~2MPa(Differential Pressure) | |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-2 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~0.4kg |
| Ordering tips of Electronic Pressure Switch |
1, when selecting the product, please ensure that the product is suitable for the parts in contact with the measured medium.
2, please specify the power supply, accuracy level, control point when ordering.
3, stainless steel diaphragm pressure controller measuring range is 0~10KPa ~ 60MPa.
4, for users who choose differential pressure measurement, attention should be paid to ensure that there is an appropriate relationship between the differential pressure range and the allowable overpressure and maximum pressure of high and low pressure chambers to meet the field application requirements. In order to ensure the safe and reliable operation of this product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. In order to ensure the reliable operation of the equipment, it is recommended to install lightning protection devices on site and ensure the reliable grounding of the product and power supply. If there are special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform our company when ordering.
| FQA |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
