BPZK04 Electronic Pressure Switch The Perfect Combination of Measurement and Control
Product Details
| Model NO.: | BPZK04 | Power Supply: | 24VDC / 24VAC |
|---|---|---|---|
| Output: | 4-20mA 3wire With 2 Switches | Protection: | IP65 |
| Diaphragm: | SS316L | Transport Package: | Carton |
| Specification: | 0-10kpa~60mpa | Origin: | Baoji，China |
| Switch: | 2 Control Switch Can Be Change | Long-Term Stability: | ±0.3%F.S/year |
| Highlight |
BPZK04 Electronic Pressure Switch,Control Electronic Pressure Switch,Measurement Electronic Pressure Switch |
||
Product Description
BPZK04 Electronic Pressure Switch The Perfect Combination of Measurement and Control

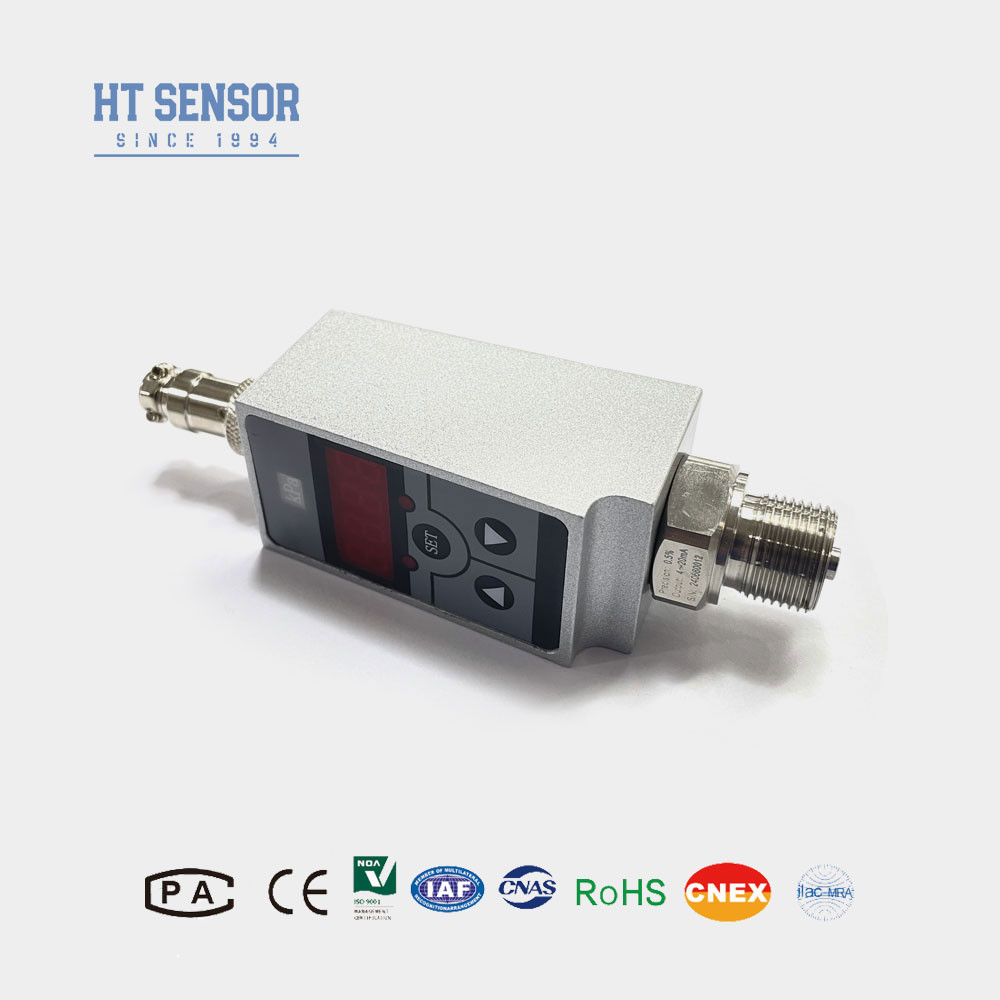

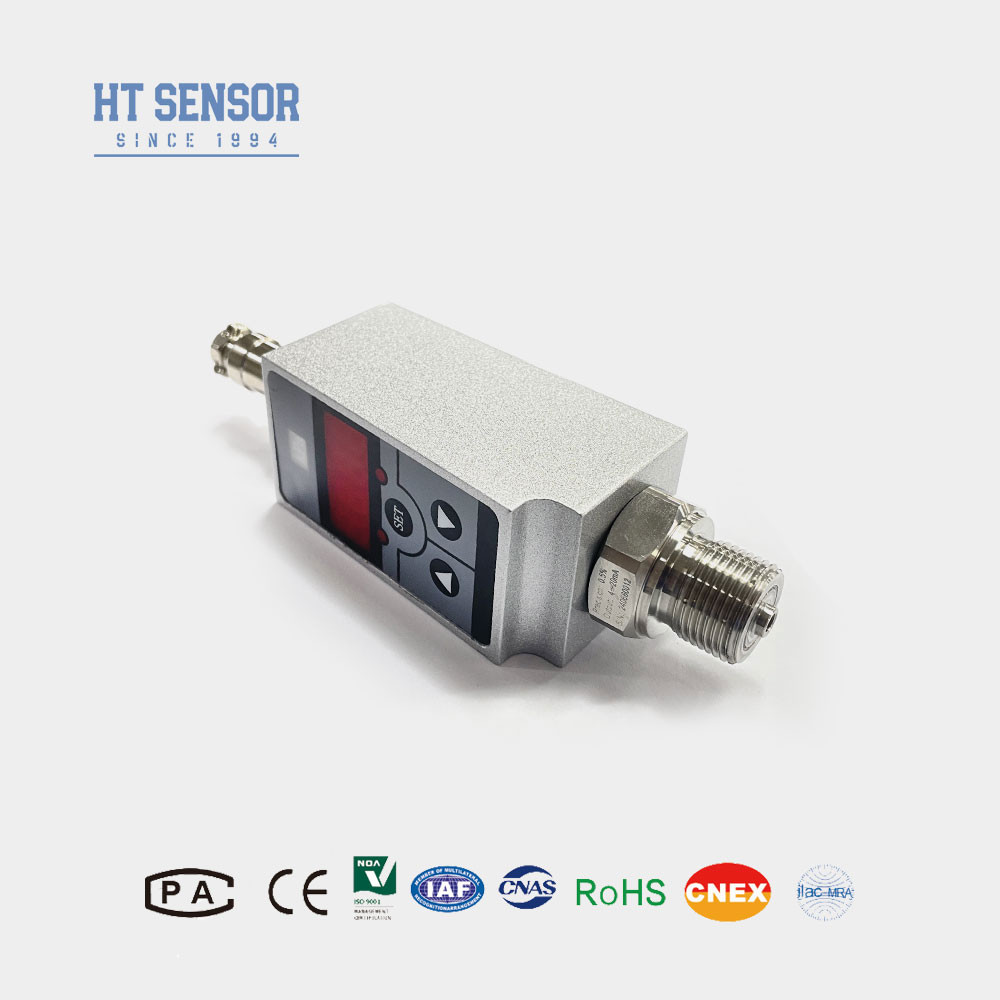

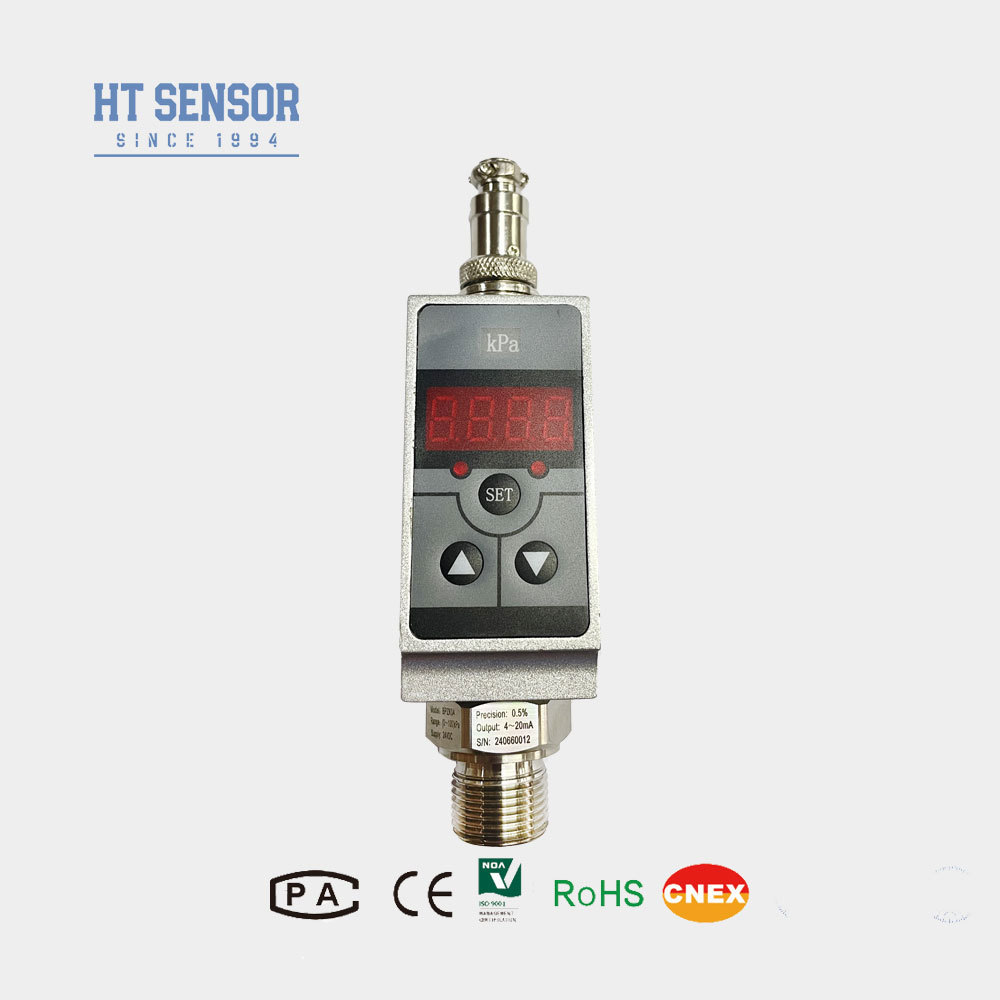

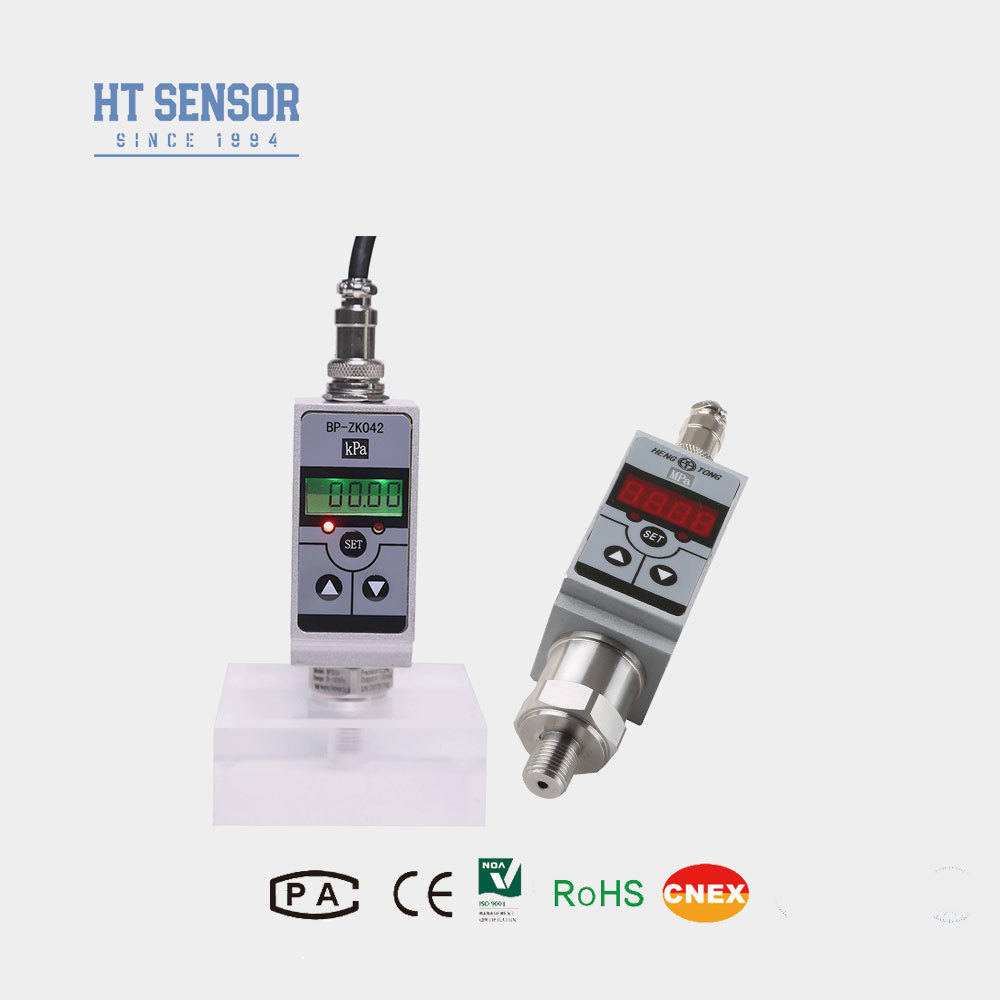

BPZK04 Electronic Pressure Switch
Introduction of electronic pressure switch :
Product Features of electronic pressure switch:
- Stainless steel structural design with versatile pressure interface options.
- with high-brightness LED pressure display.
- Powered 24VDC or 24VAC.
- Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
- High accuracy.
Applications of electronic pressure switch:
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.
| Performance Parameters of Electronic Pressure Switch | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| 0-10KPa~2MPa(Differential Pressure) | |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-2 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~0.4kg |
| Ordering tips of Electronic Pressure Switch |
-
When selecting the product, please ensure its wetted materials are compatible with the medium being measured.
-
Please specify the power supply requirements, accuracy class, and set point(s) when placing an order.
-
The stainless steel diaphragm pressure controller offers a measuring range from 0–10 kPa up to 60 MPa.
-
For differential pressure measurement applications, ensure the differential pressure range is appropriately related to the allowable overpressure and maximum pressure ratings of the high and low pressure chambers to meet field requirements. To ensure safe and reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter.
-
To guarantee equipment reliability, lightning protection devices should be installed on-site, and both the product and power supply must be reliably grounded. Please inform our company at the time of ordering if special conditions apply, such as strong vibration, sudden shock forces, or strong electromagnetic/RF interference.
