BP93420D-I Air Differential Pressure Sensnor Transmitter For Process Control Differential Pressure Transmitter
Product Details
| Model NO.: | BP93420D-I | Power: | 12-36VDC |
|---|---|---|---|
| OUTPUT: | 4-20mA And So On | Specification: | Aluminium Alloy Shell. Or Other |
| HS Code: | 9026201090 | Type: | Differential Pressure Transmitter Sensor |
| Measuring Medium: | Gas AND AIR | Accuracy Grade: | 1.0%F.S. 0.5%F.S. |
| Pressure Range: | 0-500PA~200kpa | Customization: | OEM |
| Highlight |
Process Control Differential Pressure Transmitter,Differential Pressure Sensnor Transmitter |
||
Product Description
Product Description

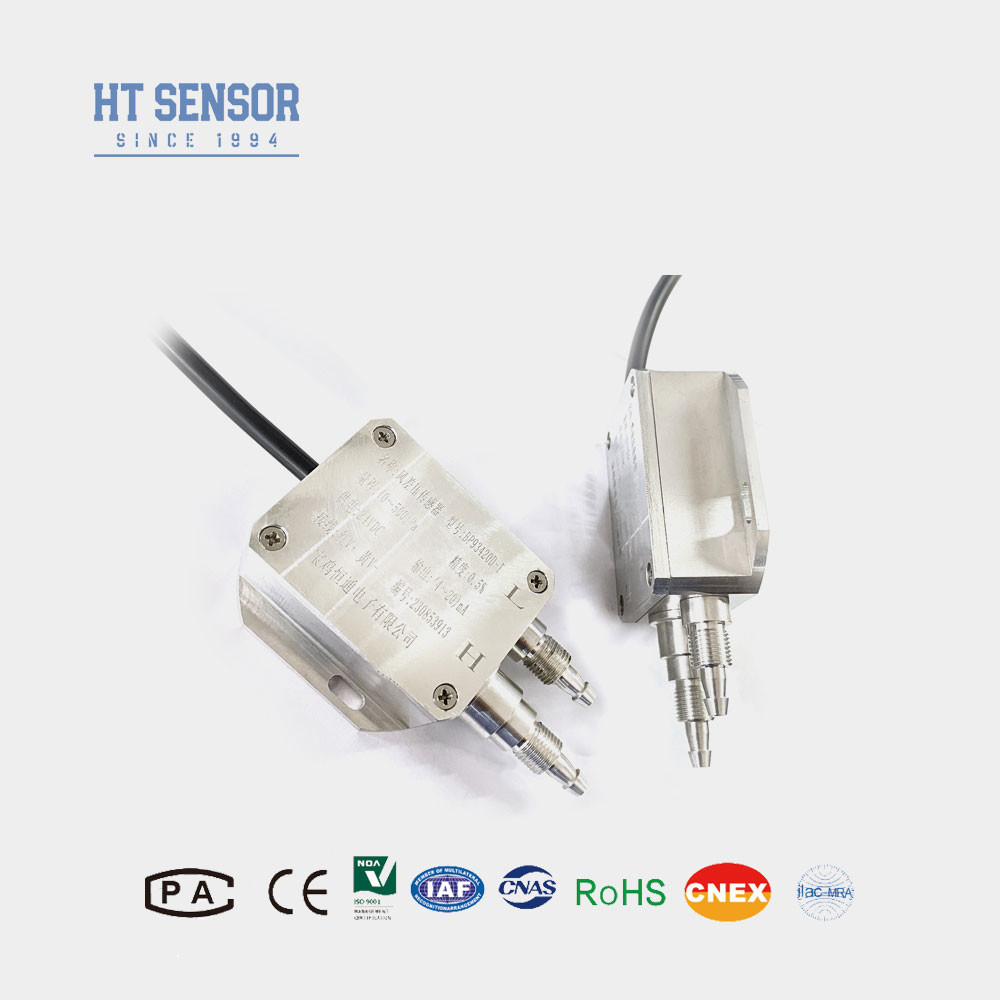

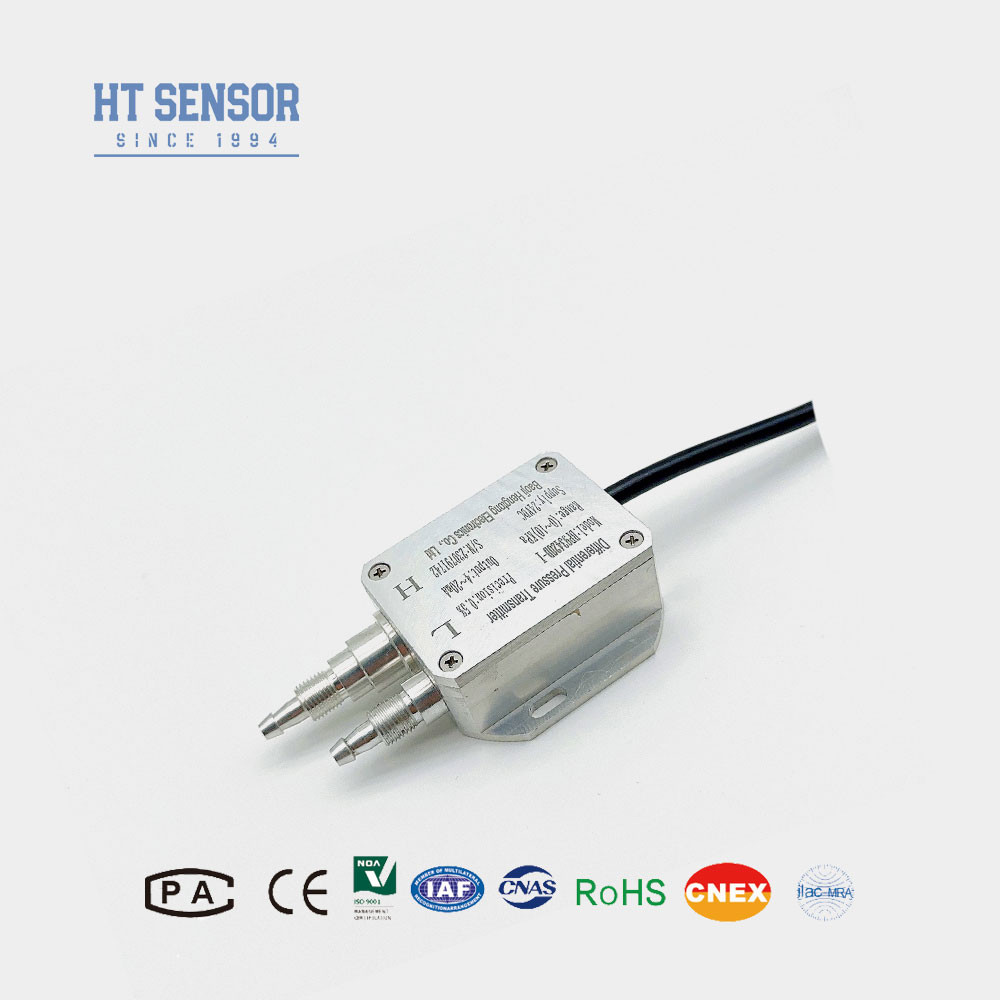

BP93420D-I Air Differential Pressure Sensnor Transmitter For Process Control
Introduction of differential pressure transmitter :
The BP93420DI is a differential pressure transmitter that utilizes the piezoresistive effect of semiconductor silicon material to convert differential pressure into an electrical signal. It is mainly used for measuring small differential pressures of non-corrosive dry gases, suitable for applications in industries such as boiler air supply, underground ventilation in the power and mining industries, and pressure automatic detection in ultra-clean workshops for process control.
| Performance Parameters OF Differential Pressure Transmitter | |
| Measurement Range | 0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa |
| Pressure Type | Differential Pressure |
| Static pressure | 2 times of the rated range |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.5% (Typical) ±1% (Maximum) |
| Zero Point Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Full Scale Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Compensation Temperature | 0-50ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Housing Material | Aluminum alloy,Plastic |
| Relative humidity | 0-80% |
| Pressure connection | φ6 .φ8 air nozzle or customizable |
| Protection Rating | IP65 |
| Cable material | Polyethylene |
| Weight | about 0.2kg |
Product Features of differential pressure transmitter :
- Choice of aluminum or plastic casing design
- Lightweight and easy to install
- Undergone rigorous high and low-temperature testing to ensure wide temperature range usability
- High accuracy
Applications of differential pressure transmitter :
- Suitable for applications in boiler and mining industries
- Brewing and power industries
- Designed for detecting small differential pressures of non-corrosive gases
NOTE:
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site, and ensure that the product and the power supply are reliably grounded.
3. The default cable is 0.5 meters.If you need additional cables, or require different cable materials, please indicate in the order form.
4. In case of strong vibration, instantaneous impact, strong electromagnetic or radio frequency interference and other special requirements, please inform and indicate in the order.
