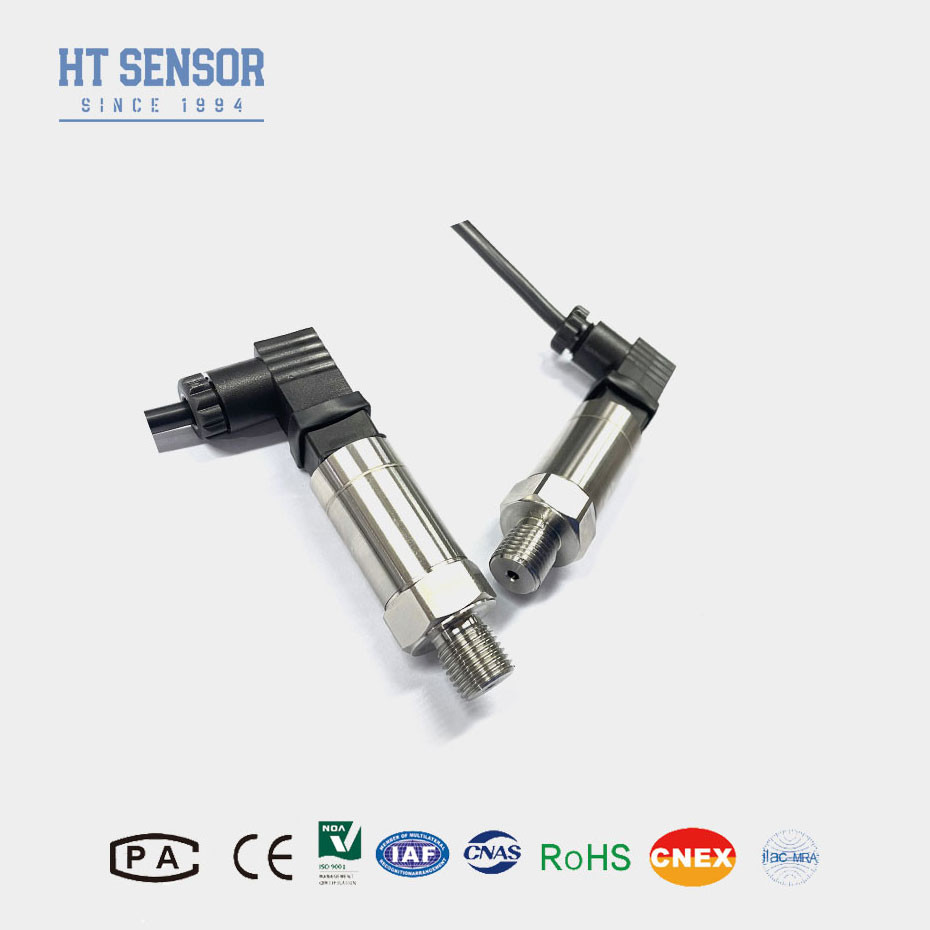

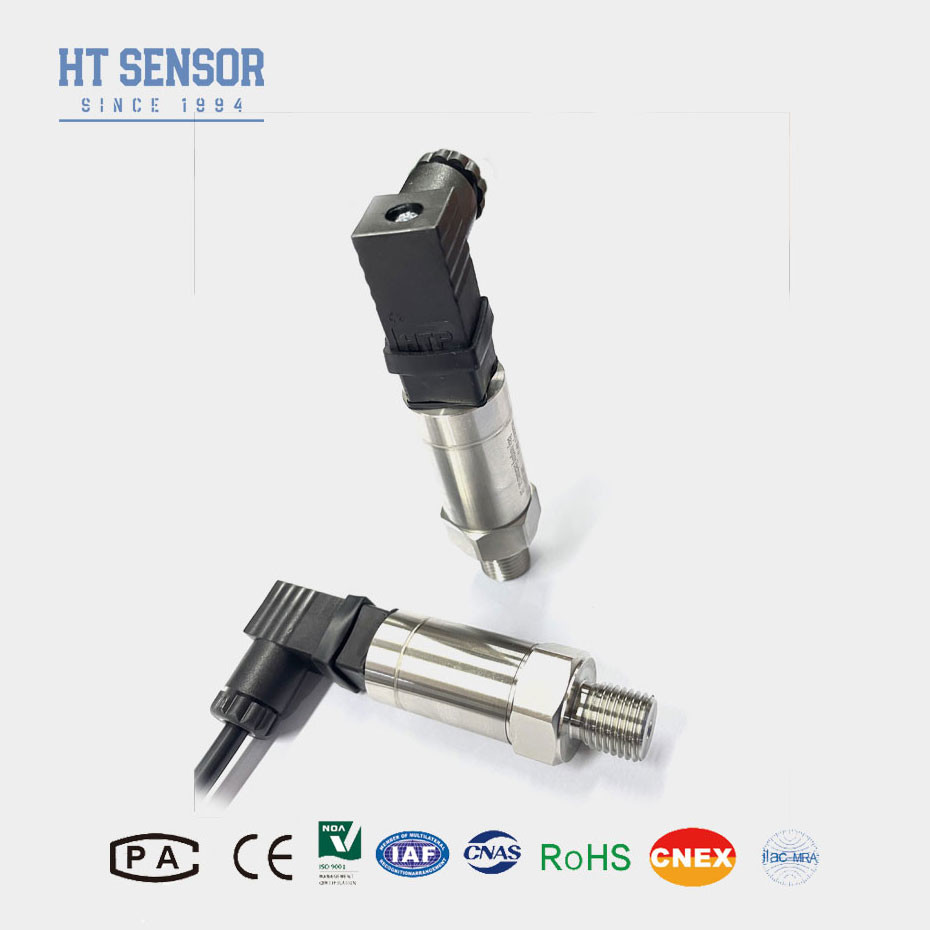

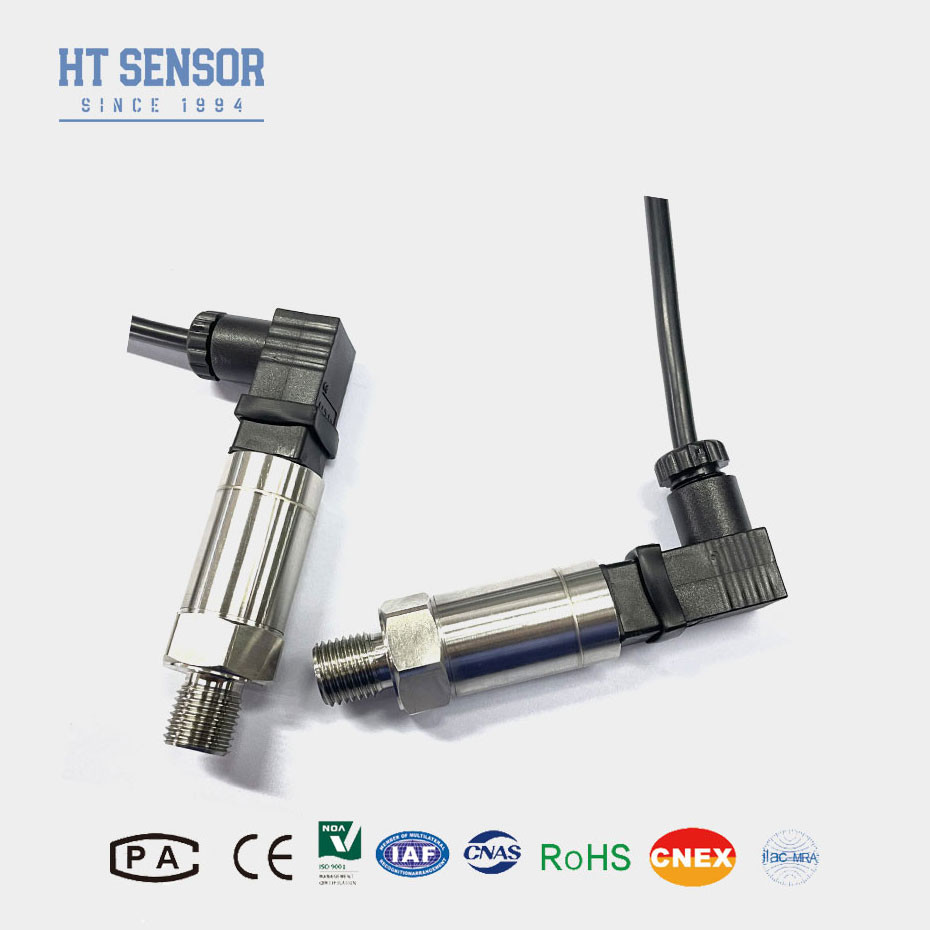

BP157TC Pressure Transmitter
Introduction of pressure transmitter sensor :
BP157TC pressure transmitter sensor utilizes the hign quanlity series ceramic sensor as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening of components, semi-finished products,and finished products to ensure stable and reliable performance.
Ceramic pressure transmitters, known for their exceptional resistance to both vibration and corrosion, have become integral components in industrial measurement and monitoring applications. Their robustness and durability make them particularly suited for harsh environments where traditional pressure transmitters might fail.
Product Features:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. IP65 protection rating stainless steel structure
3. High precision,
4. All stainless steel structure
Applications:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
Performance Parameters:
| Measurement Range |
0kPa ~ 10kPa…5MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability& Hysteresis |
0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability |
±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Exia IICT6 |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.05kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
Selection Examples:
Order Guide:
| BP15X |
Analog Pressure Transmitter |
| |
Code |
Outline Construction |
| 5 |
Packard plug |
6 |
Sealed Direct Output Cable 1.5 meters |
| 7 |
Mini Hirschmann Connector |
8 |
Large Hirschmann Connector |
| |
Measurement Range |
0kPa ~ 200kPa…10MPa |
(0-X)Kpa
or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
|
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Others(¢50.4 Flange) |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 |
| B3 |
Cable Sealed Outlet 1.5 meters |
| B4 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
FAQ:
Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 29 years! Our technical team has more than 10 engineers.
Q: What is advantages of Ceramic Pressure Transmitters
A: Ceramic pressure transmitters provide numerous advantages, including high durability, accuracy, wide pressure range, temperature stability, chemical compatibility, long-term stability, safety, cost-effectiveness, and easy integration. These benefits make them a preferred choice for many industrial and environmental applications
Q:What is Warranty Period?
Our pressure transmitters come with a standard warranty period of 2 years from the date of purchase.make a warranty claim, please contact our customer support team with your proof of purchase and a detailed description of the issue. If necessary, you will be instructed on how to return the product for evaluation.
