BP93420DII Differential Pressure Transmitter for Measurement Range of 0-10KPa to 2MPa

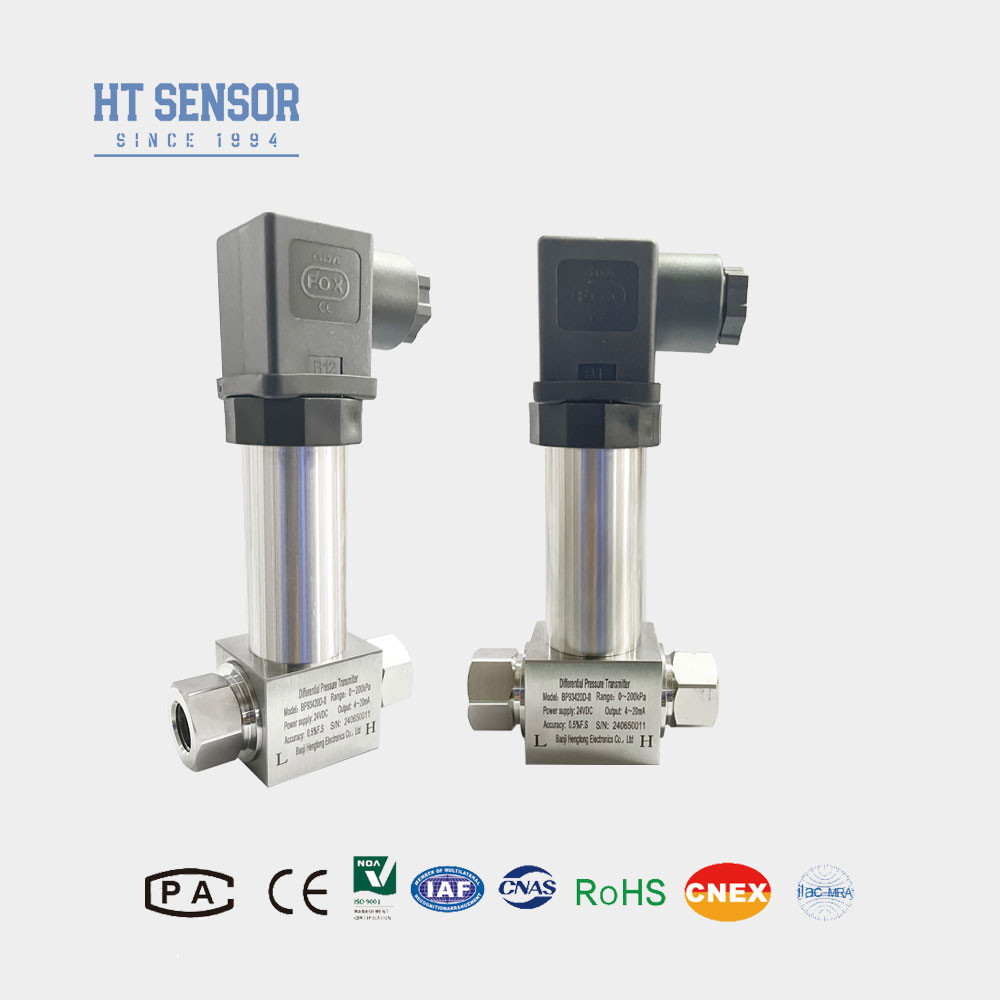

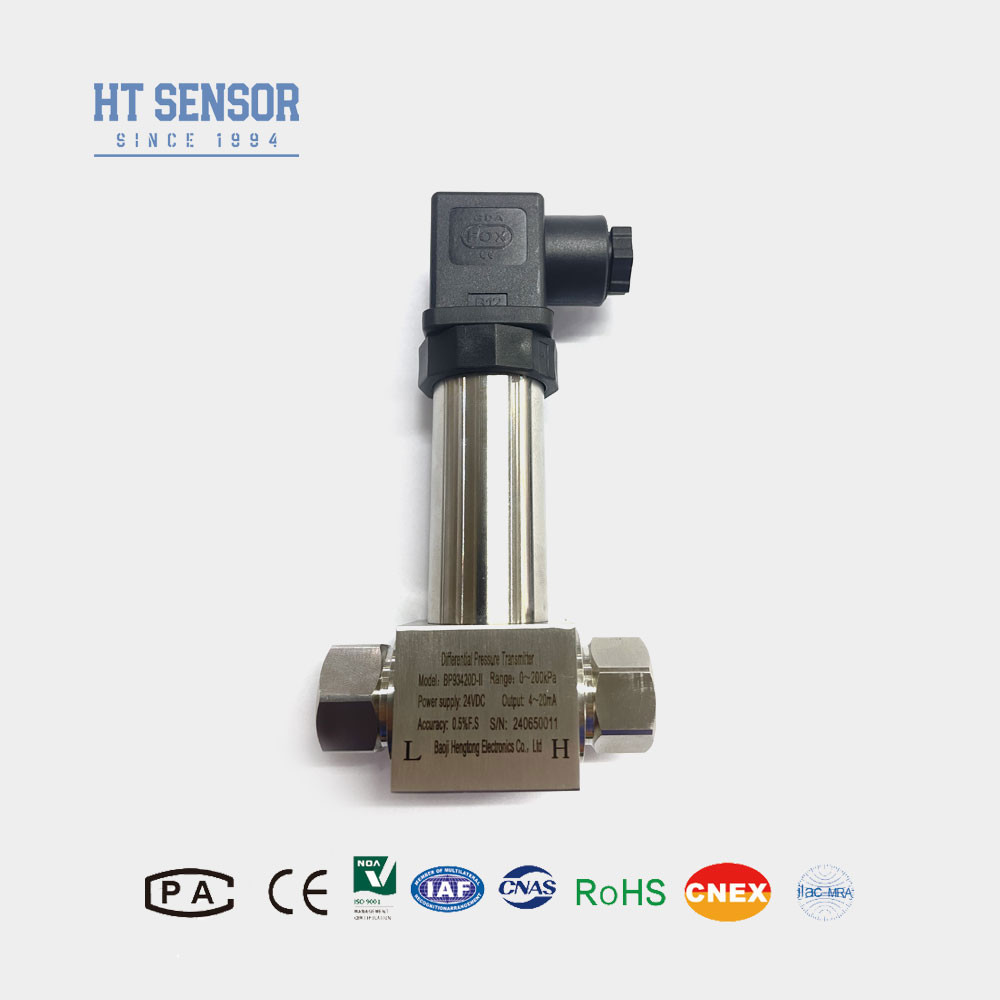

BP93420DII Differential Pressure Transmitter
Introduction of differential pressure transmitter:
The BP93420DII differential pressure transmitter employs a diffused silicon piezoresistive sensor. The pressure differential of gas and liquid is measured and outputted, which can be displayed. It is applicable to the measurement of pressure differential of various gases and liquids in pipelines within industries such as petroleum, chemical, electric power, hydrology, etc.
Product Features of differential pressure transmitter:
1. The transducer adopts stainless steel structure design, compact structure, convenient installation.
2. After strict temperature compensation and aging screening, to ensure stable and reliable performance.
3. The electrical interface can be external or directly connected.
Applications of differential pressure transmitter:
- 1. It is suitable for differential pressure measurement of various gases or liquids in pipelines of petroleum, chemical, electric power, hydrology and other industries.
- 2. Used for process control in industrial field.
- 3. The piping and furnace differential pressure measurement
| Performance Parameters of differential pressure transmitter: |
| Measurement Range |
0-10KPa……~2MPa |
| Pressure Type |
Differential Pressure |
| Single-side Overload |
≤3 times of the rated range |
| Static pressure |
The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability |
±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift |
±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift |
±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature |
0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature |
-30℃~80℃ |
| Storage Temperature |
-40℃~100℃ |
| Vibration |
10g,55Hz ～ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Intrinsically safe and explosion-proof |
| Protection Rating |
IP65 |
| Weight |
~0.45kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4～20mA |
12～30VDC |
2/3/4 wire |
| 0～10/20mA |
3 wire
|
| 0/1～5V |
| 0.5～4.5V |
5VDC |
| Order Guide of differential pressure transmitter: |
| BP93420XX |
Pressure Transmitter |
| |
Code |
Outline Construction |
| DII |
Differential Pressure Transmitter |
| |
Measurement Range |
0-10KPa……~2MPa |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4～20mADC |
S5 |
0～20mADC |
| S2 |
1～5VDC |
S6 |
0～10VDC |
| S3 |
0～5VDC |
S7 |
0.5～4.5VDC |
| S4 |
0～10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 Male |
| J2 |
G1/2 Male |
| J3 |
G1/4 Male |
| J4 |
1/2 NPT Male |
| J5 |
Other |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
Other |
| |
Code |
Pressure Type |
| D |
Differential Pressure |
