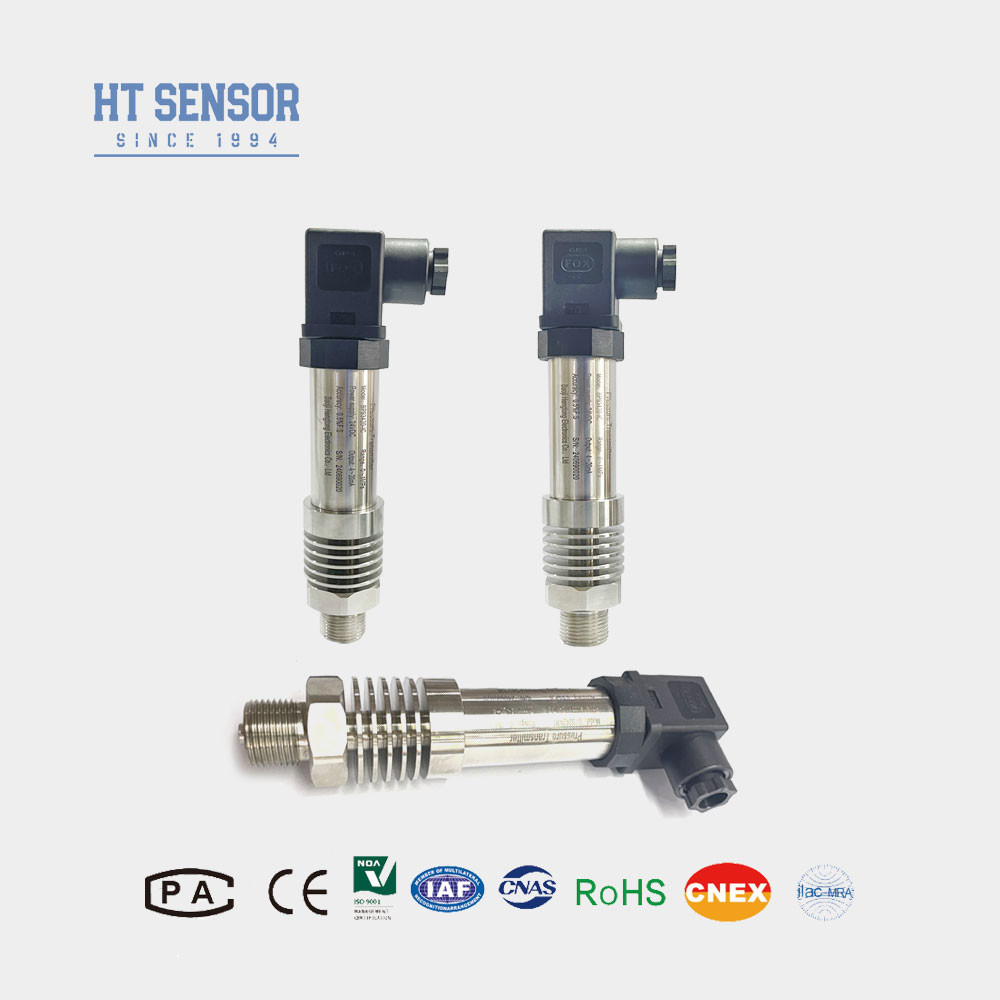

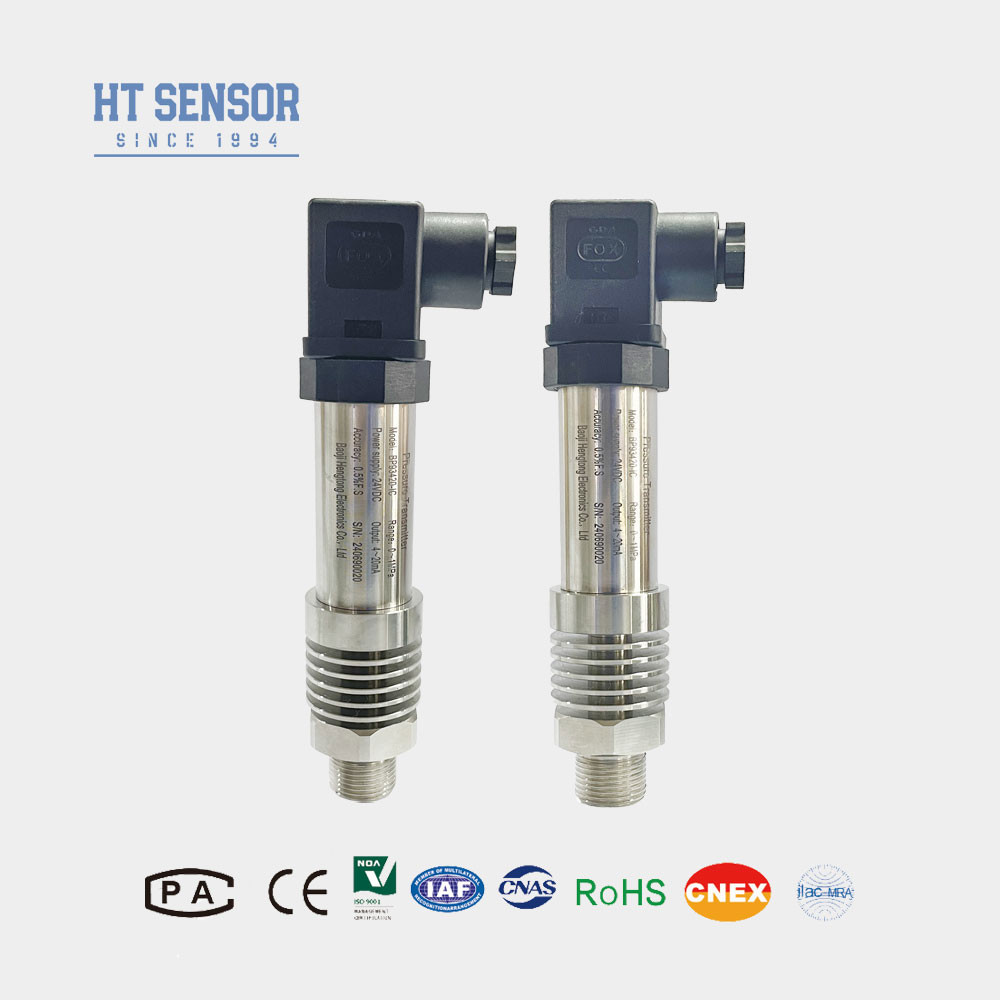

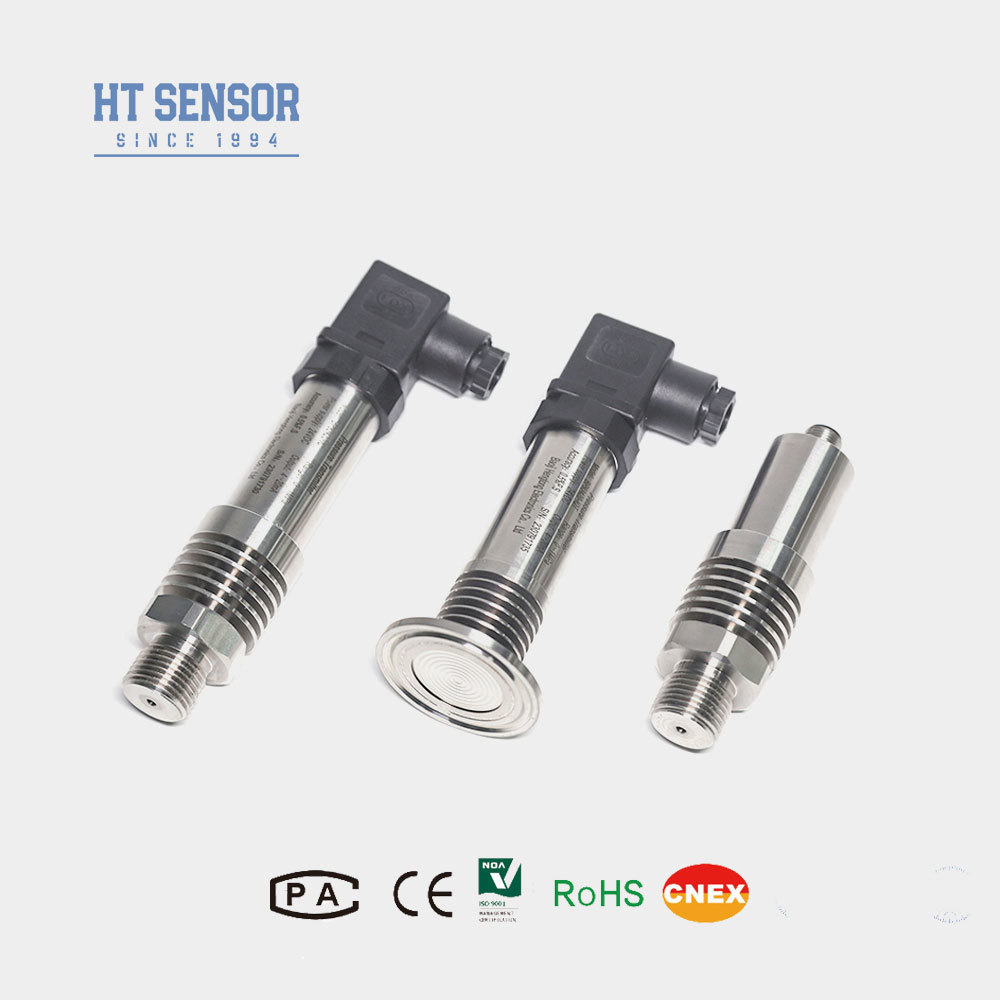

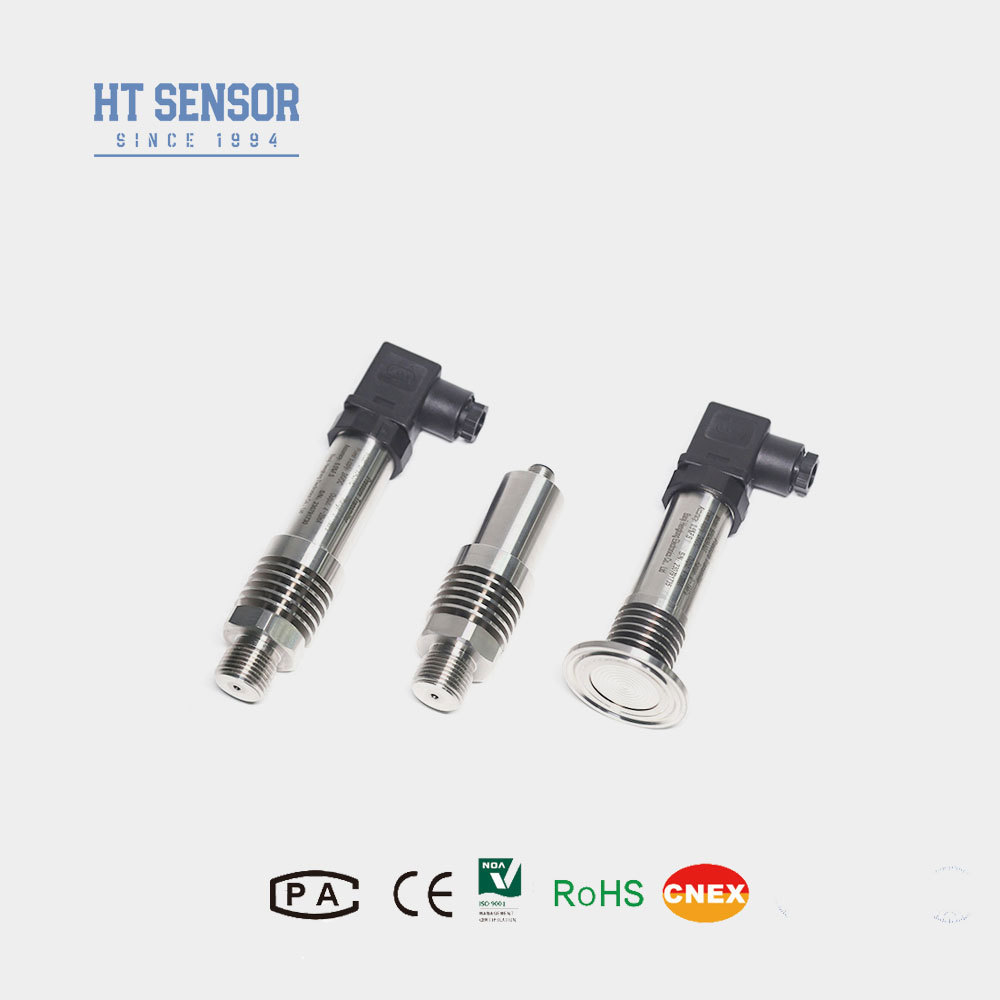

BP93420-IC High Temperature Industrial Pressure Sensor With IP65 Protection Rating

BP93420IC Industrial Pressure Sensor

Introduction of Industrial pressure sensor:

BP93420-IC is a high temperature industrial pressure sensor transmitter, using HT19 series silicon pressure isolation oil-filled core produced by our company as the core measurement element.The sensor effectively captures the pressure of the measured medium by means of a dedicated heat dissipation structure integrated into the transmitter. Reduce the impact of high temperature on product pressure.This special design makes it well suited for high temperature demanding environments, making it ideal for applications involving temperature fluctuations or operating in higher conditions.It is widely used in industrial processes and systems where accurate and reliable pressure measurements are required even in challenging high temperature environments.


Product Features of Industrial pressure sensor:

• 1. Wide measuring range, stainless steel structure, diverse pressure interface forms
• 2. IP65 protection rating stainless steel structure
• 3. Zero and full-scale adjustable
• 4. High precision, all stainless steel structure

Applications of Industrial pressure sensor:

• 1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
• 2. Applied in the marine and aviation industries
• 3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
• 4. Utilized in hydraulic and pneumatic control systems


Order Guide
BP93420XX	Pressure Transmitter
	Code	Outline Construction
	IB	General Pressure Transmitter			IX	Display Pressure Transmitter
	IE	Shock-resistant Aviation Pressure Transmitter			IIC/III	Industrial General/ Display Pressure Transmitter
	IF	Moisture-proof Pressure Transmitter			IIE/IIIE	General/Display Pressure Transmitter
	IN	Air Conditioning Dedicated Pressure Transmitter
	IC	High-temperature Pressure Transmitter
	IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter
		Measurement Range	-0.1. . .0~0.01...100MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC
					Code	Pressure Connection
					J1	M20×1.5
					J2	G1/2
					J3	G1/4
					J4	7/16-20UNF
					J5	Other
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	2088 Industrial Casing
						B5	2088 Industrial Casing with Display
						B6	Other
							Code	Pressure Type
							G	Gauge Pressure
							A	Absolute Pressure
							S	Sealed Reference Pressure


FAQ:
1. Q: What are the features of your pressure sensor transmitter?

     A: High precision, durable, excellent performance. Customization is available.

2. Q: Can I customize special specifications?
    A: Yes, our engineers can customize products to meet specific needs. We offer OEM and ODM services.

3. Q:What is your production capacity?
    A: Our production facilities can produce up to 30,000 pressure sensor transmitters per month, so we are well positioned to meet large orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.

4. Q: What is the general lead time?
     A: 5~8 working days for standard model. Custom products may vary.

5. Q: How is the product priced? Are there any discounts?
    A: Competitive prices with discounts for bulk orders or long-term partners.



6. Q: What is the warranty period of your product? What about after-sales service?
    A: Our warranty period is 24 months after delivery. We will reply to your questions within 24 hours after sale, and guide you remotely through PC network at any time.
