Water Liquid Level Transmitter Digital BP93420-II submersible fuel level sensor Submersible Water Level Transmitter
Product Details
| Model NO.: | BH93420-III Level Transmitter | Range: | 0-1m~400m |
|---|---|---|---|
| Diaphragm Material: | 316L Stainess Steel | Output: | 0.5-4.5V /4-20mA |
| Warranty: | 2 Years | Accuracy Grade: | 0.25%F.S,0.5%F.S |
| IP Rating: | IP68 | Operating Temp.: | -20~80℃ |
| Power Supply: | 12~36V, Standard 24V | Measuring Medium: | Liquid,Water,Oil |
| Highlight |
submersible water level transmitter,digital fuel level sensor,liquid level transmitter with warranty |
||
Product Description

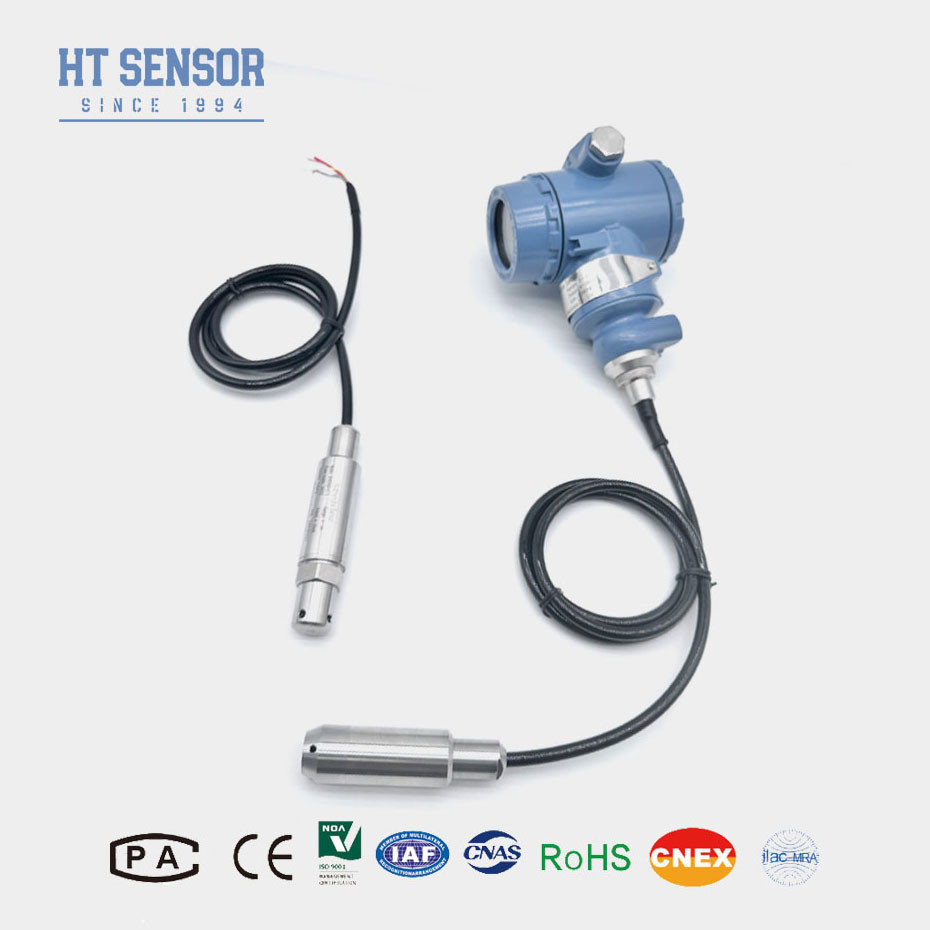

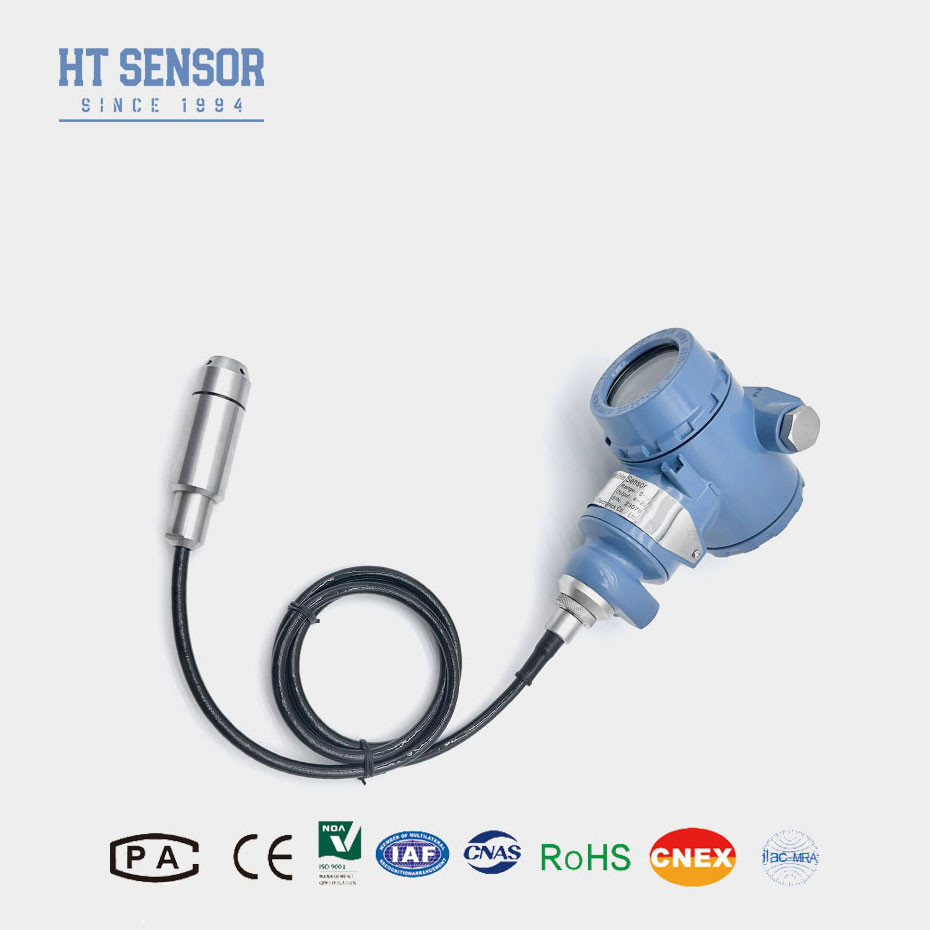

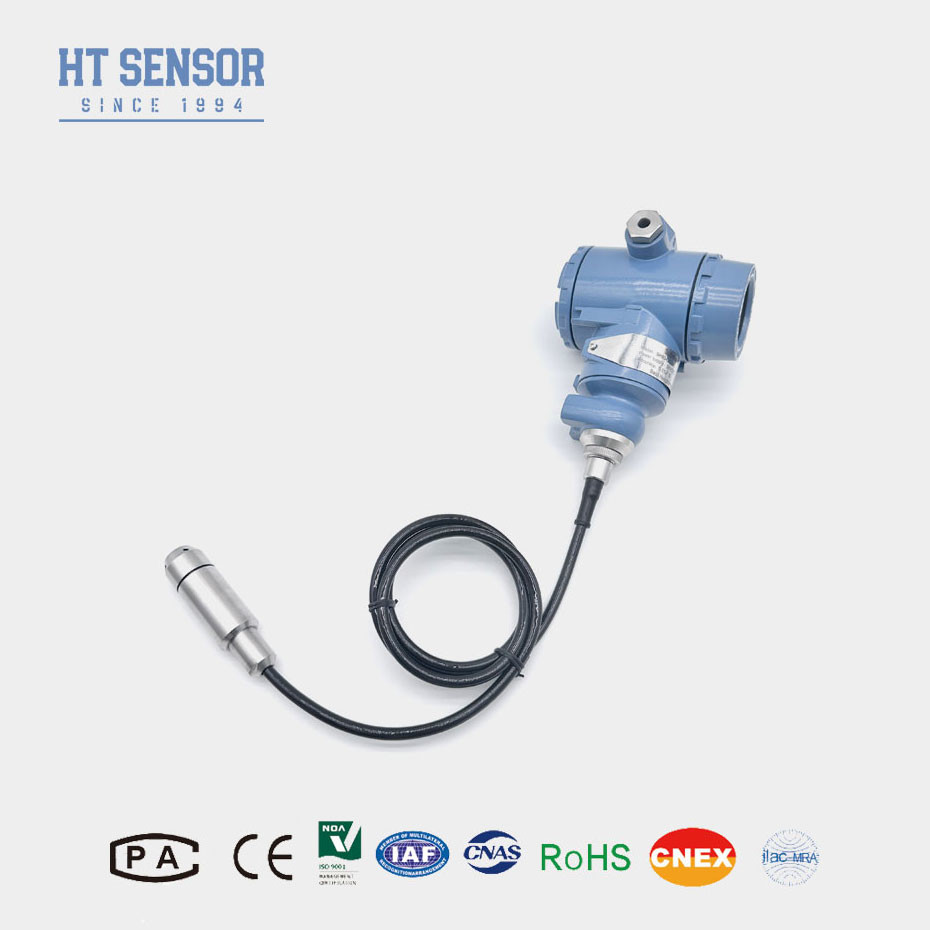

BH93420 II Sumersible liquid level transmitter
Introduction of Liquid Level Transmiter:
The BP93420-II submersible fuel level sensor is a device that is utilized to gauge the fuel level in a storage tank, commonly found in vehicles, boats, or industrial machinery. This sensor is specifically designed to be fully immersed in the fuel, ensuring precise readings even when the tank is almost empty. A notable advantage of the BP93420-II submersible fuel level sensors is their capability to provide accurate and dependable measurements, even in challenging conditions. These sensors are typically resistant to fuel and other chemicals, and can function effectively within a broad range of temperatures and pressures.
Product Features of liquid Level Transmiter:
1. All stainless steel shell, suitable for all kinds of testing environment.
2. Immersion probe measurement, easy installation.
3. A variety of output signal selection.
4. Explosion-proof marks: ExiaIICT6.
5. IP68.
6. PE or PU cable.
Applications of Liquid Level Transmiter:
1. Compatible with 316LSS,noncorrosive liquids
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
3. Measuring fuel levels in diesel and fuel tanks
| Performance Parameters | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.6Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA with Hart | 15~30VDC | 2 wire |
| Electrical Connection | ||||
|
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
|
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
|
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | GND | |||
| 4 | NC | |||
| Order Guide | ||||||||||
| BHZ93420 | Code | Outline Construction | ||||||||
| III | Intelligent liquid level transmitter | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | 4~20mADC with Hart | |||||||
| Code | Electrical Connection | |||||||||
| B4 | 2088 with display | |||||||||
| B5 | 3051 | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
