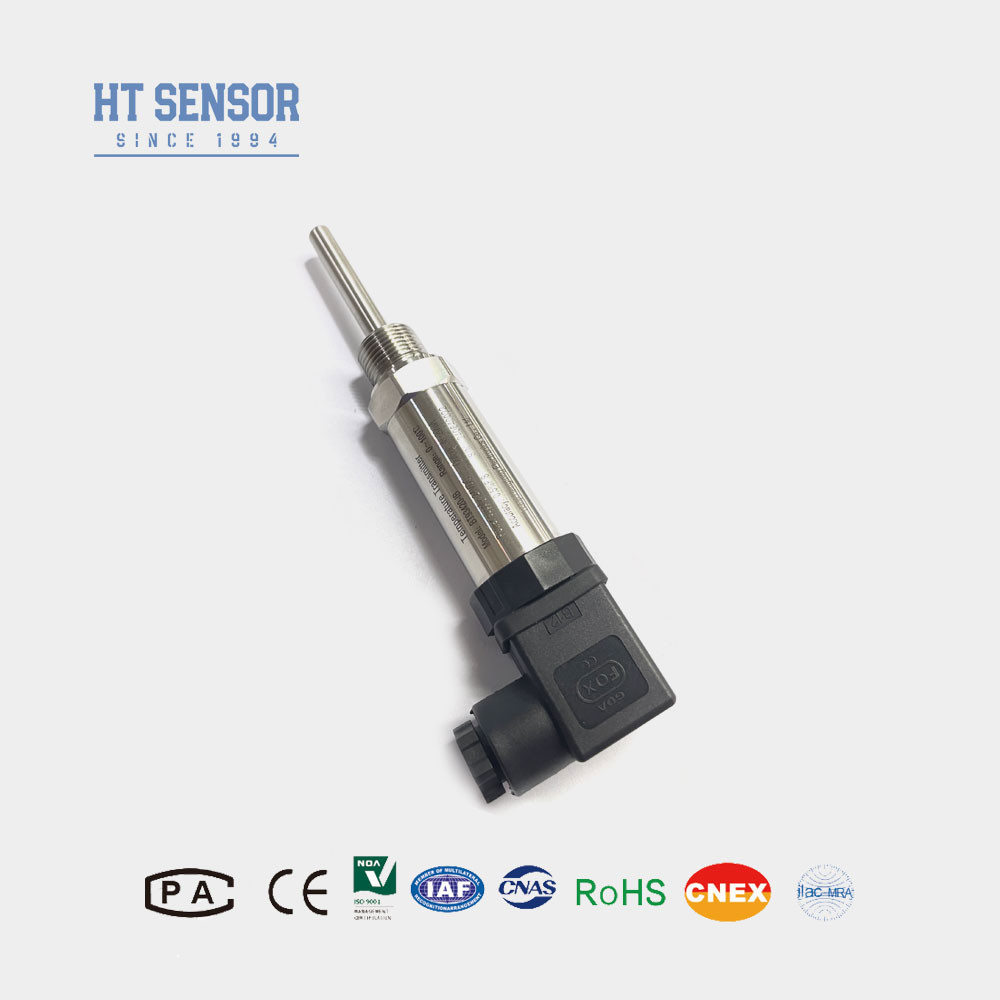

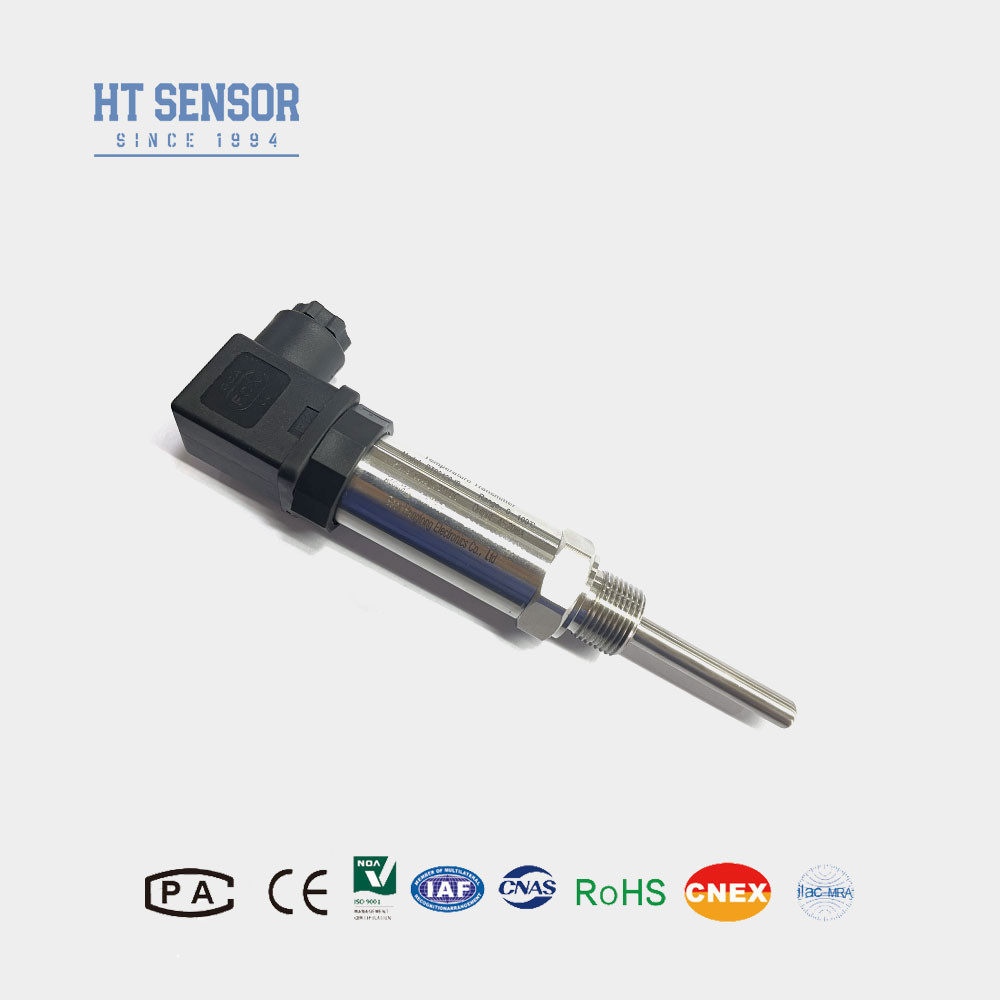

BT93420-IB PT100 4-20mA Temperature Indicator Transmitter for Industrial Control Systems
Product Details
| Model NO.: | BT93420-IB | Measuring Medium: | PT100 Temperature |
|---|---|---|---|
| Customized: | OEM And ODM | Trademark: | HengTong |
| Origin: | Baoji China | Installation Type: | Dig DIN |
| Sensing Type: | PT100 PT1000 | Material: | Stainless Steel |
| Highlight |
PT100 temperature transmitter 4-20mA,industrial temperature indicator transmitter,PT100 transmitter with warranty |
||
Product Description
BT93420-IB PT100 4-20mA Temperature Indicator Transmitter for Industrial Control Systems
BT93420-IB Temperature Indicator Transmitter
Introduction of temperature induicator transmitter:
BT93420-IB temperature transmitter is a device used to measure temperature and convert it into an electrical signal. It is commonly used in industrial control systems to convert the temperature readings from a temperature sensor into a standardized electrical signal (such as 4-20mA or 0-10V) for the purpose of monitoring and controlling temperature. Temperature transmitters play a critical role in many industrial applications, including chemical processing, pharmaceuticals, food processing, and HVAC (heating, ventilation, and air conditioning). They are typically known for their high accuracy, reliability, and ability to withstand high temperatures, meeting the stringent requirements of various industrial environments
Product Features of temperature induicator transmitter:
- Full stainless steel structure, good corrosion resistance
- Analog output and digital output are both available for selection
- Terminal box, 2088 LCD, or LED display are available for selection
- Monitor the temperature of generators, transformers, cables, and other critical equipment.
- Industrial Automation.
- Temperature measurement of various gases or liquids in pipelines in industries such as petroleum, chemical, power, and hydrology.
| Performance Parameters of temperature induicator transmitter | |
| Measurement Range | -30~200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Outline Construction of temperature induicator transmitter | |
| Terminal Box | |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||
| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||
| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -30~200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
| company |
