BP3351 24V CAPACITANCE DIFFERENTIAL PRESSURE TRANSMITTER SENSOR
Product Details
| Model NO.: | BP3351 | Power Supply: | 12.5~45VDC |
|---|---|---|---|
| Weight: | 3.6kg | Stability: | +-0.1%F.S/Year |
| Pressure Type: | Differential Pressure | Transport Package: | Standard Export Packing With Carton |
| HS Code: | 9026201090 | Supply Ability: | 20000PCS/Year |
| Measuring Medium: | Gas Or Liquid | Accuracy Grade: | 0.075% |
| Pressure Range: | 0-10kpa...~2MPa | IP Rating: | IP65 |
| Customization: | Available | Customized Request | ||
| Highlight |
24V capacitance pressure transmitter,differential pressure sensor with warranty,BP3351 pressure transmitter 24V |
||
Product Description

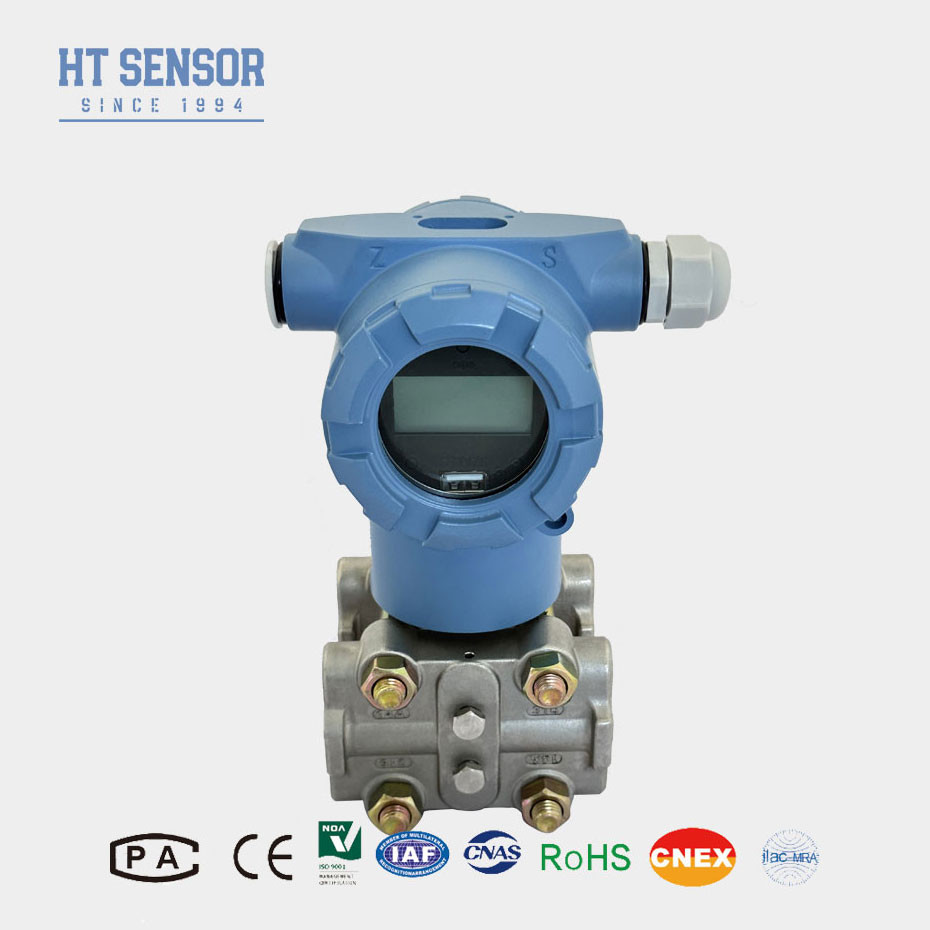

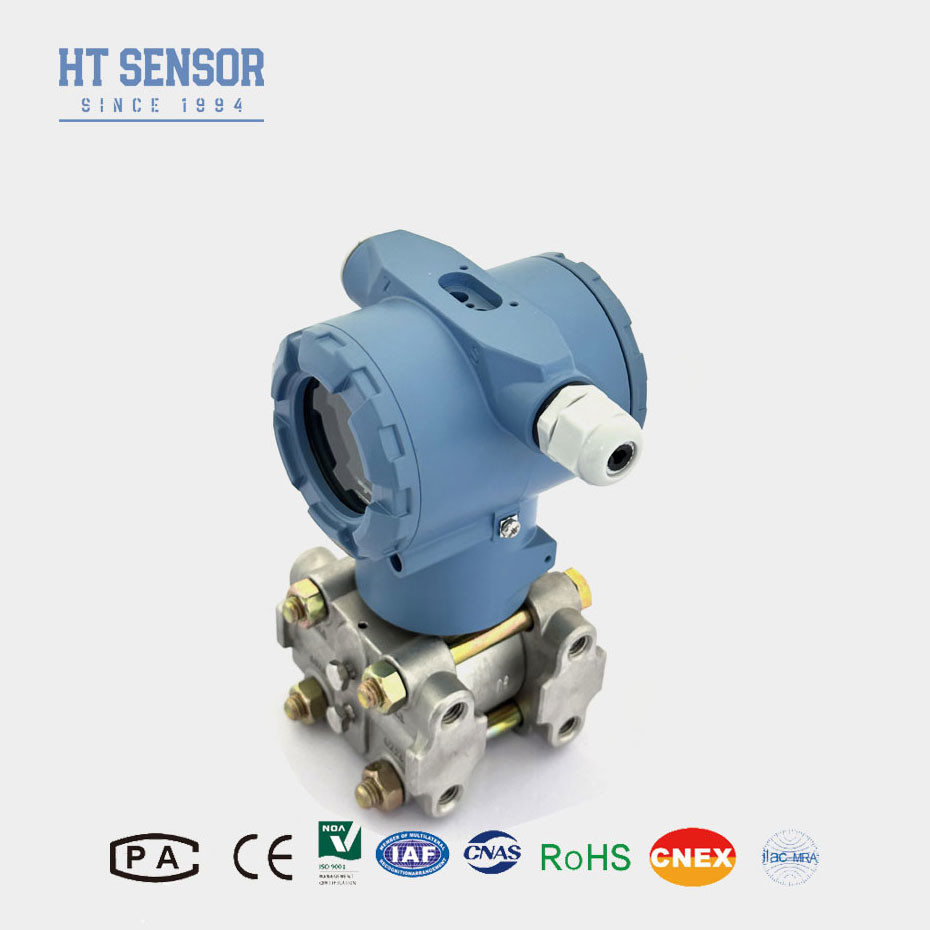

BP3351 CAPACITANCE DIFFERENTIAL PRESSURE TRANSMITTER SENSOR
BP3351 Differential Pressure Transmitter
Introduction of differential pressure transmitter :
Series Digital•Intelligent Pressure/Differential PressureTransmitter is a multipurpose digitalized intelligent instrument developed by us, including capacitance pressure /differential pressure transmitter and direct-coupled pressure/fluid level transmitter. It is made on the basis of the mature and dependable sensing technology, combining the advanced single-chip computer technology and sensor digital exchange technology.
Product Features:
1. The transmitter features a stainless steel structural design, making it compact and easy to install
2. It undergoes strict temperature compensation and aging screening, ensuring stable and reliable performances
3. The electrical interface can be selected as a plug-in or direct wiring option.
Applications:
1. Suitable for measuring differential pressure of various gases or liquids in pipelines of industries such as petroleum, chemical, power, and hydrology.
2. Applied in industrial on-site processes such as petroleum, chemica,metallurgy, power generation, and hydrology
3. Pressure measurement for pipelines and furnace chambers
| Ordering tips |
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
4. For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order
