BPHT24 The Top Flush Diaphragm Pressure Sensor for Industrial and Commercial Applications Transmitter

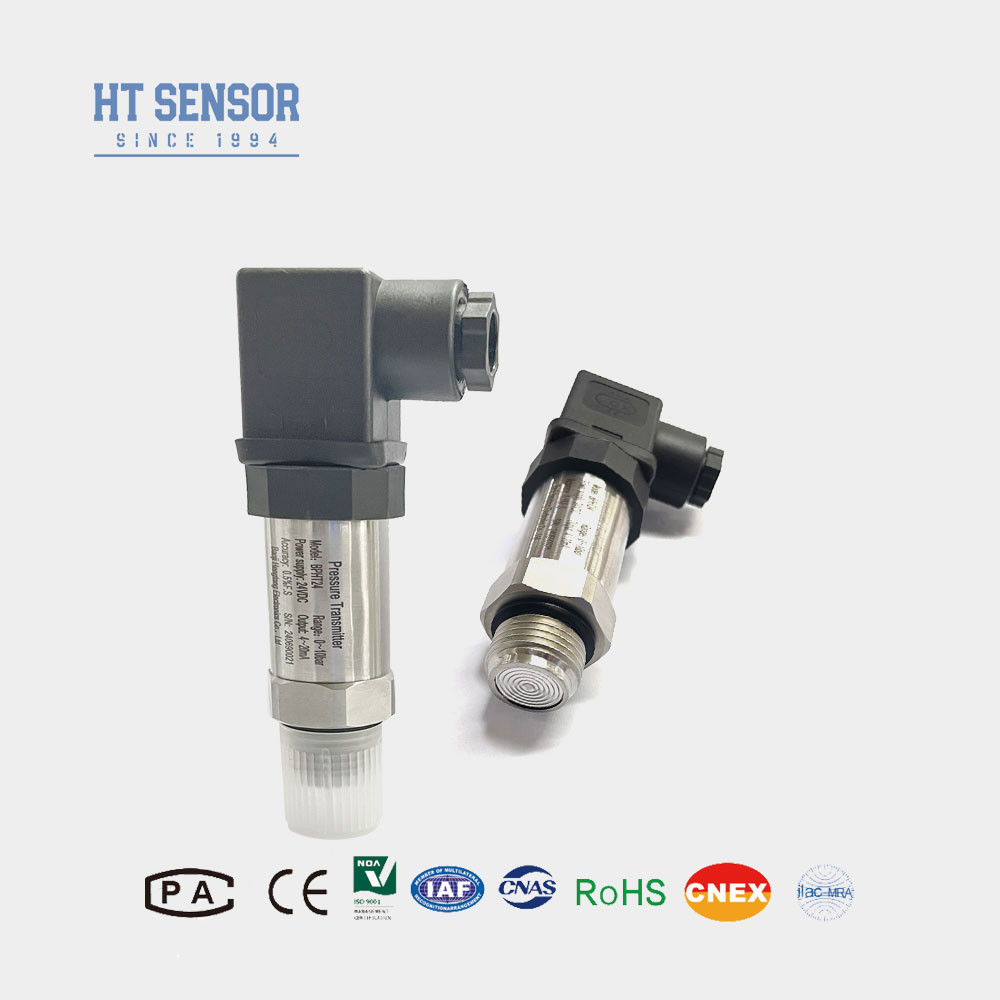

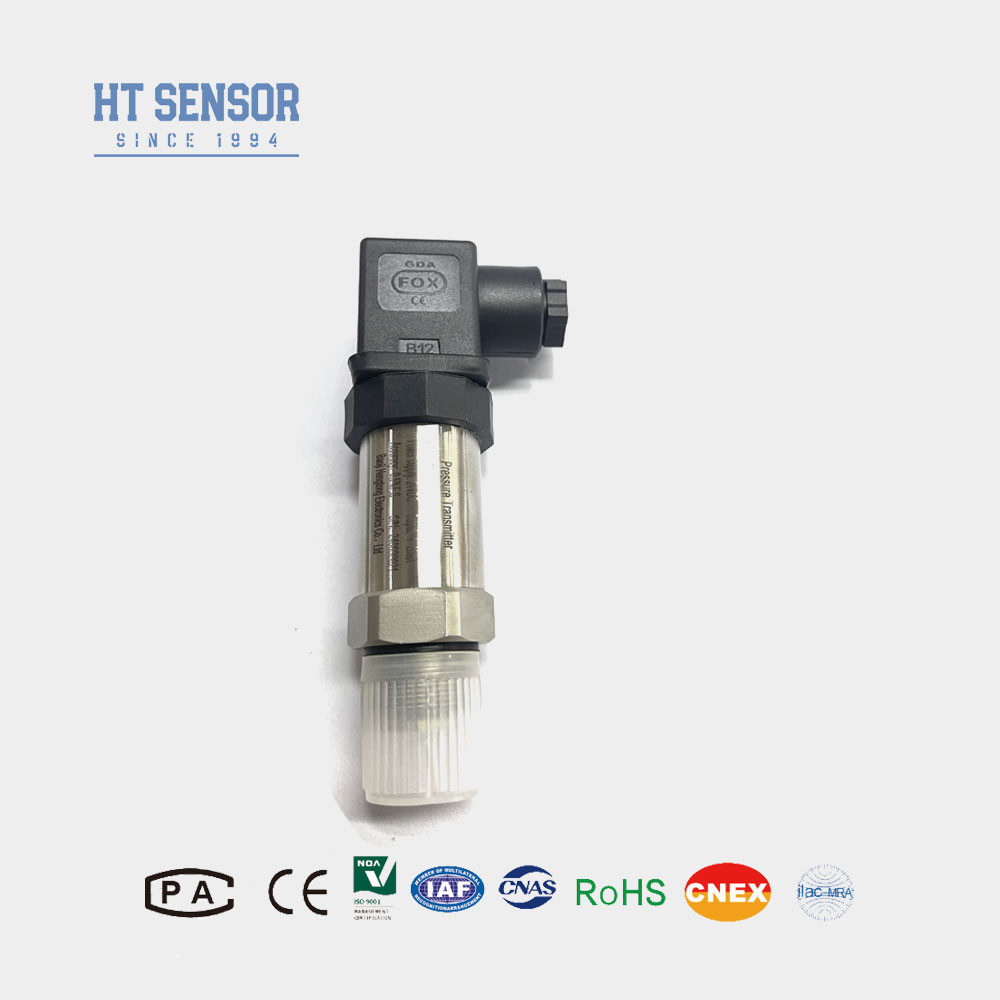

BPHT24 Flush Diaphragm Pressure Sensor

Introduction of flush diaphragm pressure sensor transmitter:

BPHT24 flush diaphragm pressure sensor transmitter Core Technology and Reliability: The diffused silicon front type adopts an imported diffused silicon core system and utilizes tuning and digital compensation technology. This ensures reliable product performance and stable output from the sensor.

Product Features of flush diaphragm pressure sensor transmitter:

1. Various pressure interface options.
2. Designed for hygienic applications to prevent medium scaling.
3. High accuracy with a fully stainless steel structure.
4. Easy to clean.






• When selecting a product, please ensure that the medium being measured is compatible with the wetted parts of the product.
• When placing an order, please note that explosion-proof products do not include a digital display as standard.
• When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should be at least 20VDC.
• To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are properly grounded.
• The product does not include a default attached cable. If a cable is required, there are three material options available - polyethylene is the default material used if no specific instructions are provided. If a different cable material is needed, please indicate this in your order form.
• For special requirements such as strong vibration, instantaneous impact, or strong electromagnetic/radio frequency interference, please inform us and specify these details in your order.



Order Guide of flush diaphragm pressure sensor transmitter
BPHT24	Pressure Transmitter
	Code	Outline Construction
	IX	Display Pressure Transmitter			IIC/III	Industrial General/ Display Pressure Transmitter
	T	High-temperature resistant Pressure Transmitter
		Measurement Range	0~35Kpa…~20MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC
					Code	Pressure Connection
					J1	M20×1.5
					J2	G1/2
					J3	G1/4
					J4	7/16-20UNF
					J5	Other
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	2088 Industrial Casing
						B5	2088 Industrial Casing with Display
						B6	Other
							Code	Pressure Type
							G	Gauge Pressure
							A	Absolute Pressure
							S	Sealed Reference Pressure
