Hengtong Temperature Indicator Transmitter 4 To 20 MA Transmitter For Industry Automation
Product Details
| Model NO.: | BT93420-I | Measuring Medium: | Temperature |
|---|---|---|---|
| IP Rating: | IP65 | Customized: | Customized |
| Stability: | ±0.2%F.S/Year | Storage Temp.: | -40~100℃ |
| Temperature: | Customized | Transport Package: | Carton |
| Trademark: | HengTong | Origin: | China |
| HS Code: | 9032100000 | Supply Ability: | 2000PCS/Month |
| Contact: | Contact | Output Signal Type: | Analog Type |
| Housing Material: | Alumina | Customization: | Available | Customized Request |
| Highlight |
4-20mA temperature transmitter,industrial temperature indicator transmitter,Hengtong temperature transmitter for automation |
||
Product Description
Hengtong 4-20mA PT100 Temperature Sensor Transmitter For Industry Automation
BT93420 Temperature Indicator Transmitter
Introduction:
BT93420 temperature indicator transmitter is a module transmitter used to convert the signal from a PT100 temperature sensor into a standard output signal.
PT100 temperature module transmitter is a very useful temperature measurement and control device for a variety of different applications
Product Features:
- Full stainless steel structure, good corrosion resistance
- Analog output and digital output are both available for selection
- Terminal box, 2088 LCD, or LED display are available for selection
Applications:
Industrial automation:
HVAC Systems:
Food processing:
Medical equipment:
Aerospace:
| Performance Parameters | |
| Measurement Range | -55~1200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Outline Construction | |

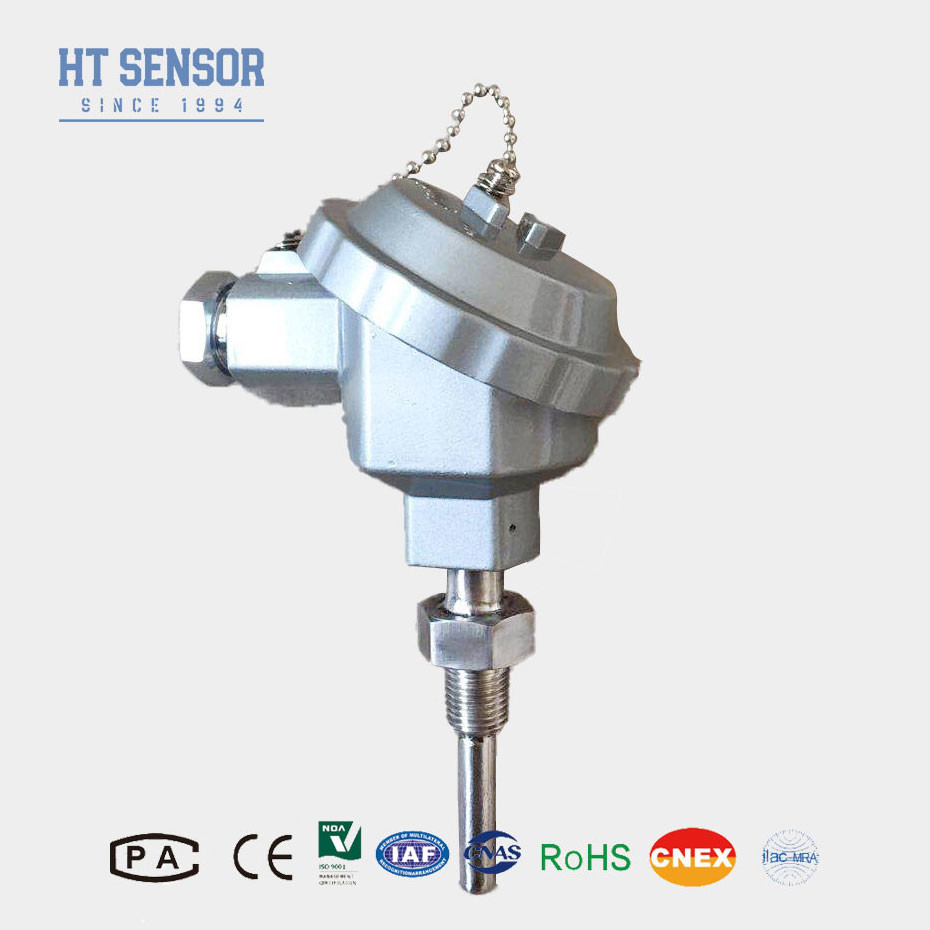

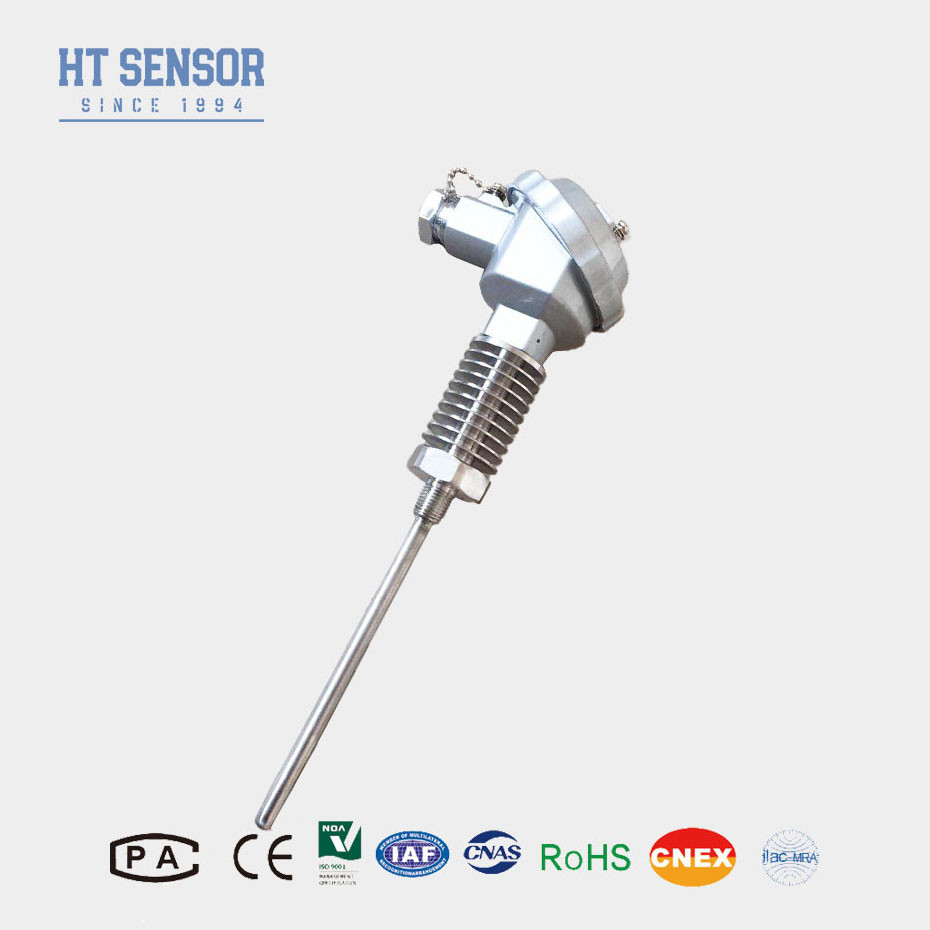

| Terminal Box | |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||
| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||

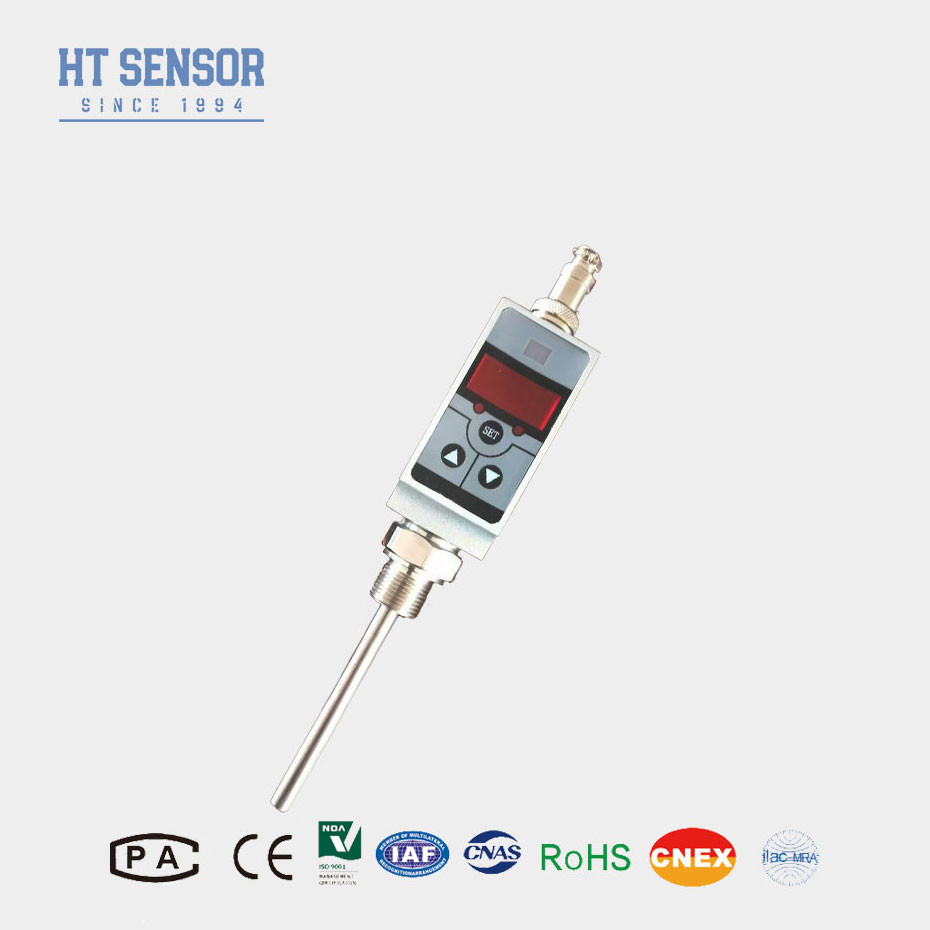

| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -55~1200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
FAQ:
Q. What is a diffused silicon pressure transmitter?
A diffused silicon pressure transmitter is a device that measures pressure using a silicon diaphragm with piezoresistive elements. When pressure is applied, the diaphragm deforms, causing a change in electrical resistance that is converted into a corresponding pressure reading.
Q.What are the advantages of using a diffused silicon pressure transmitter?
A.The advantages include high accuracy, excellent long-term stability, wide pressure range capabilities, robust construction, and the ability to operate in harsh environments. They are also known for their fast response times and low power consumption.
Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 29 years! Our technical team has more than 10 engineers.
Q: Can you accept OEM service ?
A: Yes, we accept OEM and ODM.
Q: What is your lead time?
A: Normally 3-5days. For quantity above100pcs, need extra 5-7 working days.
