Highly Accurate Mini PT100 Temperature Indicator Transmitter for Pharmaceutical Applications
Product Details
| Model NO.: | BT93420-IB | Measuring Medium: | Temperature |
|---|---|---|---|
| Customized: | Customized | Trademark: | HengTong |
| Origin: | Baoji China | Installation Type: | Big DIN |
| Sensing Type: | PT100 Or PT1000 | Material: | Stainless Steel |
| Highlight |
mini PT100 temperature transmitter,pharmaceutical temperature indicator transmitter,accurate PT100 temperature sensor |
||
Product Description
Highly Accurate Mini PT100 Temperature Indicator Transmitter for Pharmaceutical Applications

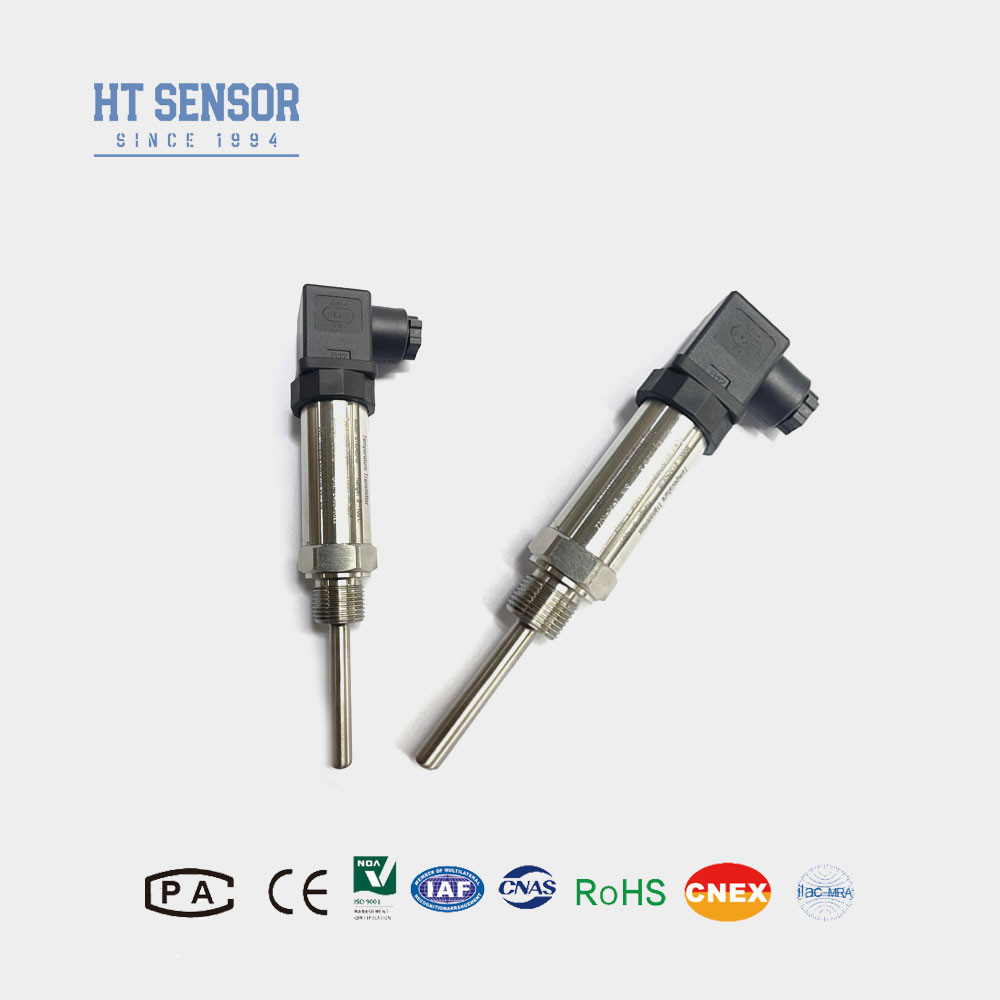

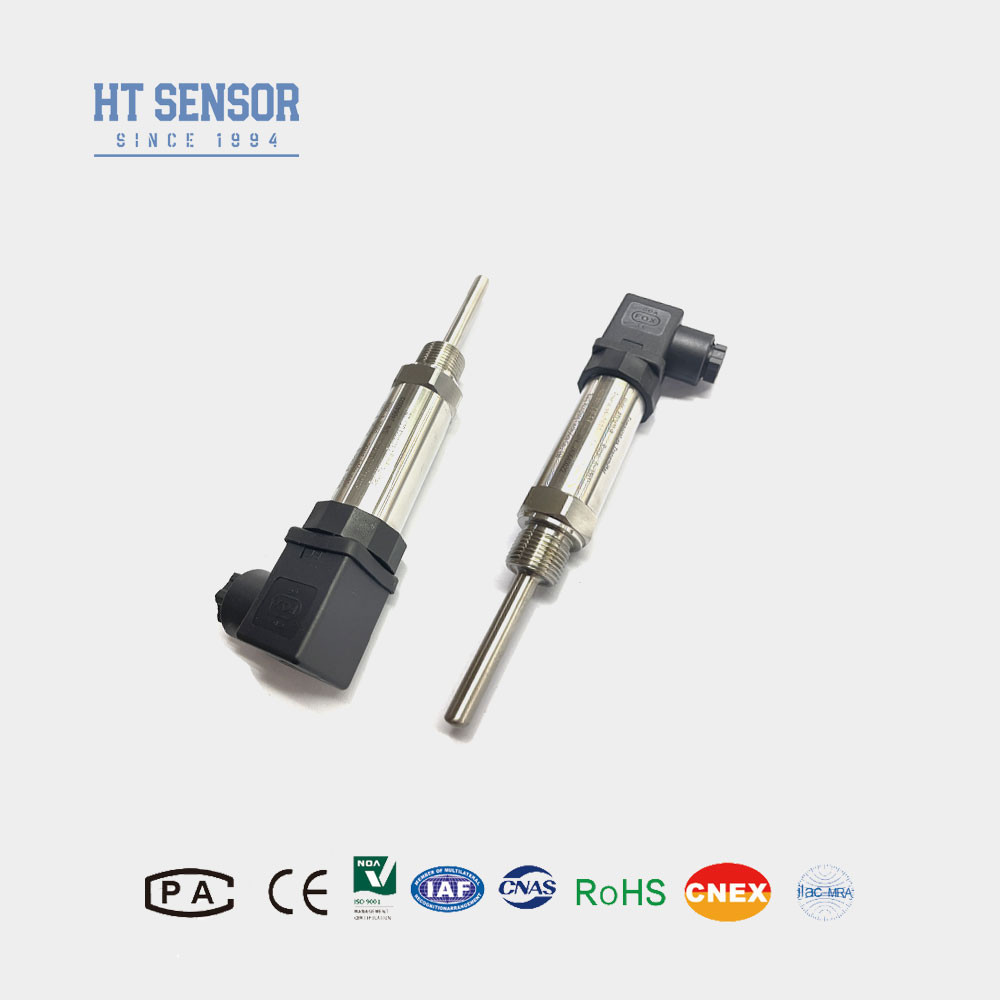

BT93420-IB Temperature Indicator Transmitter
Introduction of temperature induicator transmitter:
BT93420-IB temperature transmitter is a device used to measure temperature and convert it into an electrical signal. It is commonly used in industrial control systems to convert the temperature readings from a temperature sensor into a standardized electrical signal (such as 4-20mA or 0-10V) for the purpose of monitoring and controlling temperature. Temperature transmitters play a critical role in many industrial applications, including chemical processing, pharmaceuticals, food processing, and HVAC (heating, ventilation, and air conditioning). They are typically known for their high accuracy, reliability, and ability to withstand high temperatures, meeting the stringent requirements of various industrial environments
Product Features of temperature induicator transmitter:
- Full stainless steel structure, good corrosion resistance
- Analog output and digital output are both available for selection
- Terminal box, 2088 LCD, or LED display are available for selection
| Performance Parameters of temperature induicator transmitter | |
| Measurement Range | -55~1200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Outline Construction of temperature induicator transmitter | |
| Terminal Box | |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||
| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||
| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -55~1200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
| company |
| Ordering tips |
|---|
1. When making a selection, please ensure that the measured medium is compatible with the product parts in contact.
2. When ordering explosion-proof products, please note that they do not include a digital display head.
3. If ordering a transmitter with an LCD or LED display head, ensure that the power supply for the transmitter is not lower than 15VDC.
4. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, or radio frequency interference, please specify and include them in the order.
| Q&A |
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
