304SS Material Liquid Level Transmitter BH93420-III for Filtered Sewage Treatment Pressure Sensor
Product Details
| Model NO.: | BH93420-III | Proble Material: | 304S.S |
|---|---|---|---|
| Power: | 24VDC | Output: | 4-20mA / RS485 And So On |
| Diaphragm Material: | 316L Stainess Steel | Specification: | With Display |
| Structure Design: | Input Type Can Be With Display | Pressure Range: | 0-1m--200 MH2O |
| Accuracy Grade: | 0.5%F.S 0.25%F.S | IP Rating: | IP68 |
| Highlight |
Filtered Sewage Treatment Liquid Level Transmitter,304SS Material Liquid Level Transmitter,BH93420-III Liquid Level Transmitter |
||
Product Description
Liquid Level Transmitter With Filtered Sewage Treatment That Meet Their Specific Requirements

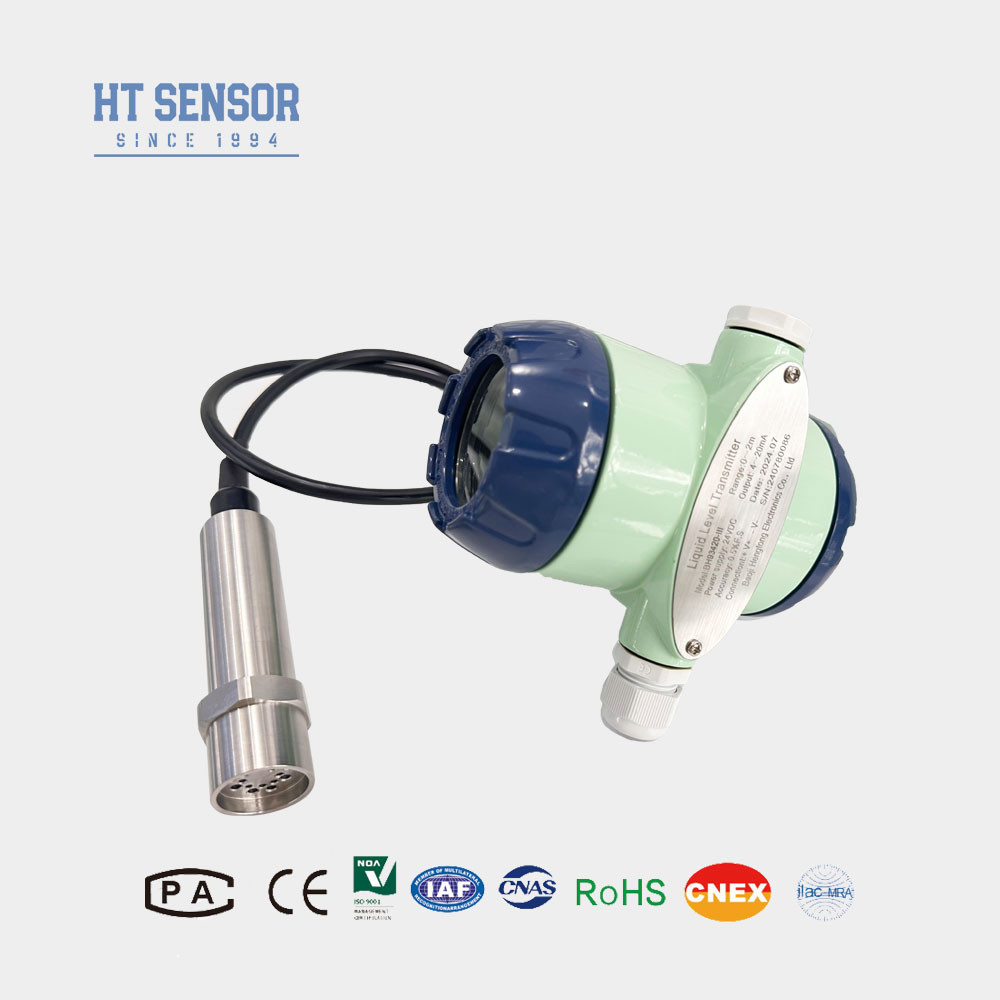

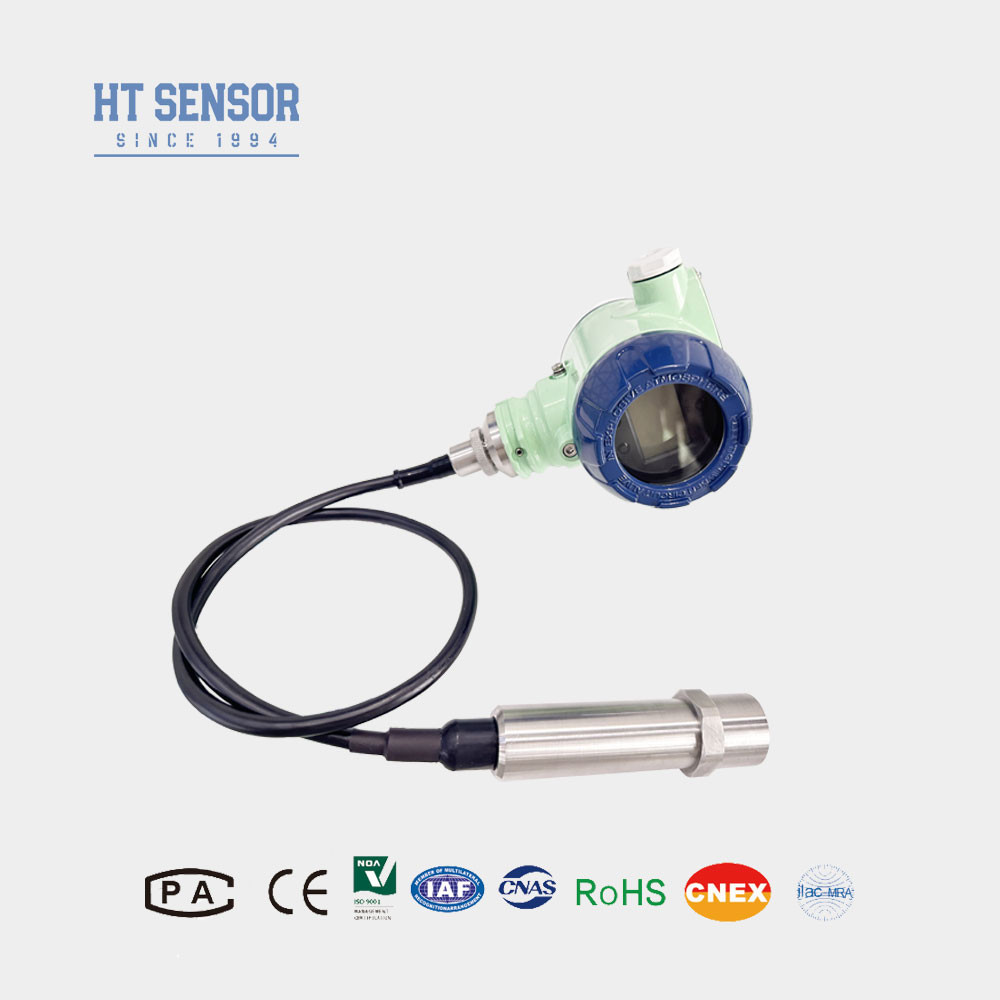

BH93420 IB Sumersible liquid level transmitter
Introduction of liquid level transmitter sensor:
The BH93420-I is a robust and dependable water level transmitter that employs an HT series pressure and oil-filled sensor as its signal measurement component. The sensor's sensing portion, which is submerged in the liquid, is completely encased in stainless steel, providing exceptional IP68 waterproof performance. Featuring a junction box as a protective outlet, this transmitter is user-friendly and easy to install in the field, making it suitable for a wide array of liquid level measurement applications across various industries, such as petrochemical, metallurgy, power, pharmaceutical, water supply and drainage, and environmental protection.
Product Features of liquid level transmitter sensor:
- Full stainless steel housing for suitability in diverse testing environments.
- Immersion-type probe measurement for easy installation.
- Diverse output signal options to meet application requirements.
- Explosion-proof marking: ExiaIICT6, ensuring safe operation in hazardous areas.
- High protection rating: IP68, providing robust waterproof performance.
- PE or PU, PTFE cable options for enhanced durability and chemical resistance.
Applications of liquid level transmitter sensor:.
1. Compatible with 316LSS,noncorrosive liquids.
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc.
3. Measuring fuel levels in diesel and fuel tanks.
| Performance Parameters of liquid level transmitter sensor | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol |
| Ordering tips |
- To ensure reliable operation, it is recommended that users install lightning protection devices on-site.
- Proper grounding of the product and power supply is essential for reliable performance.
- For applications with strong electromagnetic or radio frequency interference, provide details to the company and indicate it in the order.
| Order Guide | ||||||||
| BH93420 | Code | Outline Construction | ||||||
| I | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
