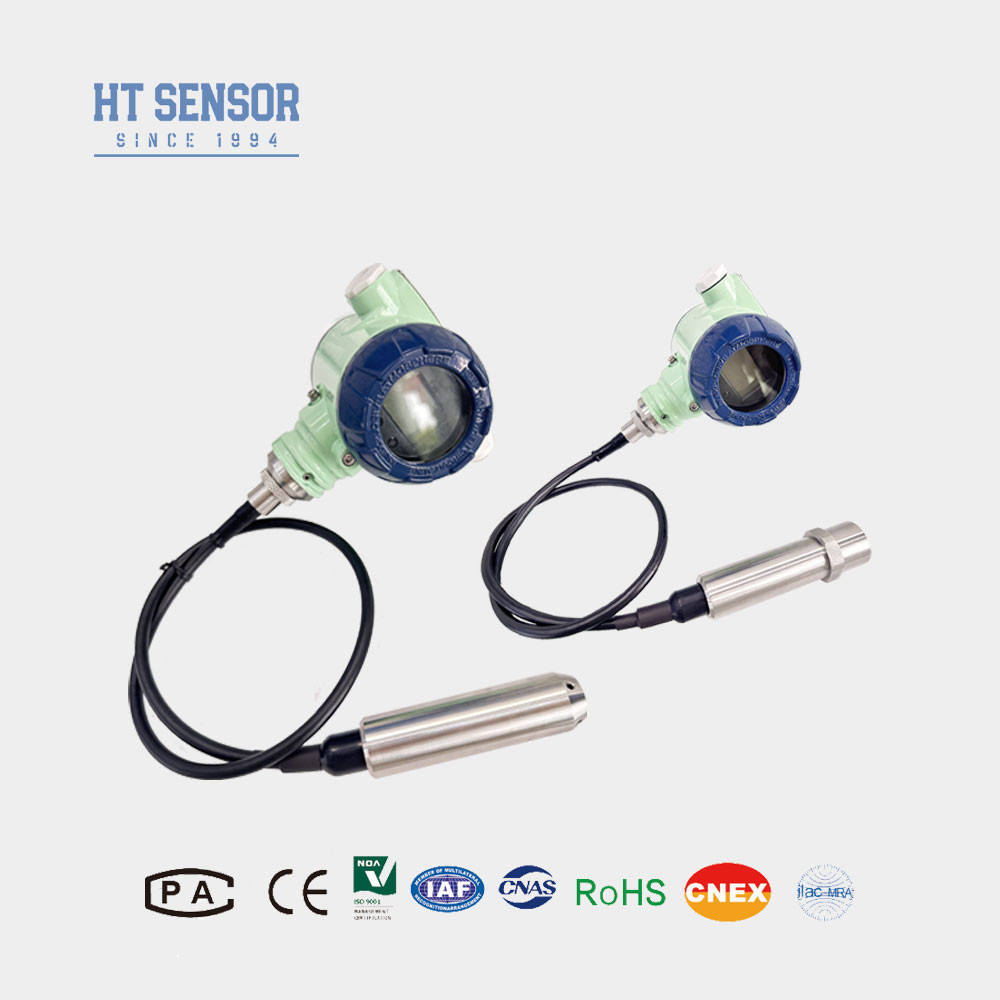

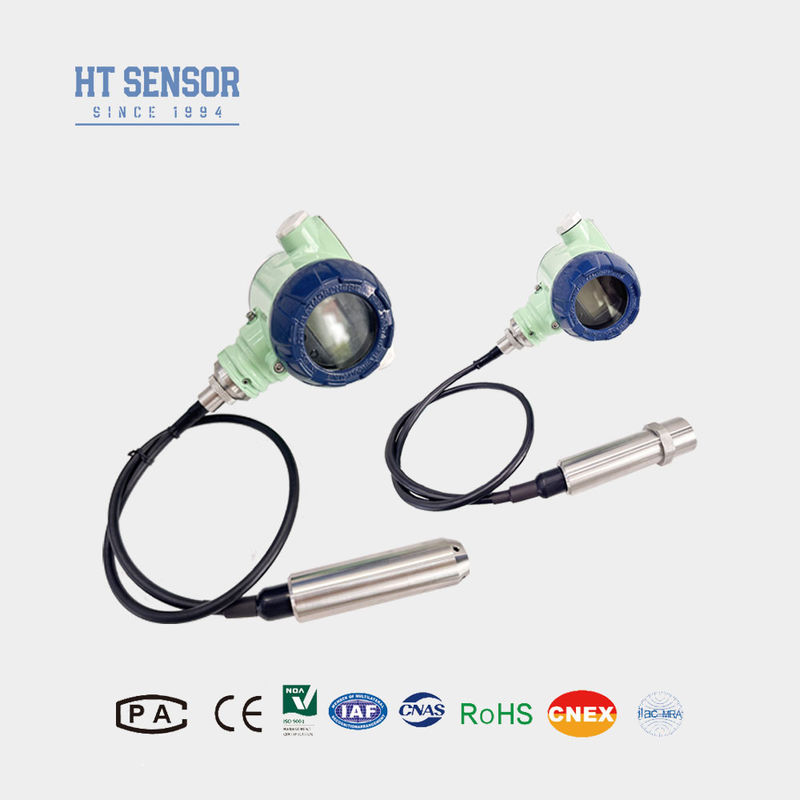

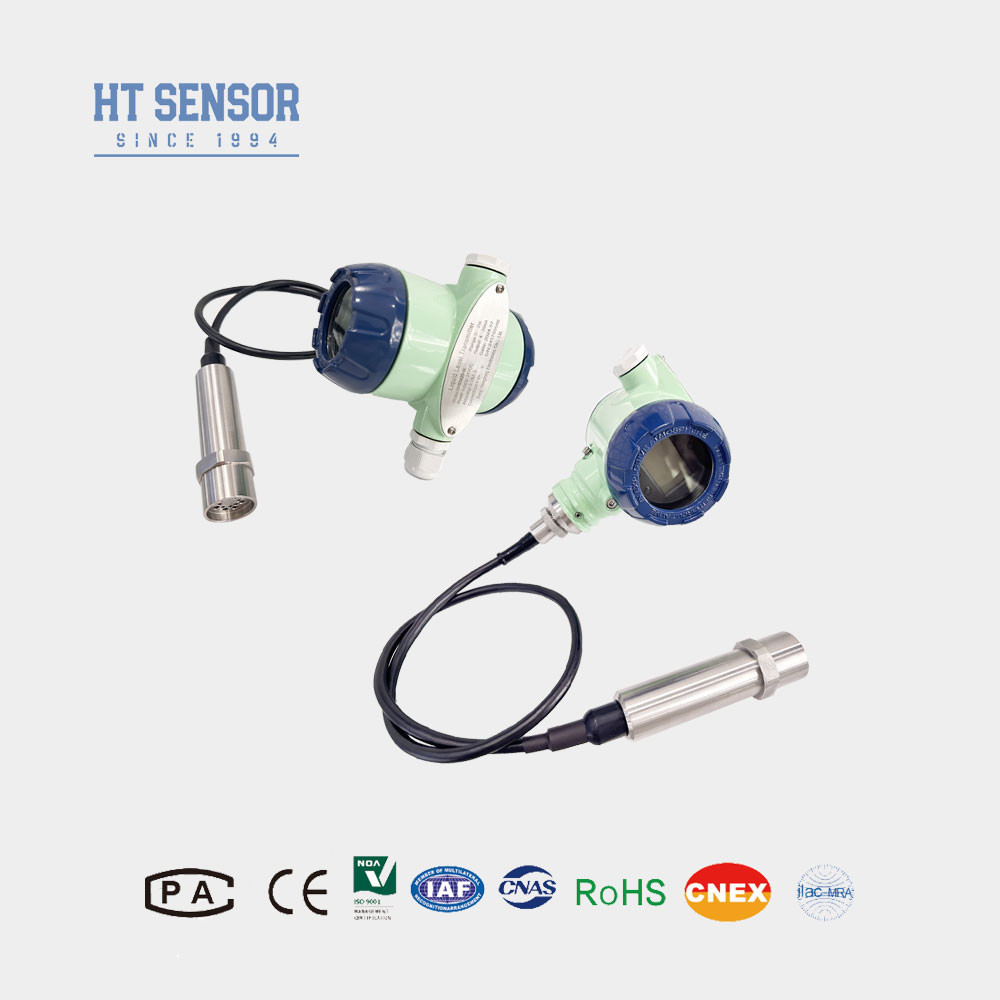

BH93420-III Sewage Level Sensor Devices Used To Measure The Level Of Liquids Or Gases Sensor
Product Details
| Model NO.: | BH93420-III | Range: | 0-1m---1000m |
|---|---|---|---|
| Probe Type: | Probe Type | Output Form: | 4-20mA Can With HART |
| Shell Material: | 304S.S | Cable: | PTFE、PU、PE |
| Accuracy: | ≤0.5%F.S | Diaphragm Material: | 316L Stainess Steel |
| Customization: | OEM And ODM | Customized Request | Warranty: | 2 Years |
| Highlight |
Gases Sewage Level Sensor,Liquids Sewage Level Sensor,BH93420-III Sewage Level Sensor |
||
Product Description
BH93420-III Sewage Level Sensor Devices Used To Measure The Level Of Liquids Or Gases Sensor
BH93420 III Water level Transmitter
Introduction of water level transmitter:
BH93420-III sewage level sensor is devices used to measure the level of liquids or gases. They have multiple filtering functions to filter out impurities and particles, ensuring measurement accuracy and reliability.The level transmitter typically consists of a sensor, filter, and converter. The sensor is responsible for measuring the level and transmitting the signal to the converter. The filter is used to filter impurities and particles in the liquid to prevent them from interfering with the measurement results. The converter converts the signal from the sensor into readable electrical or digital signals so that users can easily obtain level information.Multiple filter level transmitters are widely used in industrial control, environmental monitoring, water treatment, and other fields. They have the characteristics of high accuracy, stability, and durability and can work normally under harsh working conditions. By using multiple filter level transmitters, users can obtain accurate level data, thereby better controlling and managing the flow of liquids or gases.
Product Features of water level transmitter:
- Split-type design, facilitating on-site wiring and calibration.
- LED or LCD display.
- Explosion-proof rating : ExiaIICT6.
- High protection : IP68.
- Cable : PE,PU.PTFE Can be choose.
- Compatible with 316LSS,noncorrosive liquids.
- Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc.
- Diesel, fuel, and other oil tank level monitoring.
| Performance Parameters of sewage level sensor gauge | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, l1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
| Outline Construction |
| Electrical Connection |
| Selection Examples |
| Ordering tips |
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
| Order Guide | ||||||||||
| BH93420 | Code | Outline Construction | ||||||||
| III | Liquid level transmitter with the 2088 housing | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | RS485 | |||||||
| Code | Electrical Connection | |||||||||
| B5 | 2088 with display | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Material | |||||||||
| 01 | 304 Stainless Steel | |||||||||
| 02 | 316L Stainless Steel | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
