Offers A Variety Of Cable Options Liquid Level Transmitter For Enhanced Durability And Chemical Resistance
Product Details
| Model NO.: | BH93420-II | Proble Material: | 304S.S Or 316L |
|---|---|---|---|
| Power: | 24VDC（12-32VDC） | Output: | 4-20mA /0-10VDC And So On |
| Diaphragm Material: | 316L Stainess Steel | Specification: | With Junction Box And Display |
| Structure Design: | Input Type Can Be With Display | Pressure Range: | 0-1m--1000 MH2O |
| Accuracy Grade: | 0.5%F.S 0.25%F.S | IP Rating: | IP68 |
| Highlight |
Chemical Resistance Liquid Level Transmitter,Cable Options Liquid Level Transmitter,Enhanced Durability Liquid Level Transmitter |
||
Product Description
Offers A Variety Of Cable Options Liquid Level Transmitter For Enhanced Durability And Chemical Resistance

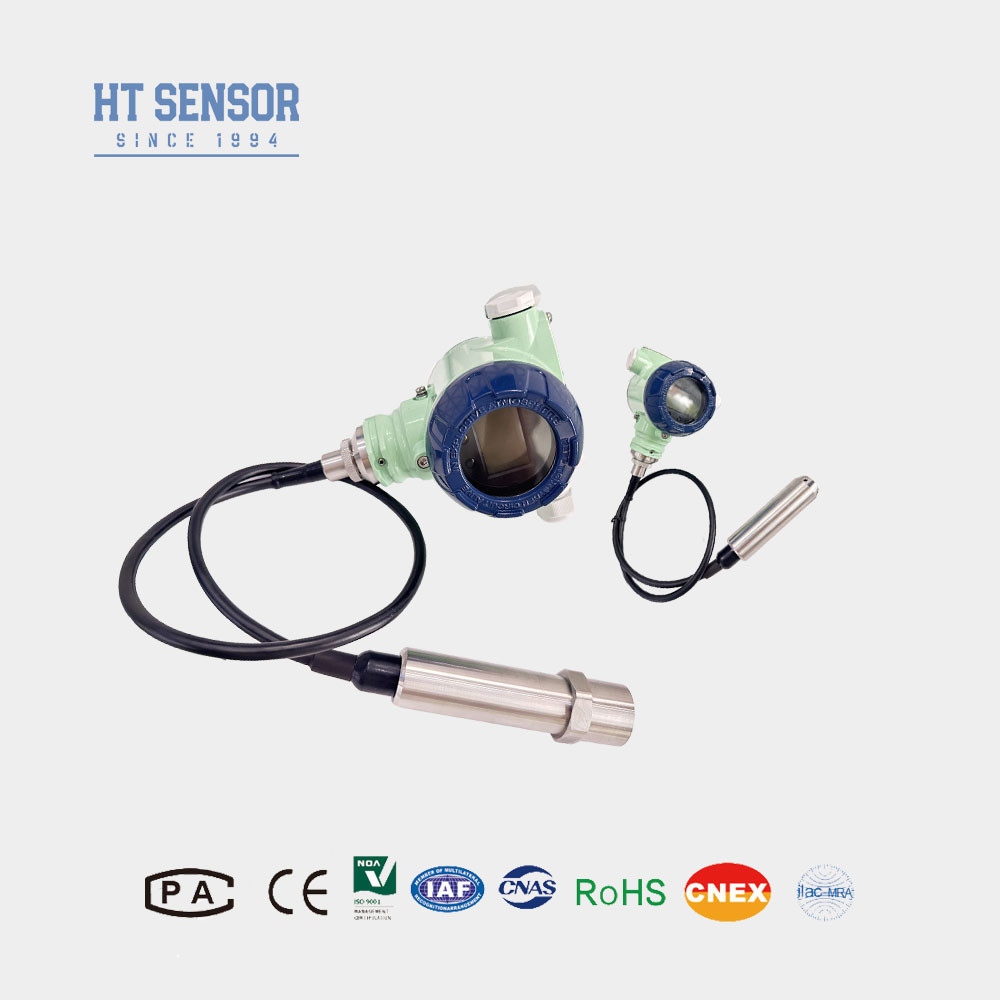

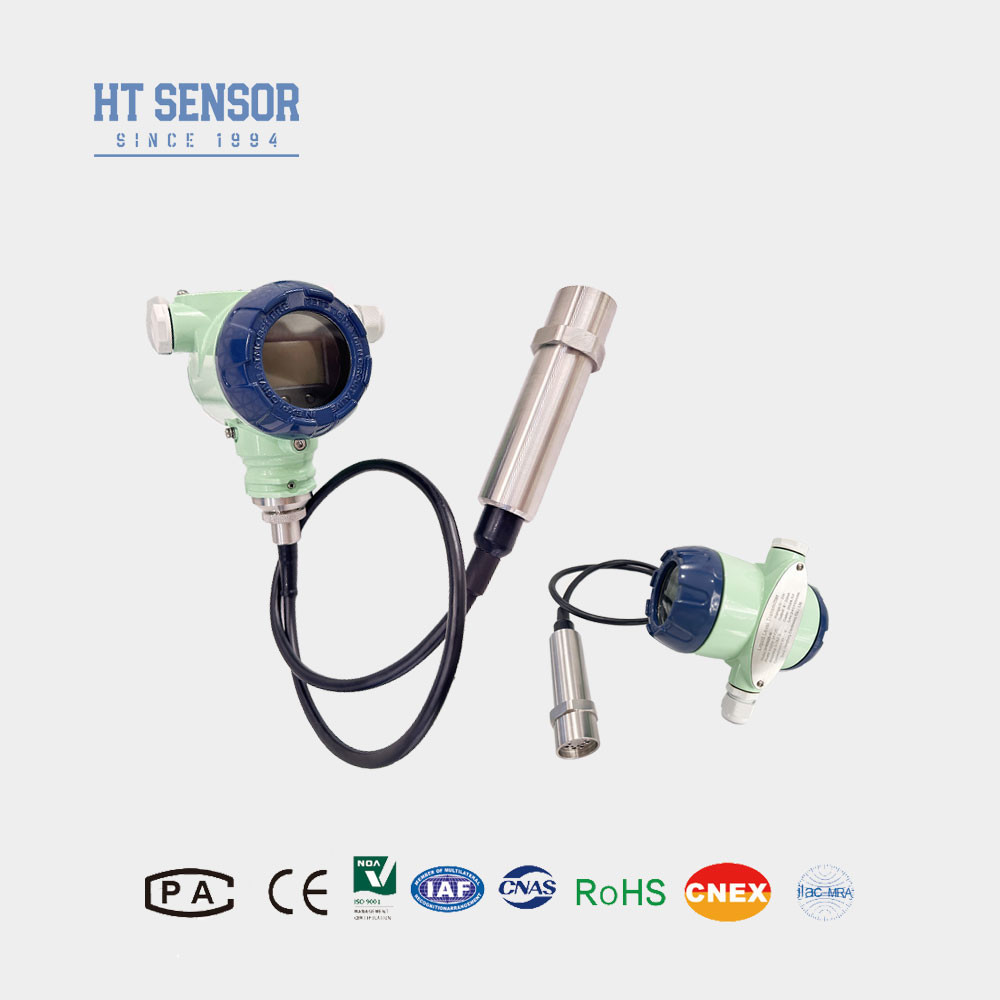

BH93420 IB Sumersible liquid level transmitter
Product Features of liquid level transmitter sensor:
- PE or PU, PTFE cable options for enhanced durability and chemical resistance.
- Immersion-type probe design enables straightforward installation.
Applications of liquid level transmitter sensor:.
1. Compatible with 316LSS,noncorrosive liquids.
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc.
3. Measuring fuel levels in diesel and fuel tanks.
| Performance Parameters of liquid level transmitter sensor | |
| Measurement Range | 0~10m…1000m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol |
| Ordering tips |
- Select product components that are compatible with the characteristics of the measured medium.
- Specify the density of the measured medium to enable proper configuration.
- Notify the company about any strong electromagnetic or radio frequency interference conditions, and include this information in the order.
| Order Guide | ||||||||
| BH93420 | Code | Outline Construction | ||||||
| I | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
