Industrial Applications Pointer Pressure Gauge For Machinery Manufacturing Essential
Product Details
| Model: | Y | Material: | Stainless Steel /Brass Material |
|---|---|---|---|
| Accuracy: | 1.6% | Display: | Pointer Pressure Gauge |
| Range: | -100-10kpa~100Mpa | Dial Diameter: | 50mm/63mm/100mm/150mm |
| Power: | NO Power Or OEM | Thread: | M20*1.5 G1/2 AND So On |
| Highlight |
Essential Pointer Pressure Gauge,Machinery Manufacturing Pointer Pressure Gauge,Industrial Pointer Pressure Gauge |
||
Product Description

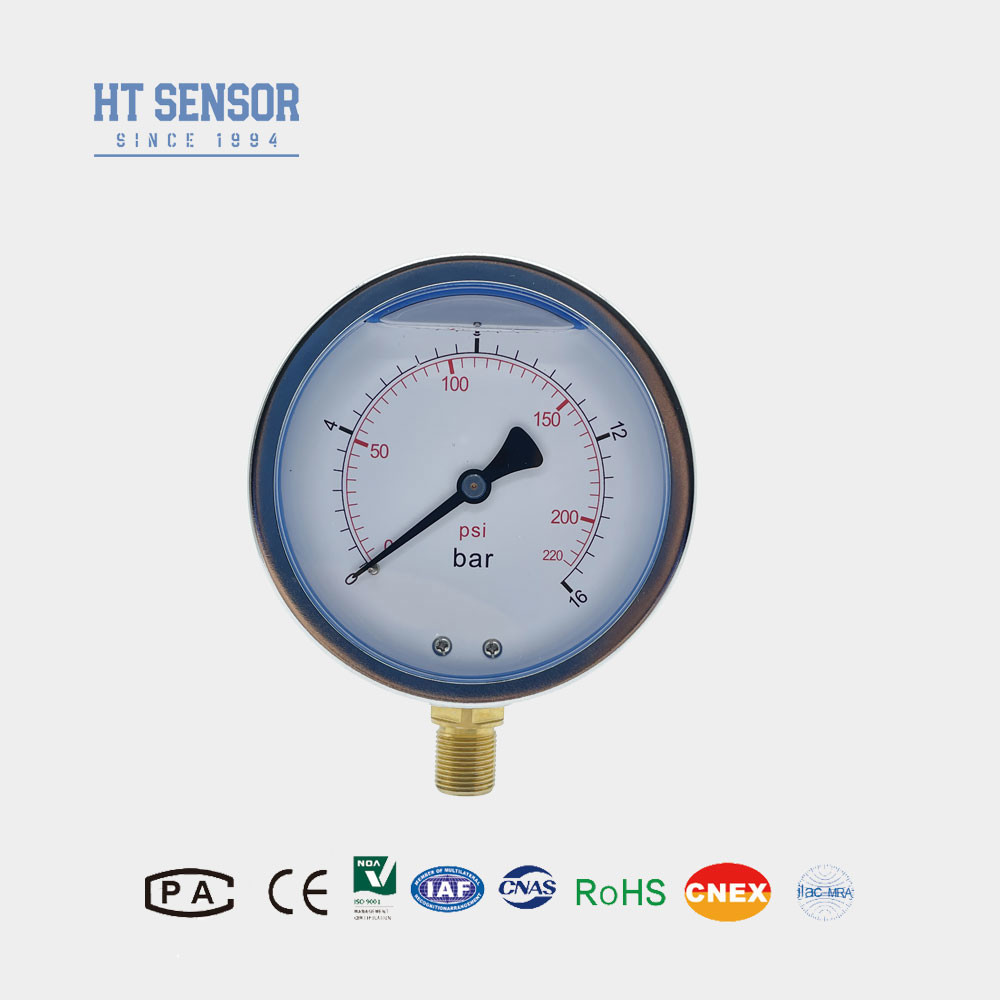

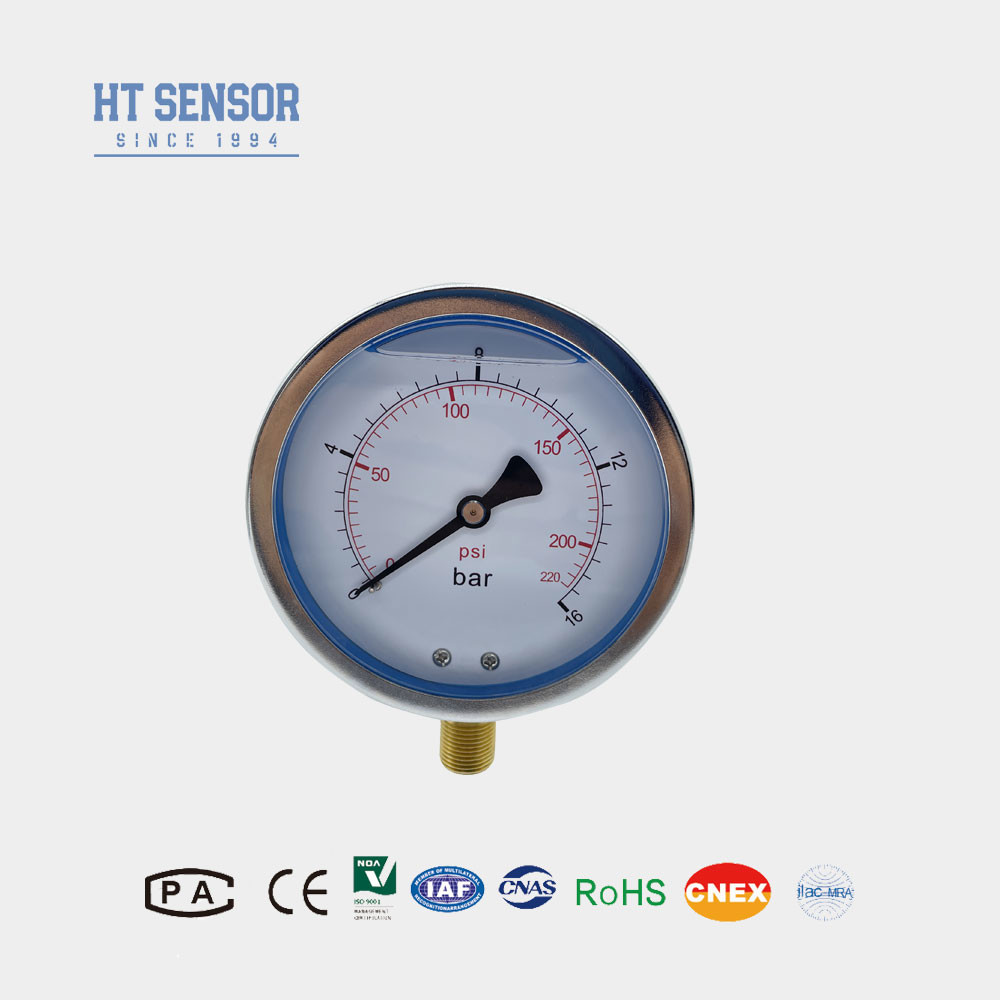

Pointer Pressure Gauge for Machinery Manufacturing Essential for Industrial Applications
Description of pressure gauge:
The general pressure gauge series is applicable for measuring liquids, gases, or steam that are non-explosive, non-crystallizing, non-solidifying, and have no corrosive effect on copper and copper alloys. The installation modes of pressure include: radial direct installation, radial belt front side installation, radial belt rear installation, axial installation, axial belt front installation, axial belt rear installation, clamp type installation, screw mounting, and flange mounting. Products are extensively utilized in industries such as steelmaking, petrochemical, machinery manufacturing, complete sets of automation, supporting services, glass ceramics, plastic rubber, pharmaceuticals, light industry textile, food, water treatment, thermal power, and nuclear industries.
Specification of pressure gauge:
| Dia: | 40mm/50mm/63mm/100mm/150mm |
| Pressure Range: | -1Bar-0-1000Bar(15000Psi) |
| Accuracy: | ±1.6% |
| Operating temperature: | -40°C to +60°C |
| Case: | Stainless steel |
| Bezel: | Stainless steel |
| Bourdon tube: | Copper alloy or Stainless steel |
| <100Bar: C-Type | |
| ≥100Bar: Helical Type | |
| Liquid: | Glycerin or Silicone |
| Connection: | Brass or Stainless steel |
| Mounting method | Bottom Mount, Rear Mount |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8",1/4", 3/8",1/2"; |
| BSP/NPT etc. |
| Ordering tips |
- When choosing a product, please make sure that the measured medium is compatible with the contacting parts of the product.
- To guarantee reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a gradual and uniform pressure application to the positive and negative pressure chambers of the transmitter.
- During installation, it is preferable to position the pressure interfaces at both ends horizontally to minimize the influence of the installation location on the product.
- For special requirements such as intense vibration, instantaneous impact force, strong electromagnetic interference, or radio frequency interference, please notify our company and specify these requirements in the order.
