Industrial Pressure Gauges For Pressure Measurement And Control Axial Pressure Gauges
Product Details
| Model: | Y | Material: | Stainless Steel /Brass Material |
|---|---|---|---|
| Accuracy: | 1.6% | Display: | Pointer Pressure Gauge |
| Range: | -100-10kpa~100Mpa | Dial Diameter: | 40mm/50mm/63mm/100mm/150mm |
| Power: | NO | Thread: | G1/4 M20*1.5 G1/2 AND So On |
| Highlight |
Industrial Pressure Gauges For Pressure Measurement,Industrial Axial Pressure Gauges |
||
Product Description

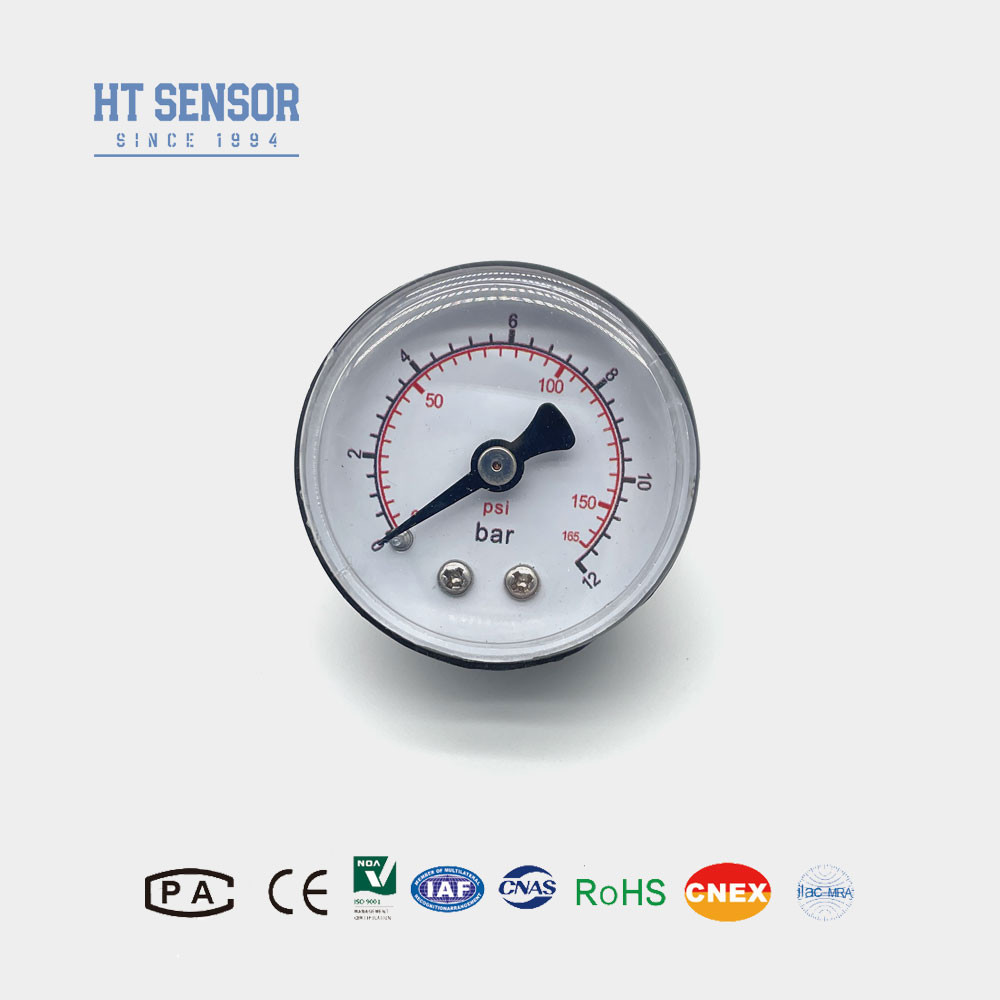

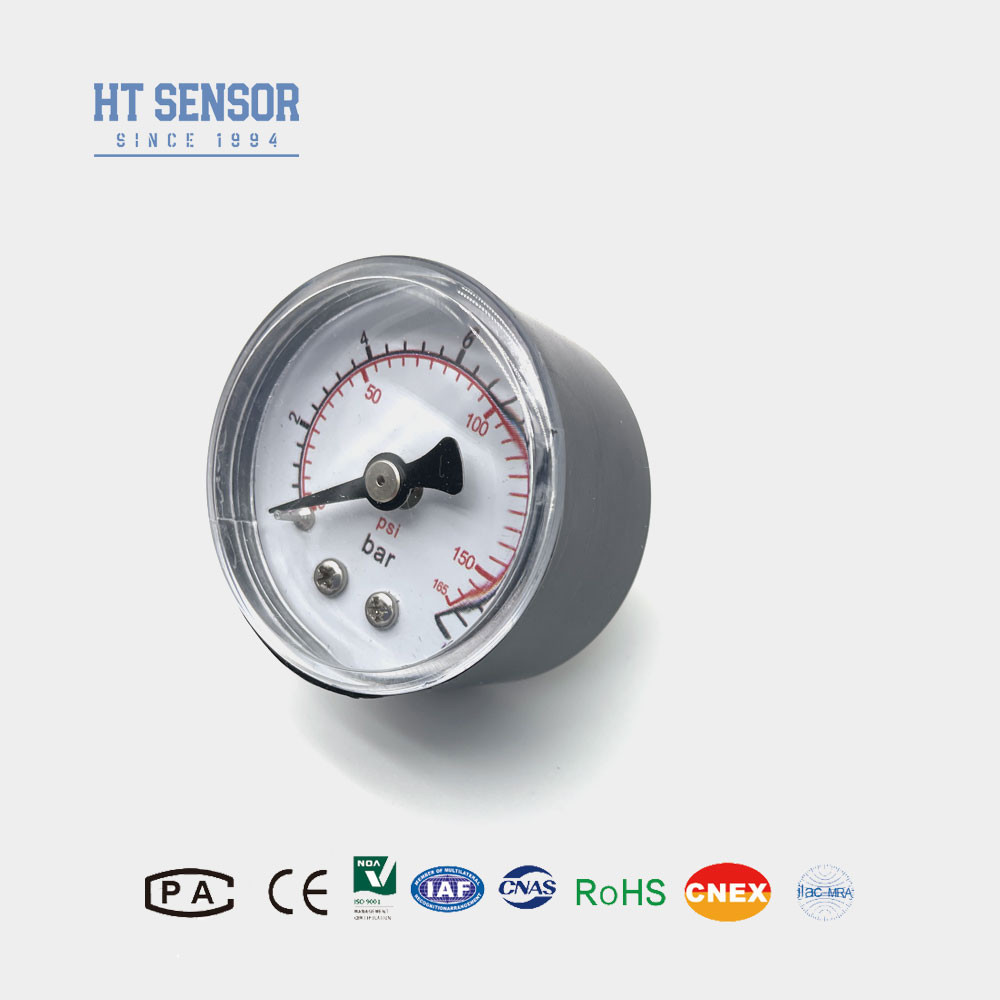

Industrial Pressure Gauges For Pressure Measurement And Control Axial Pressure Gauges
Description of pressure gauge:
The general pressure gauge series is designed for measuring non-explosive, non-crystallizing, and non-solidifying liquids, gases, or steam that have no corrosive effect on copper and copper alloys. Pressure can be installed radially (directly, at the front or rear), axially (at the front or rear with a belt), using a clamp type installation, screw mounting, or flange mounting. These products are widely used in industries such as steelmaking, petrochemicals, machinery manufacturing, automation systems integration, glass ceramics production, plastic rubber processing, pharmaceuticals manufacturing, light industry textiles production, food processing and packaging technology water treatment facilities thermal power generation plants nuclear energy facilities.
Specification of pressure gauge:
| Dia: | 40mm/50mm/63mm/100mm/150mm |
| Pressure Range: | -1Bar-0-1000Bar(15000Psi) |
| Accuracy: | ±1.6% |
| Operating temperature: | -40°C to +60°C |
| Case: | Stainless steel |
| Bezel: | Stainless steel |
| Bourdon tube: | Copper alloy or Stainless steel |
| <100Bar: C-Type | |
| ≥100Bar: Helical Type | |
| Liquid: | Glycerin or Silicone |
| Connection: | Brass or Stainless steel |
| Mounting method | Bottom Mount, Rear Mount |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8",1/4", 3/8",1/2"; |
| BSP/NPT etc. |
NOTE.
When selecting a product, please ensure that the measured medium is compatible with the contacting parts of the product.
To ensure reliable operation, it is advisable to install a three-valve manifold between the measurement point and the transmitter, ensuring gradual and uniform pressure application to the positive and negative pressure chambers of the transmitter. During installation, it is preferable to position the pressure interfaces at both ends horizontally in order to minimize the influence of the installation location on the product. For special requirements such as intense vibration, instantaneous impact force, strong electromagnetic interference, or radio frequency interference, please notify our company and specify these requirements in your order.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
