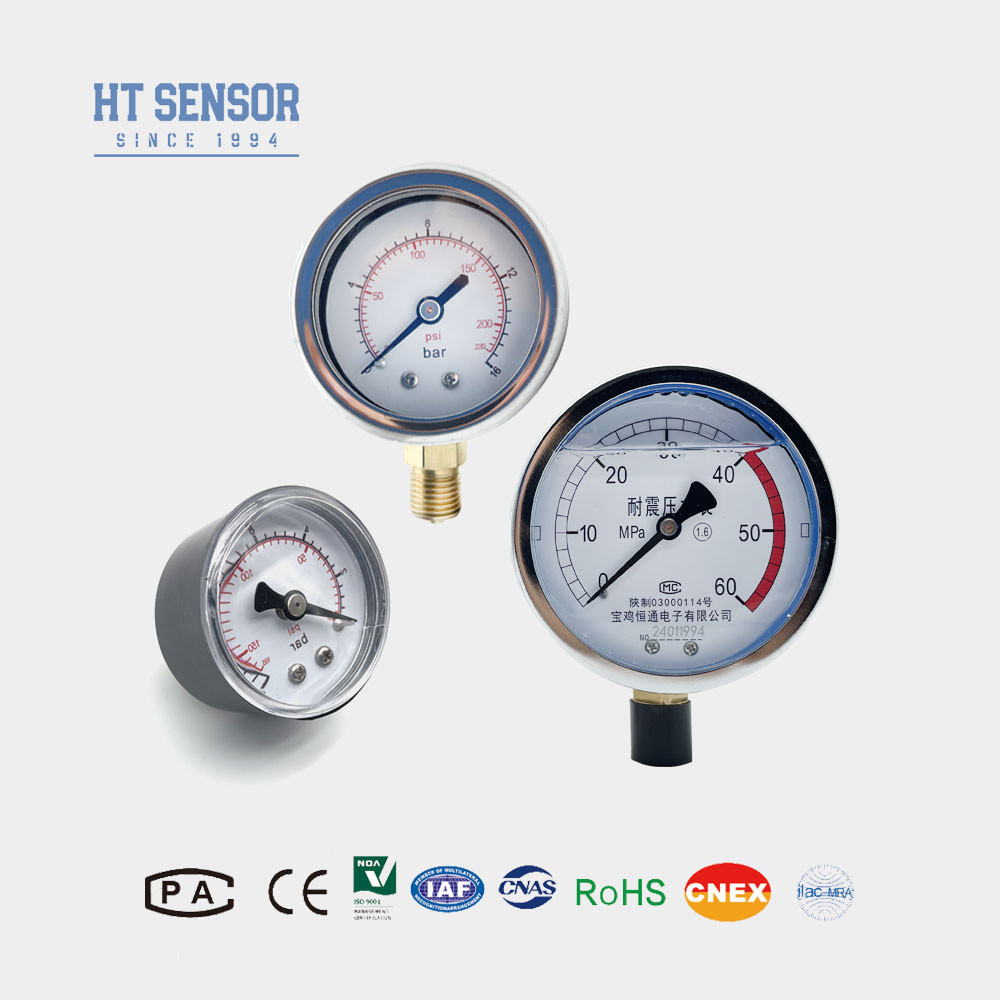

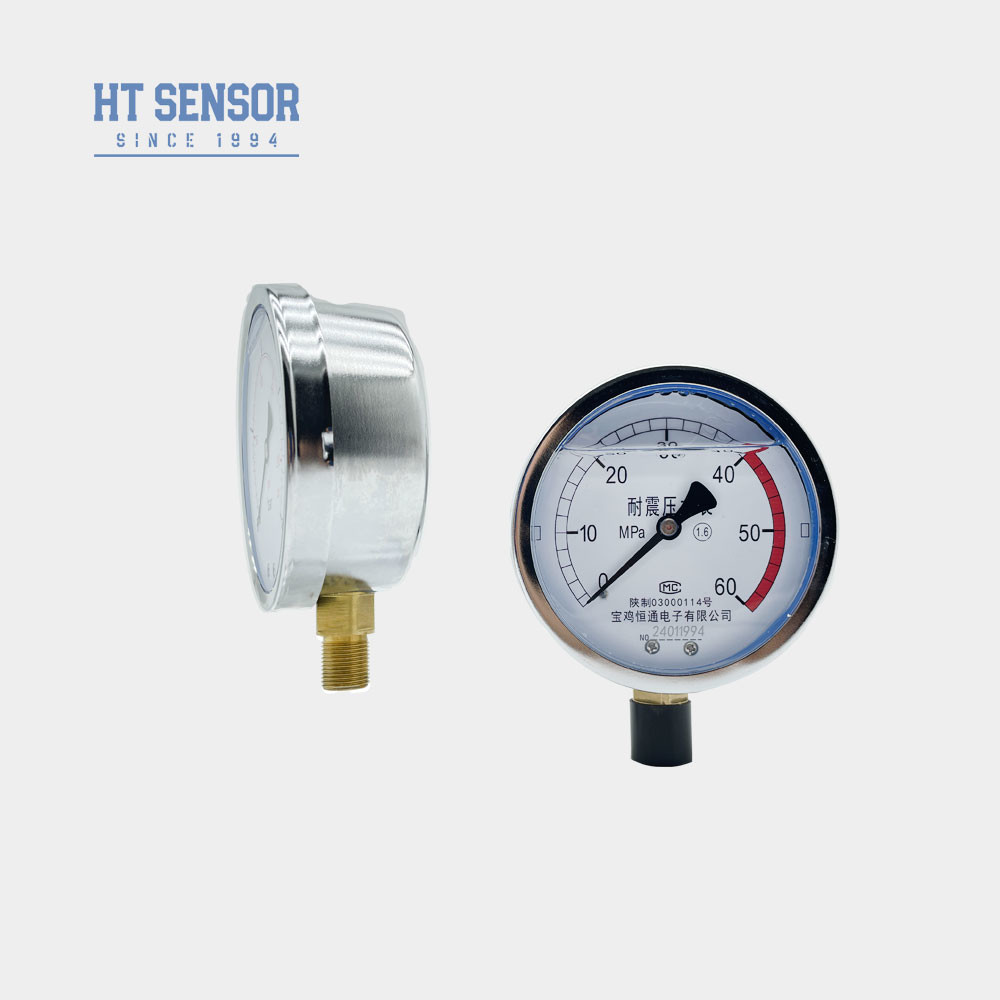

Stainless Steel Mechanical Pressure Gauge For Machinery Manufacturing Industries
Product Details
| Model: | Y | Material: | Stainless Steel /Brass Material |
|---|---|---|---|
| Accuracy: | 1.6% | Display: | Pointer Pressure Gauge |
| Range: | -100-10kpa~100Mpa | Dial Diameter: | 50mm/63mm/100mm/150mm |
| Power: | NO Or OEM 24VDC | Thread: | G1/4 M20*1.5 G1/2 |
| Highlight |
Stainless steel Mechanical Pressure Gauge,Machinery Manufacturing Industries Pressure Gauge |
||
Product Description
Mechanical Pressure Gauge Pressure Gauges for Machinery Manufacturing Industries
Description of pressure gauge:
The universal pressure gauge series is suitable for measuring liquids, gases or vapors that are non-explosive, non-crystallizing, non-solidifying and non-corrosive to copper and copper alloys.The installation methods of pressure are: radial direct installation, radial belt front installation, radial belt back installation, axial installation, axial belt front installation, axial belt back installation, clamp installation, screw installation, flange installation.Products are widely used in steelmaking, petrochemical, machinery manufacturing, complete sets of automation, supporting services, glass ceramics, plastic rubber, medicine, light industry textile, food, water treatment, thermal power, nuclear industry and other industries.
Specification of pressure gauge:
| Dia: | 40mm/50mm/63mm/100mm/150mm |
| Pressure Range: | -1Bar-0-1000Bar(15000Psi) |
| Accuracy: | ±1.6% |
| Operating temperature: | -40°C to +60°C |
| Case: | Stainless steel |
| Bezel: | Stainless steel |
| Bourdon tube: | Copper alloy or Stainless steel |
| <100Bar: C-Type | |
| ≥100Bar: Helical Type | |
| Liquid: | Glycerin or Silicone |
| Connection: | Brass or Stainless steel |
| Mounting method | Bottom Mount, Rear Mount |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8",1/4", 3/8",1/2"; |
| BSP/NPT etc. |
| Ordering tips |
- 1. When choosing products, please make sure that contact with the product of measured medium components compatibility.
- 2. In order to ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter to ensure that the pressure in the positive and negative pressure chambers of the transmitter is gradually applied evenly.
- 3. In case of strong vibration, instantaneous impact, strong electromagnetic interference or radio frequency interference and other special requirements, please inform our company and indicate in the order.
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
