Detail Information

Modle:	BP93420D-II	Range:	0-10kpa~2Mpa
Power:	5VDC 24VDC	Output:	0.5-4.5V 4-20mA AND So On
Material:	Stainless Steel	Thread:	Male And Female OEM
Pressure Type:	Differential Pressure	Protection Class:	IP65
Test Medium:	Air Oil And Water	Connector:	Big DIN Or OEM
Highlight:	Easy Installation Differential Pressure Transmitter , Industrial Grade Differential Pressure Transmitter , Compact Differential Pressure Transmitter

Product Description

Industrial Grade Differential Pressure Transmitter with Compact and Easy Installation

BP93420DII Differential Pressure Transmitter

Introduction of differential pressure transmitter:

The BP93420DII differential pressure transmitter uses a diffused silicon piezoresistive sensor. The pressure difference of gas and liquid is measured and output, which can be displayed. It is suitable for the pressure difference measurement of various gases and liquids in pipelines in petroleum, chemical, electric power, hydrology and other industries.

Product Features of differential pressure transmitter:

The transmitter adopts stainless steel structure design, compact structure and easy installation.
After strict temperature compensation and aging screening, to ensure stable and reliable performance.
The electrical interface can be external or direct connection.

Applications of differential pressure transmitter::

1. Suitable for the differential pressure measurement of various gases or liquids in pipelines in petroleum, chemical, electric power, hydrology and other industries.
2. Used in industrial field process control.
3. Pipe and furnace differential pressure measurement.ers

Performance Parameters of differential pressure transmitter:
Measurement Range	0-10KPa……~2MPa
Pressure Type	Differential Pressure
Single-side Overload	≤3 times of the rated range
Static pressure	The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25℃	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa)
Zero Temperature Drift	±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa)
Span Temperature Drift	±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa)
Compensation Temperature	0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃
Operating Temperature	-30℃~80℃
Storage Temperature	-40℃~100℃
Vibration	10g,55Hz ～ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Intrinsically safe and explosion-proof
Protection Rating	IP65
Weight	~0.45kg

Output Signal	Supply Voltage	Output Type
4～20mA	12～30VDC	2/3/4 wire
0～10/20mA		3 wire
0/1～5V
0.5～4.5V	5VDC

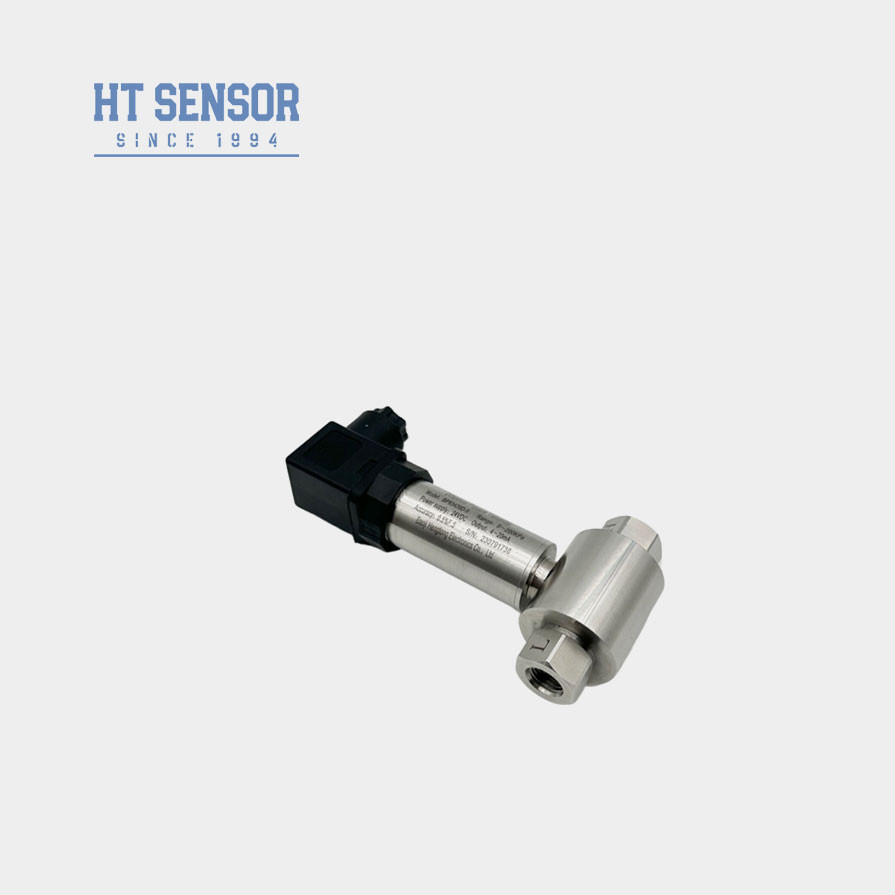

Industrial Grade Differential Pressure Transmitter With Compact And Easy Installation Sensor 0

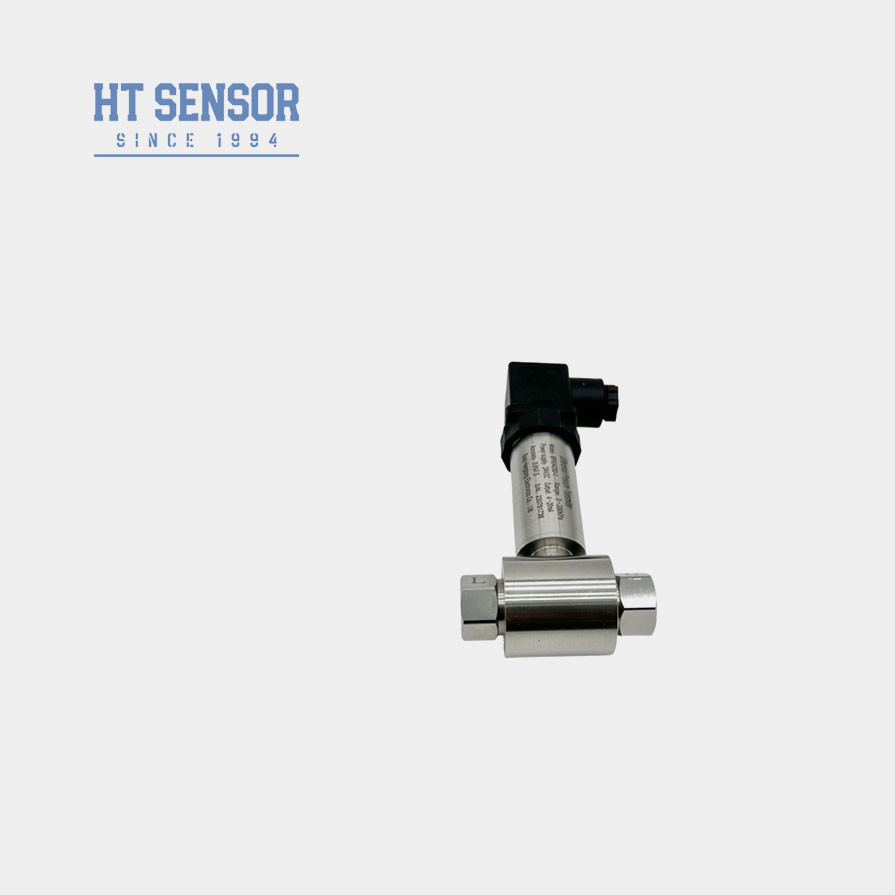

Industrial Grade Differential Pressure Transmitter With Compact And Easy Installation Sensor 2

Industrial Grade Differential Pressure Transmitter With Compact And Easy Installation Sensor 3

Ordering tips of differential pressure transmitter:

1. When selecting the product, please ensure that the test medium is compatible with the contact parts (stainless steel) of the product.
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter to ensure slow and uniform pressure in the positive and negative pressure chambers of the transmitter.
3. During installation, the pressure interface at both ends should be placed horizontally to reduce the influence of installation position on the product.
4. In case of strong vibration, instant impact, strong electromagnetic interference or radio frequency interference and other special requirements, please inform us and indicate in the order.

Order Guide of differential pressure transmitter:
BP93420XX	Pressure Transmitter
	Code	Outline Construction
	DII	Differential Pressure Transmitter
		Measurement Range	0-10KPa……~2MPa
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4～20mADC	S5	0～20mADC
				S2	1～5VDC	S6	0～10VDC
				S3	0～5VDC	S7	0.5～4.5VDC
				S4	0～10mADC
					Code	Pressure Connection
					J1	M20×1.5 Male
					J2	G1/2 Male
					J3	G1/4 Male
					J4	1/2 NPT Male
					J5	Other
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	Other
							Code	Pressure Type
							D	Differential Pressure

Industrial Grade Differential Pressure Transmitter With Compact And Easy Installation Sensor 5

Tag:

Place of Origin:	China
Brand Name:	HT SENSOR
Certification:	ISO9001
Model Number:	BP93420D-II

Minimum Order Quantity:	1
Packaging Details:	carton
Delivery Time:	5-8 workday
Payment Terms:	L/C, D/P, T/T
Supply Ability:	3000pcs/month
