Stainless Steel Flush Diaphragm Pressure Sensor With For Biopharmaceutical Industry LED Pressure Transmitter

Basic Information
Place of Origin: Baoji,China
Brand Name: HT SENSOR
Certification: CE,RoHs,ISO9001
Model Number: BPHT24-IX
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: BPHT24-IX Range: 0-10kpa~35Mpa
Output: 4-20mA /0-10VDC Weight: 0.2kg
Housing Material: 304S.S Pressure Type: Can Be G /A /S
Trademark: HTsensor Measuring Medium: Liquid
IP Rating: IP65 Customization: Available
Highlight:

Stainless Steel Flush Diaphragm Pressure Sensor

,

Biopharmaceutical Industry Flush Diaphragm Pressure Sensor


Product Description

Stainless Steel Flush Diaphragm Pressure Sensor with for Biopharmaceutical Industry


BPHT24-IX Pressure Transmitter

Introduction of flush diaphragm pressure sensor transmitter:

BPHT24 - IX flat Flush diaphragm pressure sensor transmitter feel pressure signal, using integrated circuit converts the signal to standard output signal processing. This pressure transmitter is mainly used in places with high sanitary conditions, such as food, medical and other industries, to ensure that the performance of the medium is not affected by pollution during the pressure measurement process. Can cooperate with LCD or LED field display, timely understand the field pressure situation.

Product Features of flush diaphragm pressure sensor transmitter:

1. Various pressure interface options.
2. Designed for hygienic applications to prevent medium scaling.

3. High accuracy with a fully stainless steel structure.
4. Easy to clean,display.





Performance Parameters of flush diaphragm pressure sensor transmitter:
Measurement Range 0~35Kpa…~20MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability& Hysteresis 0.02%F.S(Typ.)   0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.2kg


Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire

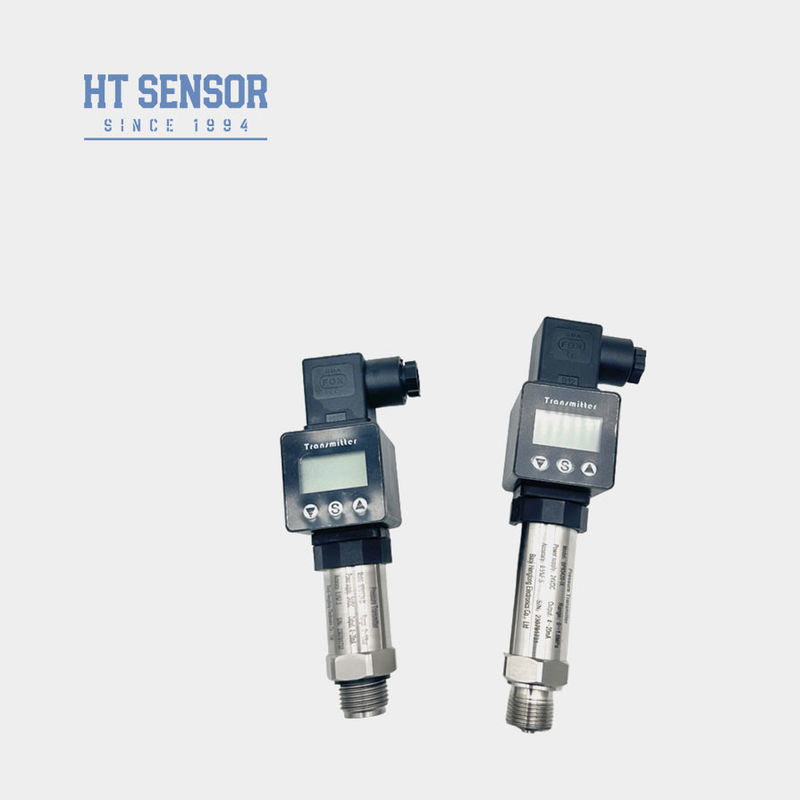

Stainless Steel Flush Diaphragm Pressure Sensor With For Biopharmaceutical Industry LED Pressure Transmitter 0

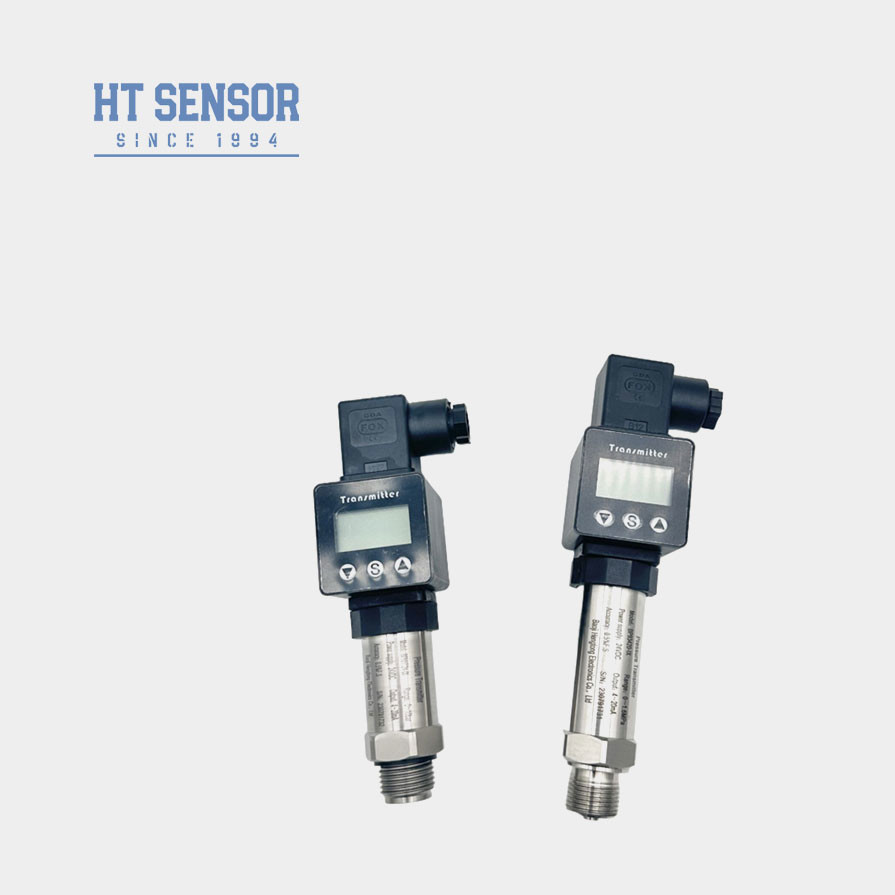

Flush Diagram Display Bpht24-IX with Diffuse Piezoresistive Silicon Pressure Sensor China

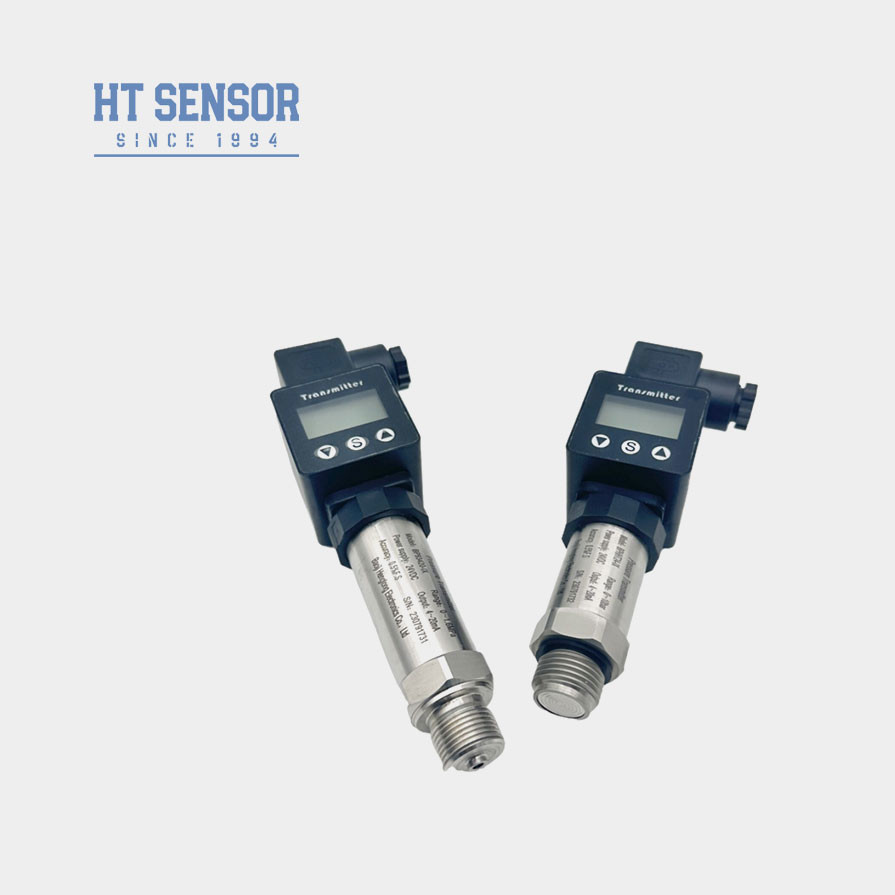

Flush Diagram Display Bpht24-IX with Diffuse Piezoresistive Silicon Pressure Sensor China

 Flush Diagram Display Bpht24-IX with Diffuse Piezoresistive Silicon Pressure Sensor China
Order Guide
BPHT24 Pressure Transmitter
  Code Outline Construction
IX Display Pressure Transmitter  IIC/III Industrial General/ Display Pressure Transmitter
T High-temperature resistant Pressure Transmitter
  Measurement Range 0~35Kpa…~20MPa
(0-X)Kpa or MPa X: Indicates the Actual Measuring Range
  Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
  Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 G1/4
J4 7/16-20UNF
J5 Other
  Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 2088 Industrial Casing
B5 2088 Industrial Casing with Display
B6 Other
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure

Stainless Steel Flush Diaphragm Pressure Sensor With For Biopharmaceutical Industry LED Pressure Transmitter 4
