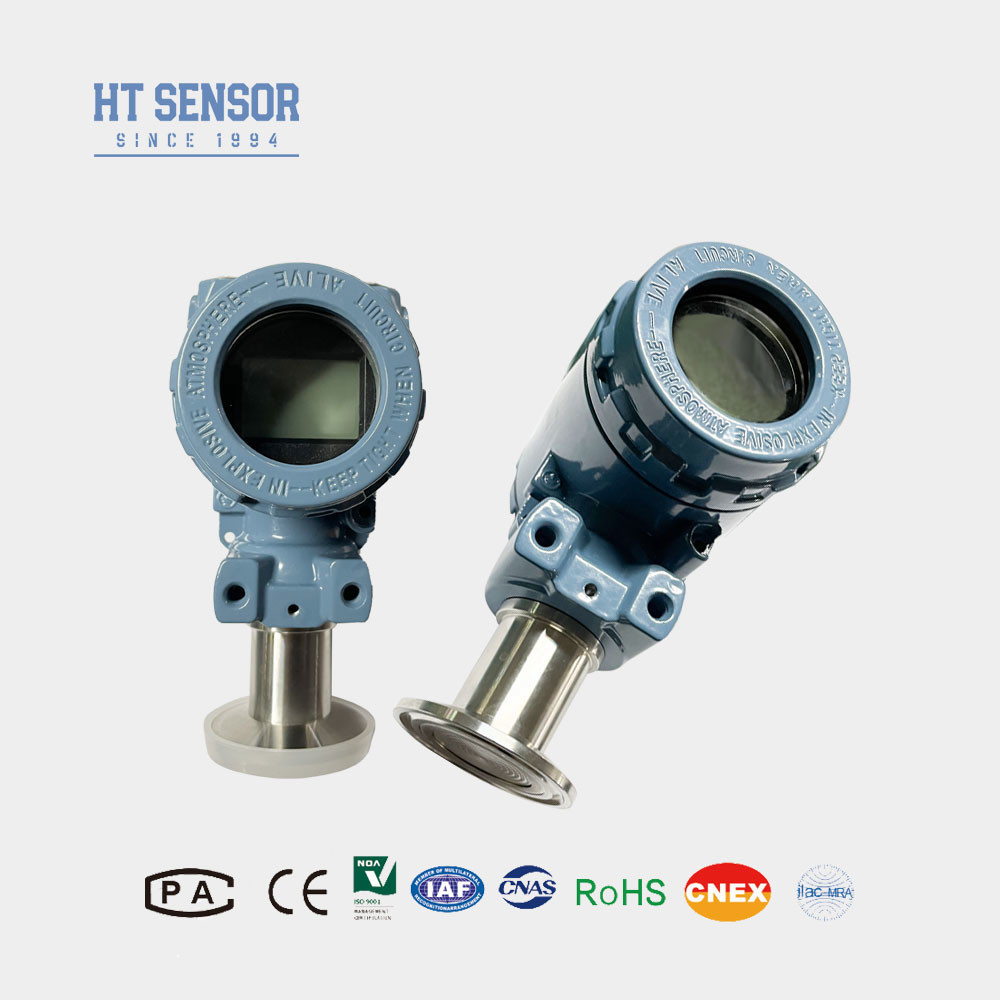

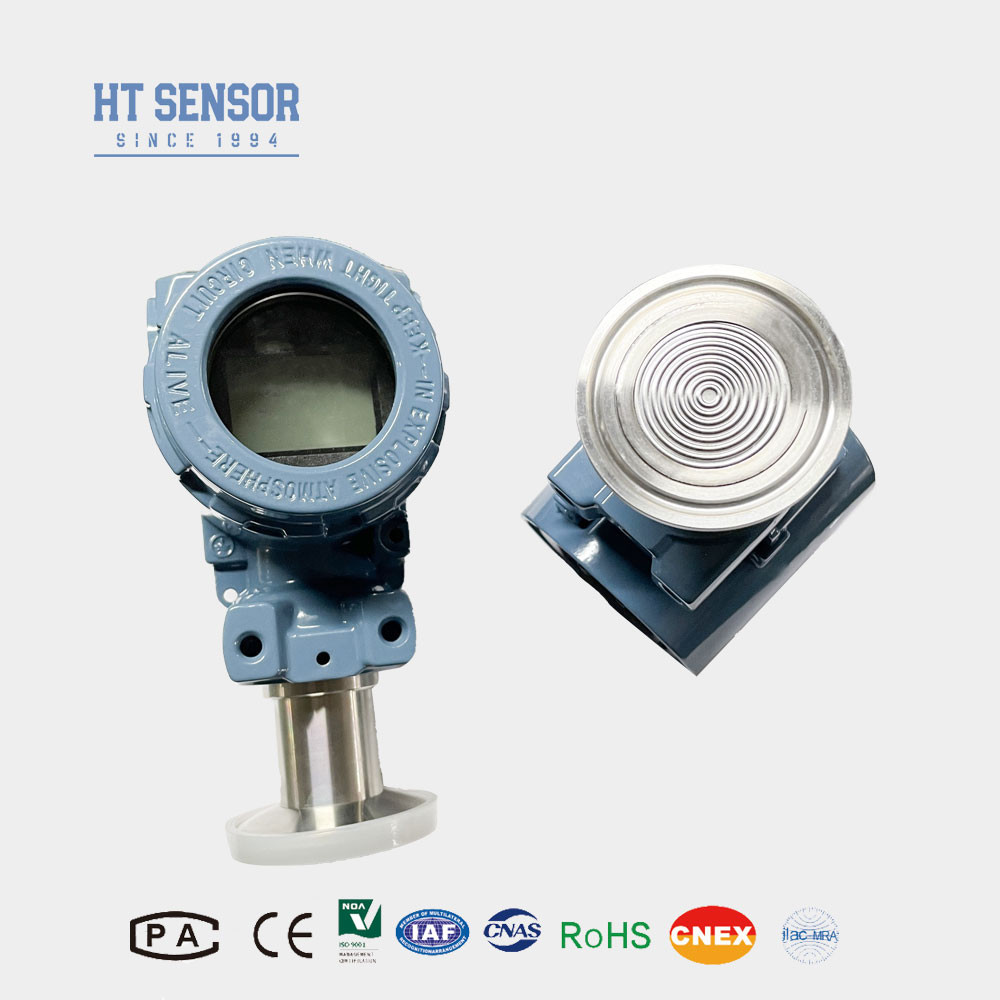

Introduction of flush diaphragm pressure sensor:
BP93420-IIIQ film pressure sensor transmitter is a simulation of pressure transmitter, using flat film structure, increasing the contact area with the medium.Wide temperature range, strong overload capacity, strong corrosion resistance, wide application. Simple structure, easy to clean, especially suitable for liquid food pressure measurement.
| Performance Parameters of Flush Diaphragm Pressure Sensor |
| Measurement Range of Flush Diaphragm Pressure Sensor |
-100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
≤0.1%FS |
| Hysteresis |
≤0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex ia IIC T6 Ga |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.3kg |
Product Features of flush diaphragm pressure sensor:
- 1. Wide measurement range,Various pressure interface options
- 2. Diverse output signal options
- 3. Adjustable zero and full-scale
- 4. High accuracy,multiple sterile process connections
Applications of flush diaphragm pressure sensor:
- 1. Suitable for measurement of non-corrosive gases and liquids with 316L.
- 2. Used for aseptic processing in medical, biopharmaceutical, food hygiene and other industries.
- 3. Used in the paper and chemical industries, as well as in sewage level and beverage tank pressure measurement, suitable for hydraulic and pneumatic control systems.
| Order Guide of flush diaphragm pressure sensor |
| BP93420XX |
Pressure Transmitter |
| |
Code |
Outline Construction |
| IB |
General Pressure Transmitter |
IX |
Display Pressure Transmitter |
| IE |
Shock-resistant Aviation Pressure Transmitter |
IIC/III |
Industrial General/ Display Pressure Transmitter |
| IF |
Moisture-proof Pressure Transmitter |
IIE/IIIE |
General/Display Pressure Transmitter |
| IN |
Air Conditioning Dedicated Pressure Transmitter |
|
|
| IC |
High-temperature Pressure Transmitter |
|
|
| IQ/IQT |
Large Diaphragm /High-temperature Pressure Transmitter |
|
|
| |
Measurement Range |
-100kPa…0kPa ~ 35kPa…3.5MPa |
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Other |
| |
Code |
Electrical Connection |
| B1 |
Herschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
2088 Industrial Casing |
| B5 |
2088 Industrial Casing with Display |
| B6 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
FAQ of flush diaphragm pressure sensor:
1. Q: What are the features of your flush diaphragm pressure sensor transmitters?
A: High precision, durable, excellent performance. Customization is available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can customize products to meet specific needs.We provide OEM and ODM services.
3. What is your production capacity?
A: Our production facilities can produce up to 30,000 pressure sensor transmitters per month, so we are well equipped to meet the demand for large orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.
4. Q: What is the general lead time?
A: 5~8 working days for standard model. Custom products may vary.
5. Q: How is the product priced? Are there any discounts?
A: Competitive prices, discounts for bulk orders or long-term partners.
6. Q: What is the warranty period of your product? What about after-sales service?
A: Our warranty period is 24 months after delivery, reply to your question within 24 hours after sale, remote guidance through the PC network at any time.
