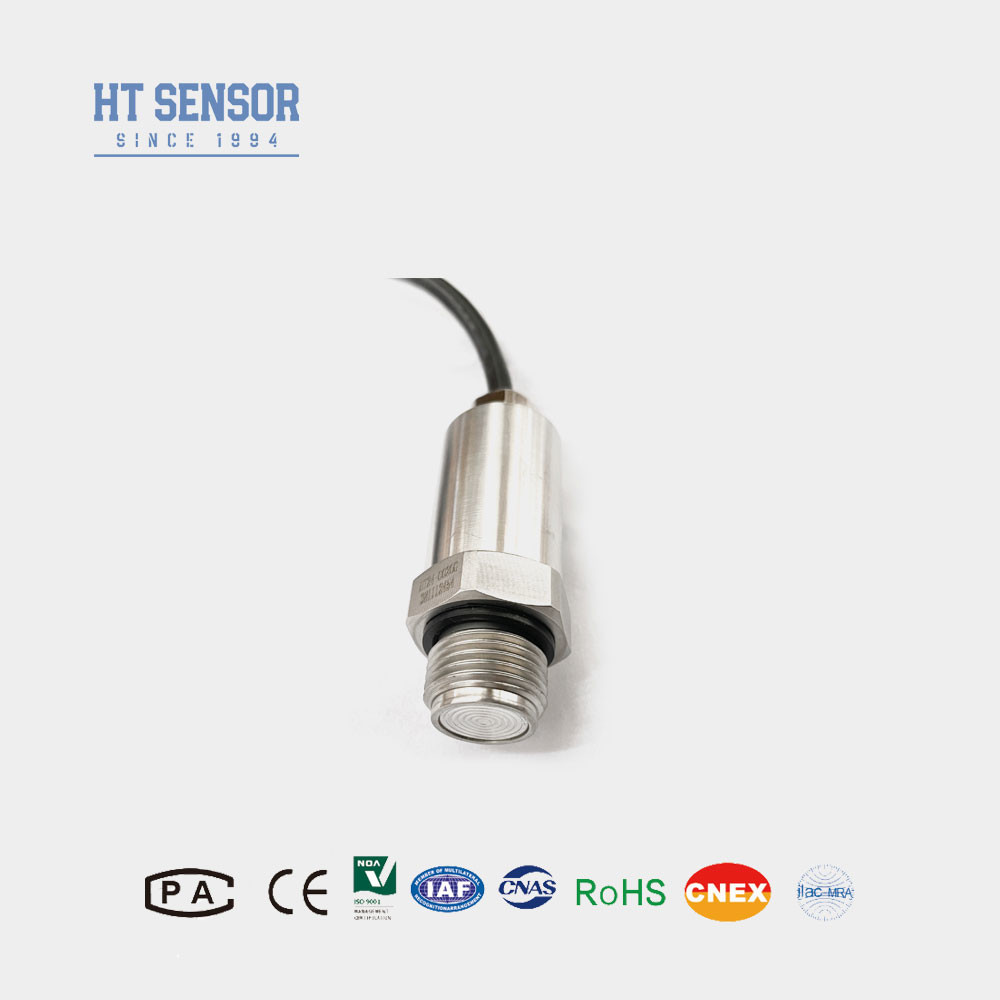

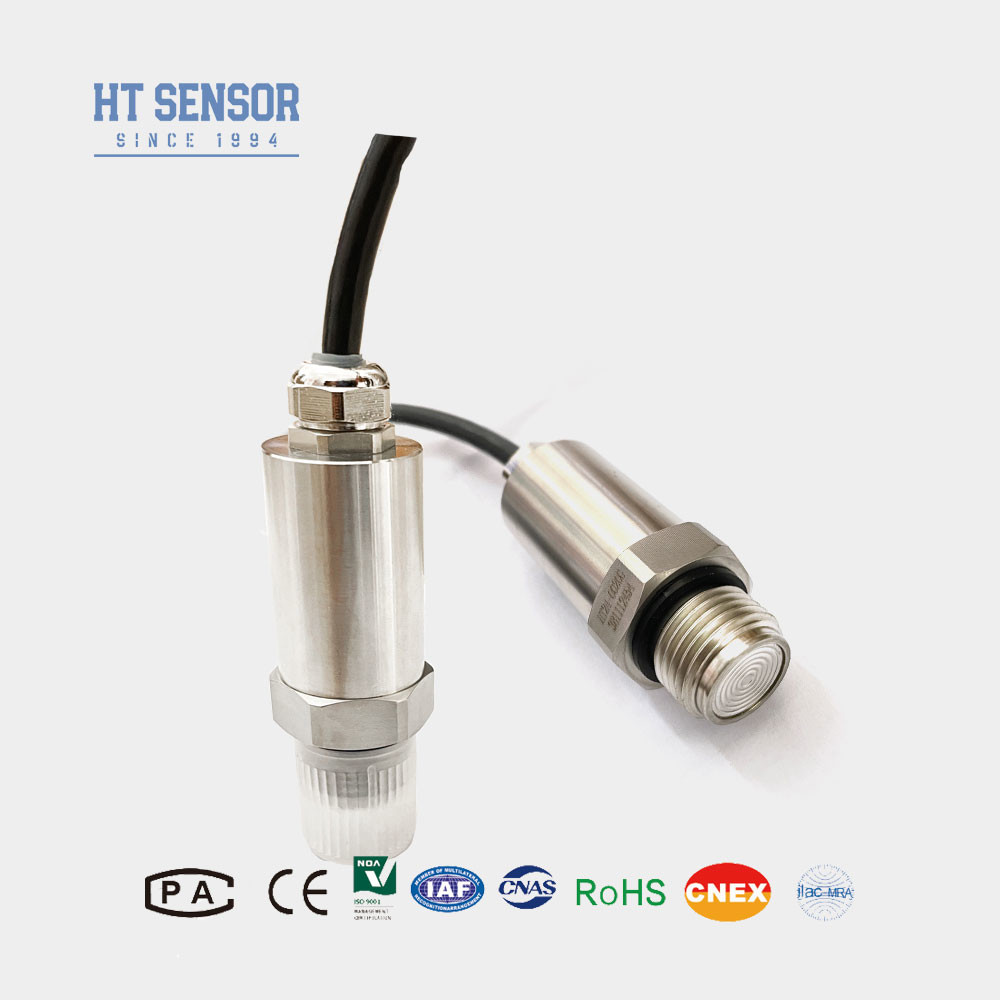

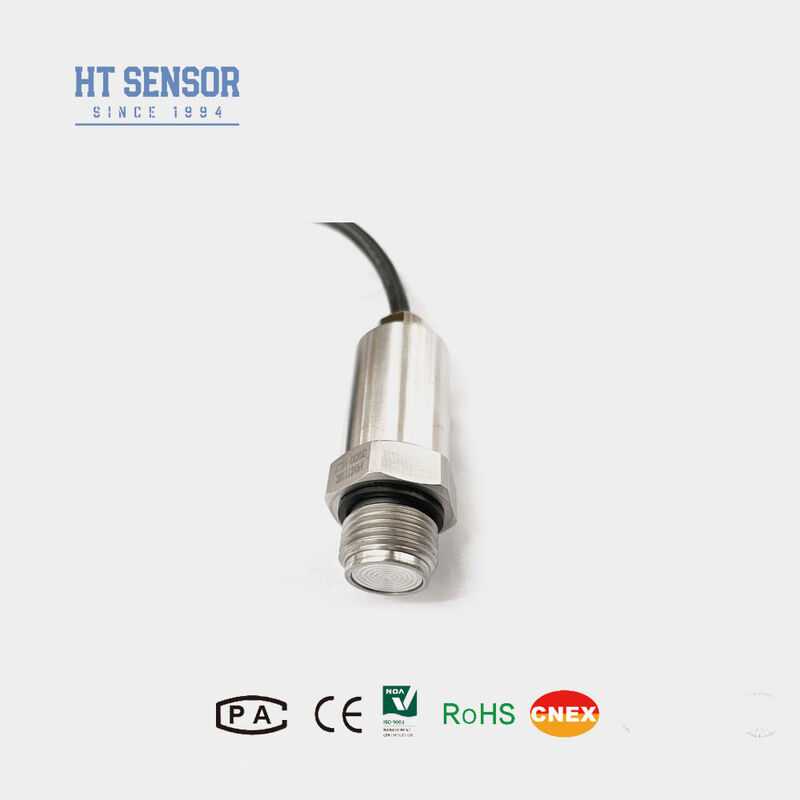

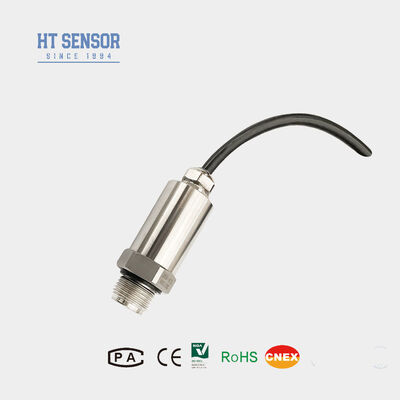

BPHT24 Pressure Transmitter
Introduction of flush diaphragm pressure sensor :
BPHT24 flush diaphragm pressure sensor transmitter with threaded flat film is a commonly used sensor in industrial automation control systems. It can convert pressure signals into standard electrical signals. Its threaded design makes installation very convenient, while the flat film structure provides more stable measurement results. In addition, this sensor also has high accuracy, high reliability, and other characteristics, and is widely used in various pressure measurement applications.
Product Features of flush diaphragm pressure sensor:
1. Various pressure interface options.
2. Designed for hygienic applications to prevent medium scaling.
3. High accuracy with a fully stainless steel structure.
4. Easy to clean.
Applications of flush diaphragm pressure sensor:
1. Suitable for measuring non-corrosive gases and liquids with 316L.
2. Ideal for environmental protection and chemical industries.
| Performance Parameters of flush diaphragm pressure sensor |
| Measurement Range |
0~35Kpa…~20MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis |
0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability |
±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.5kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
| RS485 Communication Protocol |
3.6~30V / Battery |
4 wire |
| Outline Construction of flush diaphragm pressure sensor |
| Dimension |
|
| Order Guide of flush diaphragm pressure sensor |
| BPHT24 |
Pressure Transmitter |
| |
Code |
Outline Construction |
| IX |
Display Pressure Transmitter |
IIC/III |
Industrial General/ Display Pressure Transmitter |
| T |
High-temperature resistant Pressure Transmitter |
|
|
| |
Measurement Range |
0~35Kpa…~20MPa |
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Other |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
2088 Industrial Casing |
| B5 |
2088 Industrial Casing with Display |
| B6 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
