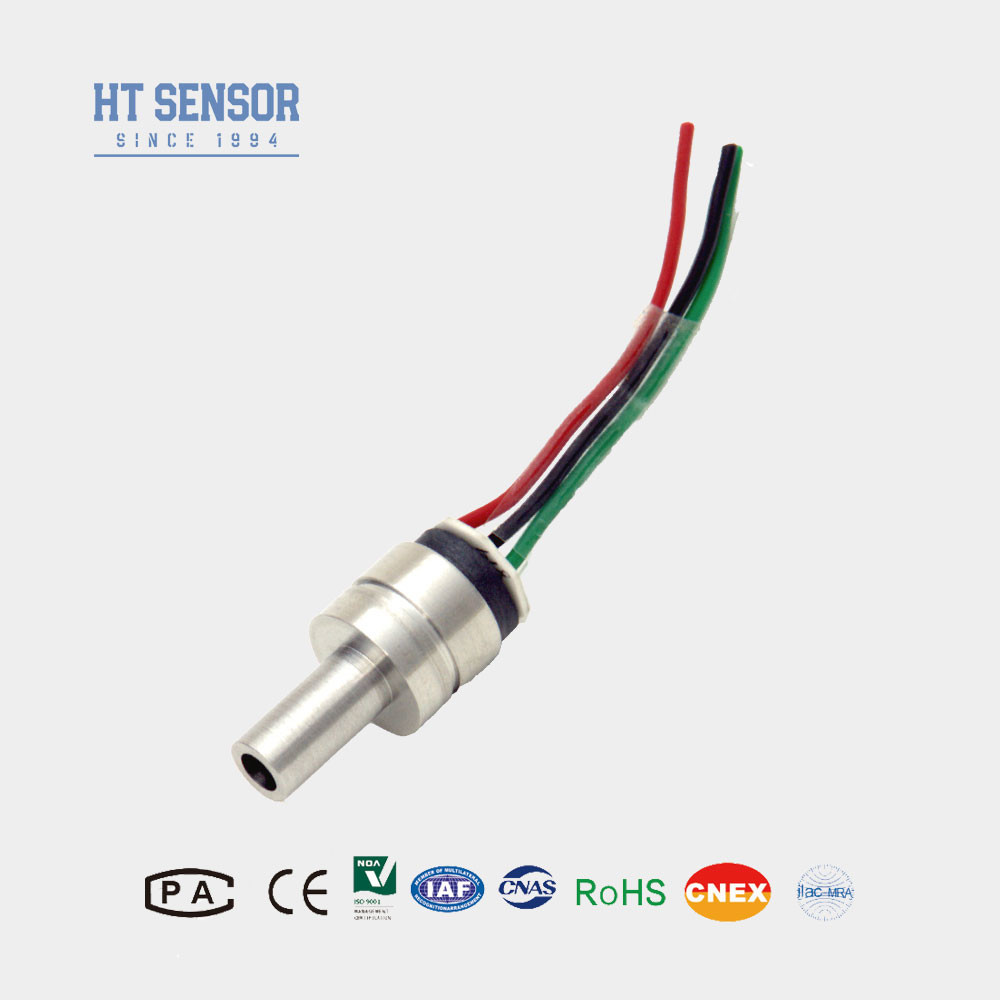

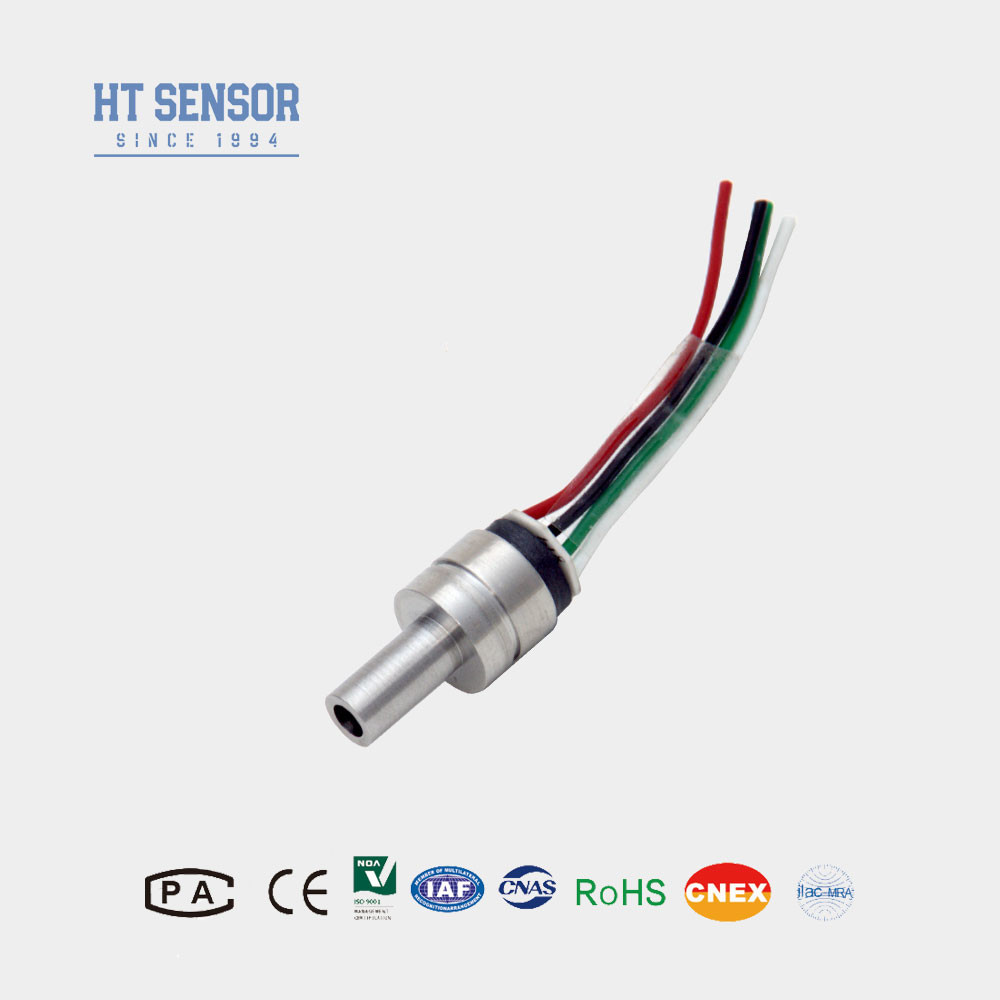

HT13 Silicon Pressure Sensor For Non-corrosive Gas And Liquid Pressure Measurement Sensor Cell
Product Details
| Model NO.: | HT13 | Wiring Type: | Four-Wire |
|---|---|---|---|
| Measuring Medium: | Air And Liquid | Dia: | 13mm |
| Type: | HT13 Silicon Pressure Sensor | Output Signal Type: | Mv Signal Analog Type |
| Material: | 316L Stainless Steel | Customization: | Available |
| Highlight |
Liquid Silicon Pressure Sensor,HT13 Silicon Pressure Sensor,Non-corrosive Gas Silicon Pressure Sensor |
||
Product Description
HT13 Silicon Pressure Sensor for Non-corrosive Gas and Liquid Pressure Measurement
HT13 Silicon Piezoresistive Pressure Sensor
Introduction of silicon pressure sensor:
HT13 silicon pressure sensor is the latest design of oil-filled diffused silicon pressure sensor, with high pressure impact 100,000 times is not bad, and anti-interference/erosion/freezing/impact, high accuracy and stability. All stainless steel with inductive pressure film. The pressure response is faster and more sensitive. Specially designed small diameter pressure sensor,For a high quality pressure controller, the most important thing is the sensor. Adopt 316 stainless steel, high precision CNC, import seal.
Product Features of silicon pressure sensor:
- Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
- Wide measuring range 0~350KPa~60MpaS
- High reliability and excellent stability
- Various threaded interfaces available for selection
- Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
- Compact design, ideal for applications with limited space
- Used in process control systems for monitoring and controlling pressure
- Commonly used in refrigeration systems and air compressors for pressure measurement
- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance:3KΩ~6KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires
| Performance Parameters of silicon pressure sensor: | ||||
| Measurement Range | Gauge(G) | 350KPa,1000KPa,2000Kpa | ||
| Absolute(A) | 350KPaA,700KPaA,1000KPaA,2000KPaA | |||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPa | |||
| Typ | Max | Unit | ||
| Linearity | ±0.15 | ±0.3 | %F.S | |
| Repeatability | 0.05 | 0.1 | %F.S | |
| Hysteresis | 0.05 | 0.1 | %F.S | |
| Zero Offset Output | 0±1 | 0±2 | mV | |
| Full Scale Output | 100±10 | 100±30 | mV | |
| Zero Offset Temp. Drift | ±0.5 | ±1 | %F.S | |
| Full Scale Temp. Drift | ±0.5 | ±1 | %F.S | |
| Compensated Temp. | 0~70 | ºC | ||
| Operating Temperature | -20~80 | ºC | ||
| Storage Temperature | -40~125 | ºC | ||
| Allowable Overload | Take the smaller value between 3 times the full scale or 80MPa | |||
| Burst Pressure | 5X the full scale | |||
| Long-term Stability | 0.2 % | F.S/Year | ||
| Diaphragm Material | 316L | |||
| Insulation Resistance | ≥200MΩ 100VDC | |||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |||
| Shock | 100g,11ms | |||
| Response Time | ≤1ms | |||
| O-ring Seal | Nitrile rubber or Fluoro rubber | |||
| Filling Medium | Silicon Oil | |||
| Weight | about 15g | |||
| The parameters are tested under the following conditions: 1.5mA @ 25°C | ||||
| Outline Construction | |
| type1 | |
| type2 | |
| Electrical connection and compensation |
|
| Selection Examples |
| Ordering tips |
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
