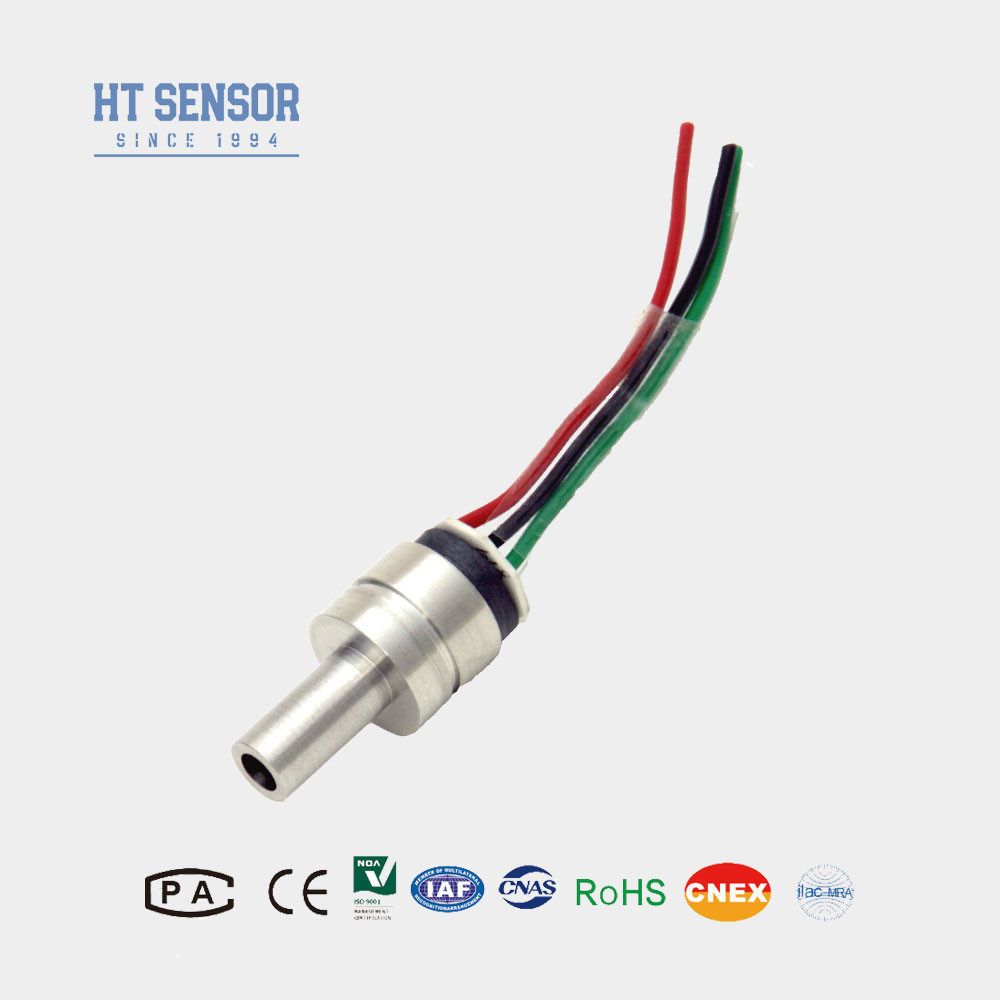

Name: HT13 Silicon Pressure Sensor For Non-corrosive Gas And Liquid Pressure Measurement
Brand: Baoji Hengtong Electronics Co., LTD
SKU: HT13
Price: 21.00 USD
Availability: InStock

Detail Information

Model NO.:	HT13	Wiring Type:	Four-Wire
Measuring Medium:	Air And Liquid	Dia:	13mm
Type:	HT13 Silicon Pressure Sensor	Output Signal Type:	Mv Signal Analog Type
Material:	316L Stainless Steel	Customization:	Available
Highlight:	Liquid Silicon Pressure Sensor , HT13 Silicon Pressure Sensor , Non-corrosive Gas Silicon Pressure Sensor

Product Description

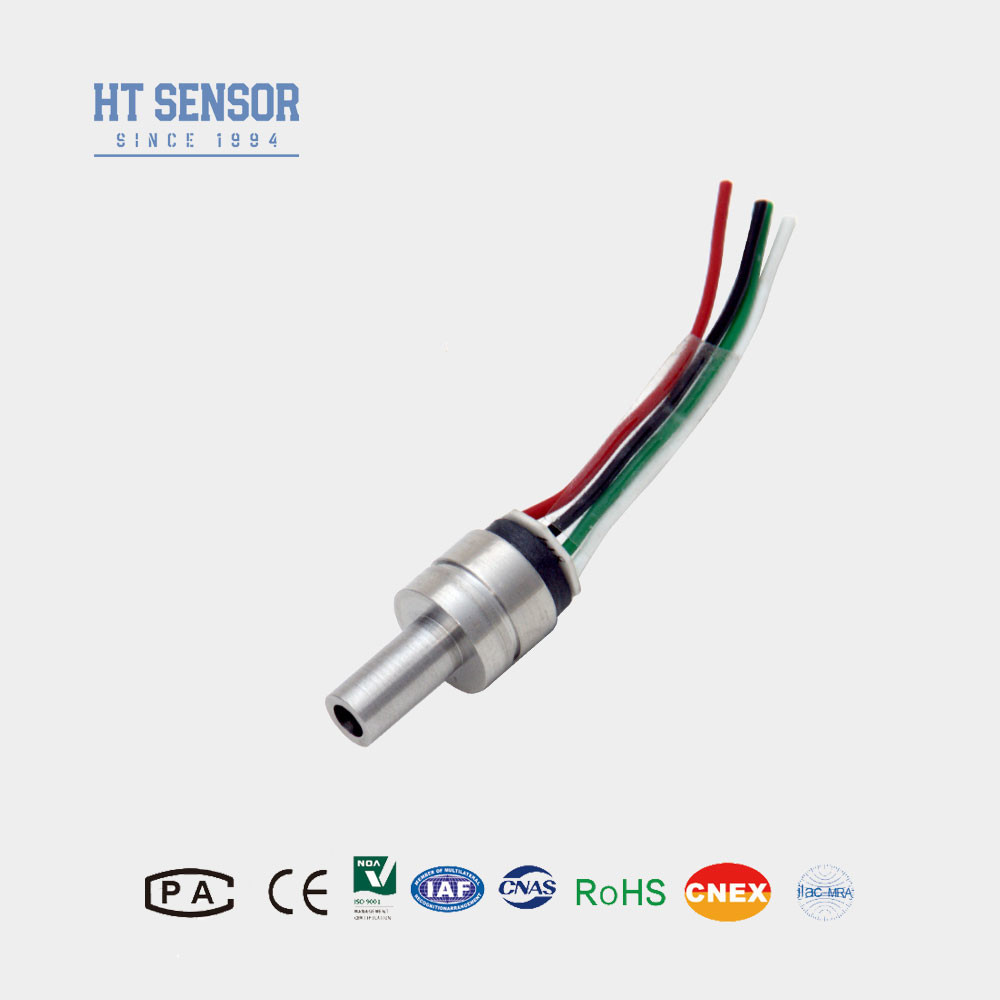

HT13 Silicon Pressure Sensor for Non-corrosive Gas and Liquid Pressure Measurement

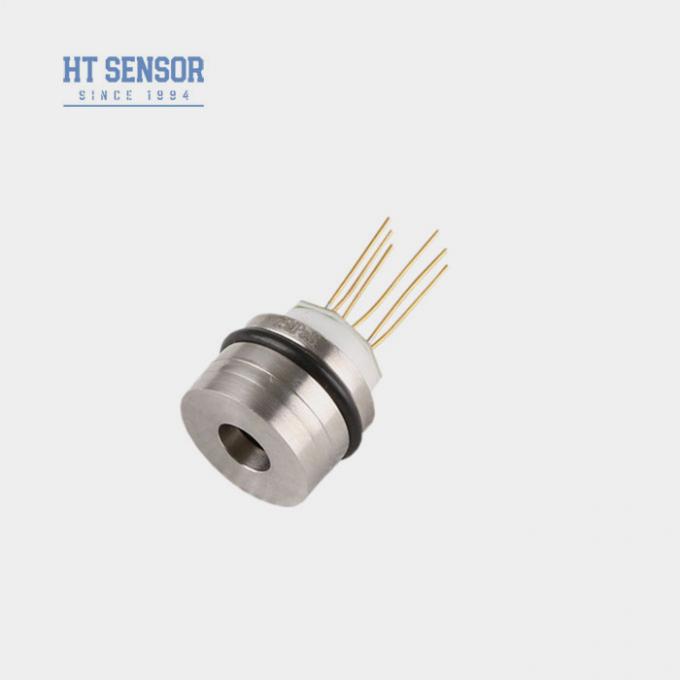

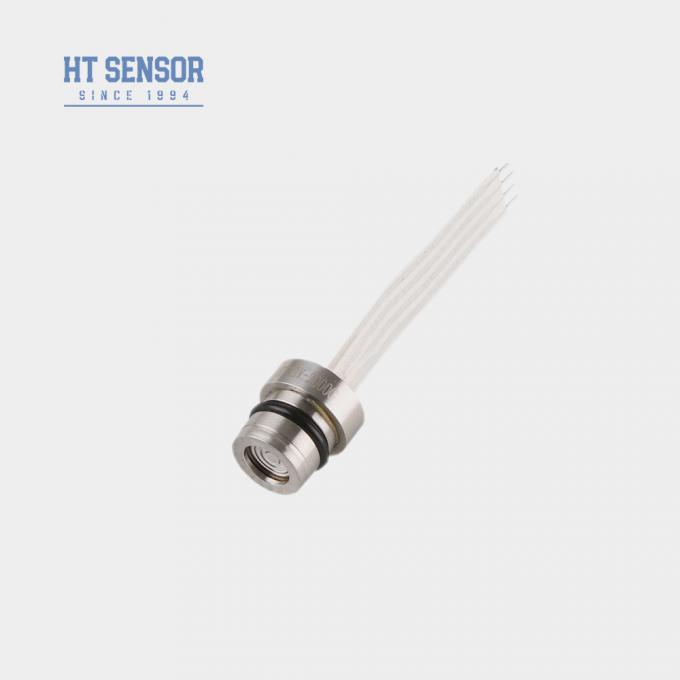

HT13 Silicon Piezoresistive Pressure Sensor

Introduction of silicon pressure sensor:

HT13 silicon pressure sensor is the latest design of oil-filled diffused silicon pressure sensor, with high pressure impact 100,000 times is not bad, and anti-interference/erosion/freezing/impact, high accuracy and stability. All stainless steel with inductive pressure film. The pressure response is faster and more sensitive. Specially designed small diameter pressure sensor,For a high quality pressure controller, the most important thing is the sensor. Adopt 316 stainless steel, high precision CNC, import seal.

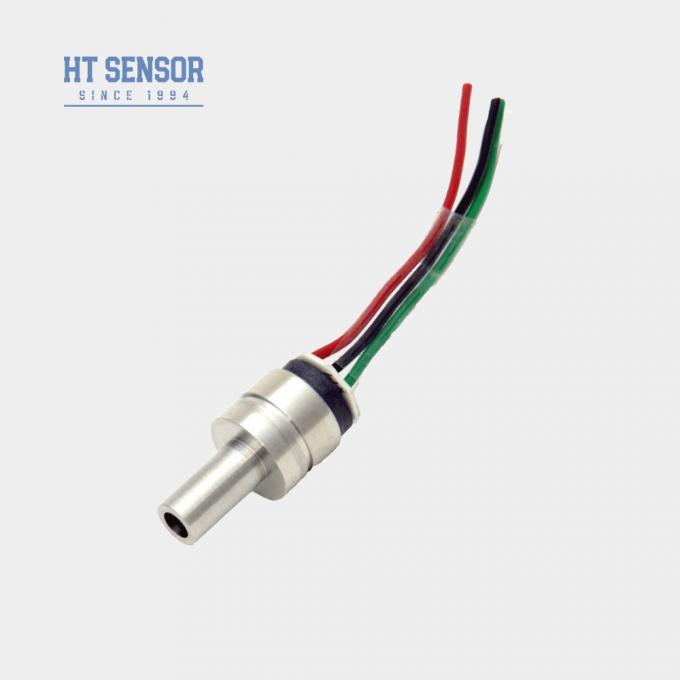

Stainless Steel Airway Connection Mini Sensor

Product Features of silicon pressure sensor:

Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
Wide measuring range 0~350KPa~60MpaS
High reliability and excellent stability
Various threaded interfaces available for selection

Applications of silicon pressure sensor:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Compact design, ideal for applications with limited space
Used in process control systems for monitoring and controlling pressure
Commonly used in refrigeration systems and air compressors for pressure measurement

Electrical performance of silicon pressure sensor:

Power Supply: ≤2mA DC (Typical 1.5mA DC)
Input Impedance:3KΩ~6KΩ
Output Impedance:2.5KΩ~6KΩ
Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires

Performance Parameters of silicon pressure sensor:
Measurement Range	Gauge(G)	350KPa,1000KPa,2000Kpa
	Absolute(A)	350KPaA,700KPaA,1000KPaA,2000KPaA
	Sealed(S)	3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPa
	Typ		Max	Unit
Linearity	±0.15		±0.3	%F.S
Repeatability	0.05		0.1	%F.S
Hysteresis	0.05		0.1	%F.S
Zero Offset Output	0±1		0±2	mV
Full Scale Output	100±10		100±30	mV
Zero Offset Temp. Drift	±0.5		±1	%F.S
Full Scale Temp. Drift	±0.5		±1	%F.S
Compensated Temp.	0~70			ºC
Operating Temperature	-20~80			ºC
Storage Temperature	-40~125			ºC
Allowable Overload	Take the smaller value between 3 times the full scale or 80MPa
Burst Pressure	5X the full scale
Long-term Stability	0.2 %			F.S/Year
Diaphragm Material	316L
Insulation Resistance	≥200MΩ 100VDC
Vibration	No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock	100g,11ms
Response Time	≤1ms
O-ring Seal	Nitrile rubber or Fluoro rubber
Filling Medium	Silicon Oil
Weight	about 15g
The parameters are tested under the following conditions: 1.5mA @ 25°C

Outline Construction

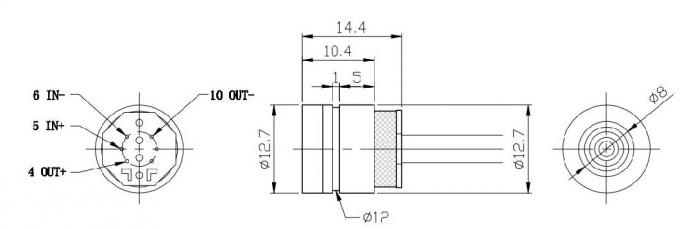

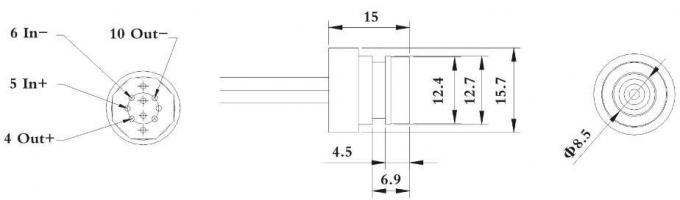

type1
type2

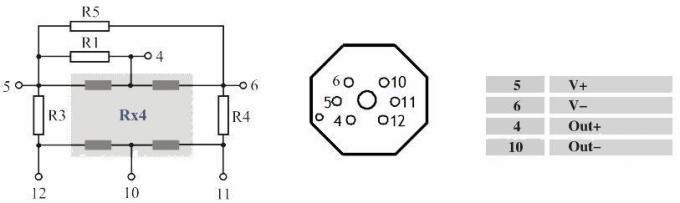

Electrical connection and compensation

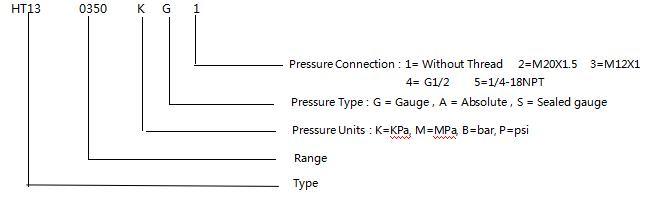

Selection Examples

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
