70KPa~70MPa Silicon Pressure Sensor Piezoresistive Pressure Sensor
Product Details
| Model NO.: | HT19V | Thread Type: | No |
|---|---|---|---|
| Wiring Type: | Four-Wire | Measuring Medium: | Gas And Liquid |
| Range: | 0-10kpa~60mpa | Output: | MV |
| Pressure Type: | G/A/S | Supply: | 5-10VDC |
| HS Code: | 9026209090 | Supply Ability: | 20000PCS/month |
| Type: | Piezoresistive Pressure Sensor | Material: | Stainless Steel |
| Customization: | Available OEM And ODM | ||
| Highlight |
70MPa Silicon Pressure Sensor,Piezoresistive Silicon Pressure Sensor,70KPa Silicon Pressure Sensor |
||
Product Description

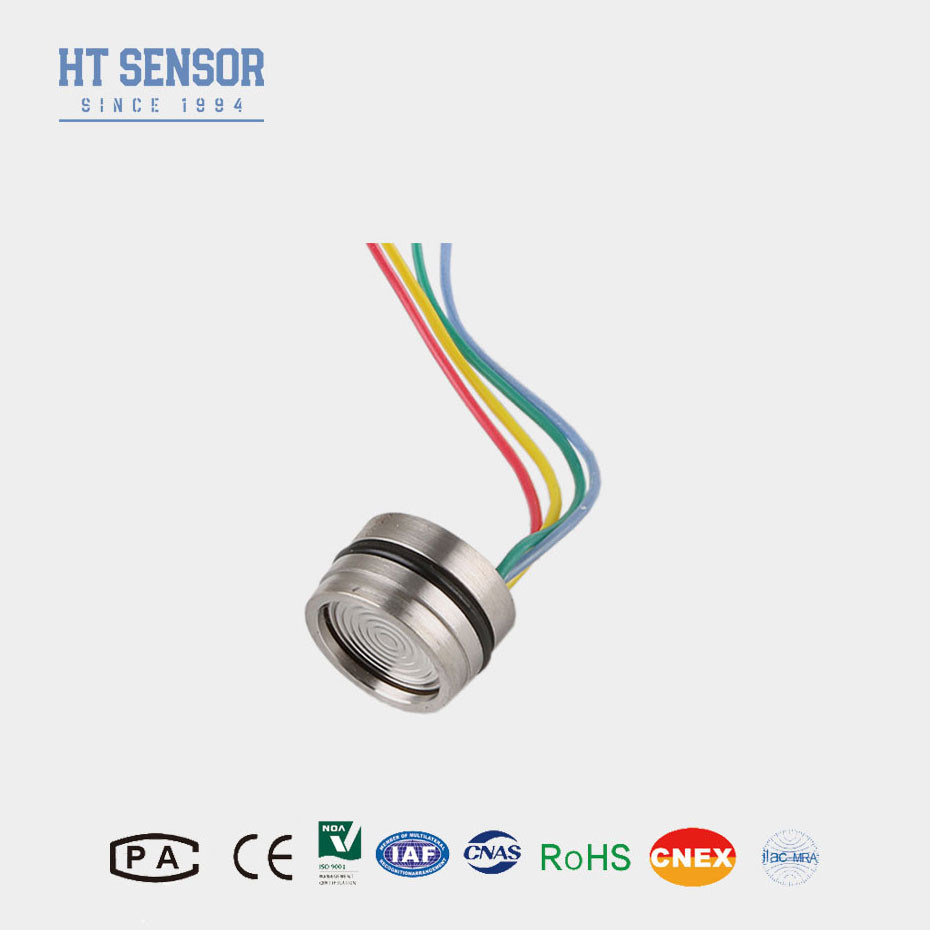

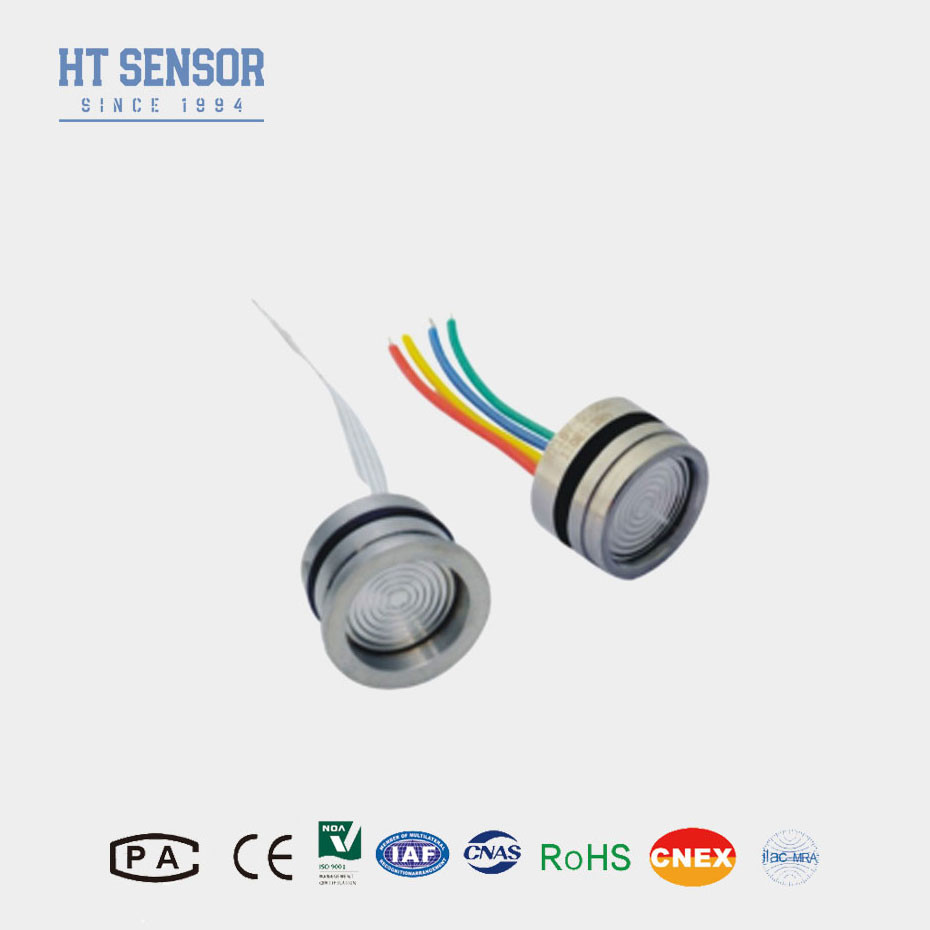

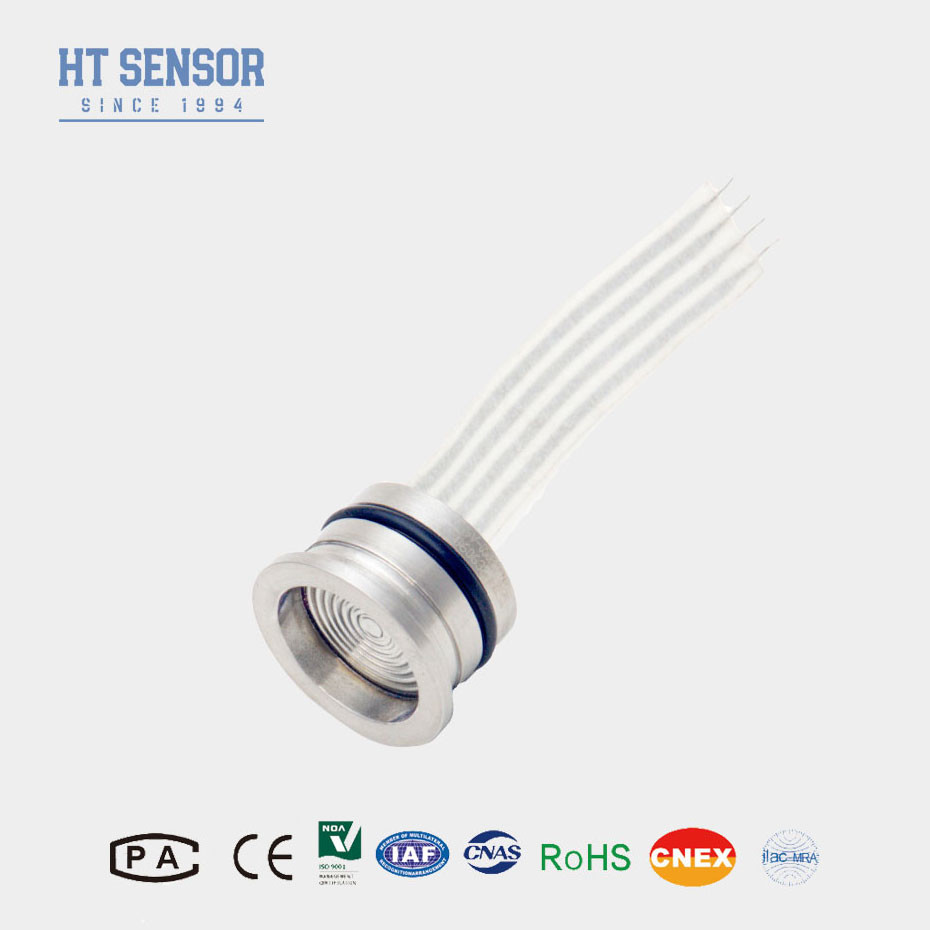

HT19V Piezoresistive Silicon Pressure Sensor
Introduction of silicon pressure sensor:
The core of the HT19 silicon piezoresistive pressure sensor is a highly stable diffused silicon element. It is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The HT26 compensated is offered in a weldable package or with avariety of threaded fittings such as 1/4 and 1/8NPT, 1/4BSP as well as custom process fittings.
Product Features of Piezoresistive Silicon Pressure Sensor
• Mountable with O-ring seal
• Stainless Steel wetted surfaces
• Amplified
• ASIC calibrated
• Absolute, sealed gage
• Cable option
• Analog output
• SENT Output Optional (contact factory for details)
Applications of silicon pressure sensor:
1. Suitable for measuring the corrosive gas and liquid pressure, compatible with 316 l stainless steel
2. Used in process control systems to monitor and control pressure.
3. Often used in refrigeration system and air compressor pressure measurement.
Electrical performance of silicon pressure sensor:
1.Power Supply: ≤10VDC
2.Common Mode Voltage Output: 50% of the input (typical)
3.Input Impedance:4KΩ~20KΩ
4.Output Impedance:2.5KΩ~6KΩ
5.Electrical Connection:100mm high-temperature wire,ribbon cable
| Performance Parameters of silicon pressure sensor:. | ||||||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | ||||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | |||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPaS,100MPaS | |||||
| Typ | Max | Unit | ||||
| NonLinearity | ±0.15 | ±0.3 | %F.S | |||
| Repeatability | 0.05 | 0.1 | %F.S | |||
| Hysteresis | 0.05 | 0.1 | %F.S | |||
| Zero Offset Output | 0±1 | 0±2 | mV | |||
| Full Scale Output | ≤20KPa | 50±1 | 50±2 | mV | ||
| ≥35kPa | 100±1 | 100±2 | mV | |||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2.5 | %F.S | ||
| ≥35kPa | ±0.8 | ±1.5 | %F.S | |||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.8 | ±1.5 | %F.S | |||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | |||
| ≥35kPa | 0~70 | ºC | ||||
| Operating Temperature | -20~80 | ºC | ||||
| Storage Temperature | -40~125 | ºC | ||||
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | |||||
| Burst Pressure | 5X the full scale | |||||
| Long-term Stability | 0.2 % | F.S/Year | ||||
| Diaphragm Material | 316L | |||||
| Insulation Resistance | ≥200MΩ 100VDC | |||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |||||
| Shock | 100g,11ms | |||||
| Response Time | ≤1ms | |||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | |||||
| Filling Medium | Silicon Oil | |||||
| Weight | ~28g | |||||
| The parameters are tested under the following conditions: 10V @ 25ºC | ||||||
| Outline Construction of silicon pressure sensor | |
| <3.5MPaS |  |
| ≥3.5MPaS <40MPaS |
|
| ≥40MPaS | |
| Electrical connection and compensation of silicon pressure sensor |
|
|
| Selection Examples |
