BH93420-III Piezoresistive Water Level Transmitter For Liquid Level Monitoring
Product Details
| Model NO.: | BH93420-III-I | IP Rating: | IP68 |
|---|---|---|---|
| Customized: | Non-Customized | Cable: | PE,PU,PTFE |
| Accuracy: | 0.25%, 0.5% | Diaphragm Material: | 316L Stainess Steel |
| Net Weignt: | 0.3kg | Transport Package: | Carton |
| Trademark: | HT Sensor | Origin: | Shaan Xi |
| HS Code: | 90261000 | Supply Ability: | 2000PCS/Month |
| Output Signal Type: | Analog Type | Probe Type: | Probe Type |
| Highlight |
Liquid Level Monitoring Water Level Transmitter,BH93420-III Piezoresistive Water Level Transmitter |
||
Product Description

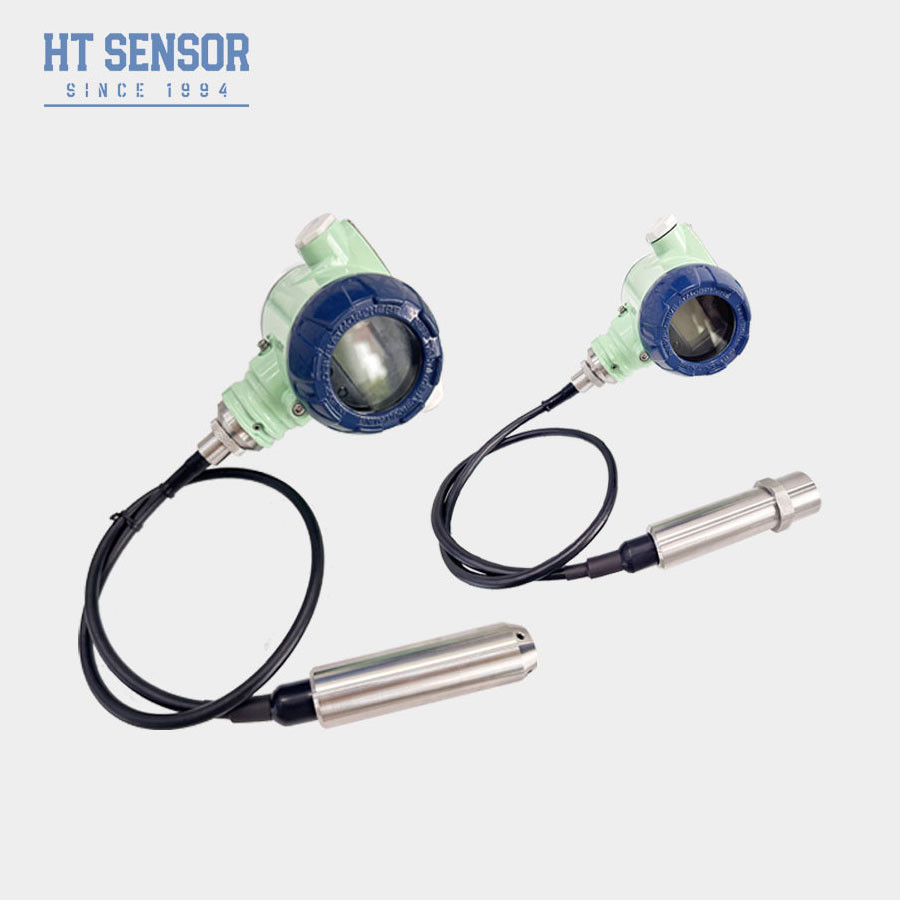

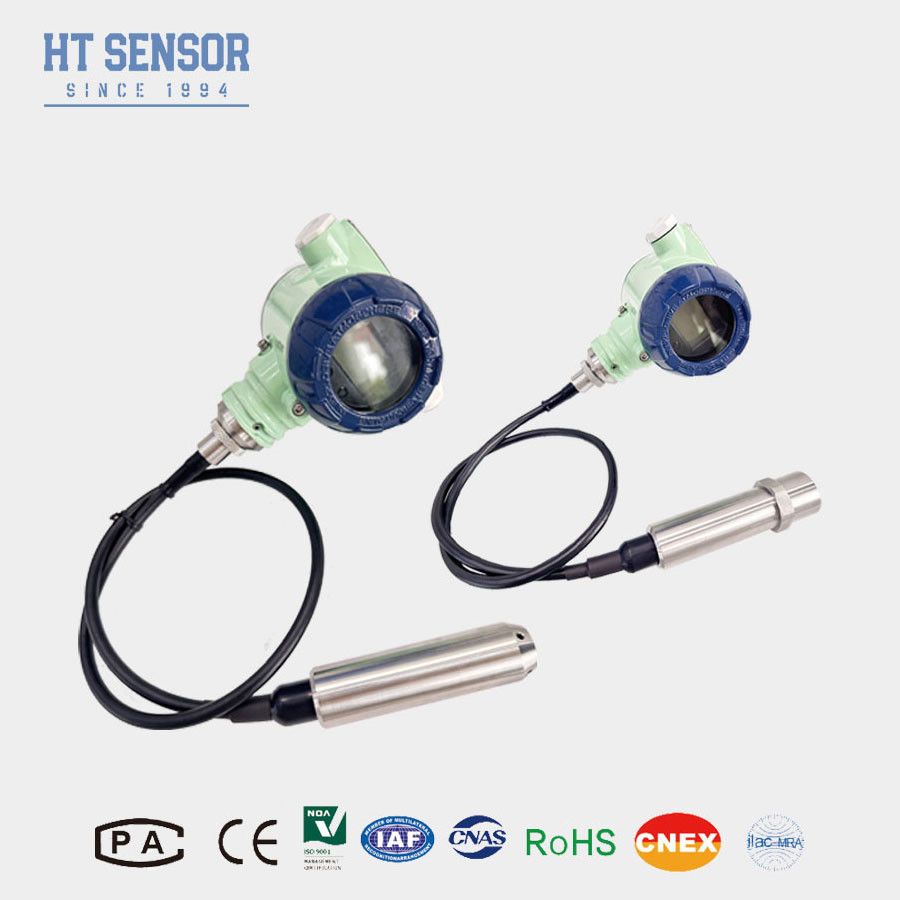

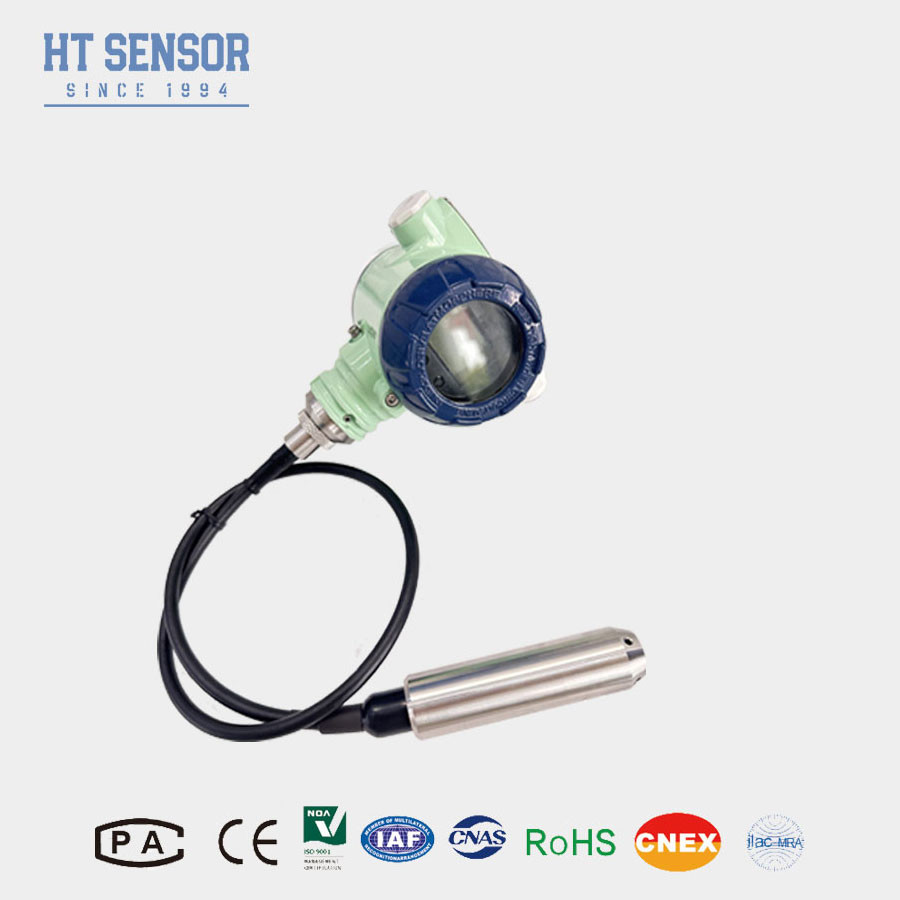

BH93420-III OEM WATER LEVEL PRESSURE TRANSMITTER FOR WATER PRESSURE MEASUREMENT
Introduction of water level transmitter:
BH93420-III Piezoresistive water level transmitter adopts the piezoresistive sensor principle to determine the liquid level height by measuring the pressure effect of the medium on the sensor. When the liquid height increases, the pressure of the medium on the sensor increases, resulting in a change in the resistance value of the sensor. The piezoresistive liquid level transmitter converts it into an electrical signal output related to the liquid level height by measuring the change in the resistance value of the sensor. The transmitter can accurately calculate the liquid level height according to the linear relationship between pressure and resistance.
- Split-type design, facilitating on-site wiring and calibration
- LED display
- Explosion-proof rating : ExiaIICT6
- High protection : IP68
- Cable : PE,PU.PTFE
Applications:
1. widely used in the level monitoring and control of storage tanks, tank cabinets, pipelines and other containers.
2. It can be used in liquid storage and transportation systems in petroleum, chemical, pharmaceutical and other industries to ensure that the liquid level is within a safe range.
3. Piezoresistance liquid level transmitter can be used in water treatment equipment to monitor the liquid level of water tanks, pools, etc., to achieve automatic control.
4. It is suitable for canning, filling and other processes in the food processing industry to ensure that the liquid level of the product meets the standard.
5. Piezoresistive level transmitter can be used for environmental monitoring, such as the level monitoring of rivers, lakes and other water bodies.
6. It can be used in ships and offshore engineering to monitor the liquid level of ship fuel tanks, cabins, etc.
|
Performance Parameters: |
|
| Measurement Range | 0~10m…400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, l1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
|
Outline Construction: |
|
Electrical Connection: |
|
Selection Examples: |
| Order Guide: | ||||||||||
| BH93420 | Code | Outline Construction | ||||||||
| III | Liquid level transmitter with the 2088 housing | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | RS485 | |||||||
| Code | Electrical Connection | |||||||||
| B5 | 2088 with display | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Material | |||||||||
| 01 | 304 Stainless Steel | |||||||||
| 02 | 316L Stainless Steel | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
FQA:
1. Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
2. Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
3. Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
4. Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
