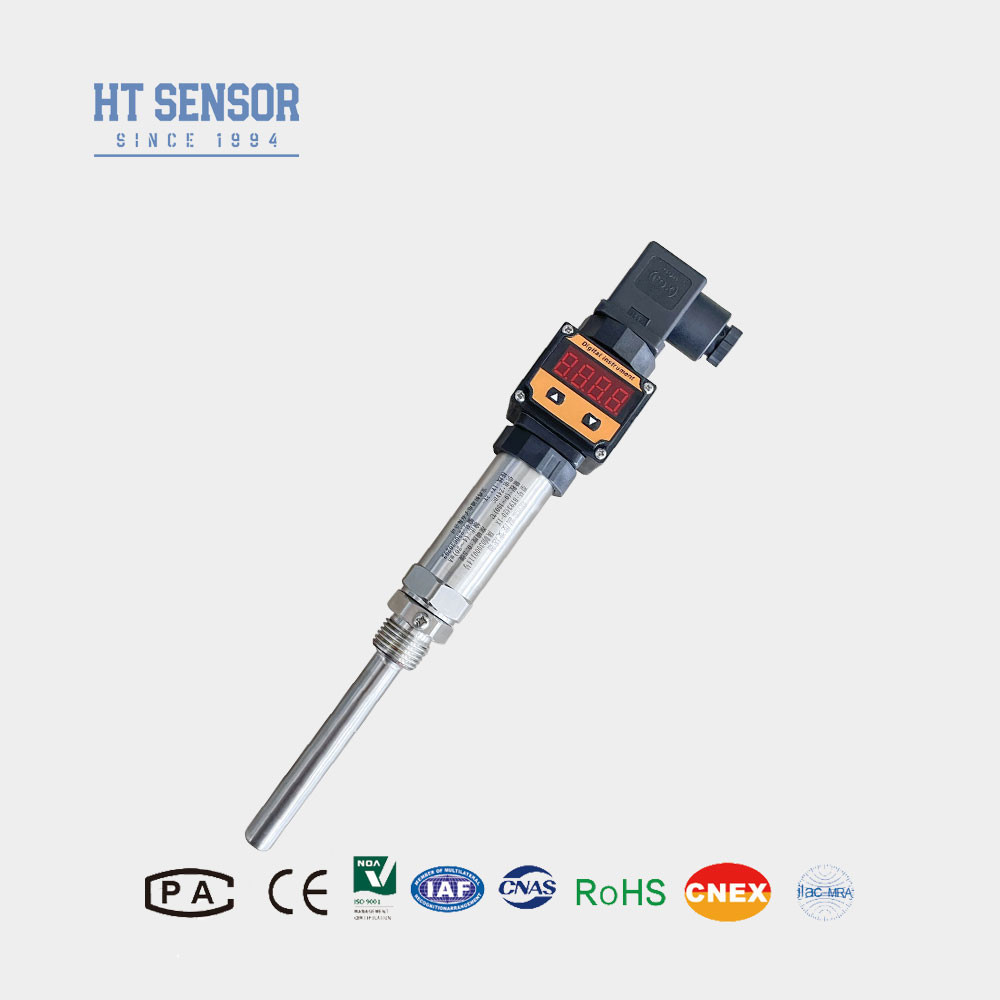

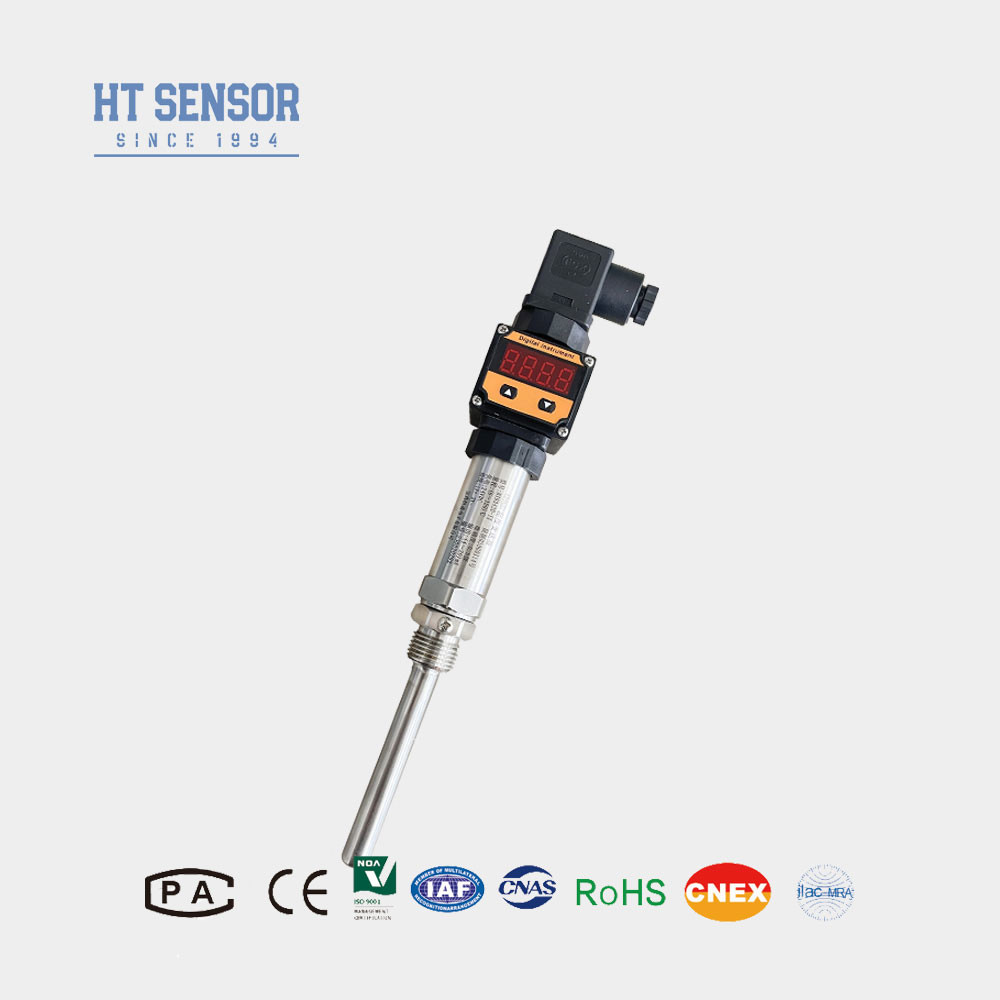

PT100 Temperature Indicator Transmitter With 4-20mA Output With Display
Product Details
| Model NO.: | BT93420-I | Measuring Medium: | Temperature |
|---|---|---|---|
| Customized: | Customized Can OEM And ODM | Trademark: | HT Sensor |
| Origin: | Shaanxi China | Output: | 4-20mA With Display |
| Sensing Type: | PT100 / PT1000 | Material: | Stainless Steel |
| Highlight |
4-20mA Temperature Indicator Transmitter,PT100 Temperature Indicator Transmitter,Display Temperature Indicator Transmitter |
||
Product Description
PT100 Temperature Indicator Transmitter With 4-20mA Output With Display
BT93420 Temperature Indicator Transmitter
Introduction of temperature induicator transmitter:
BT93420-I temperature indicating transmitter adopts special temperature module or PCB, with high precision, good stability, strong anti-interference ability, waterproof, explosion-proof design, high temperature resistance, impact resistance and so on. The field display with output can be integrated with the control system to realize automatic temperature control and monitoring. The temperature transmitter module is a 24V power supply, two-wire integrated transmitter. Temperature transmitter products using imported integrated circuits, the thermistor or thermocouple signal amplification, converted into 4-20mA. Armored transmitters can directly measure the temperature of gas or liquid, especially for low temperature range measurement, to overcome the effect of condensation water on temperature measurement.
Product Features of temperature induicator transmitter:
- Full stainless steel structure, good corrosion resistance
- Analog output and digital output are both available for selection
- Terminal box, 2088 LCD, or LED display are available for selection
| Performance Parameters of temperature induicator transmitter | |
| Measurement Range | -55~200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Outline Construction of temperature induicator transmitter | |
| Terminal Box | |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||
| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||
| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -55~1200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
| company |
