High-Efficiency Industrial Pressure Sensor With Silicon Pressure Sensor
Product Details
| Model NO.: | BP93420-IIIA | Power: | 12-32VDC |
|---|---|---|---|
| Output: | 4-20mA Can With HART Or RS485 | Weight: | 0.8kg |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | HS Code: | 9026201090 |
| Structure Type: | Industrial Pressure Sensor Transmitter | Measuring Medium: | Liquid,gas And So On |
| Accuracy Grade: | 0.5%F.S 0.25%F.S | Pressure Range: | -100kpa...0kpa ~10kpa...60MPa |
| Highlight |
High Efficiency Pressure Sensor,High Efficiency Industrial Pressure Sensor,Silicon Pressure Sensor Industrial Pressure Sensor |
||
Product Description

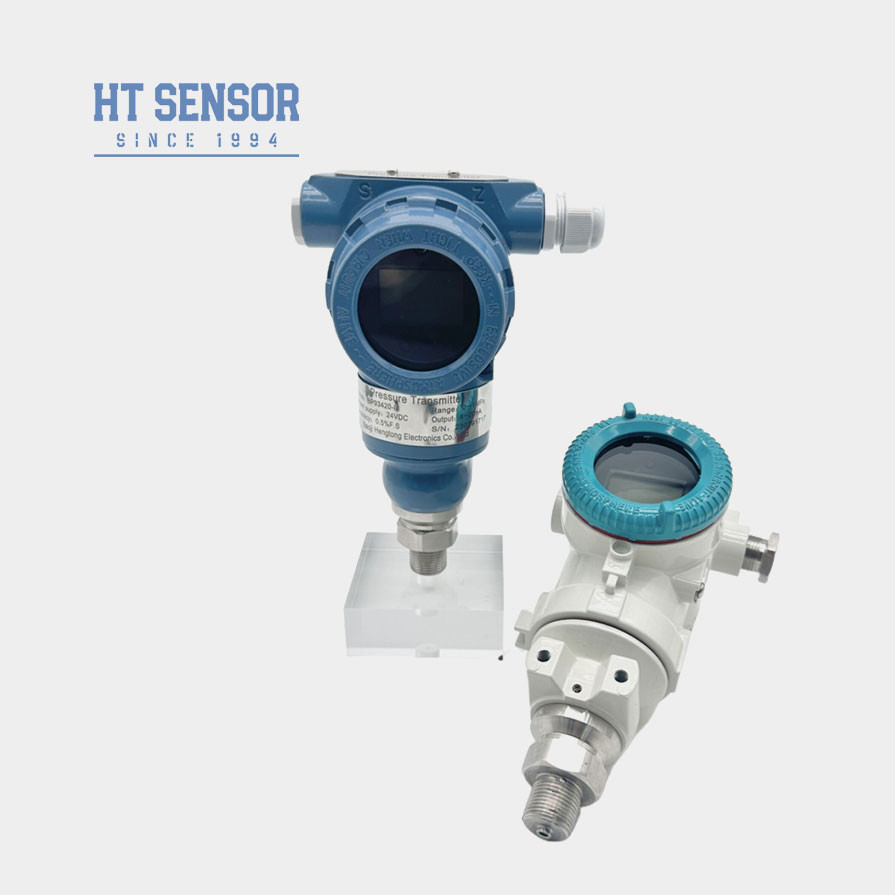

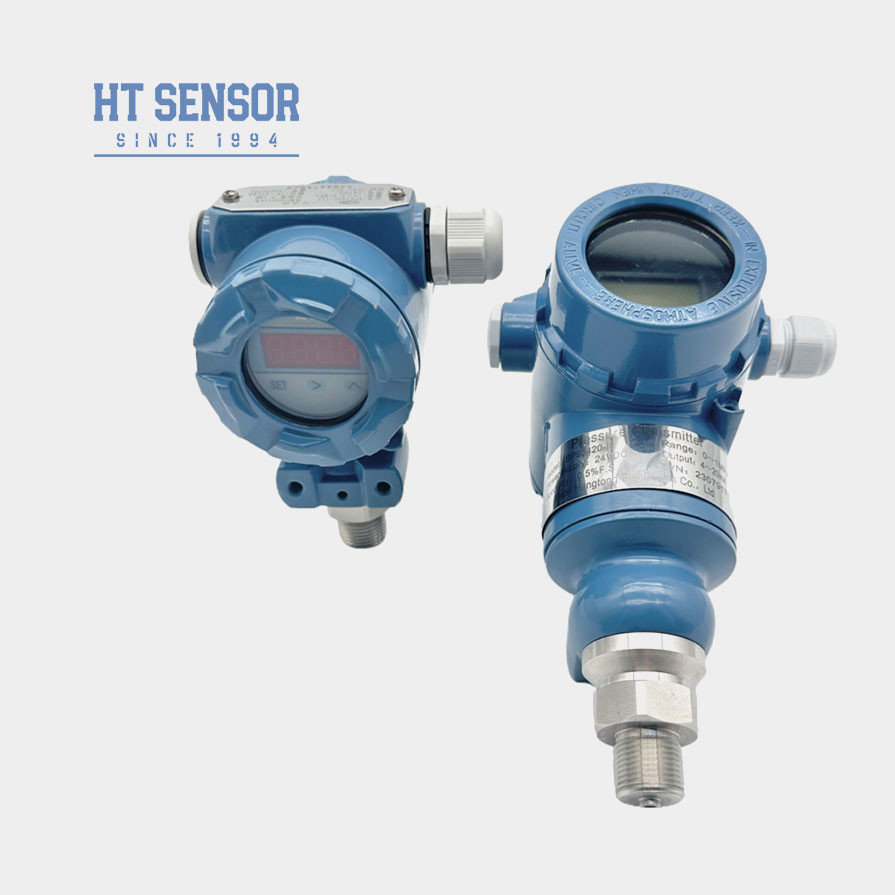

BP93420-IIIA Industrial Pressure Sensor With Digital Display Pressure Transmitter
BP93420-IIIA Industrial Pressure Sensor
Introduction of Industrial Pressure Sensor transducer:
The BP93420-IIIA Industrial pressure sensor transmitter comprises a pressure sensor module and an intelligent circuit board. The smart sensor component includes a silicon pressure sensor, measuring diaphragm detection circuit, temperature sensor, and temperature compensation circuit. The intelligent circuit board consists of a microcomputer controller and peripheral circuits to accomplish the conversion of pressure signals into electrical signals. It is utilized in industrial settings for measuring the pressure of liquids, gases, or vapors.
Product Features of Industrial Pressure Sensor transducer:
1. Wide measuring range, diverse pressure interface forms, and IP65 protection level.
2. Various output signal forms, adjustable and displayable.
3. Adjustable zero point and full scale.
4. Core utilizes high-precision and high-performance diffused silicon piezoresistive pressure sensors.
Applications of Industrial Pressure Sensor transducer:
1. Suitable for measuring the pressure of non-corrosive gases and liquids in 316L stainless steel.
2. Petroleum, chemical, metallurgy, power, and hydrology.
3. Pressure measurement and control in harsh outdoor industrial environments.
4. Used in hydraulic and pneumatic control systems.
| Performance Parameters of Industrial Pressure Sensor transducer | |
| Measurement Range | -100kPa…0kPa ~10kPa…60MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Aluminum Alloy |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.8kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
FAQ:
1. Q: What are the characteristics of your pressure sensor transmitters?
A: High precision, durable, excellent performance. Customization is available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can customize products to meet specific needs. We offer OEM and ODM services.
3. What is your production capacity?
A: Our production facility can produce up to 30,000 pressure sensor transmitters per month, so we are well equipped to meet the needs of large-scale orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.
4. Q: What is the general lead time?
A: Standard model 5~8 working days. Custom products may vary.
5.Q:Shipment&packing
A:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
6.Q:Contact US
A:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
