Industrial Grade Temperature Indicator Transmitter For Accurate Temperature Measurement
Product Details
| Model NO.: | BT93420-II | Measuring Medium: | Temperature |
|---|---|---|---|
| Customized: | OEM And ODM | Trademark: | HengTong |
| Origin: | Baoji China | Installation Type: | 2088 |
| Sensing Type: | PT100 / PT1000 | Material: | Stainless Steel |
| Highlight |
Industrial Grade Temperature Indicator Transmitter,Industrial Grade Indicator Transmitter,Accurate Temperature Measurement Indicator Transmitter |
||
Product Description
Industrial Grade Temperature Indicator Transmitter for Accurate Temperature Measurement

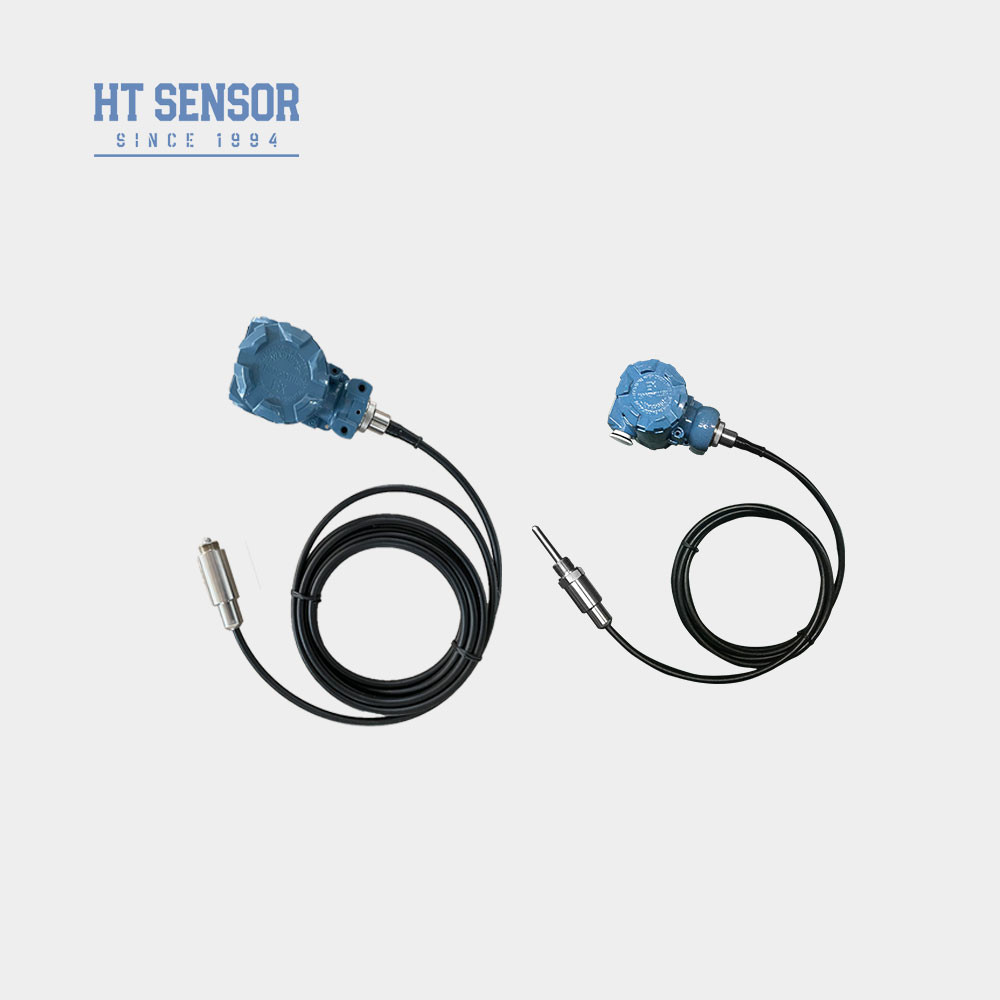

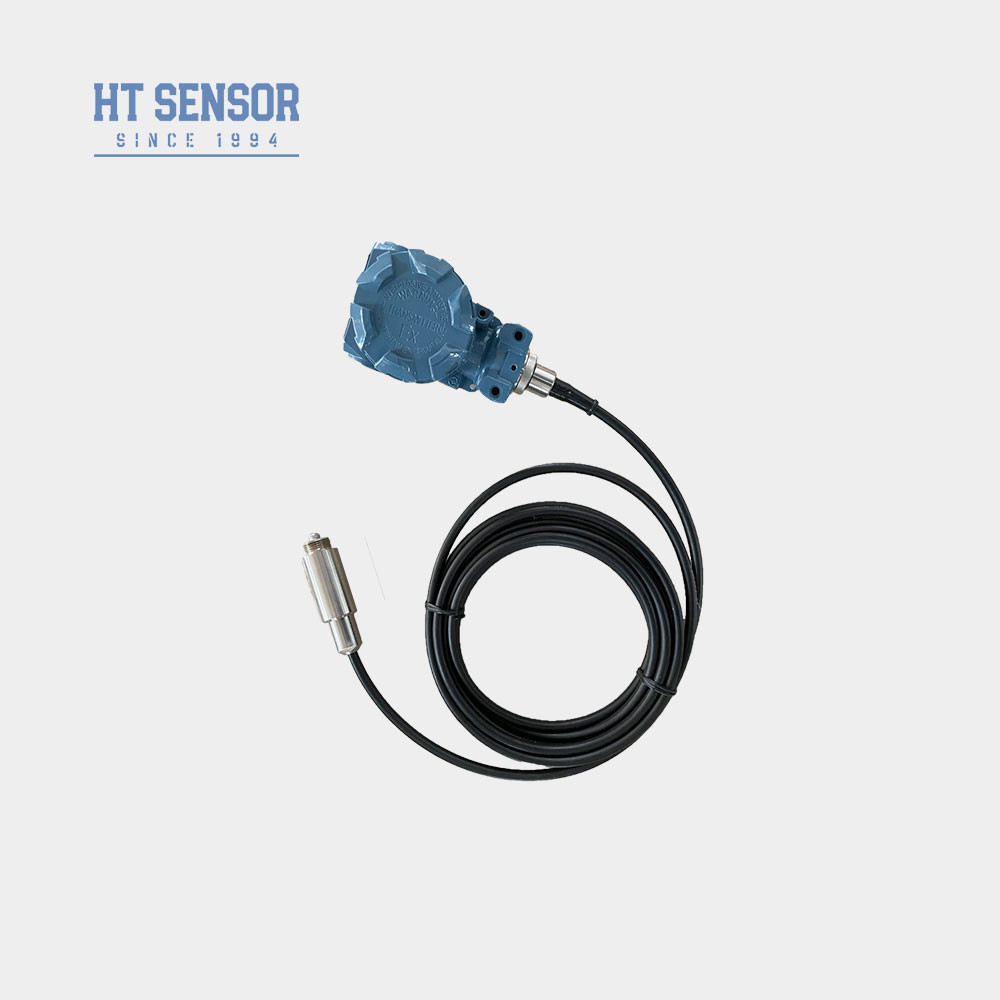

BT93420-II Temperature Indicator Transmitter
Introduction of temperature induicator transmitter:
BT93420-II submersible temperature transmitter is a type of temperature transmitter that is installed in a pipeline or vessel to measure the temperature of the medium. It typically measures the temperature by directly inserting into the interior of the pipeline or vessel and converts the temperature into a standardized electrical signal output. This type of temperature transmitter is suitable for industrial applications where real-time monitoring of the medium temperature is required, such as in chemical plants, pharmaceutical plants, food processing plants, and more. Submersible temperature transmitters are known for their high accuracy, strong reliability, and corrosion resistance to adapt to various harsh industrial environments.
Product Features of temperature induicator transmitter:
- Full stainless steel structure, good corrosion resistance
- Analog output and digital output are both available for selection
- Terminal box, 2088 LCD, or LED display are available for selection
- Monitor the temperature of generators, transformers, cables, and other critical equipment.
- Industrial Automation.
- Temperature measurement of various gases or liquids in pipelines in industries such as petroleum, chemical, power, and hydrology.
| Performance Parameters of temperature induicator transmitter | |
| Measurement Range | -55~400ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Outline Construction of temperature induicator transmitter | |
| Terminal Box | |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||
| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||
| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -55~1200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
| company |
