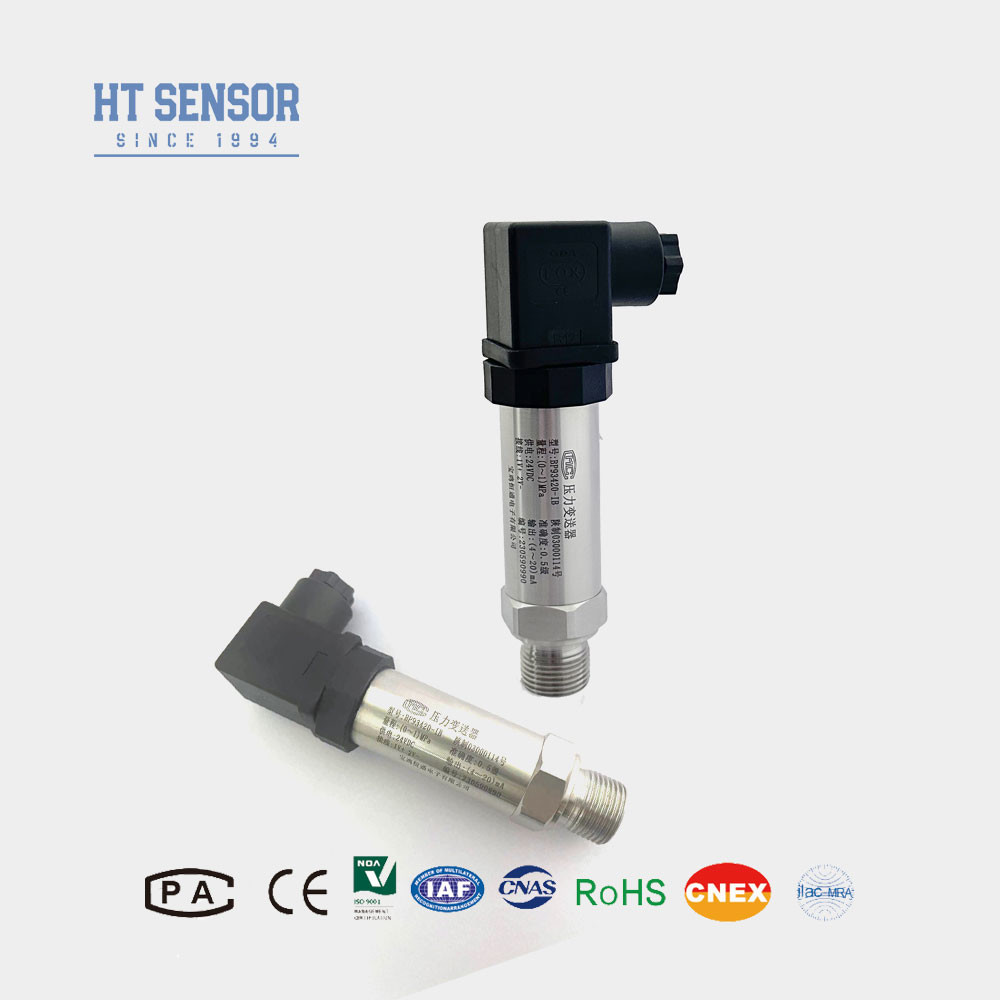

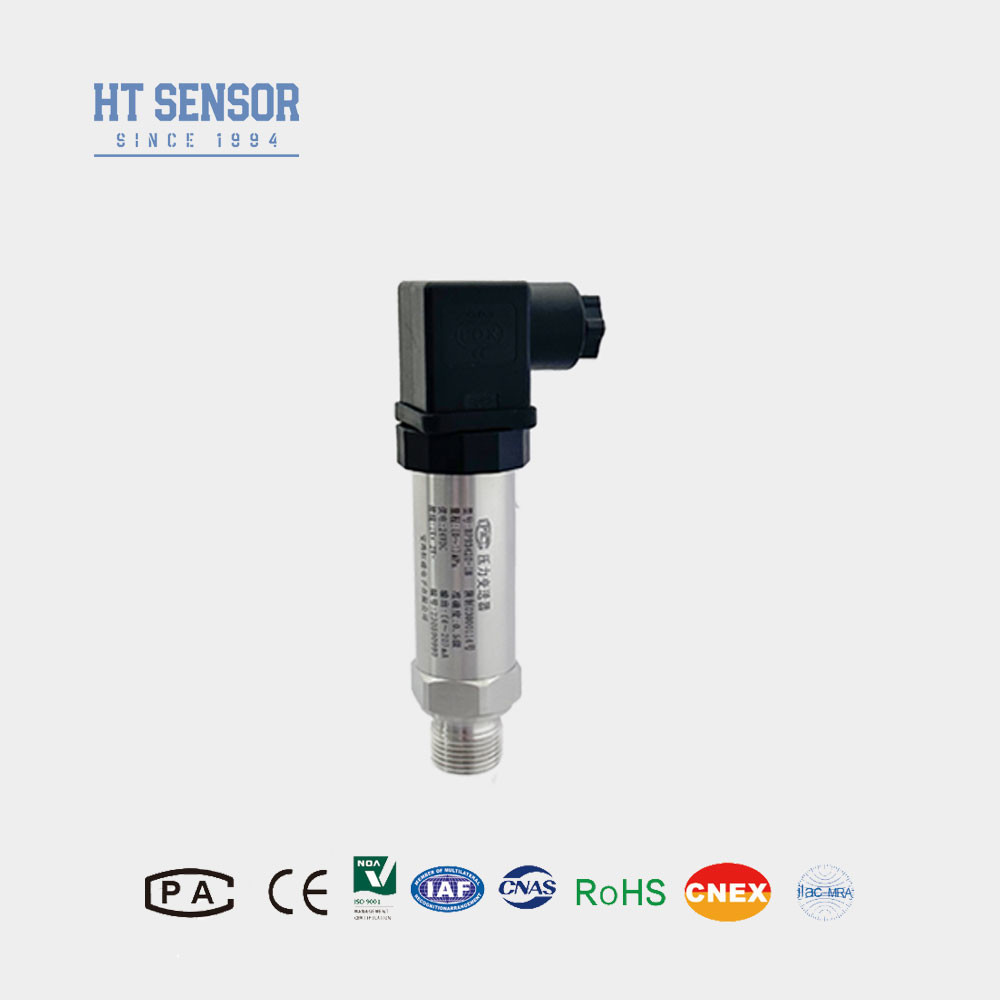

High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy

Brand Name: HT SENSOR
Model Number: BP93420-IB
Place of Origin: Baoji，China
Certification: ISO9001
Minimum Order Quantity: 1
Price: Negotiable
Supply Ability: 5000PCS/Month
Tags

Industrial Pressure Sensor Transmitter 20Mpa

Industrial Pressure Sensor

Industrial Pressure Sensor Liquid

Product Details

Model NO.: BP93420-IB Power: 5VDC /24VDC
Protection Rating: IP65 Long-Term Stability: +-0.15%F.S/Year(Typ.)
Housing Material: 316L. Or 304SS Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Trademark: HTsensor Measuring Medium: Air. Water Oil
Accuracy Grade: 0.5%. 0.25% Pressure Range: -100kpa~0a...100MPa
Highlight

High Accuracy Pressure Transmitter Sensor

,

Big DIN Pressure Transmitter Sensor

,

0.25% Typical Accuracy Pressure Transmitter Sensor

Product Description

High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy

BP93420IB Pressure Transmitter sensor

Introduction of pressure transmitter sensor:



BP93420IB pressure transmitter sensor incorporates the HT series diffused silicon isolated oil core as its primary signal measurement element. These diffused silicon pressure sensors are specifically engineered to deliver precise and consistent measurements for critical processes. With exceptional accuracy and stability, this diffused silicon pressure sensor is well-suited for a wide range of industrial applications, offering reliable performance and ensuring optimal process control.



Performance Parameters of pressure transmitter sensor
Measurement Range -100kPa…0kPa ~ 10kPa…100MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability 0.1%FS
Hysteresis 0.1%FS
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex db IIC T6 Gb
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.15kg

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC



Product Features of pressure transmitter sensor:



  • The pressure transmitter features a wide measuring range, a durable stainless steel structure, and various pressure interface options to accommodate different application needs.
  • Its compact and lightweight design allows for easy installation and integration into space-constrained environments.
  • With high precision and an all stainless steel structure, this pressure transmitter ensures accurate and reliable pressure measurements.
  • Additionally, it offers the option to add an LED or LCD display head for convenient on-site pressure monitoring and display.


Applications of pressure transmitter sensor:



  • This pressure transmitter is specifically designed for accurately measuring non-corrosive gases and liquids, utilizing 316L stainless steel material for enhanced durability and reliability.
  • It finds extensive application in the marine and aviation industries, where precise pressure measurement is crucial for safety and performance.
  • In addition to marine and aviation, this pressure transmitter is widely used in various industrial on-site processes, including petroleum, chemical, metallurgy, power generation, and hydrology.
  • It is also commonly utilized in hydraulic and pneumatic control systems, providing accurate pressure sensing for efficient system operation.​

High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 0

High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 1High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 2

High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 3
High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 4
High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 5



High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 6


Ordering tips of pressure transmitter sensor



1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. When ordering with LCD or LED display head of transducer, transmitter power should not be less than 20 VDC.

4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.

5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
6. The default cable length is 1.5m and there are three kinds of materials to choose from. If there are no special instructions, no cable or polyethylene cable material can be used. If you need a different cable material, please specify it in the order form.
7. In case of strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference and other special requirements, please inform our company and indicate in the order.



High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 7
Order Guide of pressure transmitter sensor
BP93420XX Pressure Transmitter
  Code Outline Construction
IB General Pressure Transmitter IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter IIC/III Industrial General/ Display Pressure Transmitter
IF Moisture-proof Pressure Transmitter IIE/IIIE General/Display Pressure Transmitter
IN Air Conditioning Dedicated Pressure Transmitter
IC High-temperature Pressure Transmitter
IQ1/IQ2 Large Diaphragm /High-temperature Pressure Transmitter
  Measurement Range -0.1. . .0~0.01...100MPa
(0-X)Kpa or MPa X: Indicates the Actual Measuring Range
  Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
  Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 G1/4
J4 7/16-20UNF
J5 Other
  Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 2088 Industrial Casing
B5 2088 Industrial Casing with Display
B6 Other
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure

High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 8High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 9High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 10High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 11

High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 12High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 13High Accuracy BP93420IB Pressure Transmitter Sensor With Big DIN 0.25% Typical Accuracy 14
