BP156-M Miniature Pressure Transmitter Sensor For Marine And Aviation Industries

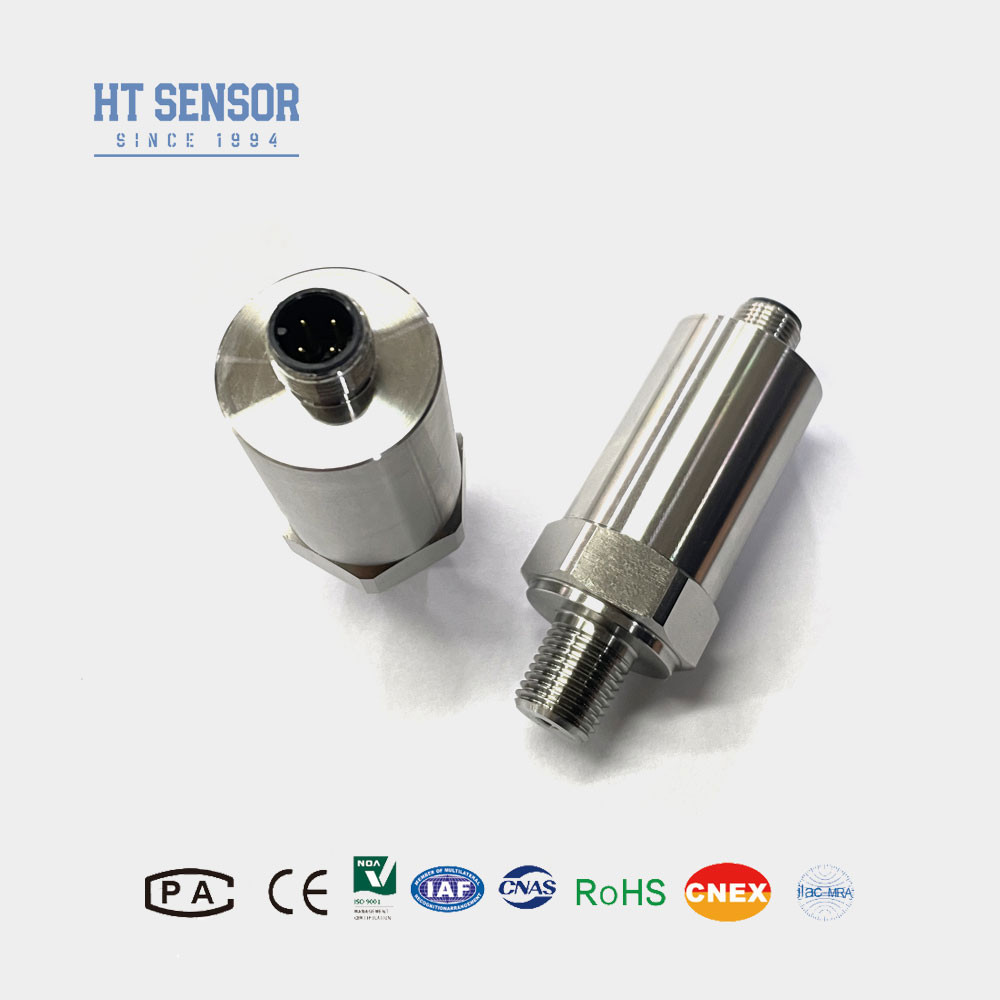

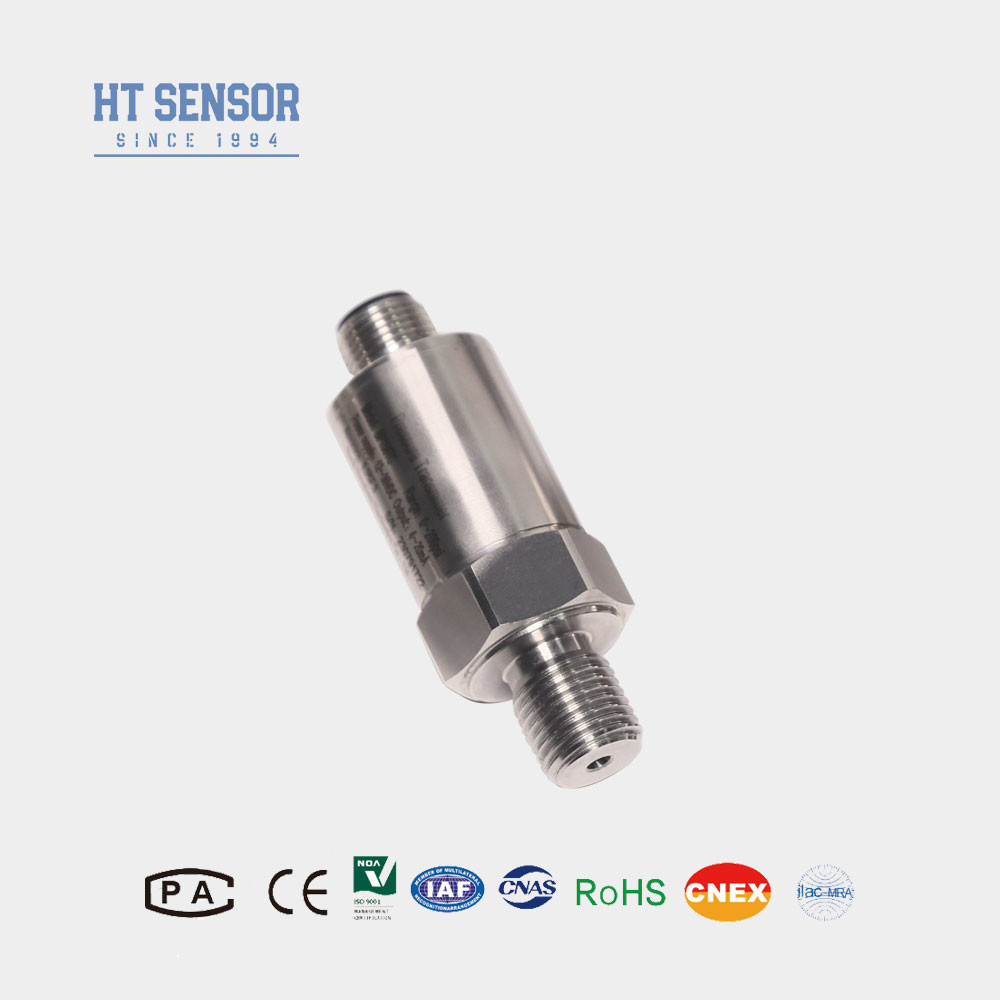

BP156-M Pressure Transmitter Sensor

Introduction of mini pressure transmitter sensor:

BP156-M miniature pressure transmitter sensor using piezoresistive pressure sensor, with isolated stainless steel diaphragm as a signal sensing element, after automatic testing, laser fine tuning compensation;The amplifier circuit uses a stainless steel housing to convert the sensor signal into a standard output signal. The transmitter is stable and reliable, with excellent flexibility, sensitivity and diversity.The products are widely used in petroleum, chemical industry, metallurgy, power station, hydrology and other industries of pressure measurement and control.


Product Features of mini pressure transmitter sensor:

1. Temperature range: -20 to 85ºC;

2. Wide operation temperature range -40~125ºC;

3. High performance pressure sensor;

4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5Voutputs available;

5. Small dimensions, dimension customizble;

6. M12 Connector；

7. OEM, ODM, customization service available;

Applications of mini pressure transmitter sensor:

1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel

2. Applied in the marine and aviation industries

3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology

4. Utilized in hydraulic and pneumatic control systems




1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.

2. When placing an order, please note that explosion-proof products do not include a digital display.

3. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are grounded reliably.
4. Cable Without cable by default. Three materials are available if required. If there are no special instructions, polyethylene cable materials can be used. If you need a different cable material, please specify it in the order form.
5. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.




Order Guide of mini pressure transmitter sensor
BP15X	Analog Pressure Transmitter
	Code	Outline Construction
	5	Packard plug				6	Sealed Direct Output Cable 1.5 meters
	7	Mini Hirschmann Connector				8	Large Hirschmann Connector
		Measurement Range	0kPa ~ 10kPa…5MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC		S5	0~20mADC
				S2	1~5VDC		S6	0~10VDC
				S3	0~5VDC		S7	0.5~4.5VDC
				S4	0~10mADC
					Code		Pressure Connection
					J1		M20×1.5
					J2		G1/2
					J3		G1/4
					J4		7/16-20UNF
					J5		Others(¢50.4 Flange)
							Code	Electrical Connection
							B1	Hirschmann
							B2	PG7
							B3	Cable Sealed Outlet 1.5 meters
							B4	Other
								Code	Pressure Type
								G	Gauge Pressure
								A	Absolute Pressure
								S	Sealed Reference Pressure
