BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs
Product Details
| Model NO.: | BP93420-IX | Power: | 15-32VDC |
|---|---|---|---|
| Ooutput: | 4-20mA /0-10VDC With LCD /LED Display | Housing Material: | 304L Stainess Steel |
| Trademark: | HTsensor | Origin: | Baoji, China |
| Structure Type: | Diffused Silicon Pressure Transmitter | Measuring Medium: | Liquid |
| Pressure Range: | -100kpa...0kpa ~10kpa...100MPa | IP Rating: | IP65 |
| Highlight |
Reduced Maintenance Pressure Transmitter Sensor,BP93420IX Pressure Transmitter Sensor,Replacement Costs Pressure Transmitter Sensor |
||
Product Description
BP93420IX Pressure Transmitter Sensor for Reduced Maintenance and Replacement Costs

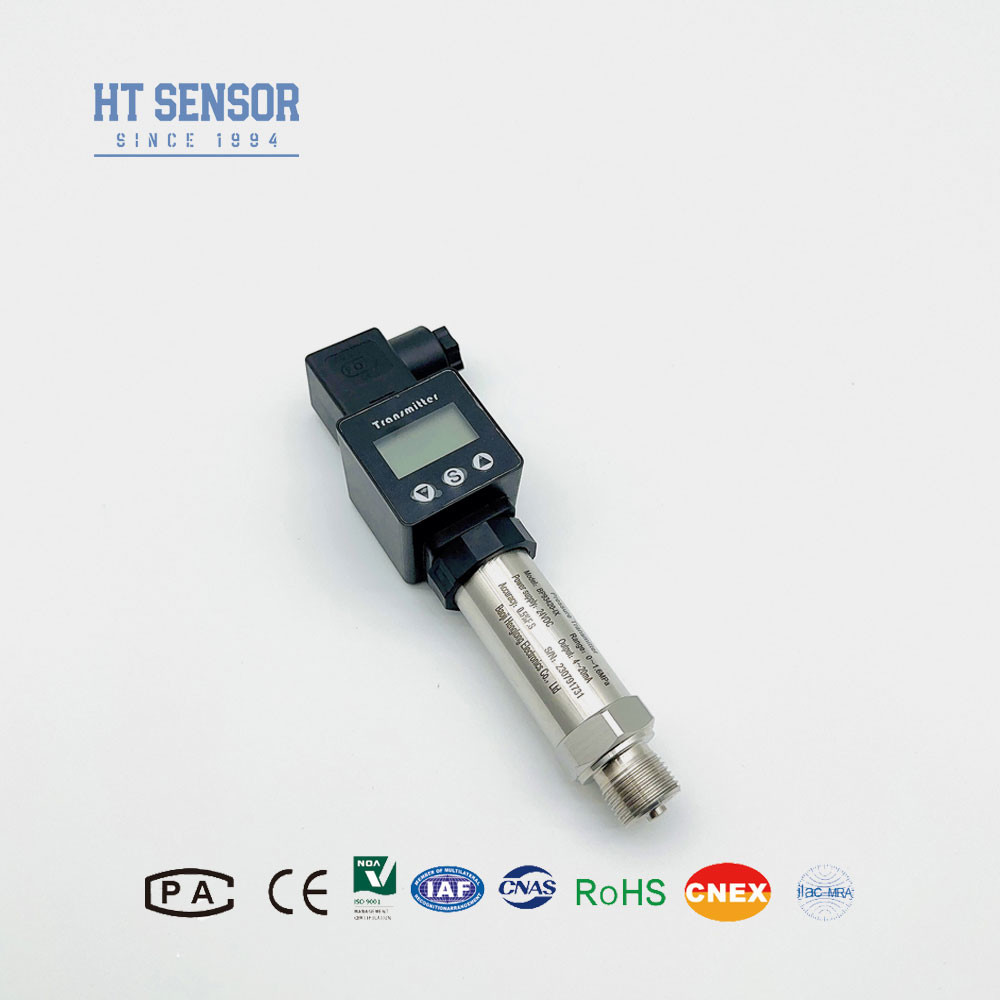

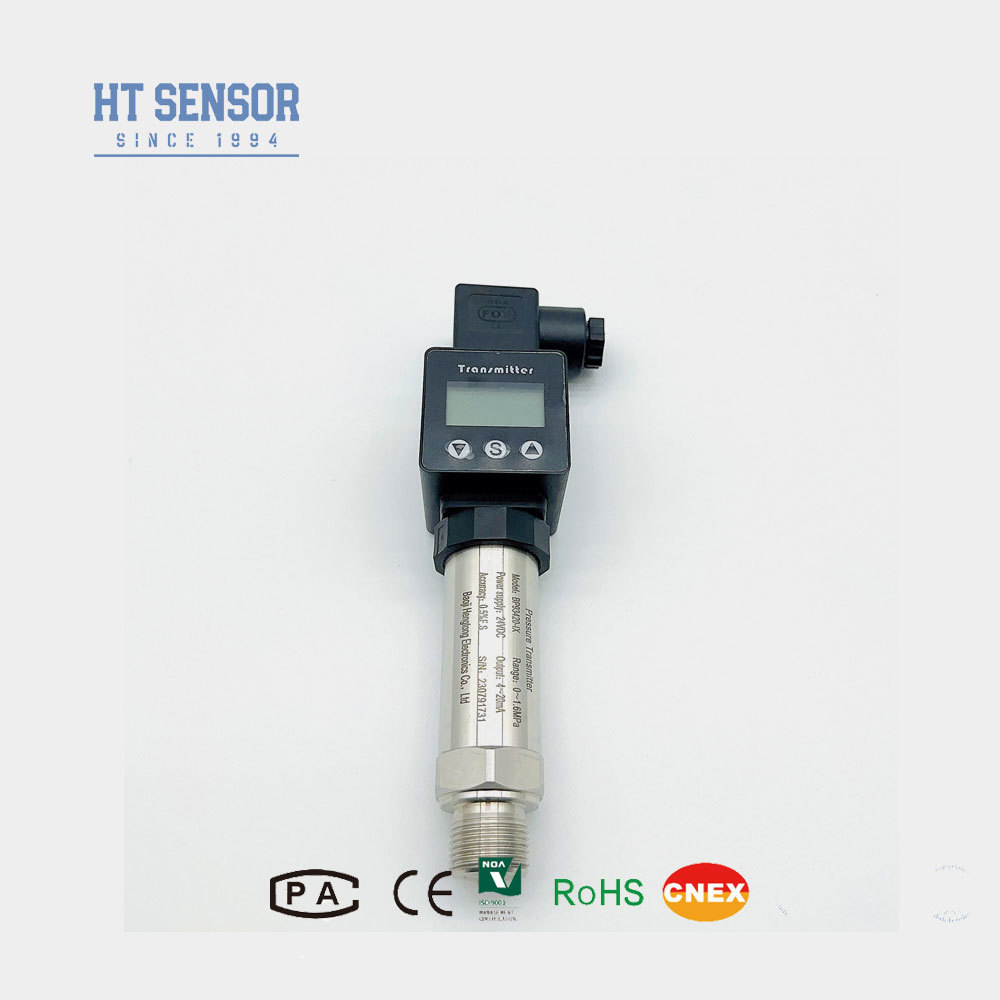

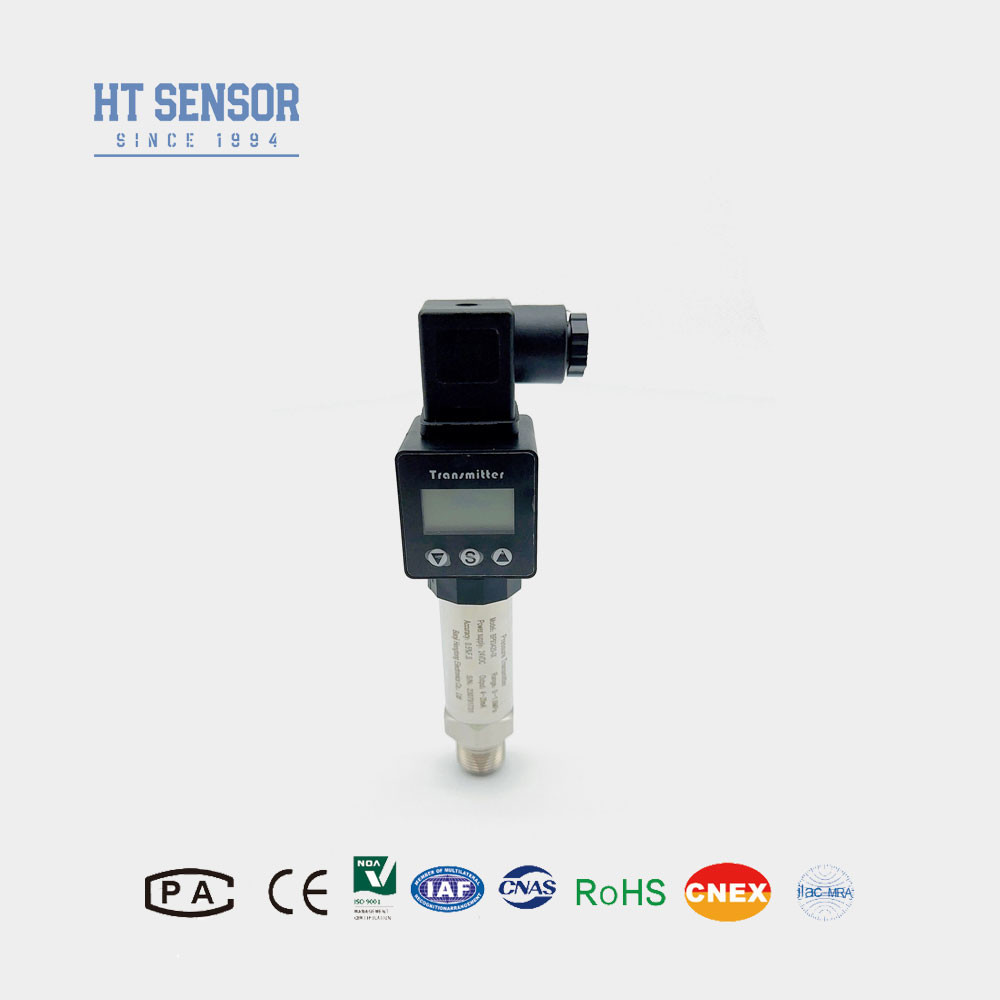

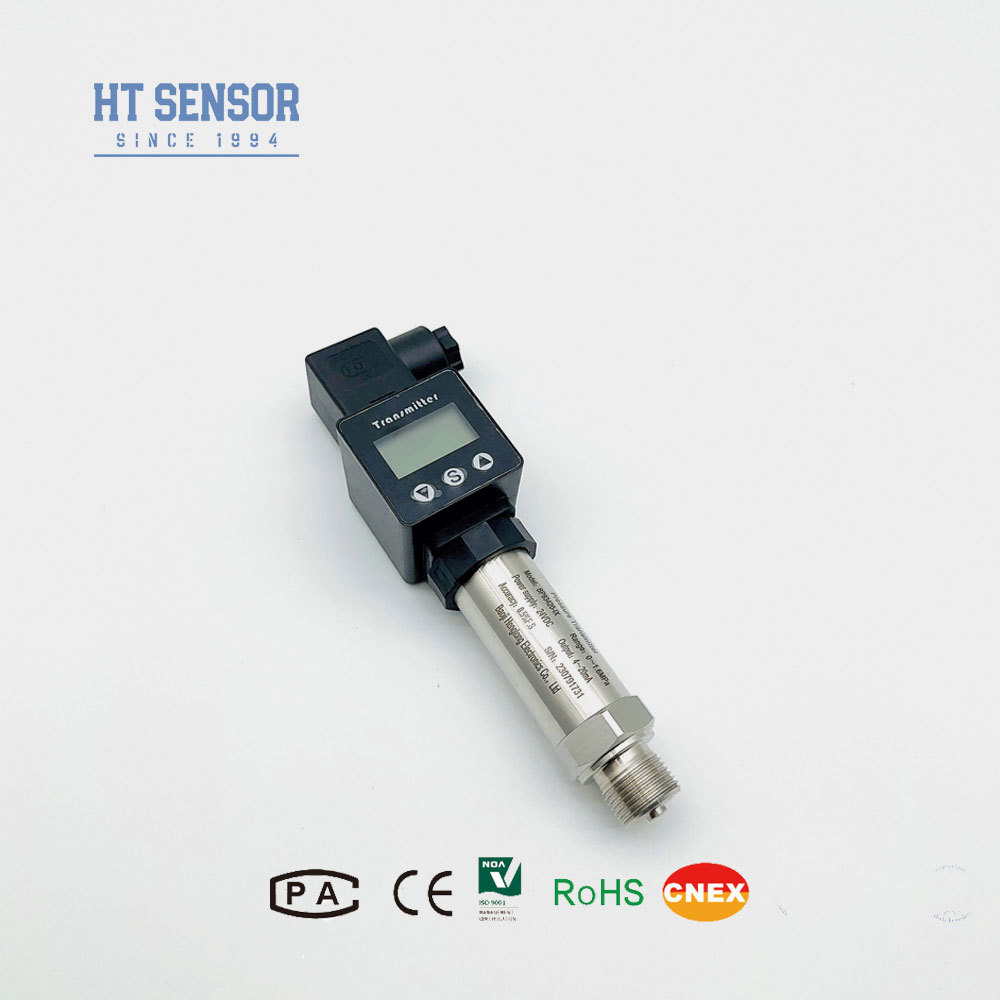

BP93420-IX Pressure Transmitter sensor
Introduction of pressure transmitter sensor:
BP93420IX pressure transmitter sensor using HT series silicon pressure sensor oil-filled core as a signal measuring element. It is a comprehensive pressure transmitter product that integrates pressure measurement, display and output. The diffused silicon pressure sensor is a versatile instrument known for its accuracy and reliability. Its advanced technology ensures accurate pressure measurement in a wide range of applications. Known for its long-term stability, the sensor performs well in demanding industrial processes, reducing maintenance and replacement costs.
Product Features of pressure transmitter sensor:
1. Wide measurement range,stainless steel structure.
2. Various pressure interface options.
3. High precision,display available.
| Performance Parameters of pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability&Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Ordering tips |
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The default cable length is no cable, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
6. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
