Hengtong BP157 Mini DIN Pressure Transmitter Sensor For Industrial Pressure Measurement
Product Details
| Model: | BP157 | Range: | -100kpa~0~10kpa~20Mpa |
|---|---|---|---|
| Output: | 4-20mA /0.5-4.5Vdc/0-10VDC | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Housing Material: | 304 Stainess Steel | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Type: | Mini Pressure Transmitter | Structure Type: | Diffused Silicon Pressure Transmitter |
| Measuring Medium: | Gas And Liquid | Accuracy Grade: | 0.5% |
| Customization: | Available OED / ODM | Customized Request | ||
| Highlight |
Industrial Pressure Transmitter Sensor,Hengtong Mini DIN Pressure Transmitter Sensor,BP157 Mini DIN Pressure Transmitter Sensor |
||
Product Description

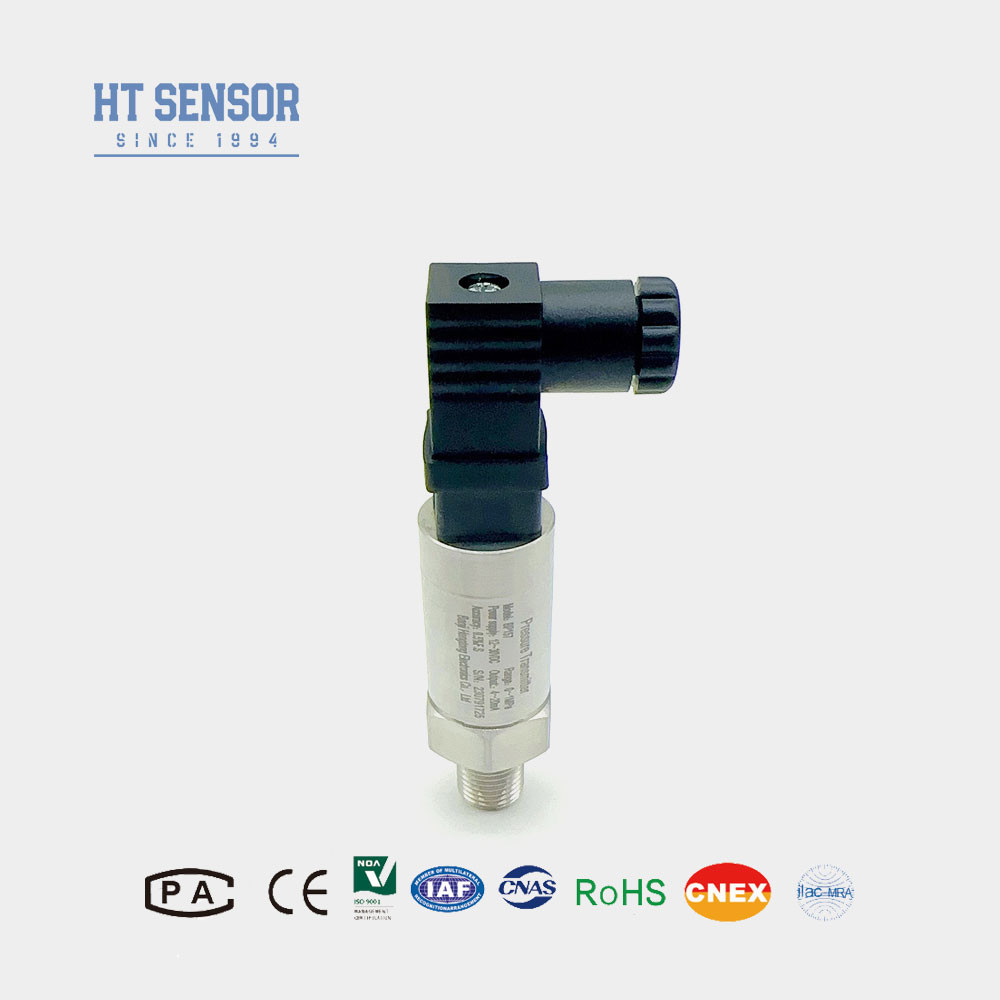

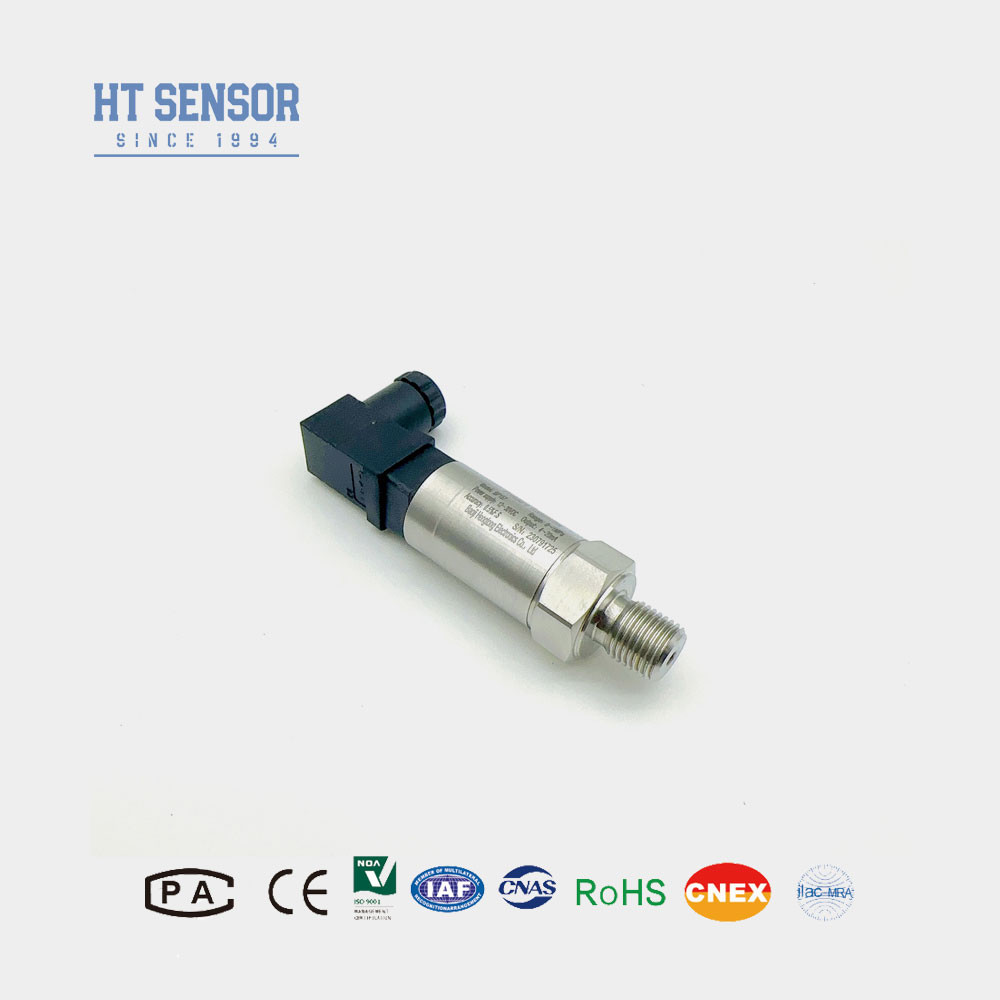

Hengtong BP157 Mini DIN Pressure Transmitter Sensor for Industrial Pressure Measurement
BP157 Pressure Transmitter
Introduction of mini DIN pressure transmitter sensor:
The BP157 industrial pressure sensor transmitter uses HT diffusion silicon pressure sensors as signal measurement elements.Our self-developed pcb converts sensor signals into standard output signals such as 0.5-4.5VDC or 4-20mA for easy reading and recording.Electrical connection mini DIN, small size to meet most field needs.
Product Features of mini DIN pressure transmitter sensor:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
2. Compact and lightweight design.
3. Zero and full-scale adjustable
4. High precision, all stainless steel structure.
| Performance Parameters of mini DIN pressure transmitter sensor: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Span Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
| Ordering tips |
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
4. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
5. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
FAQ:
1. Q: Are you a manufacturing trading company?
A: We are a manufacturer with 30 years' experience.
2. Q: Can I customize special specifications?
A: Yes, our engineers can customize products to meet specific needs. We offer OEM and ODM services.
3. What is your production capacity?
A: Our production facilities can produce up to 30,000 pressure sensor transmitters per month, so we are well positioned to meet large orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.
4. Q: general delivery cycle is how long?.
A: 5~8 working days for standard model. Custom products may vary.
5. Q: Shipping packaging
A: Products are generally shipped by international express, including UPS,FedEx,DHL and INT freight prepaid, or can be collected using your shipping account, standard export packaging, including inspection certificate.
6. Q: Contact us
A: we have an active and experienced sales team, for you to solve the problem of technical and business problems. Please leave us a message or click online services.
