IP65 Rated BP155 Pressure Transmitter Sensor For Protection Against Dust And Water
Product Details
| Model NO.: | BP155 | Power: | 5VDC |
|---|---|---|---|
| Output: | 0.5-4.5VDC | Long-Term Stability: | 0.2F.S/Year |
| Specification: | Diffusion Silicon Pressure Sensor | HS Code: | 9026201090 |
| Type: | Normal Pressure Transmitter Sensor | Measuring Medium: | Liquid Air |
| Pressure Range: | 0kpa~10kpa...20MPa | IP Rating: | IP65 |
| Highlight |
IP65 Rated Pressure Transmitter Sensor,BP155 Pressure Transmitter Sensor |
||
Product Description

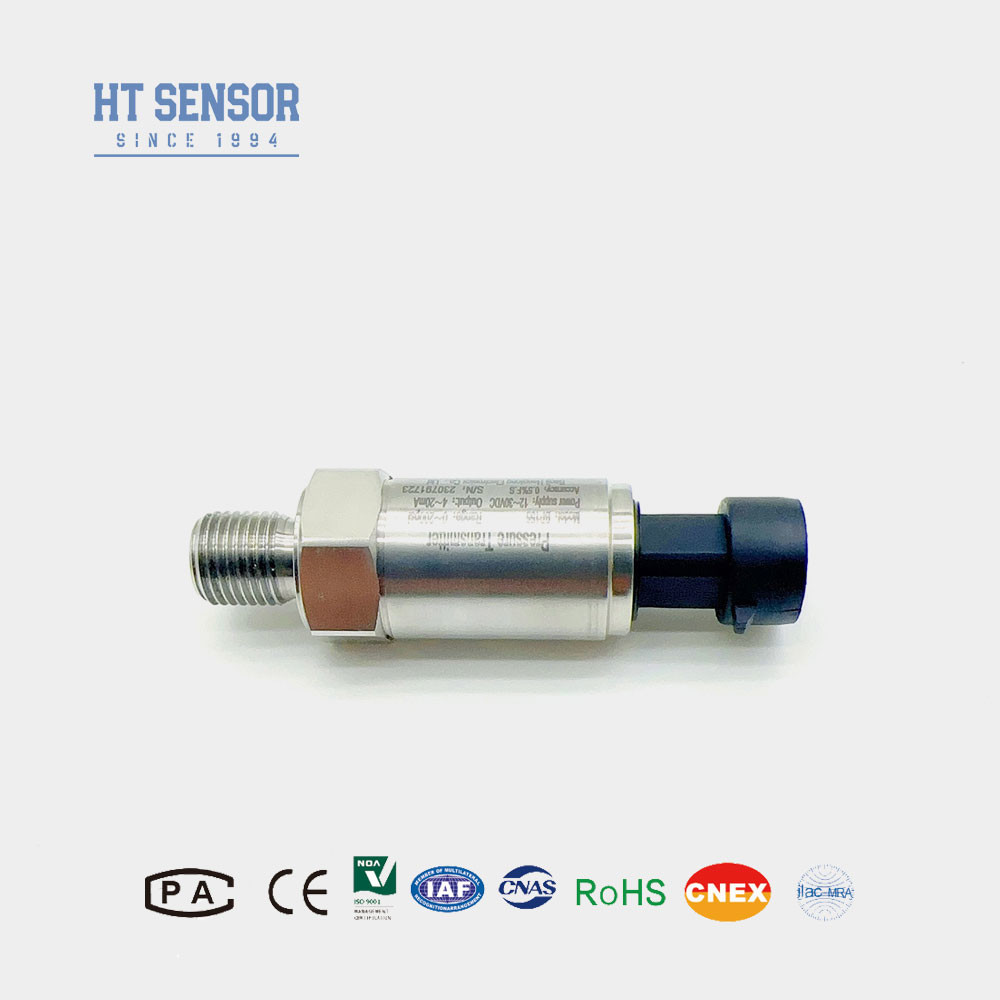

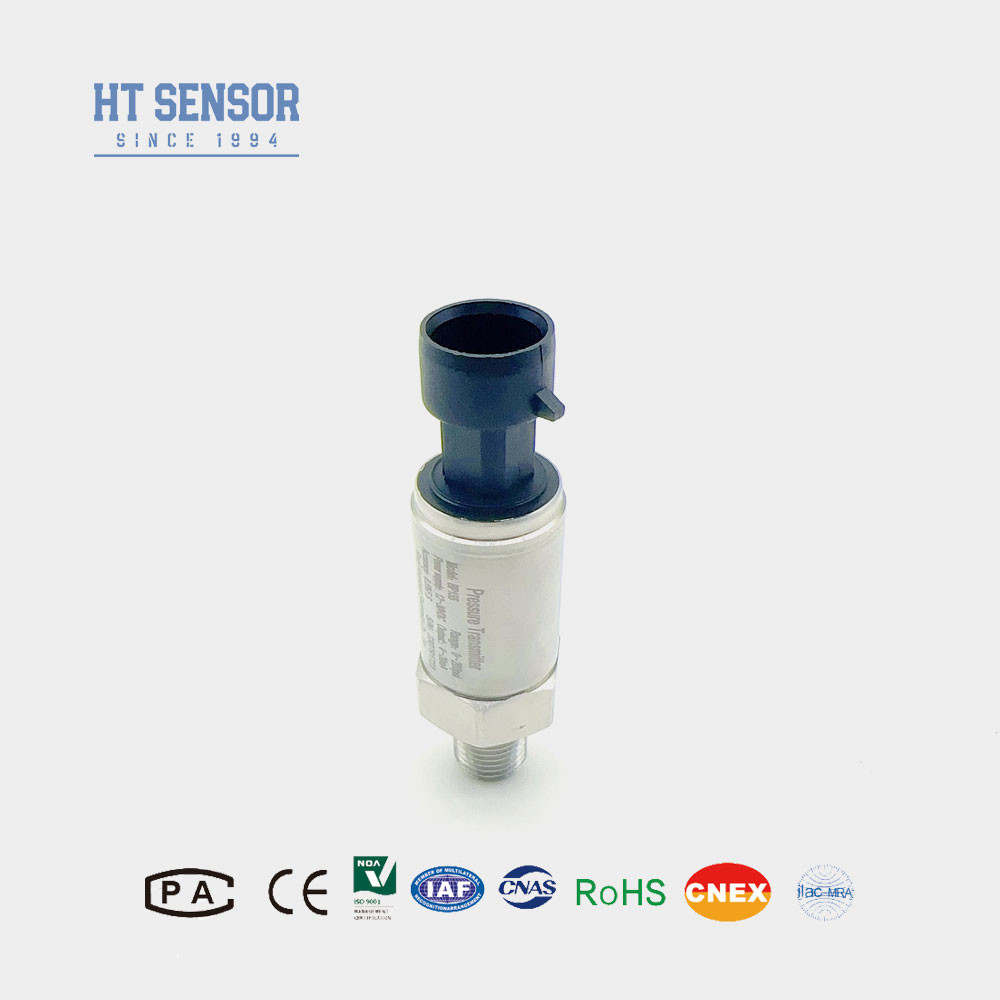

IP65 Rated BP155 Pressure Transmitter Sensor for Protection Against Dust and Water
BP155 Pressure Transmitter sensor
Introduction of pressure transmitter sensor:
BP155 series pressure transmitter light sensor design, compact structure, easy to install and save space. Pressure transmitter sensors are easy to integrate.The diffuse silicon pressure sensor is designed to be easily calibrated and to ensure accurate measurements.Such pressure sensors are widely used in the automotive industry, including tire pressure monitoring systems.
| Performance Parameters of pressure transmitter sensor | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤0.1%FS |
| Hysteresis | ≤0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex iaIIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
Product Features of pressure transmitter sensor:
1. Wide measuring range.
2. IP65 protection grade stainless steel structure.
3. High precision, all stainless steel structure.
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples |
| Ordering tips |
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
Q&A
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 30 years of experience.
Q2:Customized Product.
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee.
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing.
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US.
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
